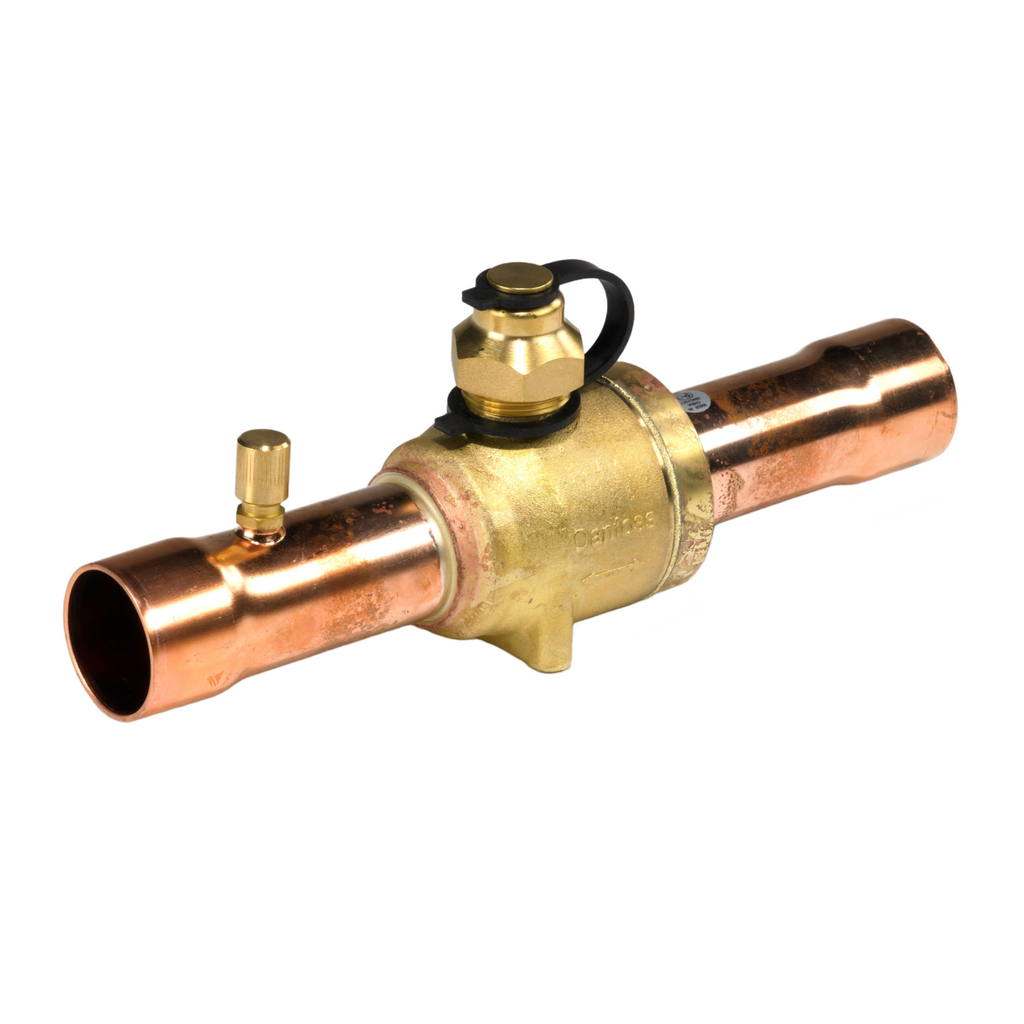

009L8067 GBC 35S BALL VALVE CAP STRAP M/5

GBC V2 - Ball Valves
Danfoss GBC ball valves are manually operated shut-off valves suitable for bi-directional low. The design, weld, and choice of the sealing
material enable these ball valves to meet the most demanding requirements and provide years of leak-free performance.

Register to Access Pricing

Manufacturer

This combination does not exist.

Manufacturer: Danfoss

Documents

GBC V2 - Ball Valves.pdf

Barcode: P009L8067
Internal Reference: 009L8067

Collapsible Product Specs

Description

Gross weight	1.601 Kilogram
Net weight	1.4 Kilogram
Volume	2.876 Liter
EAN	5702428514651
Type	GBC 35s
Product group	Shut-off and regulating valves
Product Name Description	Shut-off ball valve

Product Details

Access port	Yes
Approval	C UL US LISTED
Body material	Brass
CE evaluated	Yes
China RoHS compliance	Yes with exemptions
Connection material	Copper
Contains batteries	No
Cv value [gal/min]	107.23 gal/min
Direction	Straightway
Equipment	Cap w. wire seal
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Bi-flow
Flow direction indicator	Embossed 2-way arrow
Fluid Group	2
Ignition source assessment	Yes
Inlet connection type	Solder, ODF
Inlet size [in]	1 3/8 in
Inlet size [mm]	35 mm
Kv value [m³/h]	92.96 m³/h
Max. media temp. Oil free [°C]	80 °C
Max. Working Pressure [bar]	45 bar
Max. Working Pressure [psig]	650 psig
Oil free refrigerants	R1234ze(E) R134a R513A R515B
Outlet connection type	Solder, ODF
Outlet size [in]	1 3/8 in
Outlet size [mm]	35 mm
Packing format	Multi pack
Parts included	Schrader valve
PED category	Art. 4, par. 3
Product accessories	BM/GBC valve accessories
Quantity per packing format	5 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)

Refrigerants	R1234yf R1234ze(E) R134a R22/R407C R290 R32 R404A/R507A R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R515B R516A R600 R600a R1270
SCIP dossier no.	54759e91-ccbf-4eee-ac88-41fa196dcf28
SCIP dossier product name	GBC V2 16s-79s & 6s E-79s E with AP
Serviceable	BM/GBC valve spare parts
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-40 °F
UL approved refrigerants	R1234yf R1234ze(E) R134a R22 R290 R32 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A R600 R600a
UL evaluated	Yes
