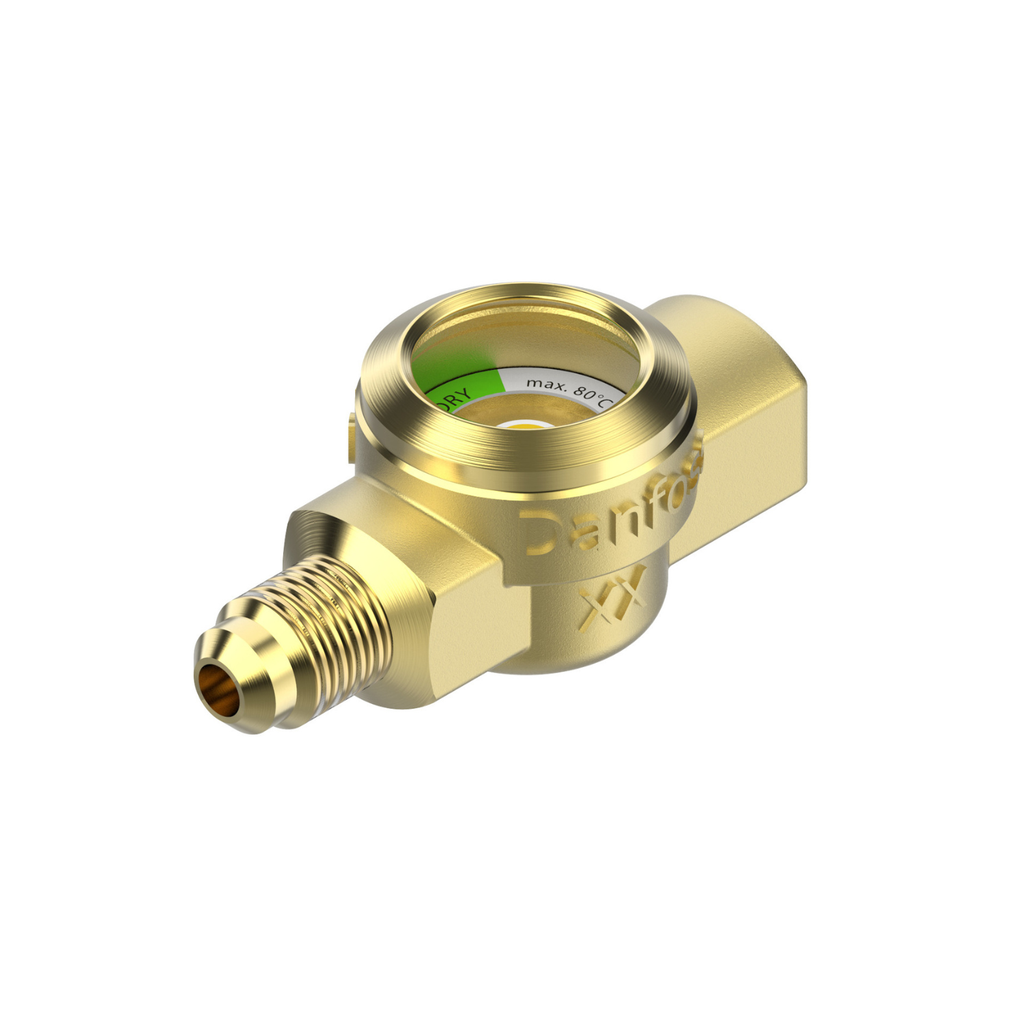

014L0171 SGP 6 N SIGHT GLASS M/24X3

SGP - Sight Glasses
Danfoss sight glasses with hard crystal view ports are designed to accurately indicate the presence of moisture in refrigeration and airconditioning
systems. When system moisture content rises above permissible levels, the “dry/green” indicator will change to yellow indicating
a “wet” system. The indication of dangerous moisture levels is essential in helping prevent the formation of harmful acids which are detrimental
to the system. The SGP sight glass is simply the best-made sight glass available today.

Register to Access Pricing

Manufacturer

This combination does not exist.

Manufacturer: Danfoss

Documents

SGP - Sight Glasses.pdf

Barcode: P014L0171
Internal Reference: 014L0171

Collapsible Product Specs

Description

Gross weight	0.112 Kilogram
Net weight	0.098 Kilogram
Volume	0.139 Liter
EAN	5702428818889
Type	SGP 6 N
Product group	Sight glasses
Product Name Description	Sight glass

Product Details

Approval	C UL US LISTED EAC
Approval file name	REF. LIQUID INDICATOR 76H4
Body material	Brass
China RoHS compliance	Yes with exemptions
Connection material	Brass
Contains batteries	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Green: max moist con@25 °C	R134a: 30 ppm R22: 30 ppm R404A: 20 ppm R407A: 29 ppm R407C: 30 ppm R407F: 30 ppm R410A: 66 ppm R448A: 28 ppm R449A: 29 ppm R450A: 23 ppm R452A: 20 ppm R507A: 15 ppm R513A: 22 ppm
Green: max moist con@43 °C	R134a: 45 ppm R22: 50 ppm R404A: 25 ppm R407A: 48 ppm R407C: 60 ppm R407F: 60 ppm R410A: 135 ppm R448A: 70 ppm R449A: 53 ppm R450A: 46 ppm R452A: 30 ppm R507A: 30 ppm R513A: 22 ppm
Inlet connection type	Flare
Inlet Internal/External	Internal
Inlet size [in]	1/4 in
Inlet size [mm]	6 mm
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	754 psig
Moisture indicator	N indicator
Oil free refrigerants	R1234ze(E) R134a R513A R515B
Other RoHS documentation	Saudi Arabia RoHS
Outlet connection type	Flare
Outlet Internal/External	External
Outlet size [in]	1/4 in
Outlet size [mm]	6 mm
Packing format	Multi pack
Product accessories	Generic accessories
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants	R1233zd(E) R1234yf R1234ze(E) R134a R22 R32 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R452B R454B R454C R455A R463A R507A R513A R515B R744
SCIP dossier no.	323c7b85-ff73-43cd-8fce-a44eabbf5297
Serviceable	No
Temperature range [°C] [max]	80 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	175 °F
Temperature range [°F] [min]	-58 °F
UL approval file name	REF. LIQUID INDICATOR 76H4
UL approved refrigerants	R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R450A R452A R463A R507A R513A R515B R744
UL evaluated	Yes
Yellow: min moist con@25 °C	R134a: 100 ppm R22: 120 ppm R404A: 70 ppm R407A: 115 ppm R407C: 140 ppm R407F: 168 ppm R410A: 266 ppm R448A: 110 ppm R449A: 105 ppm R450A: 148 ppm R452A: 79 ppm R507A: 60 ppm R513A: 75 ppm
Yellow: min moist con@43 °C	R134a: 170 ppm R22: 200 ppm R404A: 100 ppm R407A: 192 ppm R407C: 225 ppm R407F: 240 ppm R410A: 540 ppm R448A: 227 ppm R449A: 200 ppm R450A: 245 ppm R452A: 143 ppm R507A: 110 ppm R513A: 123 ppm
