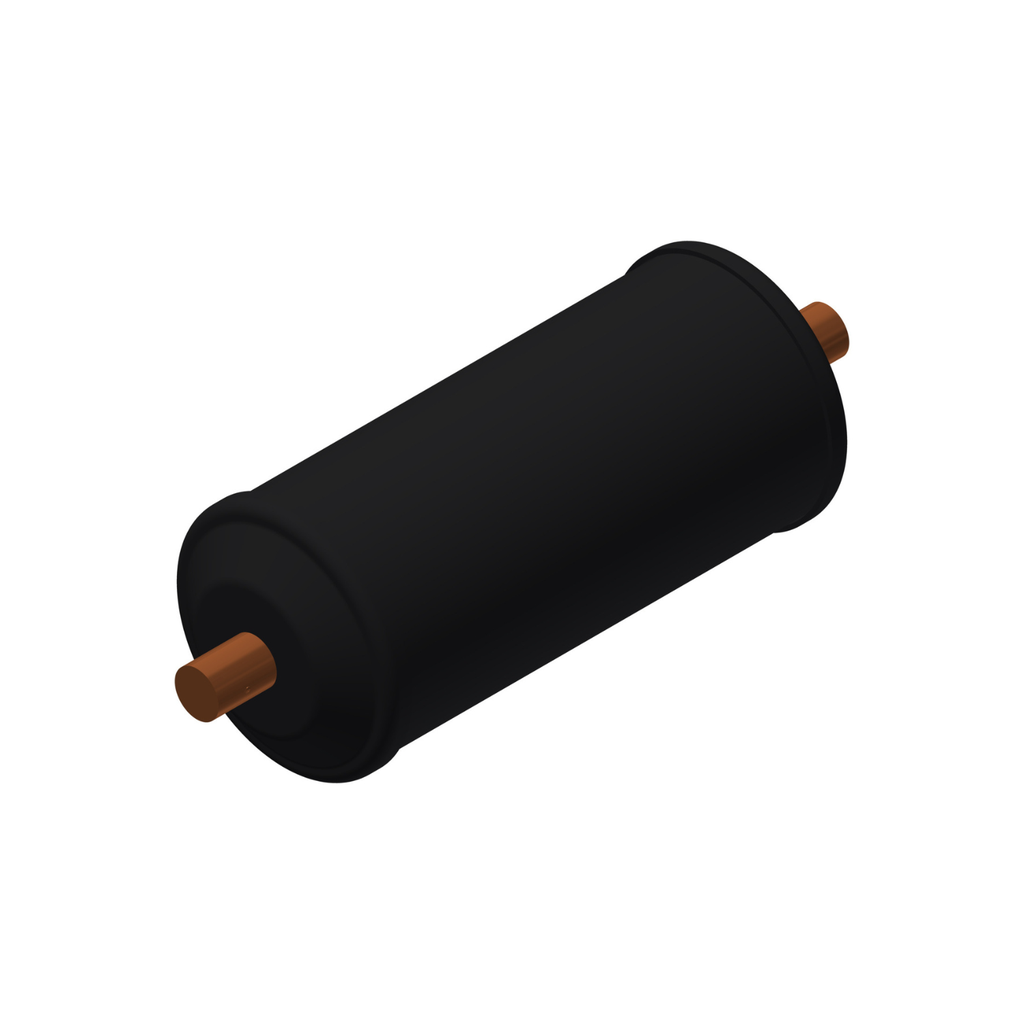

023Z0031 FILTER DRIER DCL 304S M/8

023Z0031 FILTER DRIER DCL 304S M/8

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

Register to Access Pricing

Manufacturer

This combination does not exist.

Contact us

Danfoss

Manufacturer: Danfoss

Documents

Filter Driers.pdf

Barcode: P023Z0031
Internal Reference: 023Z0031

Collapsible Product Specs

Description

Gross weight	1.391 Kilogram
Net weight	1.262 Kilogram
Volume	2.023 Liter
EAN	5702428160025
Type	DCL
Product group	Filter Driers
Product Name Description	Hermetic filter drier

Product Details

Acid capacity [g]	6.23 g
Acid capacity [oz]	0.22 oz
Activated alumina [%]	20 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes with exemptions
Connection material	Copper
Contains batteries	No
Core	Solid core
Core Size code	30 cu.in.
Core type	Solid core
Drying Cap [Drops of Water] 24°C	R134a: 888 R290: -- R32: 748 R404A: 925 R407C: 863 R410A: 804 R507: 969
Drying Cap [Drops of Water] 52°C	R134a: 813 R290: -- R32: 688 R404A: 877 R407C: 795 R410A: 715 R507: 872
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a)
Filter application	Std Moisture & Acid Capacity
Flow capacity [kW]	R134a: 32.9 R290: 39.6 R32: 50.1 R404A: 23.1 R407C: 33.7 R410A: 34.2 R507: 22.4
Flow capacity [TR]	R134a: 9.3 R290: 11.3 R32: 14.2 R404A: 6.6 R407C: 9.6 R410A: 9.7 R507: 6.4
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	1/2 in
Inlet connection type	Solder, ODF
LiqCap Cond (ARI 710-2009) [SI]	Delta p=0.07bar tliq=30°C tvap=-15°C
LiqCap Cond (ARI 710-2009) [IMP]	Delta p=1psi tliq=86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Molecular sieve [%]	80 %
Net volume [foz US]	15.68 Fluid Ounce US
Net volume [l]	0.464 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A

Outlet 1 connection size [in]	1/2 in
Outlet connection type	Solder, ODF
PED category	Art. 4, par. 3
Product accessories	No
Product description	Liquid line filter drier
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A R600
Serviceable	No
Shell volume [foz US]	24.42 Fluid Ounce US
Shell volume [l]	0.72 L
Solid core surface [cm²]	340 cm²
Solid core surface [in²]	52.7 in²
Solid core volume [cm³]	258 cm³
Solid core volume [in³]	15.77 in³
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type designation	DCL 304S
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
UL evaluated	Yes
