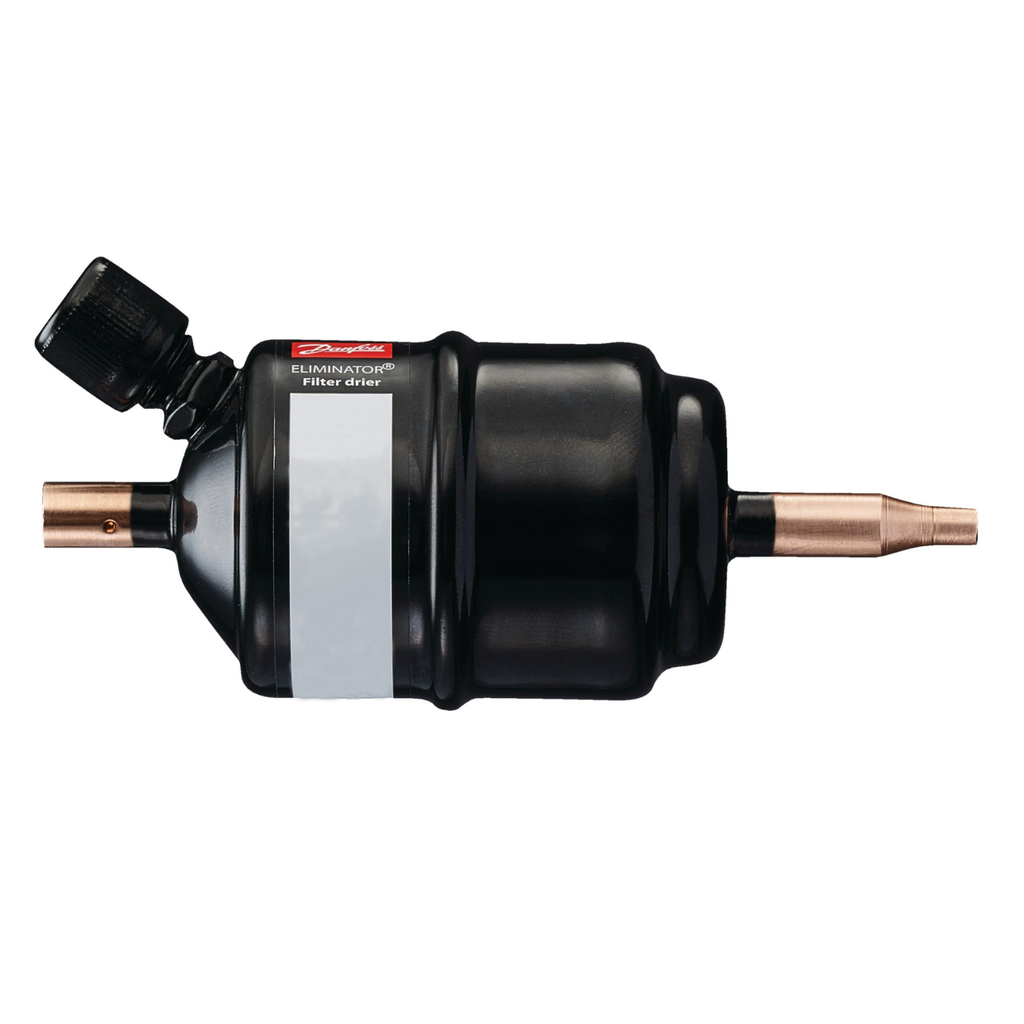

023Z5174 FILTER DRIER DCL 032/CAPSV M/32

023Z5174 FILTER DRIER DCL 032/CAPSV M/32

DCL with Schrader valve - Filter Driers
The Danfoss 1.5 hermetic lter driers include a Schrader valve, making servicing the system easy and convenient, and convertible outlet for
tting on capillary tube or ¼ inch system connection. Thanks to the solid core, Danfoss ELIMINATOR® lter driers oer exceptional drying
capacity to protect the system against harmful acids and moisture. The DCL 1.5 cubic inch lter drier with Shrader makes an excellent upgrade
in replacing loose bead driers due to superior drying and small internal volume.

Register to Access Pricing

Manufacturer

This combination does not exist.

Contact us

Danfoss

Manufacturer: Danfoss

Documents

Filter Driers.pdf

Barcode: P023Z5174
Internal Reference: 023Z5174

Collapsible Product Specs

Description

Gross weight	0.191 Kilogram
Net weight	0.148 Kilogram
Volume	0.318 Liter
EAN	5702428937498
Type	DCL
Product group	Filter Driers
Product Name Description	Hermetic filter drier

Product Details

Acid capacity [g]	0.53 g
Acid capacity [oz]	0.019 oz
Activated alum/Molec sieve [%]	20% / 80%
Activated alumina [%]	20 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes with exemptions
Connection material	Copper
Connection notes	Schraeder Inlet
Contains batteries	No
Core	Solid core
Core Size code	03 cu.in.
Core type	Solid core
Drying Cap [Drops of Water] 24°C	R134a: 76 R290: 60 R32: 64 R404A: 79 R407C: 74 R410A: 69 R507: 83
Drying Cap [Drops of Water] 52°C	R134a: 69 R290: 48 R32: 59 R404A: 75 R407C: 68 R410A: 61 R507: 74
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a)
Filter application	Std Moisture & Acid Capacity
Flow capacity [kW]	R134a: 5.8 R290: 7.0 R32: 8.8 R404A: 4.1 R407C: 5.9 R410A: 6.0 R507: 4.0
Flow capacity [TR]	R134a: 1.6 R290: 2.0 R32: 2.5 R404A: 1.2 R407C: 1.7 R410A: 1.7 R507: 1.1
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	1/4 in
Inlet connection type	Solder, ODF
LiqCap Cond (ARI 710-2009) [SI]	Delta p=0.07bar, tliq= 30°C, tvap=-15°C
LiqCapCond (ARI 710-2009) [IMP]	Delta p=1psi, tliq= 86°F, tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig

Molecular sieve [%]	80 %
Net volume [foz US]	1.72 Fluid Ounce US
Net volume [l]	0.051 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet connection size [mm]	2.8 mm
Outlet connection type	Solder, ODF
PED category	Art. 4, par. 3
Product description	Liquid line filter drier
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R134a R22/R407C R23 R32 R404A R407F R407H R410A R444B R448A R449A R450A R452A R454A R454C R463A R507A R515B R516A R600
Serviceable	No
Shell volume [foz US]	2.44 Fluid Ounce US
Shell volume [l]	0.07 L
Solid core surface [cm²]	59 cm²
Solid core surface [in²]	9.1 in²
Solid core volume [cm³]	21 cm³
Solid core volume [in³]	1.3 in³
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type designation	DCL 032/CAPsV
UL approval file name	SA6398
UL approved refrigerants	R134a R22 R23 R404A R407C R407F R410A R448A R449A R450A R452A R507A
UL evaluated	Yes
