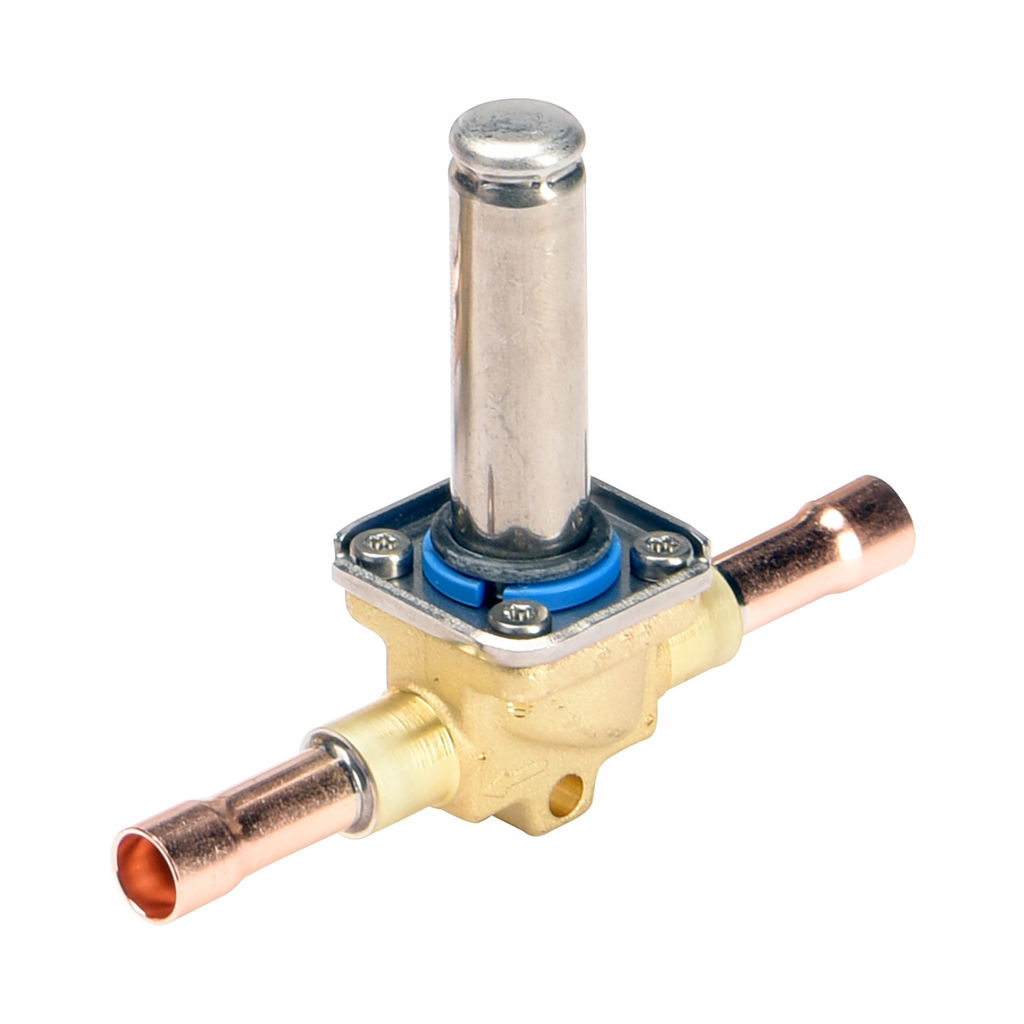

032L7121 EVR 8 VALVE ODF-ODF 1/2IN MULTI 12

EVR Version 2 - Solenoid Valves
EVR Version 2 solenoid valves are direct or servo-operated solenoid valves for liquid, suction, and hot gas lines. They are suitable for all
refrigeration, freezing, and air conditioning applications and are compatible with fuorinated refrigerants. The valves can be delivered as
normally open or closed as well as with or without manual operation.

Register to Access Pricing

Manufacturer

This combination does not exist.

Manufacturer: Danfoss

Documents

EVR Version 2 - Solenoid Valves.pdf

Barcode: P032L7121
Internal Reference: 032L7121

Collapsible Product Specs

Description

Gross weight	0.249 Kilogram
Net weight	0.19 Kilogram
Volume	0.897 Liter
EAN	5702428952576
Type	EVR 8
Product group	Solenoid valves
Product Name Description	Solenoid valve

Product Details

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Approval	EAC LLC CDC EURO-TYSK UL
Body material	Brass
China RoHS compliance	Yes with exemptions
Coil	No
Contains batteries	No
Cv value [gal/min]	1.35 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Fluid Group	1 2
Function	NC
Inlet connection type	Solder, ODF
Inlet size [in]	1/2 in
Kv value [m³/h]	1.15 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[bar] 20W DC	28 bar
MaxOPD[bar] coil BJ/BX	38 bar
MaxOPD[psi] 10W AC	550 psi
MaxOPD[psi] 20W DC	406 psi
MaxOPD[psi] coil BJ/BX	550 psi
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0.03 bar
MinODP [psi]	0.44 psi
MOPD[bar/psi]	Coil Dependent
MWP [bar] PED compliant	49 bar
Orifice size [mm]	7 mm
Outlet connection type	Solder, ODF
Outlet size [in]	1/2 in

Parts Program name	EVR
PED category	Art. 4, par. 3
Product accessories	Solenoid valve accessories
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R512A R513A R513B R515A R515B R516A R600 R600a
SCIP dossier no.	52f475eb-6026-442a-932e-863e4660eac8
SCIP dossier product name	EVR 2-8/EVO 100-102
Serviceable	Solenoid valve spare parts
Type designation	Solenoid valve, Solder
UL approved refrigerants	R125 R134a R152a R22 R290 R404A R407A R407C R407F R407H R410A R417A R422A R422B R422D R438A R442A R447B R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R600 R600a R1234ze(E) R32 R452B R454B R454A R454C R455A
UL evaluated	Yes
Valve operation	Servo-diaphragm

Documents, Prints, etc.

032L7121 EVR 8 VALVE ODF-ODF 1/2IN MULTI 12

$ 0.00 0.0 CAD $ 88.40

$ 88.40
