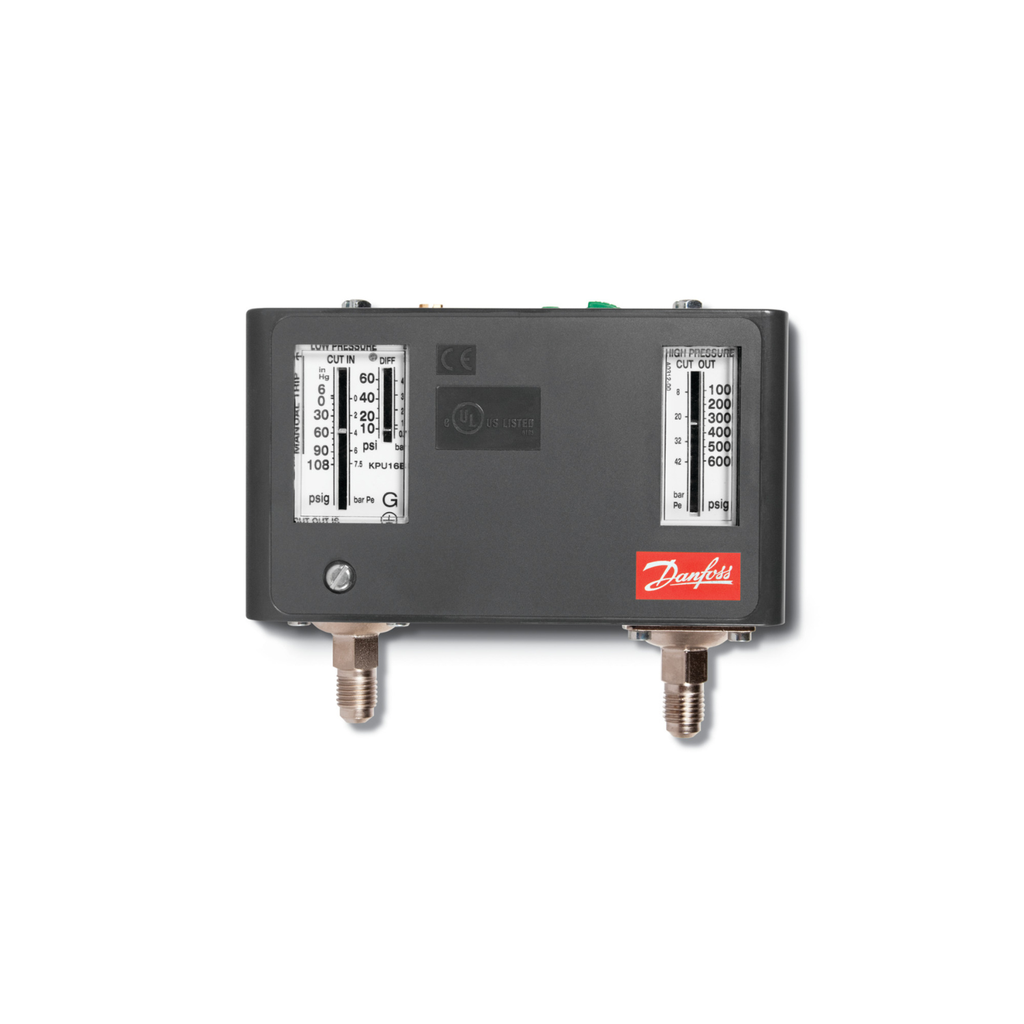

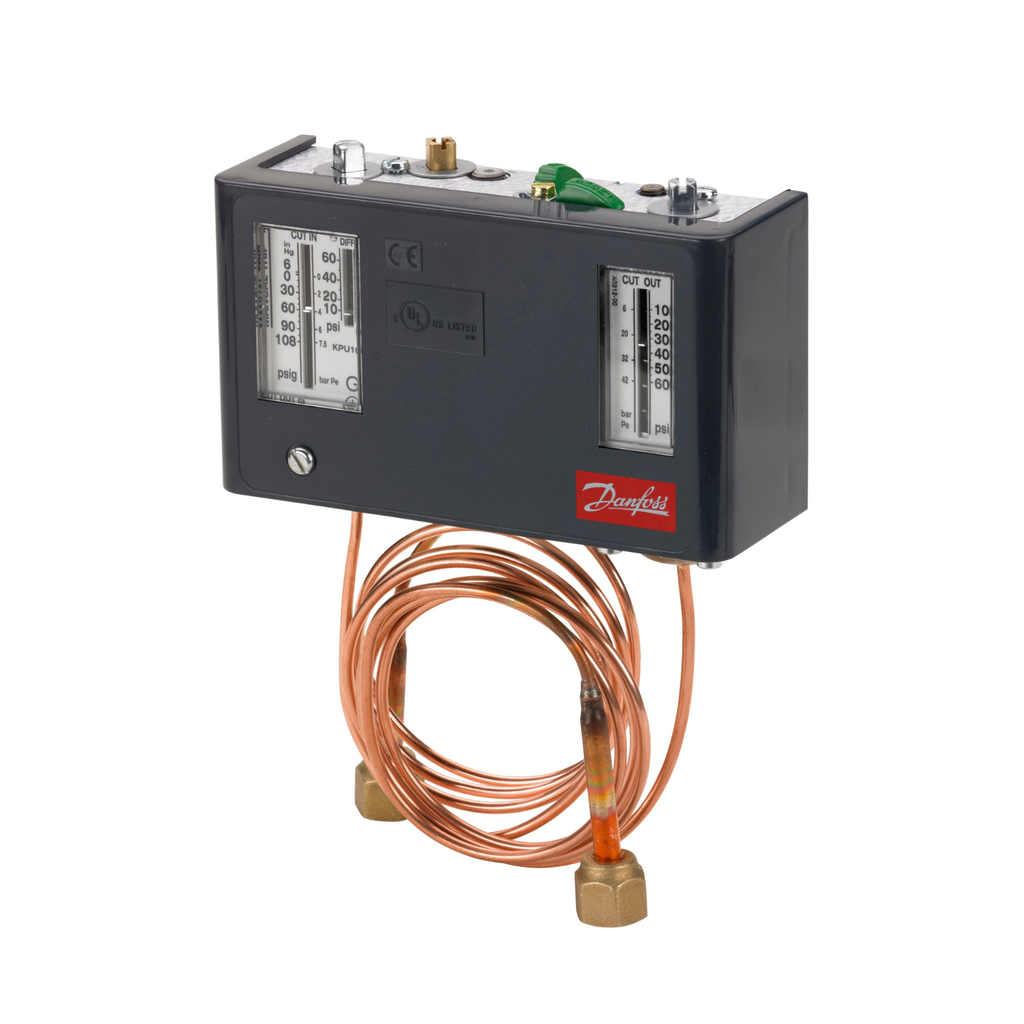

060-5254 KPU16B PRESSURE SWITCH M/10

KPU - Pressure Switches
KPU pressure switches are designed to be contractor friendly and used in refrigeration and air-conditioning systems to protect the systems
from excessively low suction or high discharge pressure. They can also be applied to start and stop compressors and the fans of air-cooled
condensers. KPU pressure switches, in single and dual versions, cover a comprehensive range of applications and are designed for use with
Fluorinated and non-aggressive refrigerants. Most KPU pressure controls can be used with R-410a systems with only a few code numbers.

Register to Access Pricing

Manufacturer

This combination does not exist.

Manufacturer: Danfoss

Documents

KPU - Pressure Switches.pdf

Barcode: P060-5254
Internal Reference: 060-5254

Collapsible Product Specs

Description

Gross weight	1.029 Kilogram
Net weight	0.983 Kilogram
Volume	1.5 Liter
EAN	5702428064002
Type	KPU16B
Product group	Switches and thermostats
Product Name Description	Pressure switch

Product Details

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-40 °F
Application note	Not applicable for liquid line
Approval	CE LVD PED RoHS c UL us UL873, CS C22.2
Cap. tube length fraction [in]	36 in
Capillary tube length [mm]	900 mm
CE evaluated	Yes
China RoHS compliance	Out of scope
Contact function	SPDT + SPST(NO)
Contact rating	144 A, 240 V AC 24 A, 240 V AC DC = 12 W pilot duty FLA = 24 A, 120 V AC LRA = 144 A, 120 V AC
Contains batteries	No
Differential left side [bar] [max]	4 bar
Differential left side [bar] [min]	0.7 bar
Differential left side [psi] [max]	60 psi
Differential left side [psi] [min]	10 psi
Differential right side [bar]	4 bar
Differential right side [psi]	60 psi
Electrical conn. comments	for ½ in male pipe thread
Electrical connection	Hole
Electrical connection size	7/8 in
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit protection, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5–1.5 mm² Flex, no ferrules: 0.7–2.5 mm² Solid/stranded: 0.75–2.5 mm²
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Lubricants compatibility	Oilfree applications
MWP left side [bar] Pe	17 bar
MWP left side [psig] Pe	250 psig
MWP right side [bar] Pe	46.5 bar
MWP right side [psig] Pe	675 psig
Oil free refrigerants	R134a R513A R515B
Other RoHS documentation	Saudi Arabia RoHS

Pressure connection size	1/4
Pressure connection standard	DIN 8912
Pressure connection type	Flare nut
Pressure Male/Female	Female
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Dual Pressure Control
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no. 1306-19-0)
Refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R450A R452A R507A R513A R515B R1233zd(E)
Regulation left side [bar] Pe [max]	7.5 bar
Regulation left side [bar] Pe [min]	-0.2 bar
Regulation left side range Pe	6 inHg – 108 psig
Regulation right side [bar] Pe [max]	42 bar
Regulation right side [bar] Pe [min]	8 bar
Regulation right side [psig] Pe [max]	600 psig
Regulation right side [psig] Pe [min]	100 psig
Reset function, left side	Min convertible
Reset function, right side	Max convertible
SCIP dossier no.	2e0fe8e8-9c82-4015-8eaf-002748cf7fb1
SCIP dossier product name	KPU Pressure Switch
Serviceable	No
UL approval file name	E31024
UL approved refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R450A R452A R507A R513A R515B
UL evaluated	Yes
