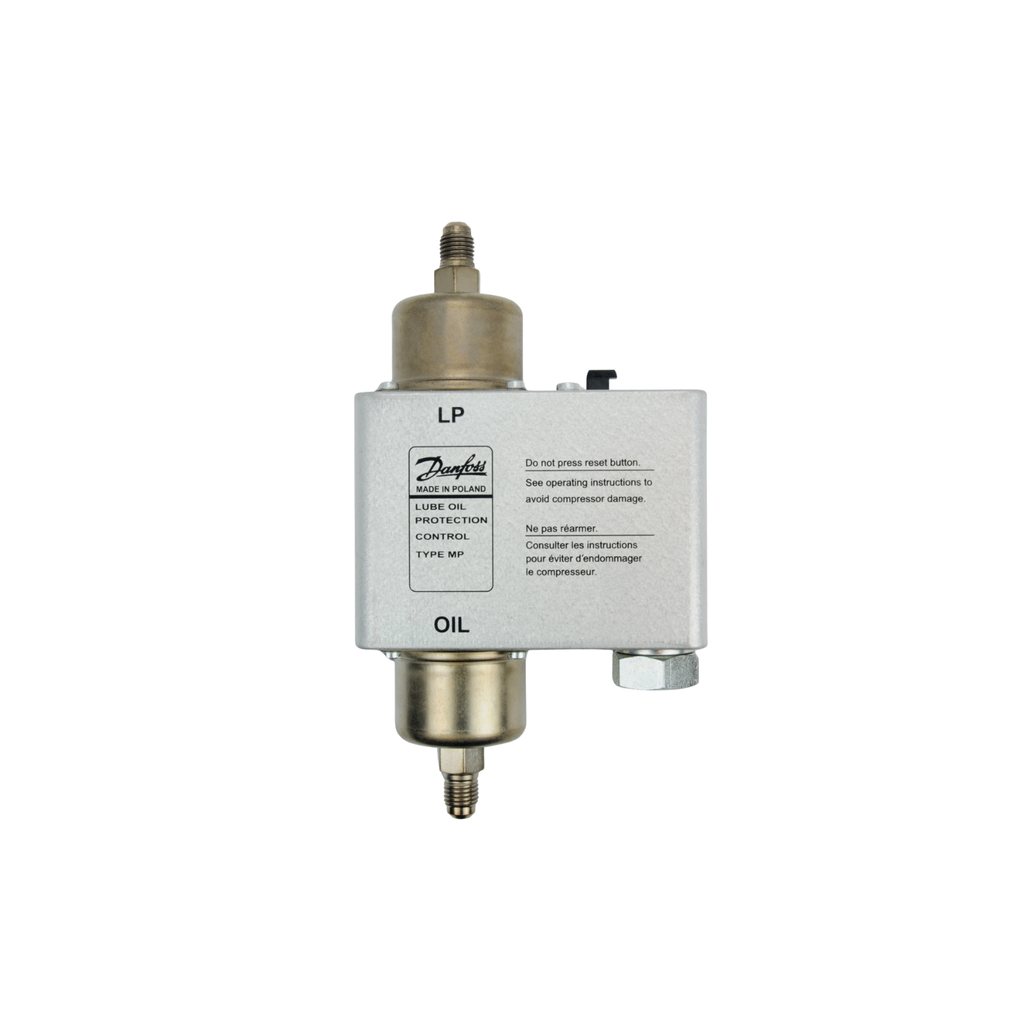

060B200391 MP54 DIFF. PRESSURE SWITCH M/21

MP - Differential Pressure Switch / Lube Oil Protection Switch
MP 54 and MP 55 oil differential pressure switches are used to protect refrigeration compressors against low oil pressure. These switches are
compatible with HCFC and non-flammable HFC refrigerants.

Register to Access Pricing

Manufacturer

This combination does not exist.

Manufacturer: Danfoss

Documents

MP-Differential pressure switch.pdf

Barcode: P060B200391
Internal Reference: 060B200391

Collapsible Product Specs

Description

Gross weight	0.8 Kilogram
Net weight	0.693 Kilogram
Volume	1.972 Liter
EAN	5702424499587
Type	MP54
Product group	Switches and thermostats
Product Name Description	Differential pressure switch

Product Details

Adjustment	Cut out for falling pressure
Amb. Temp. Note	Bellows max 100 °C / 212 °F
Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CCC CE CMIM DNV∙GL EAC LLC CDC EURO-TYSK LVD RoHS China TYSK c UL us UL873, CS C22.2
Approval file name	E31024
CE evaluated	Yes
China RoHS compliance	Yes
Contact differential [bar]	0.2 bar
Contact function	SPDT
Contact rating	AC = 2 A, 250 V DC = 0.2 A, 240 V
Contains batteries	No
Electrical conn. Male/Female	Female
Electrical connection	Swivel cable connector
Electrical connection size	NPSM 1/2 - 14
Electrical connection standard	ANSI/ASME B1.20.1
EN 60947 electrical properties	Insulation: 250V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit protection, fuse: 2A
EN 60947 wiring properties	Flex, ferrules: 0.2–1.0 mm² Flex, no ferrules: 0.2–1.5 mm² Solid/stranded: 0.2–1.5 mm²
Enclosure rating IP	IP20
Equipment	Thermal time relay
EU RoHS compliance	Out of scope
Fixed Differential [bar]	0.65 bar
Fixed Differential [psi]	9 psi
Max. test pressure [bar] Pe	22 bar
Max. test pressure [psig]	319 psig
Max. Working Pressure [bar]	17 bar
Max. Working Pressure [psig]	245 psig

Operat. range LP side [bar] Pe [max]	12 bar
Operat. range LP side [bar] Pe [min]	-1 bar
Operat. range LP side [psig] Pe [max]	175 psig
Operat. range LP side [psig] Pe [min]	-15 psig
Pressure connection size	1/4 in
Pressure connection standard	DIN 8906
Pressure connection type	Flare
Pressure Male/Female	Male
Product accessories	Generic accessories
Product description	Diff. Pressure Switch
Refrigerants	R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B
Relay release time [s]	120 s
Reset function	Manual Min
Serviceable	No
UL approved refrigerants	R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B
UL evaluated	Yes

Documents, Prints, etc.

060B200391 MP54 DIFF. PRESSURE SWITCH M/21

$ 0.00 0.0 CAD $ 234.78

$ 234.78
