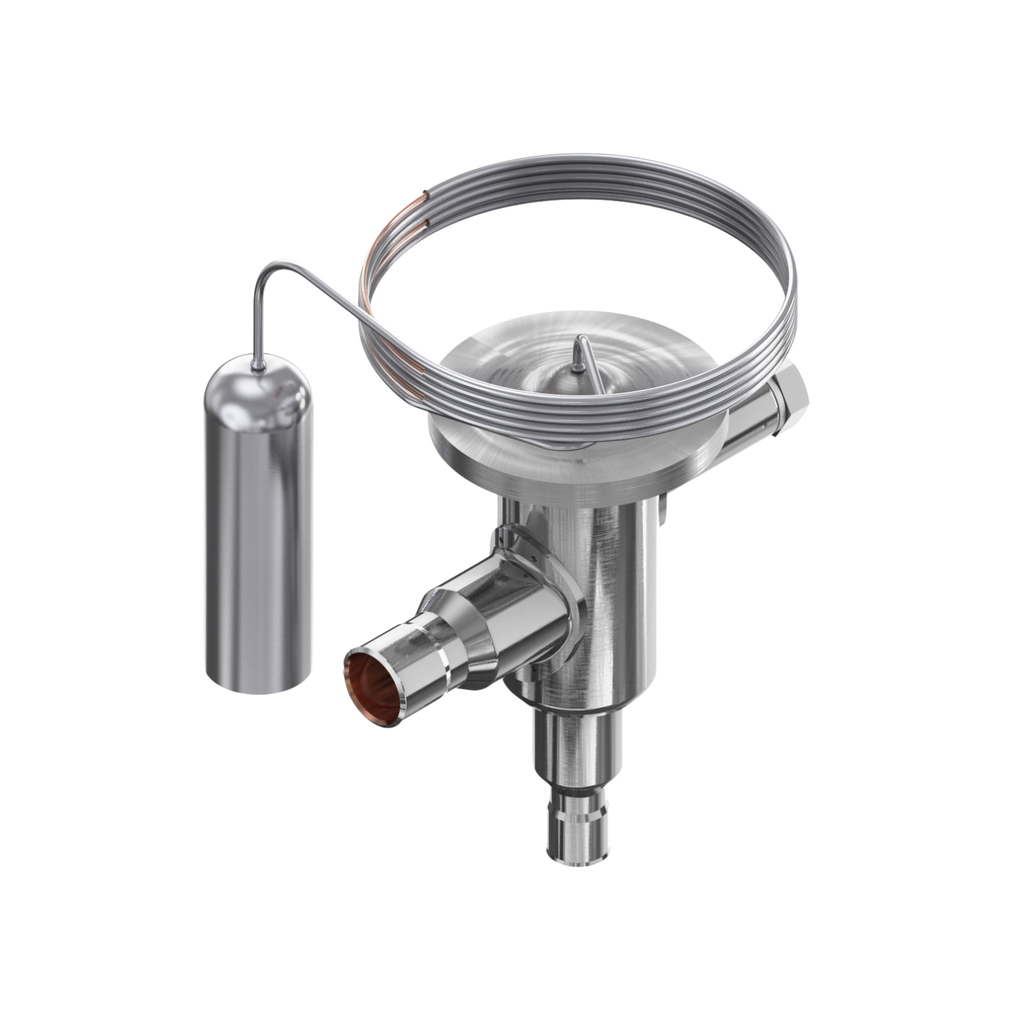

068U2057 THERMOSTATIC EXPANSION VALVE TUB INTERNAL 1/4 TONS R22/R407C

This combination does not exist.

Manufacturer: Danfoss

Barcode: P068U2057
Internal Reference: 068U2057

Collapsible Product Specs

Description

Parts included	Bulb strap
Pressure equalization	Internally equalized
Product accessories	TXV accessories
Rated cap. cond. Range N [IMP]	OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	OS=4 K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R22 / R407C
SCIP dossier no.	07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name	TU/TC - Thermostatic expansion valve
Seal	No
Serviceable	No
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [Max]	10 °C
Temperature range [°C] [Min]	-40 °C
Temperature range [°F] [Max]	50 °F
Temperature range [°F] [Min]	-40 °F
UA address	UA_2L.png
UL approved refrigerants	R22 R407C
UL evaluated	Yes

Gross weight	0.16 Kilogram
Net weight	0.146 Kilogram
Volume	0.402 Liter
EAN	5702422137900
Type	TUB
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve

Gross weight	0.16 Kilogram
Net weight	0.146 Kilogram
Volume	0.402 Liter
EAN	5702422137900
Type	TUB
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve
