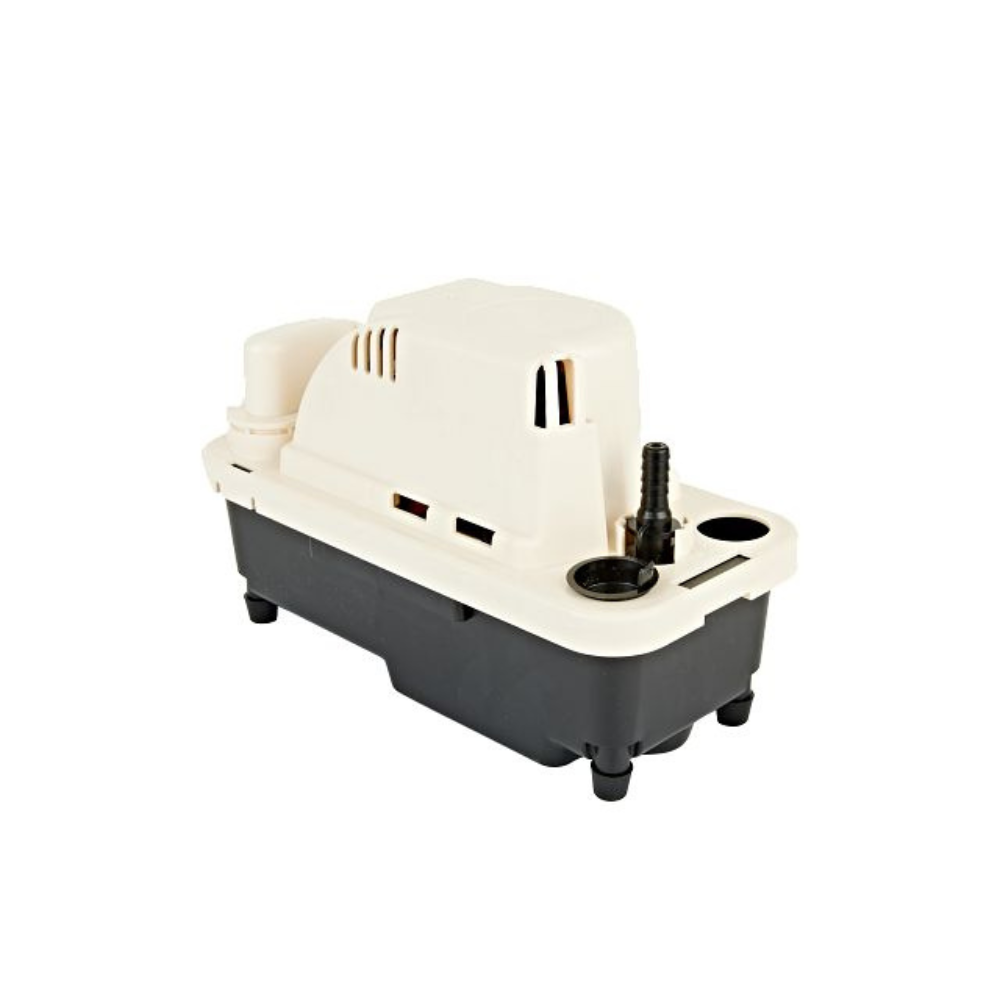

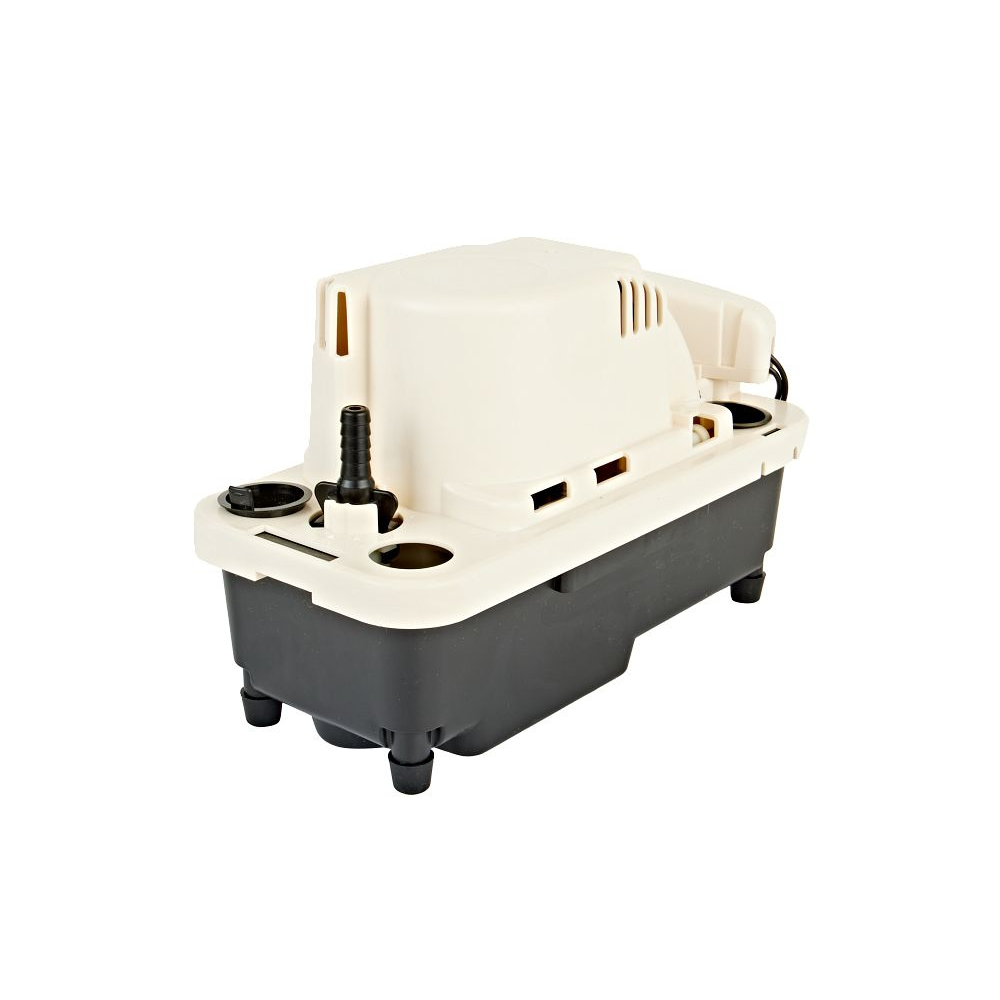

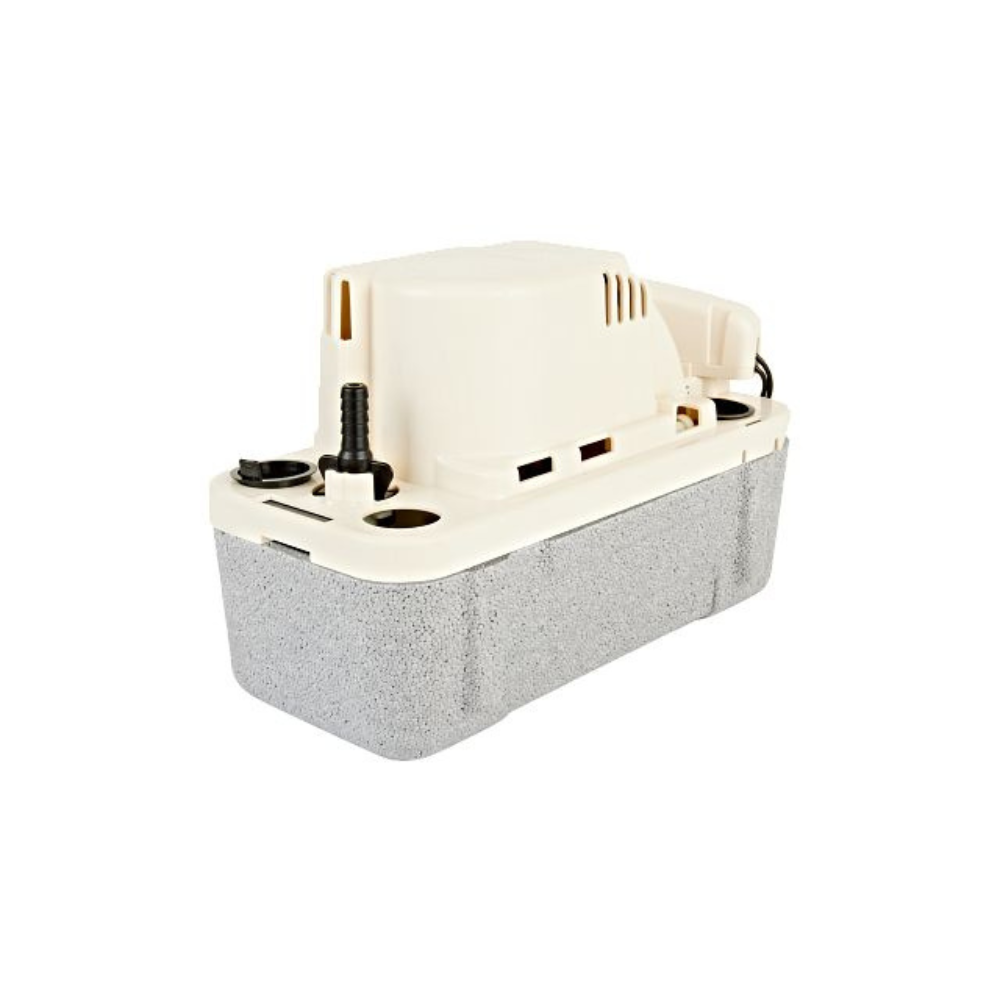

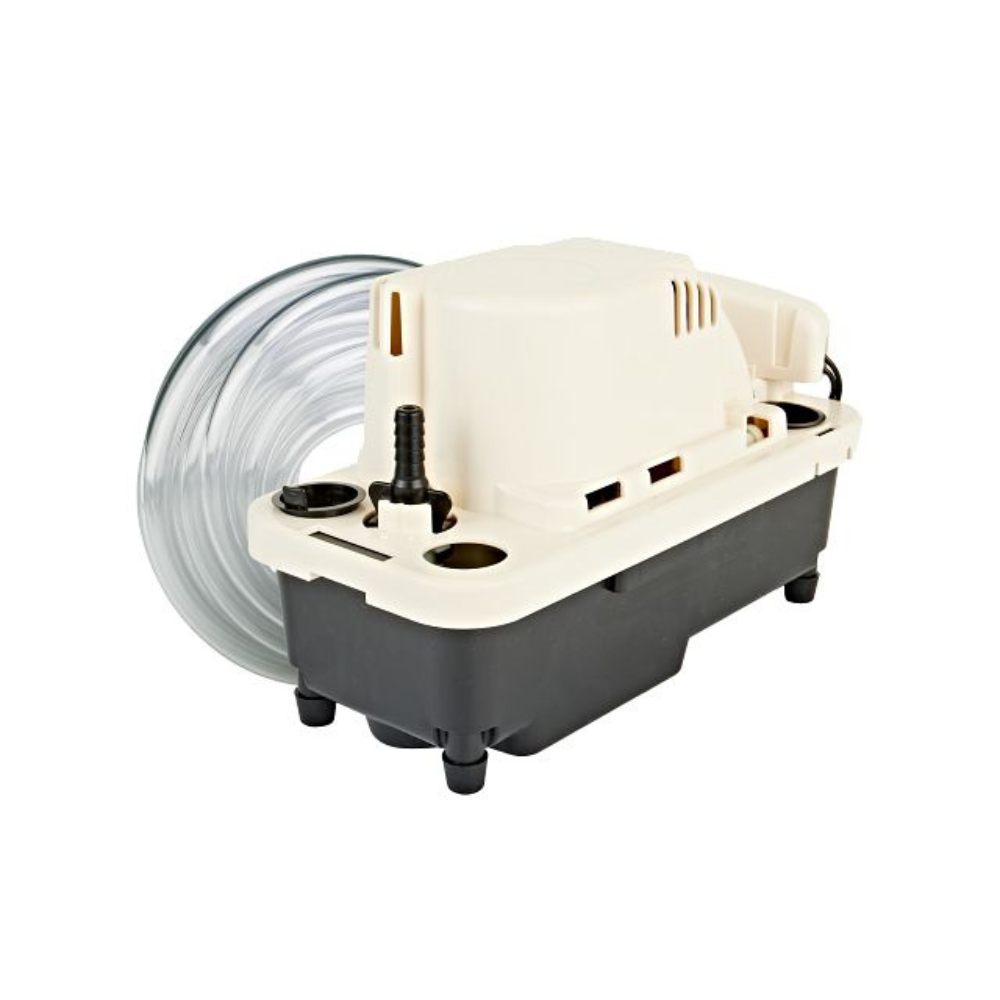

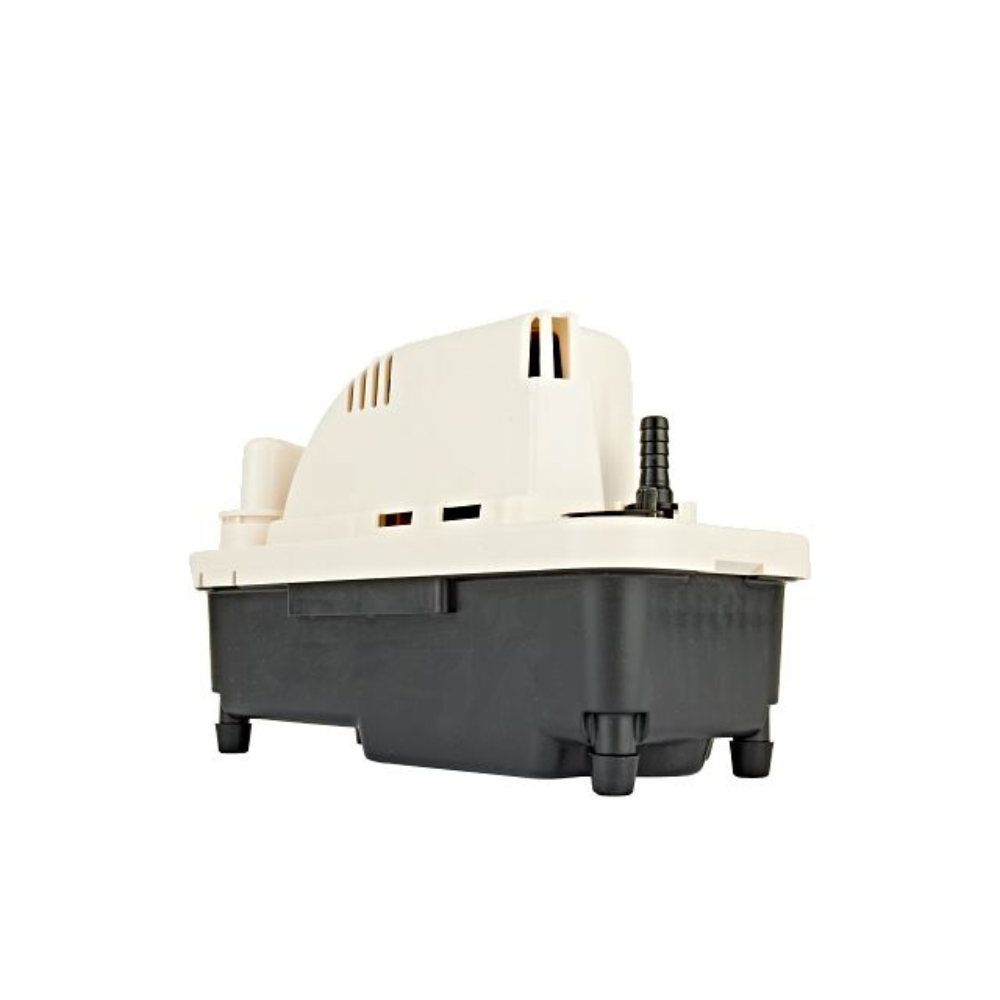

VCMA-20ULS-PRO SERIES CONDENSATE PUMP

VCMA-20ULS-PRO Condensate Removal Pump, 1/30 hp, 230 V, 50/60 Hz, 6' cord, 84 gph @ 1 ft, with Safety Switch and 3/8" Check Valve. VCMA-20ULS-PRO pump effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces, and condensing boilers.

Login to Access Pricing

This combination does not exist.

Documents

1000014025_VCMA-PRO_Spec_Sheet.pdf

Barcode: 010121014435
Internal Reference: 554631

Collapsible Product Specs

Ratings

Liquid

Materials of Construction

Installation

Other

Accessories / Repair Kits

Tank: 154390
Rubber Feet: 925047
Check Valve 3/8": 154724
Tank Bracket: 154483
T-20/25: One carton of 25 pieces of 20' (6.01m) length 3/8"" (9.5 mm) ID VC tubing 599033
T-3/8: 100' (640.1 m) of 3/8"" (9.5 mm) ID x1/2"" (12.37 mm) OD clear tubing 599107
CV-X38: 3/8"" (9.5 mm) OD rigid plastic or copper tubing 599058
Anti-Sweat Sleeve VCMX-CK: 10000014026
Check Valve 1/4"" OD: 154725

Documents, Prints, etc.

HP	1/30 hp
Frequency	50/60 Hz
Amps - Full Load	1.5 A
Full Load Watts	75 W
Volts	230 VAC
Cord Length	6 ft
Maximum Flow Rate - 60Hz	1.33 gpm / 80 gph
Flow Rate At 1ft	1.33 gpm / 80 gph
Max PSIG	8.6 PSI
Max Flow Rate - 50Hz	1.33 gpm / 80 gph
Shut-Off	20 ft
Safety Switch	Yes

Pump Body Material	Plastic
Check Valve	Yes

Discharge	0.38 "
Product Length	10.2 "
Product Width	4.8 "
Product Height	6.5 "
Product Weight	5.5 lb
Product Weight w/ Pack	5 lb
Carton Length	12.13 "
Carton Width	4.94 "
Carton Height	6.75 "
Tubing Included	No

HP	1/30 hp
Frequency	50/60 Hz
Amps - Full Load	1.5 A
Full Load Watts	75 W
Volts	230 VAC
Cord Length	6 ft
Maximum Flow Rate - 60Hz	1.33 gpm / 80 gph
Flow Rate At 1ft	1.33 gpm / 80 gph
Max PSIG	8.6 PSI
Max Flow Rate - 50Hz	1.33 gpm / 80 gph
Shut-Off	20 ft
Safety Switch	Yes

Pump Body Material	Plastic
Check Valve	Yes
