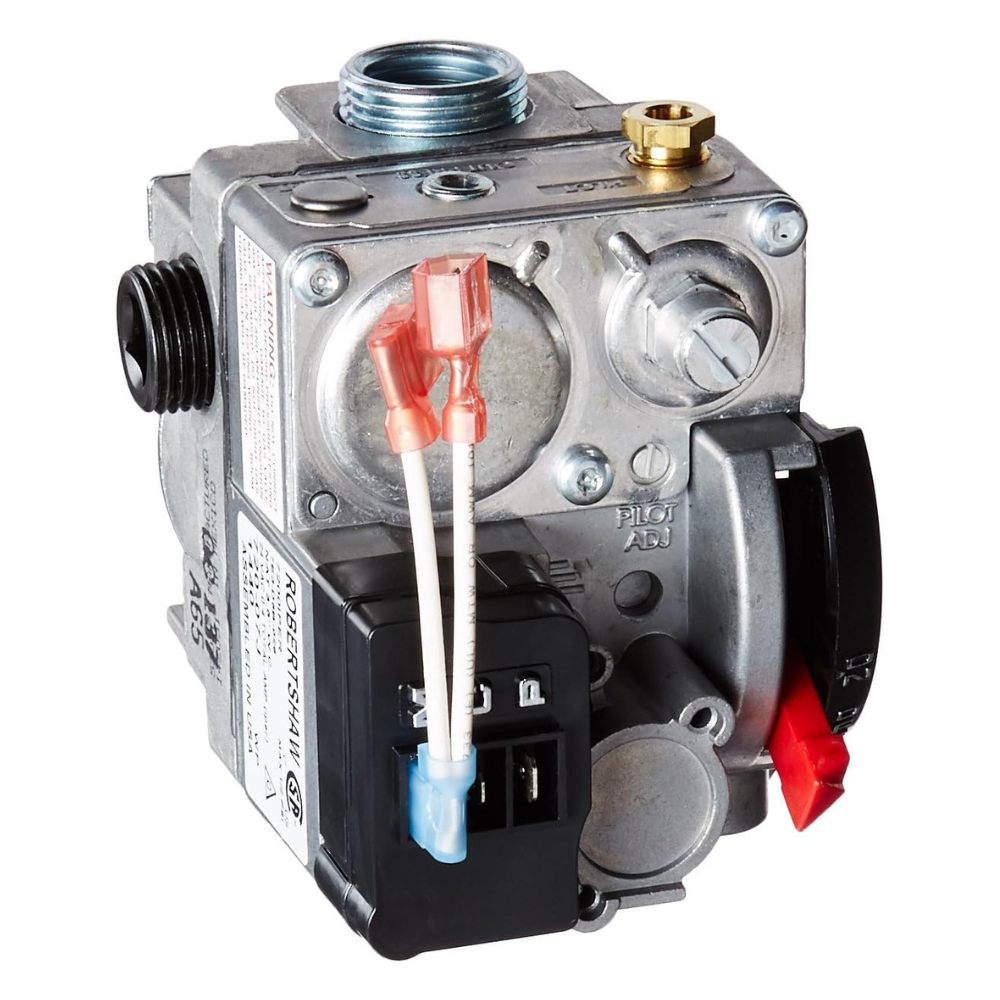

720-079 INTERMITTENT PILOT, DIRECT SPARK AND HOT SURFACE GAS VALVE
The Robertshaw® 720 Series Lever Actuated Gas Valves are designed for intermittent pilot ignition applications. This series incorporates a manual valve, pilot valve, dual automatic valves (2), and a main gas pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The 720 Series is designed for many residential applications such as central heating units, space heaters, wall heaters, boilers, and mobile home furnaces. This valve has a compact swing radius of only 3-9/16” to enable it to fit a wide range of OEM replacement applications.
Features and Benefits
Pilot outlet 1/4” tubing
1/4” quick connect terminal type
Ambient temperature of -40°F to 175°F
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Rated as NEC Class 2
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
RoHS compliant
Barcode:
662013635046
Internal Reference:
720-079
