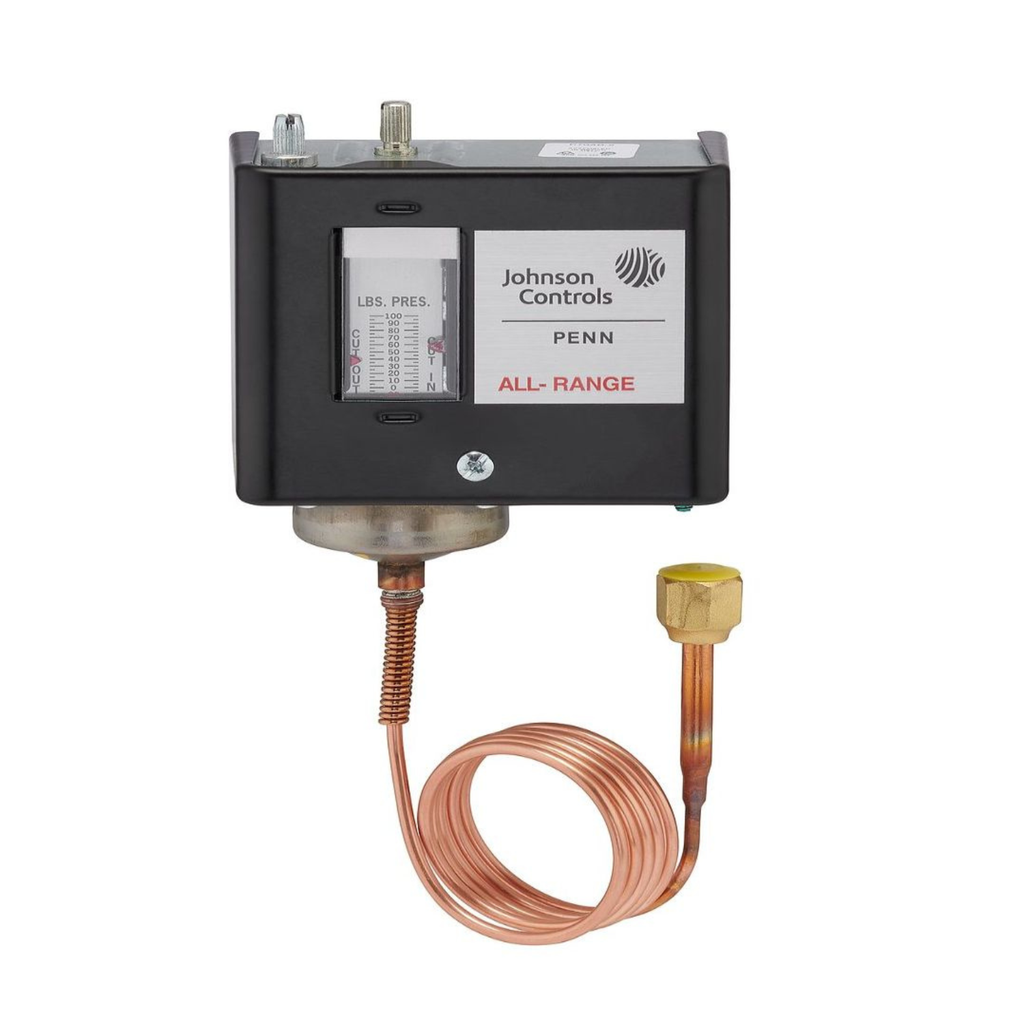

P70AB-12C SPST PRESSURE CONTROL; 12"/80# 1/4"FLARE 36" CAP

The P70 and P170 Controls for low pressure applications are designed primarily for low pressure cut-out control, pump-down control, and capacity control on commercial refrigeration and air conditioning applications.

Login to Access Pricing

This combination does not exist.

Documents

P70, P72, and P170 Series Controls for Low Pressure.pdf

Barcode: 0110785028294477
Internal Reference: P70AB-12C

Collapsible Product Specs

Product Specifications

Product Series Specifications

Product Series Features

Documents, Prints, etc.

Contact Type	SPST
Connection	36 in capillary
Measurement	PSI
Range	12 in. Hg - 80 psi
Type	Low Pressure

Connection (Switch Action)	SPST
Range psi (kPa)	12 in. Hg - 100 psi
Differential psi (kPa)	5 - 50 psi
Pressure connection	1/4 in. flare, 36 in. capillary
Maximum working pressure	80 - 100 psi

Case and Cover	All-steel
Pressure Adjustment	Sight-set calibrated
Differential Option	MICRO-SET™
Reset Option	Manual reset lockout
Knob Adjustment	Limited

Contact Type	SPST
Connection	36 in capillary
Measurement	PSI
Range	12 in. Hg - 80 psi
Type	Low Pressure

Connection (Switch Action)	SPST
Range psi (kPa)	12 in. Hg - 100 psi
Differential psi (kPa)	5 - 50 psi
Pressure connection	1/4 in. flare, 36 in. capillary
Maximum working pressure	80 - 100 psi
