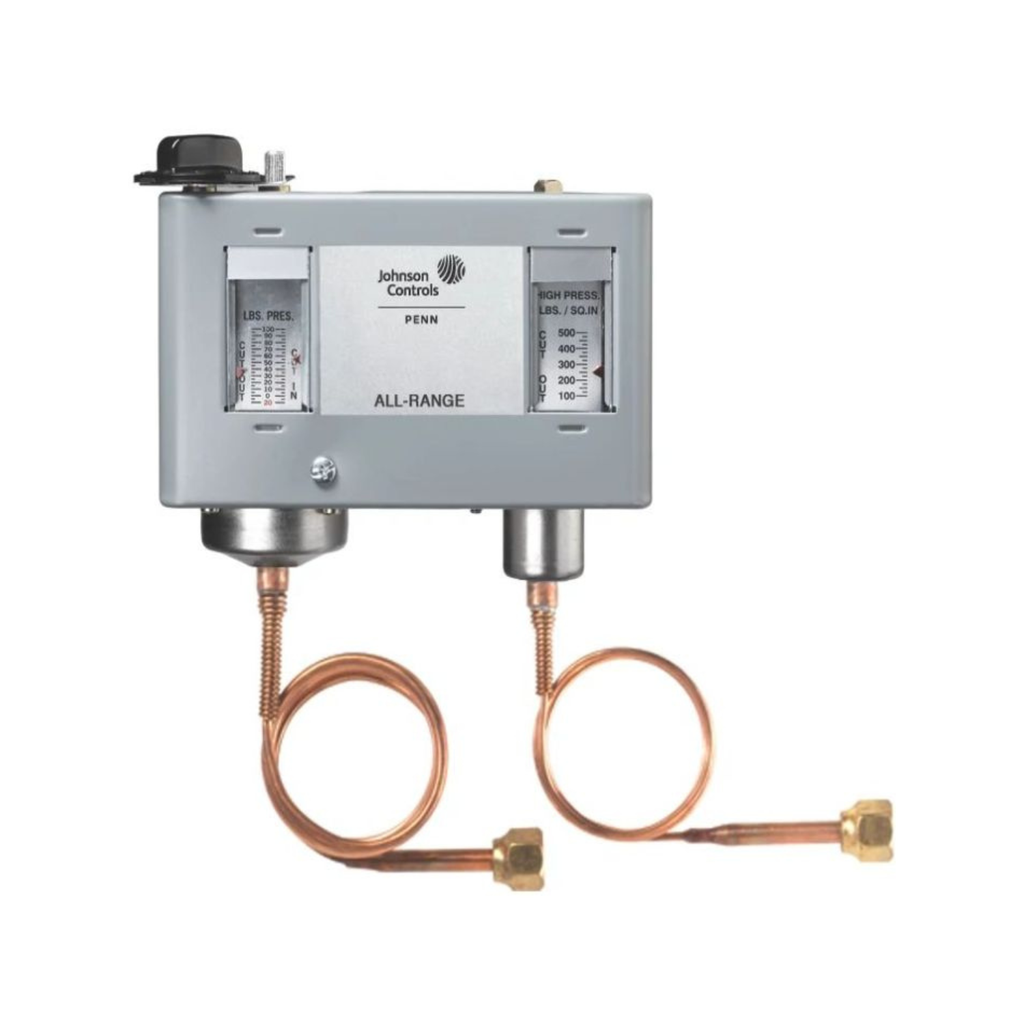

P70MA-1C SPST DUAL PRES. CONTROL; 20"/100#; 100/425# 36" CAP

The P70 and P170 Controls for high pressure applications are designed primarily for high pressure cut-out control, head-pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications.

Login to Access Pricing

This combination does not exist.

Barcode: 0110785028299694
Internal Reference: P70MA-1C

Collapsible Product Specs

Product Specifications

Product Series Specifications

Product Series Features

Documents, Prints, etc.

Contact Type	SPST
Media Compatibility	Air
Override	Manual
Range	±500 psi
Type	Adjustable
Power Required	Switch
Set Point Range	20 in
Supply Voltage (Nominal)	240 VAC

Connection (Switch Action)	SPST
Low Pressure - Range	12 in. Hg – 100 psi
Low Pressure - Differential	5 – 50 psi
High Pressure - Range	100 – 500 psi
High Pressure - Differential	65 psi
Pressure Connection	1/4 in. flare \| 36 in. capillary
Enclosure	NEMA 1 and NEMA 3R

Case and Cover	All-steel
Pressure Adjustment	Sight-set calibrated
Differential Option	MICRO-SET™
Switches	Independent high- and low-pressure
Reset Lockout	Convertible automatic or manual (high pressure)

Contact Type	SPST
Media Compatibility	Air
Override	Manual
Range	±500 psi
Type	Adjustable
Power Required	Switch
Set Point Range	20 in
Supply Voltage (Nominal)	240 VAC

Connection (Switch Action)	SPST
Low Pressure - Range	12 in. Hg – 100 psi
Low Pressure - Differential	5 – 50 psi
High Pressure - Range	100 – 500 psi
High Pressure - Differential	65 psi
Pressure Connection	1/4 in. flare \| 36 in. capillary
Enclosure	NEMA 1 and NEMA 3R
