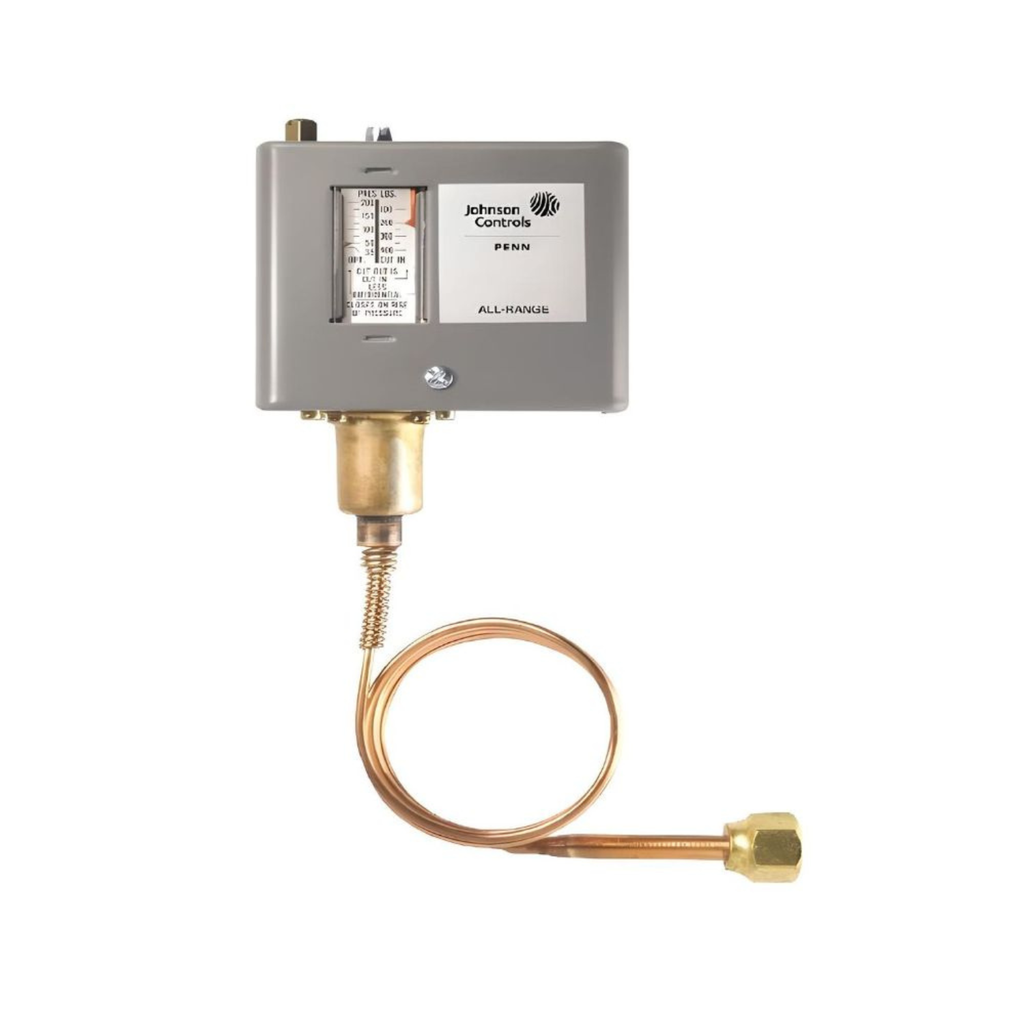

P70AA-118C 100/400# DIFF. ADJ.; 35/200# 36CAP; 13

The P70 and P170 Controls for high pressure applications are designed primarily for high pressure cut-out control, head-pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications.

Login to Access Pricing

This combination does not exist.

Barcode: 0110785028293265
Internal Reference: P7OAA-118C

Collapsible Product Specs

Product Specifications

Product Series Specifications

Product Series Features

Documents, Prints, etc.

Contact Type	SPST
Connection	36 in capillary
Measurement	PSI
Range	12 in. Hg - 80 psi
Type	Low Pressure

Connection (Switch Action)	SPST
Range psi (kPa)	12 in. Hg - 100 psi
Differential psi (kPa)	5 - 50 psi
Pressure connection	1/4 in. flare, 36 in. capillary
Maximum working pressure	80 - 100 psi

Case and Cover	All-steel
Pressure Adjustment	Sight-set calibrated
Differential Option	MICRO-SET™
Reset Option	Manual reset lockout
Knob Adjustment	Limited

Contact Type	SPST
Connection	36 in capillary
Measurement	PSI
Range	12 in. Hg - 80 psi
Type	Low Pressure

Connection (Switch Action)	SPST
Range psi (kPa)	12 in. Hg - 100 psi
Differential psi (kPa)	5 - 50 psi
Pressure connection	1/4 in. flare, 36 in. capillary
Maximum working pressure	80 - 100 psi

P70AA-118C 100/400# DIFF. ADJ.; 35/200# 36CAP; 13

$ 0.00 0.0 CAD $ 0.00

$ 181.50

Login to Access Pricing
