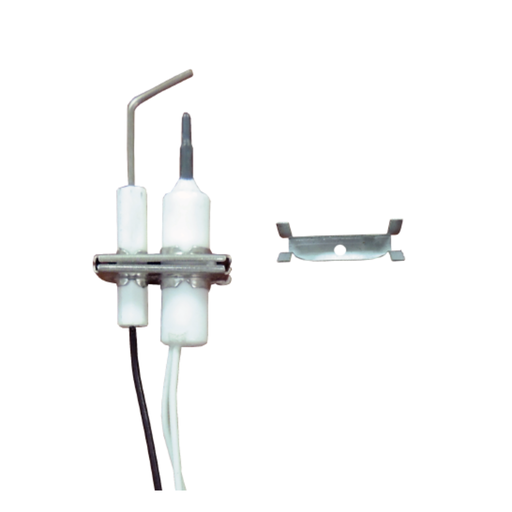

Direct replacement silicon nitride igniter kit

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniter
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride

Features
Features A421 Standard model
Control Front Panel LCD:
Displays the temperature, parameters, and status and allows you to adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status.
Basic and Advanced Programming Menu:
Provides two levels of parameter adjustment and control setup, allowing you to set up advanced features in one menu and easily adjust basic parameters in the other menu.
On/Off Temperature Adjustment:
Allows you to select the temperature values at which the relay turns On and Off, which automatically defines the Heating or Cooling mode of operation.
Switch-Activated Temperature Setback:
Allows you to shift the On/Off temperature by an adjustable setback value. When a user-supplied switch closes the binary input control circuit, the control operates at the defined setback temperatures.
Adjustable Anti-Short Cycle Delay:
Allows you to select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.
Adjustable Sensor Offset:
Allows you to adjust the displayed temperature to the actual sensed temperature.
Optional Restricted Adjustment Mode:
Allows you to restrict the On/Off adjustment to your defined temperature range.
Sensor Failure Mode:
Allows you to select the relay On/Off state in the event of a sensor or sensor wire failure.
Backlight Brightness Level:
Allows you to adjust the LCD backlight intensity.
Extra Features A421 Defrost model
Off-Cycle Defrost:
Allows you to shut off the refrigeration system for defined defrost time interval and frequency. You can also start or stop a manual only defrost offcycle.
Extra Features A421 Timer model
Free-Cooling and Ventilation:
Allows you to adjust for free-cooling and timed-ventilation, and provides over-cooling protection.
