SENSOR, FLAME, SILICON CRBD, 1800°F, 3100°F

18 ga copper high temperature fiberglass insulated lead wires
Faster time to temperature response, higher resistance to oxidation
Longer usable life, lower power consumption, more robust in transit, stronger more durable design
Supco flat igniters offer an efficient , stronger, reliable hot surface silicon carbide design, superior gas lighting ability
Universal kit that replaces all Robertshaw igniters part numbers to minimize inventory

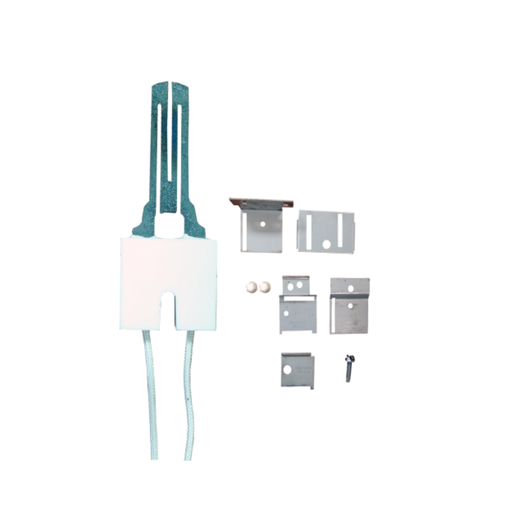

Universal flat silicon carbide igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

SENSOR, FLAME, SILICON CRBD, 1800°F, 3100°F

18 ga copper high temperature fiberglass insulated lead wires
Faster time to temperature response, higher resistance to oxidation
Longer usable life, lower power consumption, more robust in transit, stronger more durable design
Supco flat igniters offer an efficient , stronger, reliable hot surface silicon carbide design, superior gas lighting ability

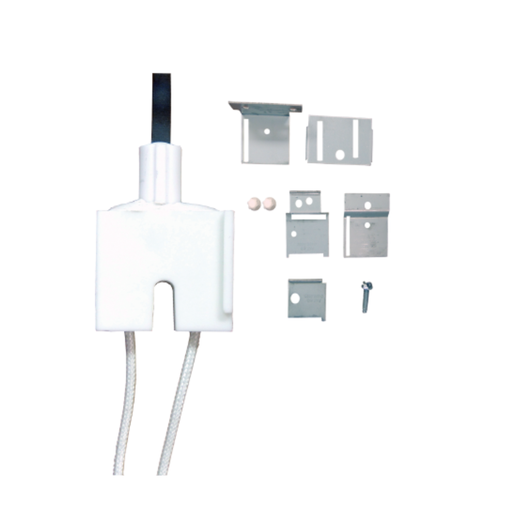

Universal flat silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride

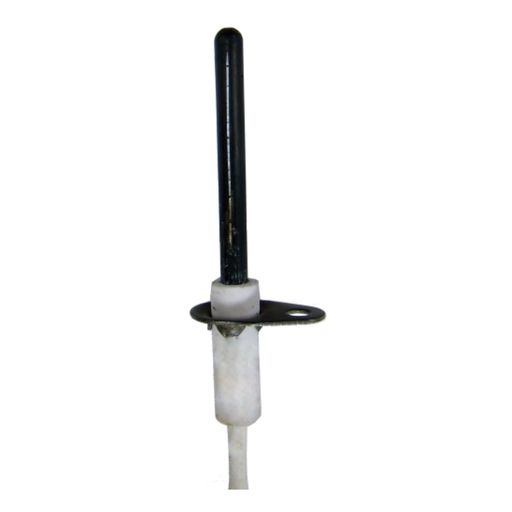

Universal round silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

Rated Voltage: 120V +10% -15%, 50/60 Hz
Cold Resistance: 9 to 17 Ohms
Temperature @ 102V +/-5V: 1976°F / 1080°C
Temperature @ 120V +/- 5V: 2156°F / 1180°C
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon_Nitride
Probe Length from Bracket: 2.25 Inches
Wire Length: 15.5 Inches

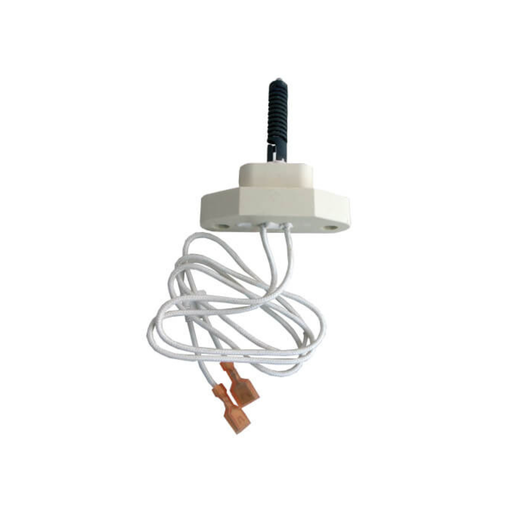

SIG106 - Furnace Ignitor

Exact replacement silicon carbide round ignitor

Features & Benefits:

Exact replacement hot surface ignitors
Superior gas lighting ability
Lower power consumption
18 gauge copper high temperature fiberglass insulated lead wires
Supco® round igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design
Faster time to temperature response
Stronger more durable design
More robust in transit
Higher resistance to oxidation
Longer usable life

Exact replacement silicon carbide round igniter

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniters
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design
Supco® round igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design
Superior gas lighting ability

Exact replacement silicon nitride flat igniter kit with bracket, connector and high temperature wire nuts.

Features:

Superior gas lighting ability
Lower power consumption
Faster time to temperature response
Higher resistance to oxidation


Specifications:

Maximum Temperature: 2732°F / 1500°C @ 132 VAC
Minimum Temperature: 2192°F / 1200°C @ 98 VAC
Time to Temperature (1800°F): < 17 seconds @ 120 +/- 1.0 VAC
Voltage: 120 VAC
Steady State Current: 0.8 - 2 amps @ 120 VAC
Cold Resistance: 34-64 Ohms @ 75°F, +/- 10°F

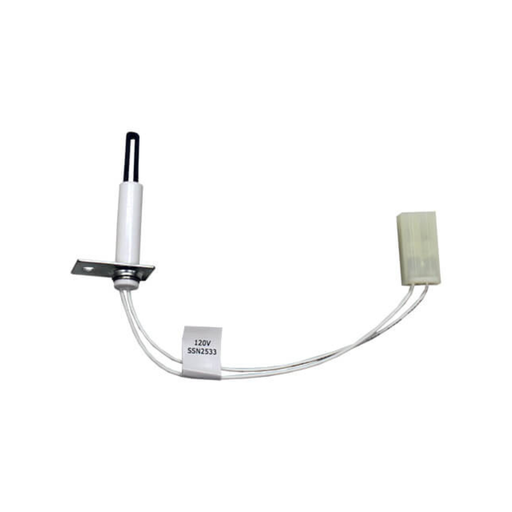

SSN2533--Silicon Nitride Ignitor replaces Heil Quaker (ICP) 1172533

This Igniter is used on many ArcoAire®, Comfortmaker®, Heil®, Tempstar®, and Whirlpool® furnaces.

120 Volt Gas Furnace Hot Surface Ignitor

Connection: Molex
Voltage: 120VAC

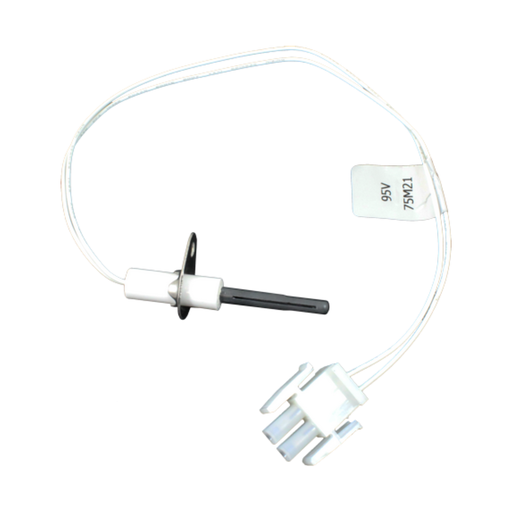

The 75M21 Igniter is used on Lennox® furnaces.


Igniter Material: Silicon Carbide
Steady State Current: 3.0 to 3.6 Amps Maximum @ 115 Volts
Resistance: 50 to 1100 Ohms
Time to temperature: <17 seconds @ 115 +/? 1.0 VAC
Minimum Temperature: 1800°F / 980°C @ 98 Volts
Maximum Temperature: 3100°F / 1705°C @ 132 Volts

Direct replacement silicon nitride igniter kit

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniter
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride
