These controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
SUPER CAP® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Suitable for R12, R22, and R502 applications

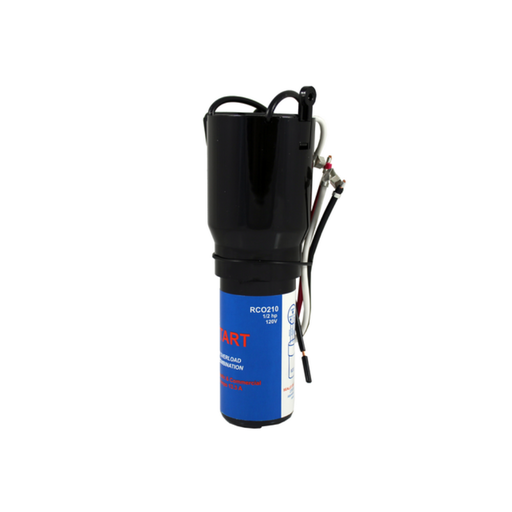

CAPACITOR, OVLD AND START, RLY, 115V, 40A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

Hermetically designed moisture indicator with 3% relative humidity sensitivity, intended for use on refrigerant lines.

Features/Benefits

3% relative humidity indication compared to 10% paper indicators
3% relative humidity sensitivity
Accurate color calibration at low ppm levels and higher temperatures
All brass corrosion resistant body
Fully hermetic design
Maximum working pressure: 680 psig
Single indicator for all common refrigerants
Solid copper fittings
Tri color coded: Blue/Purple/Pink
Wide angle viewing/ high visibility window for ease of monitoring

CAPACITOR, START, 460 – 552 MFD, 110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

CAPACITOR, RUN, OVAL, 45 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CAPACITOR, START, 270 – 324 MFD, 220V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-1/16 in

RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat.
Multi-Stage - 2 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

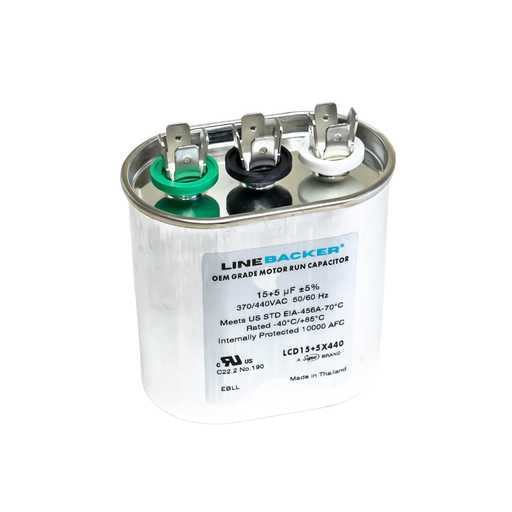

CAPACITOR, RUN, OVAL DUAL, 15+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

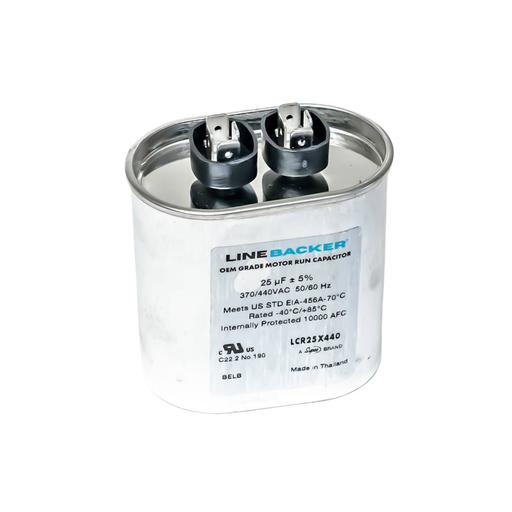

CAPACITOR, RUN, OVAL, 25 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

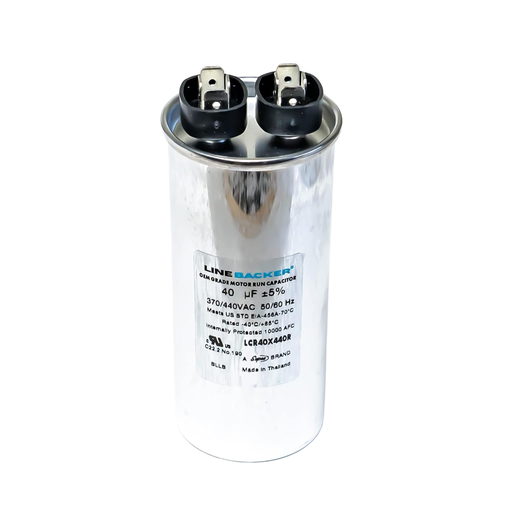

CAPACITOR, RUN, RND, 40 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.77 in

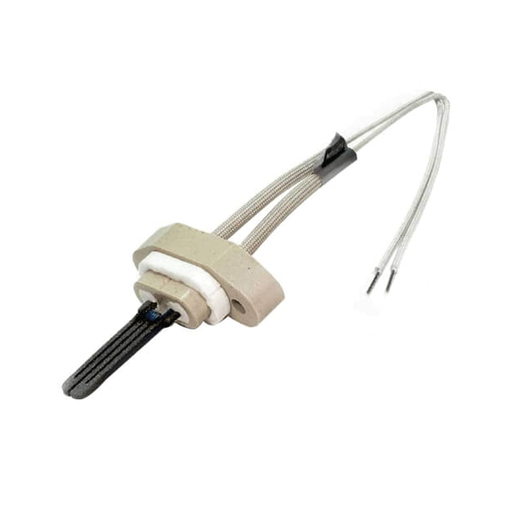

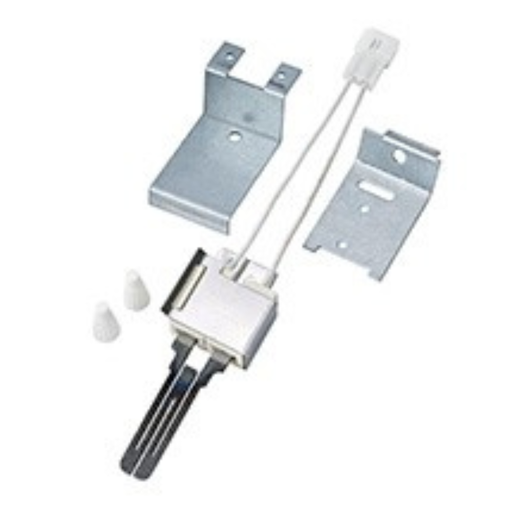

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment. Boxed with a gasket.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

CAPACITOR,START,124 – 156 MFD,110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-7/16 in

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

Zoom Spout® Oiler is a paraffin base, non-gumming, high quality lubricating oil. Sold in a counter display case, each bottle has a flexible telescoping pull out spout to help access hard to reach areas.

Features/Benefits

All purpose lubricating oil
Flexible spout extends and retracts to any in-between length
Viscosity: 92-99 @ 140°F
Withstands high temperatures without breaking down

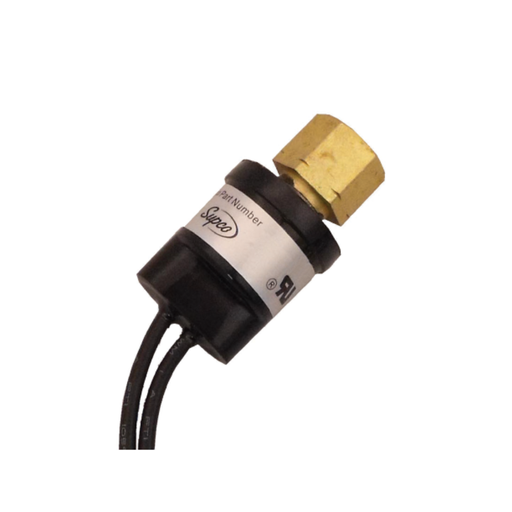

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

CAPACITOR,START,145 – 175 MFD,330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-9/16 in

CAPACITOR, START, 56 – 72 MFD, 330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

TEE, CU ACCESS FITTING

1/4 in ID x 5/16 in OD will service 1/4, 5/16 and 3/8 in tubing
Copper tee with the body brazed on
Furnished complete with core and wrench cap
Nominal Size 1/4 in OD x 1/4 in Male Flare on Branch

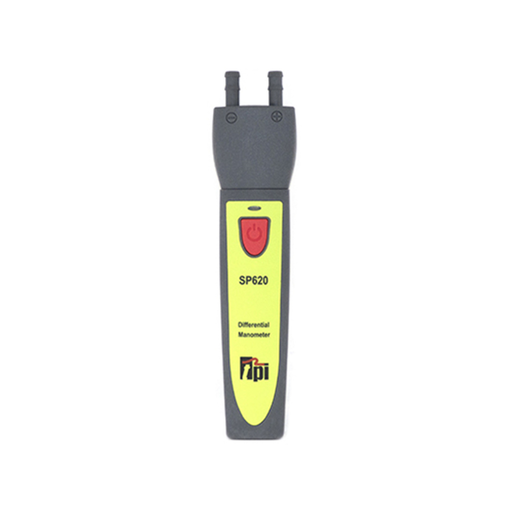

0.01 inH2O resolution
High accuracy +/-0.02 inH2O less than 1 inH20; 1.5% above 1 inH20
Temperature compensated
Trim mode to stabilize fluctuating readings
Seven units of measure: mbar, inH2O, kPa, PSI,
mmHg, inHg, and mmH2O.

Hermetically designed moisture indicator with 3% relative humidity sensitivity, intended for use on refrigerant lines.

Features/Benefits

3% relative humidity indication compared to 10% paper indicators
3% relative humidity sensitivity
Accurate color calibration at low ppm levels and higher temperatures
All brass corrosion resistant body
Fully hermetic design
Maximum working pressure: 680 psig
Single indicator for all common refrigerants
Solid copper fittings
Tri color coded: Blue/Purple/Pink
Wide angle viewing/ high visibility window for ease of monitoring

This tool cuts tubes of varying material to a desired length. Its size makes it portable and easy-to-use in confined spaces.

Pillow Block Bearing; 2 Bolt Pillow Block; 1" Bore; 1-7/16" Base to Center Height; Set Screw Mount; Ball Bearing; Relubricatable; Cast Iron; Non-Expansion
