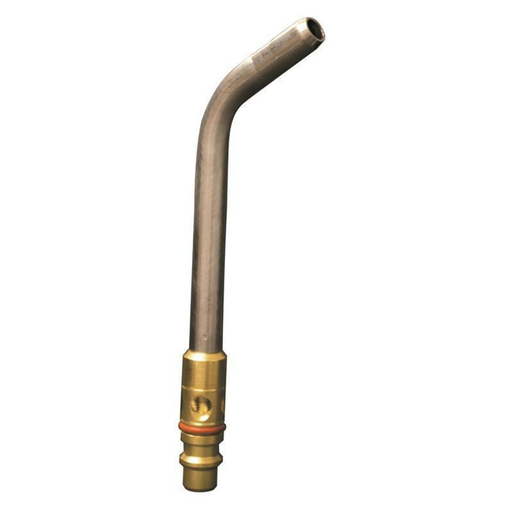

Model HA-11i Inferno® air-fuel quick connect swirl tip has a specially-designed insert that delivers reliable swirl combustion performance every time. It provides a consistently hotter flame that will engulf and wrap around the work-piece for maximum efficiency. It is constructed from thick and strong 304 stainless steel tube stock designed to be durable and long-lasting. The tip works and integrates with today's existing quick-connect air-fuel handles allowing contractors to simply and quickly connect to their existing torch handles using acetylene.

Features
Quick connect swirl tip with A-hose connections for brazing and soldering with air/acetylene
Constructed from thick and strong 304 stainless steel tube stock and brass for longer service life
The unique swirl combustion design provides a consistent, hotter flame that engulfs and wraps around the work-piece for maximum efficiency
Every tip is tested twice - once to ensure the perfect orifice and again to ensure the flame quality
The exacting manufacturing standards used to develop this tip ensures the optimal delivery of fuel gas resulting in the perfect flame
Designed to work and integrate with existing quick-connect air fuel handles for efficiency and increased productivity
Use with air fuel/acetylene
Marked with Harris logo and tip size for easy identification
One year warranty
Disclaimers
Warning - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

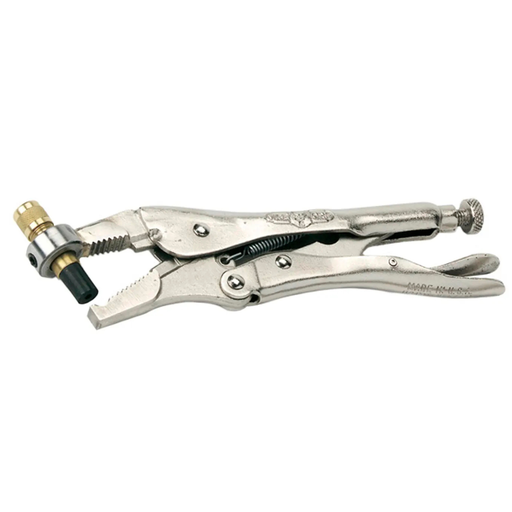

These pliers simultaneously pierce tubing as they lock into place to create a temporary 1/4in access port on systems.

The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types
High-amp rated switch (SPST) design (O10-1402/O10-1483)
Super Cap® capillary vibration protection system
Non-conductive front cover with captive screw
Adjustable differential and range
Easy-to-read scale plate
Vibration cone (absorbs and reduces vibration away from brazed joint)
Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
Cap included on all Australia temperature controls. Optional for all other regions

CAPACITOR, RUN, RND DUAL, 45+7.5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

Synthetic Polyol Ester (POE) lubricant provides excellent lubricity and compressor protection.
Extends compressor life.
Miscible with all HFC, HCFC, CFC and blend refrigerants.
For reciprocating, rotary & scroll compressor applications in residential air conditioning units.
For centrifugal & reciprocating compressor applications in industrial and commercial refrigeration and air conditioning units.
Helps reduce compressor wear. Contains conditioners, inhibitors & anti-wear agents for excellent lubricity and compressor protection.
Includes additives to prevent acid formation and corrosion.
170 cSt viscosity.

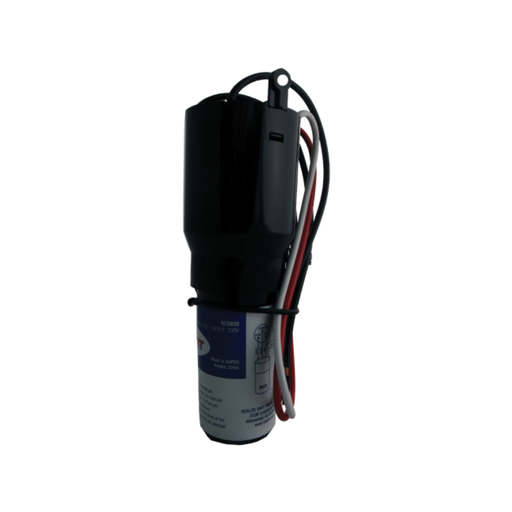

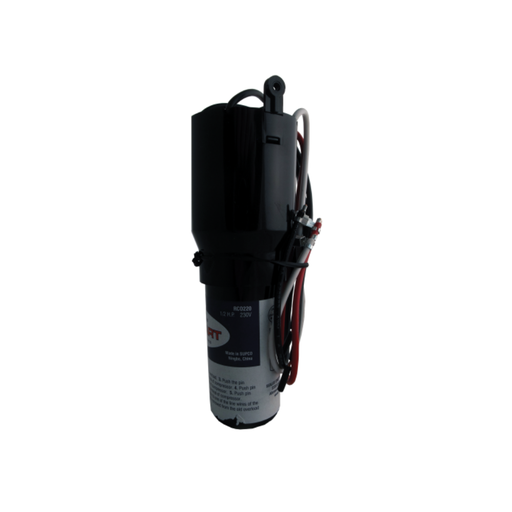

CAPACITOR, OVLD AND START, RLY, 1.66A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

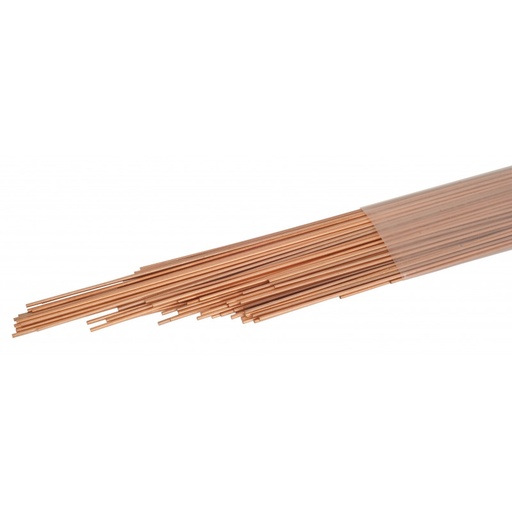

Sil-Fos 5 is a silver-copper-phosphorus alloy for copper-copper brazing but can also be used to join brass with an appropriate flux (e.g. Handy Flux, Ultra Flux). It is a more cost effective Ag-Cu-P alloy, though it does not penetrate deep joints easily.
Joins CU to CU (phosphorus serves as flux)
Joins CU to Brass (flux is recommended)
Lower cost alternative to higher silver content Ag-Cu-P alloys
Medium flow
Made in USA
Industry Applications:
HVAC/R refrigerant systems, air conditioning coils, evaporator coils

SA Item ID: 92030012
Mfg Part Number: 33136


LucasMilhaupt® Sil-Fos® 5 31894 Brazing Rod, 0.94 in Dia x 20 in L, 24 Rod Plastic Tube, 30000 to 40000 psi Tensile
LucasMilhaupt® Sil-Fos® 5 Brazing Rod, 0.94 in Dia, 20 in Length, Plastic Tube, 30000 to 40000 psi Tensile, Chemical Composition: Silver, Copper, Phosphorus, 1325 to 1500 deg F Brazing

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
Super Cap® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for
easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Cap included on all Australia temperature controls. Optional for all other regions.

Made of durable, non-porous silicon nitride, Robertshaw® Mini Ignitors provide reliable ignition in a small footprint. They offer contractors easy handling, simple installation and dependable operation.

Dependable ignition in a small footprint
Constructed with unique non-porous, high-strength material
3 second heat-up time
Easy to handle and install
Trouble-free operation
18 AWG wire gauge
Operate at 120V AC

Model HMA J-15 heating tip is a single-piece all copper tip tube and tip combination specifically designed for oxygen-acetylene heating applications. This tip has metal-to-metal contact seats. Thread sealants are not required when used with genuine Harris mixers. Conveniently vacuum-packed for point-of-purchase display.

Features
Single-piece tip-tube and rosebud tip combination
Copper construction
Specifically used for oxy-acetylene heating applications
Tip has metal-to-metal contact seats
Thread sealants not required when used with genuine Harris mixers
Marked with Harris logo and tip size for easy identification
One year warranty
Conveniently packaged for point-of-purchase display

The ETC-0030 is a 24V AC center-tapped transformer rated at 30VA, built to power 1–2 Multiflex boards such as the 16AI (810-3013), 8RO (810-3006), 8DO (810-3050), and 4AO (815-3030). Compatible with 115VAC and 230VAC primary inputs, it features a foot mount design and is UL approved for dependable performance in HVAC-R and energy management systems.

Hermetically designed moisture indicator with 3% relative humidity sensitivity, intended for use on refrigerant lines.

Features/Benefits

3% relative humidity indication compared to 10% paper indicators
3% relative humidity sensitivity
Accurate color calibration at low ppm levels and higher temperatures
All brass corrosion resistant body
Fully hermetic design
Maximum working pressure: 680 psig
Single indicator for all common refrigerants
Solid copper fittings
Tri color coded: Blue/Purple/Pink
Wide angle viewing/ high visibility window for ease of monitoring

• 9 Vertical pockets
• 2 Through pockets for long shanked tools
• Back Pocket Stuffer™
• Electrical tape strap
• 2 D-rings
• Wire-formed & nylon plastic belt clip
• Stainless tape clip
• Leather & synthetic fiber construction
• 5-year limited warranty

Synthetic Polyol Ester lubricant provides excellent lubricity and compressor protection.
Extends compressor life.
Miscible with all HFC, HCFC, CFC and blend refrigerants.
For reciprocating, rotary & scroll compressor applications in residential air conditioning units.
For centrifugal & reciprocating compressor applications in industrial and commercial refrigeration and air conditioning units.
Helps reduce compressor wear. Contains conditioners, inhibitors & anti-wear agents for excellent lubricity and compressor protection.
Includes additives to prevent acid formation and corrosion.
32 cSt viscosity.

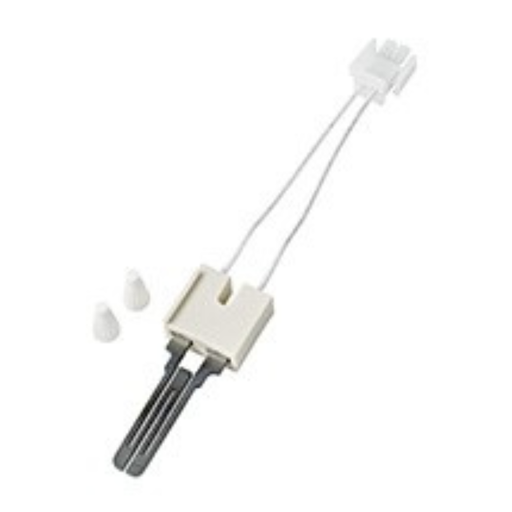

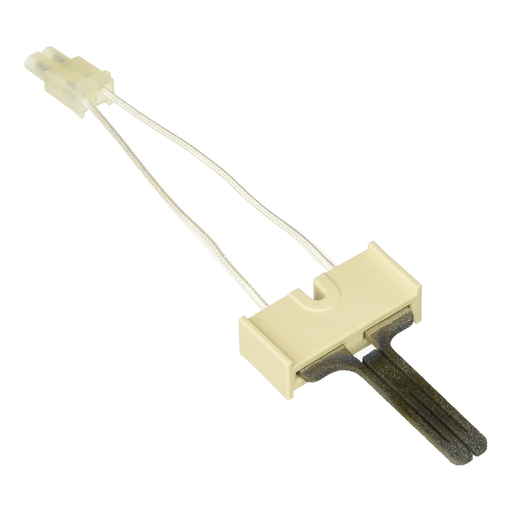

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

CAPACITOR, START, 130 – 156 MFD, 330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-1/8 in
