The Robertshaw® 800 Series Line Voltage Thermostats are universal replacements for many other brands and can be used to retrofit most existing electric heat thermostats. With models for heating that include single-line break and double-line break as well as a single-line break cooling model, there is one for every application.

Features and Benefits

Convenient temperature display - View comfort level at-a-glance
Bimetal temperature sensing - For improved thermal performance
Mercury-free - No leveling or special disposal required
J-Box compatible - Not only will it meet code, but it speeds up installation
Positive-off switch - Assured shutdown of HVAC system
Universal replacement - Can retrofit most existing electric heat thermostats

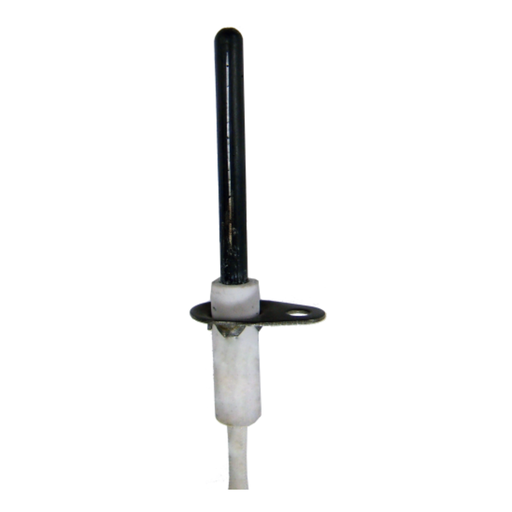

Universal round silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

Rated Voltage: 120V +10% -15%, 50/60 Hz
Cold Resistance: 9 to 17 Ohms
Temperature @ 102V +/-5V: 1976°F / 1080°C
Temperature @ 120V +/- 5V: 2156°F / 1180°C
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon_Nitride
Probe Length from Bracket: 2.25 Inches
Wire Length: 15.5 Inches

710 Series - Low Capacity
The Robertshaw® 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity and limited space applications. Features include three-position outlets, multi-positional capability and component replaceability.

Features and Benefits

Low capacity with 3-13/16”H x 4-21/32”L x 1-29/32” W dimensions
Gas cock dial marking Off - Pilot - On
Ambient temperature of -40°F to 175°F
Pilot outlet 1/4” tubing
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
Multiple actuators available
RoHS compliant

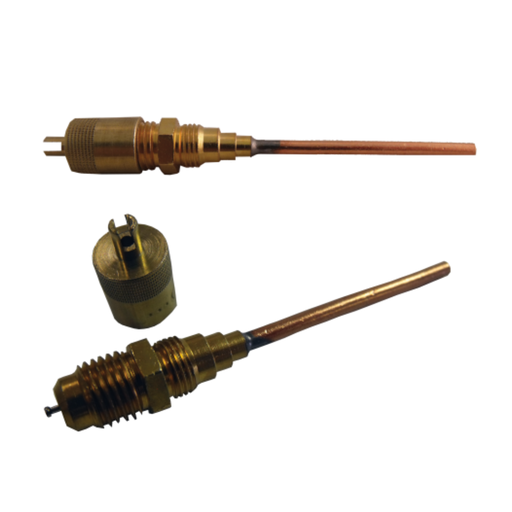

Line service valve 1/8" copper tubing, wrench cap and core

Features/Benefits

⅛" Copper Tubing
Made of CDA 360 brass
Wrench Cap and Core

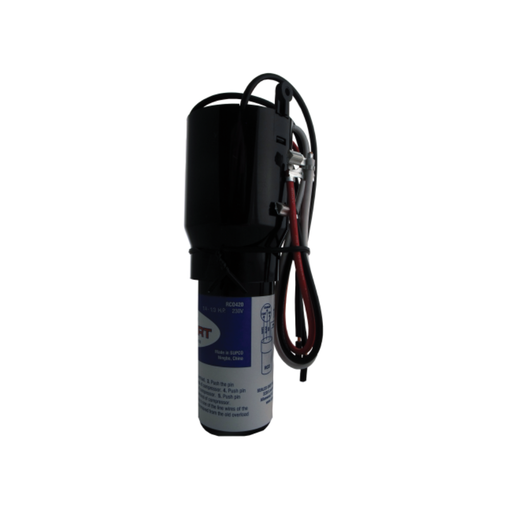

CAPACITOR, OVLD AND START, RLY, 115V, 10A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

One PHLiPBiT replaces 2 singles, reduces inventory, saves time & money. Drive more screws, faster & easier with less strip out.

The Robertshaw 1970 Series Thermocouple Uni-Couple® design allows for installation to virtually all pilot burners. The versatile zip nut may be pushed, pulled or threaded onto the thermocouple's rolled threads for proper positioning in every application.

Features and Benefits

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

CAPACITOR, OVLD AND START, RLY, 115V, 6.8A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

Line Service Valve 3/16" Copper Tubing, Wrench Cap and Core

Features/Benefits

3/16" Copper Tubing
Made of CDA 360 brass
Wrench Cap and Core

CAPACITOR, OVLD AND START, RLY, 230V

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

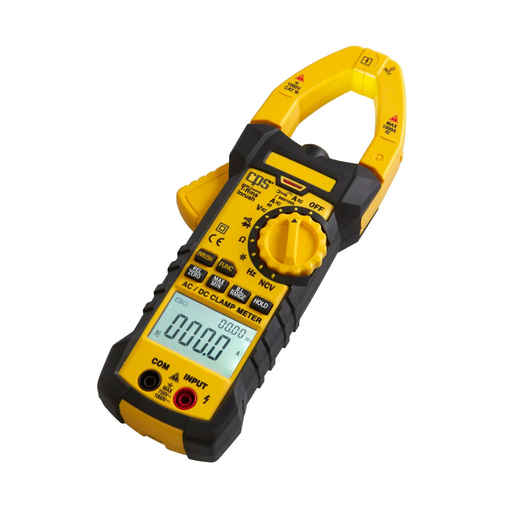

This portable multifunction meter has an LCD display and backlight and is versatile enough for testing AC/DC voltage, AC/DC current, resistance and frequency. It features an automatic measuring range and manual measuring range, non-contact voltage detection and True Inrush measurement.

Robertshaw® IgnitorPro™ Universal Ignitors are a durable and versatile product contractors can keep on
hand to ensure quick, reliable repairs. These ignitors include all mounting brackets and hardware.

Versatile:
- Replace more than 150 ignitors from leading OEMs
- The perfect truck stock items-minimal inventory
- Round and flat blade designs available
Easy to install: Include all mounting brackets and hardware
Reliable: Constructed with silicon nitride, the new industry standard for durability
- Fewer callbacks
- More repeat business for new installations and preventive maintenance

Service kit (NC); diaphragm assembly, O-ring, (4) screws, armature assembly, rubber gasket, refrigeration gasket, compression spring

Seal kit (NC); (4) O-rings, (2) Al. gaskets

The TC-900E Series Controllers operate with two sensors, one for room temperature and the other fastened to the evaporator to control defrost and fan functions.

Features and Benefits
The TC-900E Digital Controllers automate the defrost process according to the needs of facilities defrost cycles while providing energy savings.
Adaptive defrost capable for energy savings
Adaptive defrost can be less harsh on inventories eliminating unneeded defrost cycles
Fast freezing better protects inventorie

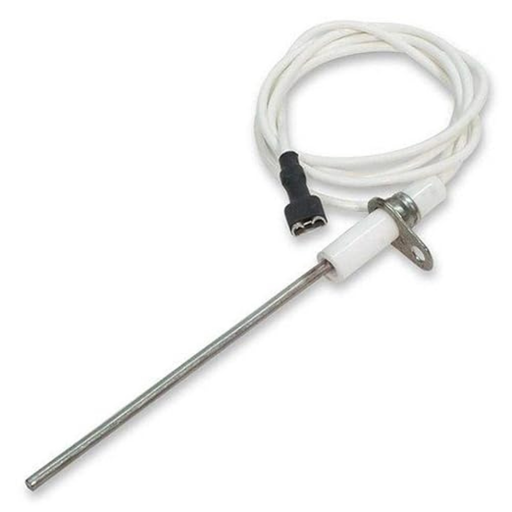

The Robertshaw® Flame Sensor Assembly and Replacement Sensors have high temperature Kanthol sensor rods that will withstand 1800°F (982°C). The sensor rod is 4” long and can be cut and bent to match an original unit. Excellent replacement for most manufacturers' flame sensors.

Features and Benefits

Includes 30” of Teflon® insulated lead wire with a 482°F (250°C) rating
Connects to a 1/4” quick connect terminal

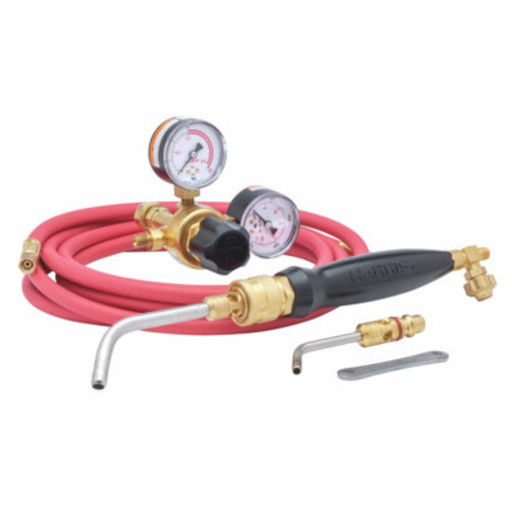

Model Inferno® kit with HA-3i and HA-8i heating tips contains all the quality equipment needed for brazing, and soldering using acetylene gas. The kit can braze up to 5 in. (127.00mm) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ¼ in. tube. The kit can solder up to 6 in. (152.40mm) diameter copper tube and is supplied with a size tip for soldering copper up to 3 in. (76.20mm) tube.

Features
Kit for brazing and soldering using air acetylene gas with quick connect Inferno® tip interchangeability.
Acetylene regulator model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. The regulator delivers up 15 psi.
Handle HQB-4 is ergonomically designed with a super tough grip for balance and comfort. This handle features quick connectivity for ease of desired heat output
Consumables included: Heating tips HA-3i and HA-8i made of 304 stainless steel utilizing swirl combustion technology.
Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 3/16 in. x 12 ft. AxA single T-grade hose, and chrome acetylene cylinder wrench
Crossover PN : (T)0386-0339, (G)447404
Recommended Accessories - Cylinder, CGA 200 MC Empty - PN 8800336
Conveniently packaged in clamshell for point-of-purchase display

Model HVAC Port-A-Torch® kit without cylinders contains all the quality equipment needed for brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can braze up to 1 in. (25.4mm) diameter copper tube and is supplied with a size tip for brazing copper up to ½ in. (12.7mm) tube. The kit is capable of welding up to 1/8 in. (3.18mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
Light Duty Port-A-Torch® V-Series threaded kit with cylinders designed to be used with oxygen and acetylene gases.
Regulator oxygen and acetylene model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen regulator that delivers up 80 psi and acetylene that regulator delivers up 15 psi.
Torch handle model 15-5HV solid brass torch handle is lightweight with front valves
Consumables included: mixer model 15HV and welding/brazing tip model 5090-1 & 3
Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 3/16 in. x 12 ft. AxA twin R-grade hose, No. 5 chrome acetylene cylinder wrench, and black plastic PAT hose reel case.

Quick coupler valve depressors complete with neoprene seal and depressor tips

Features/Benefits

1/4" Female Flare Swivel x ¼" Male Flare Access, 90° Configuration
Depressor Tip and Seal, No Valve Core
Made of CDA 360 brass
