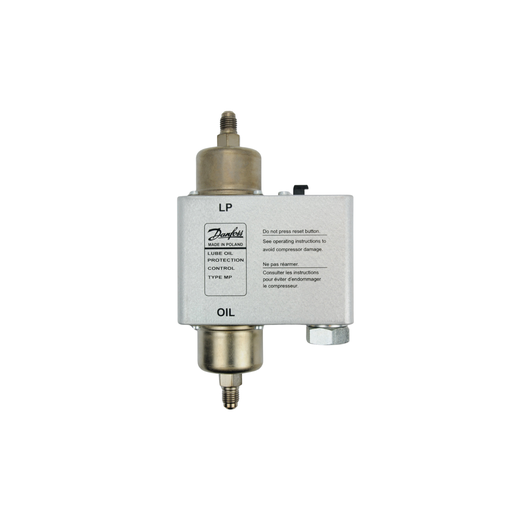

MP - Differential Pressure Switch / Lube Oil Protection Switch
MP 54 and MP 55 oil differential pressure switches are used to protect refrigeration compressors against low oil pressure. These switches are
compatible with HCFC and non-flammable HFC refrigerants.

CONTACTOR, 3 PL, BX LUG, 75A, 24V, 60A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

⅛" FPT X ¼" Female Flare Knurled Swivel w/ Depressor Tip & seal

Features/Benefits

¼" Female Knurled Swivel
⅛" FPT
Depressor Tip and Seal

CAPACITOR, RUN, OVAL DUAL, 45+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

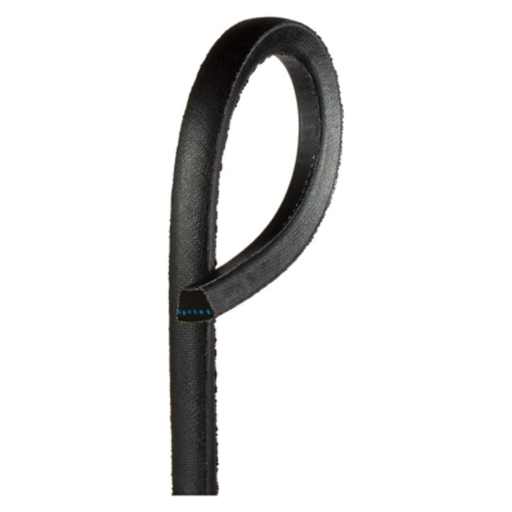

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.

Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.

Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments.

All sizes meet Gates V80™ system matching tolerances.

Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

CAPACITOR, RUN, OVAL, 10 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CAPACITOR, RUN, OVAL, 20 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CAPACITOR, START, 270 – 324 MFD, 330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-9/16 in

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.

Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.

Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments.

All sizes meet Gates V80™ system matching tolerances.

Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

CAPACITOR, START, 189 – 227 MFD, 220V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-1/16 in

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 1-20 seconds, and off at 40-110 seconds.

Features/Benefits

24 volt control circuit
Five second delay between all subsequent stages, unless they function together
UL® and CSA® approved

Off: 40 - 110 Seconds
On: 1 - 20 Seconds

Flexible 304 stainless steel with yellow polyethylene jacketing. All tubing clearly marked with gas pressure rating, EHD (Equivalent Hydraulic Diameter). Tested to the ANSI Standards for Fuel Gas Piping System using Corrugated Stainless Steel Tubing(CSST), ANSI LC-1a-2009, CSA 6.26a-2009, ANSI LC-1-2005 and CSA 6.26-2005.

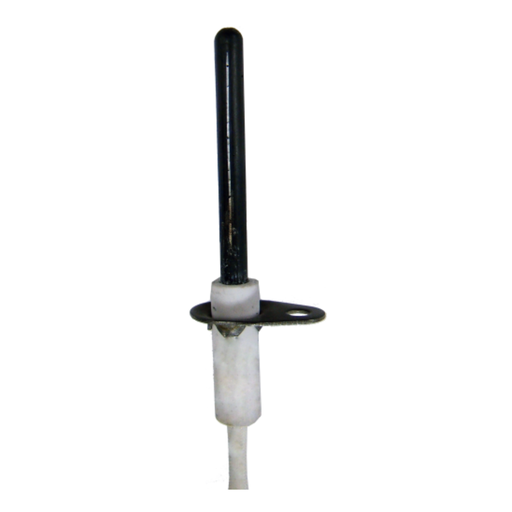

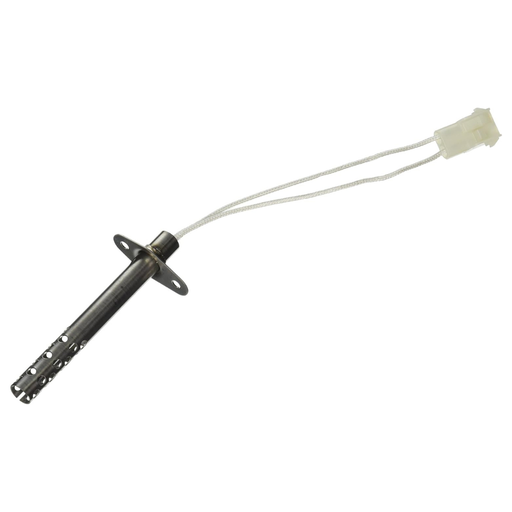

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

The Ranco® Dual Pressure Controls combine the functions of a single high-pressure limit control and a single low-pressure control in one unit with a single pole, single throw (SPST) switch.

Features and Benefits

Convertible feature allows selection of manual or reset function when operating at high pressure (O12‑4833/O12-4834)
A wide range of high-pressure manual or automatic reset controls can be replaced (O12-4833 or O12‑4834)
A high-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
High-limit adjustment screw
Low-pressure differential and range adjusting screw
Selector screw for manual or automatic
Reset button
Low-pressure scale plate
High-impact plastic cover with center mount screw
High-pressure scale plate
Super Cap® capillary protection system
Color-coded for easy identification of pressure line
High-side capillary flare nut (silver)
Low-side capillary flare nut (brass)
Cap included on all Australia temperature controls. Optional for all other regions

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

16-14 AWG #10 stud 13/64" I.D. 20 Pieces

A practical leak management package designed for HVAC-R service professionals.

Includes:
• HS11001 Leak Lock Gold – Premium refrigerant-grade thread sealant
• HVAC Leak Stop Syringe – Internal leak repair solution for minor refrigerant leaks

Benefits:
• Helps reduce refrigerant loss
• Fast and easy application
• Excellent addition to any technician's toolbox
• Suitable for service and maintenance work

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.

Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.

Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments.

All sizes meet Gates V80™ system matching tolerances.

Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

CONTACTOR, 3 PL, BX LUG, 120A, 120V, 90A

Complete competitive cross-reference available
Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

The ETC-1122 Green Discharge Temperature Sensor is designed for accurate temperature measurement and control, offering high reliability and precision. Equivalent to Emerson / Copeland / CPC part numbers 501-1121 & 501-1122 and Parker, Micro Thermo Technologies™ part number 023-0073..

Model Inferno® kit with HA-5i and HA-14i heating tips contains all the quality equipment needed for brazing, and soldering using acetylene gas. The kit can braze up to 5 in. (127.00mm) diameter copper tube and is supplied with a size tip for brazing copper up to 3 in. (76.20mm) tube. The kit can solder up to 6 in. (152.40mm) diameter copper tube and is supplied with a size tip for soldering copper up to 5 in. (127.00mm) tube.

Features
Kit for brazing and soldering using air acetylene gas with quick connect Inferno® tip interchangeability.
Acetylene regulator model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. The regulator delivers up 15 psi.
Handle HQB-4 is ergonomically designed with a super tough grip for balance and comfort. This handle features quick connectivity for ease of desired heat output
Consumables included: Heating tips HA-5i and HA-14i made of 304 stainless steel utilizing swirl combustion technology.
Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 3/16 in. x 12 ft. AxA single T-grade hose, and chrome acetylene cylinder wrench
Crossover PN : (T)0386-0336, (G)89628
The quality designed Inferno® tips deliver reliable heat, consistent temperature and a quality flame
Regulator has seven year warranty and other components have one year warranty
Conveniently packaged in clamshell for point-of-purchase display

Connector with two, ¼" male flares, one with core and cap in a 'U' shape. At the side is a ¼" female flare with depressor tip, and opposite that is an additional ¼" male flare.

Features/Benefits

¼" female flare with depressor tip on side and opposite is an additional ¼" male flare
Two ¼" male flares, one with core and cap, in a U shape

This replacement sensor works with LS1 and LS2 electronic leak detectors.

CAPACITOR,START,161 – 193 MFD,330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-9/16 in

CONTACTOR, 1.5 PL, 10-32 SCREWS, 35A, 120V

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Application Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

This swage punch set contains 1/4in, 5/16in, 3/8in, 1/2in and 5/8in punches.

CAPACITOR,START,270 – 324 MFD,110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-7/16 in

OV Series 3 / 4" Universal Replacement Motor Protectors

Features/Benefits

Built in temperature activated disc opens and closes the motor overload protector's contacts
Protects compressor or motor from excessive high heat situations
UL® & CSA Approved
Universal replacement overload
Locked rotor amps: 16.0-18.0
hp @ 120 VAC: 1/10 thru 1/4
hp @ 240 VAC: 1/5 thru 1/3
