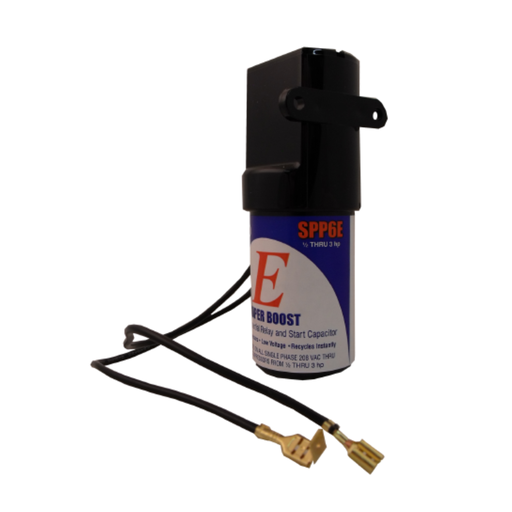

START, HARD, 170 TO 277V, 1/2 TO 3 HP

Backup electronic timing circuit to protect the compressor
Can be used on PSC and CSIR type compressors
Easy 2-wire installation
Electronic potential relay (EPR) technology, Instant re-start, voltage sensing
NATE recognized (course #1867-0002)

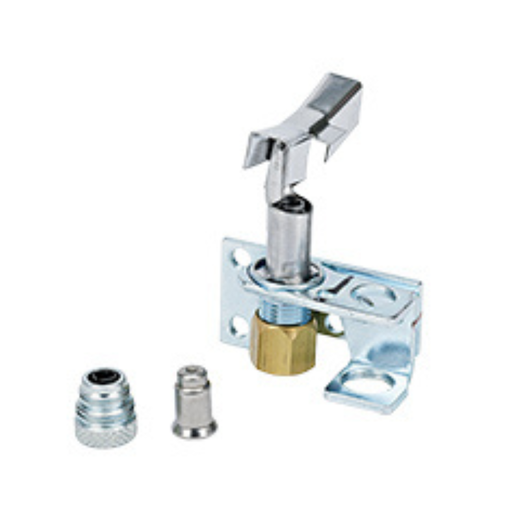

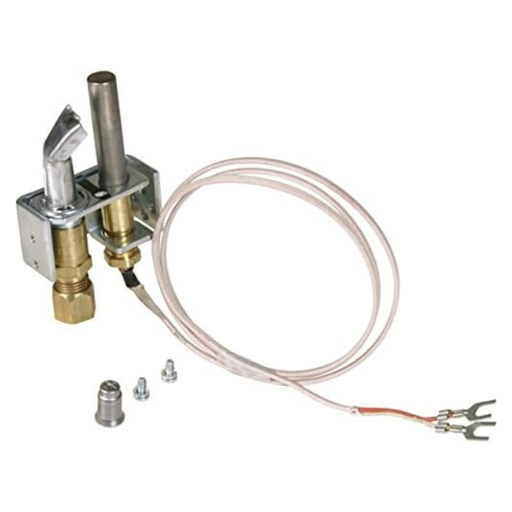

The 1830 Series Pilot Uni-Kit® models are designed to be used with all Robertshaw® and most competitive thermocouples. Uni-Kit models include an adaptor that converts a threaded thermocouple/thermopile model 2CH to a snap-in thermocouple type, model 2C.

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics

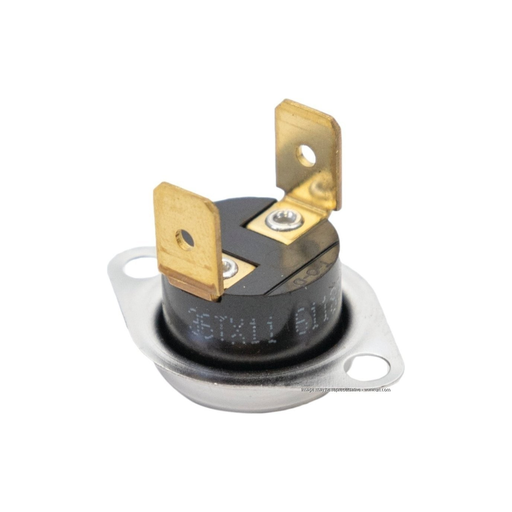

The SLS series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

Auto reset
CSA approved
Offered in a broad temperature range to cover most heating applications
UL® recognized

Terminals: 45° angle ¼"
Cut out temp ( °F): 170 °F
Cut in temp ( °F): 130 °F
Differential °: 40 °F

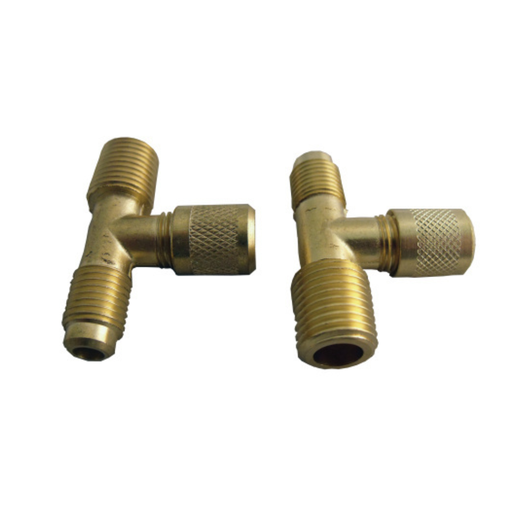

SF9600 Series ¼" flare forged access tees with forged brass tee and ¼" flares are threaded for valve cores

Features/Benefits

¼" male flare x ¼" MPT x ¼" male flare access on branch
One cap
One valve core

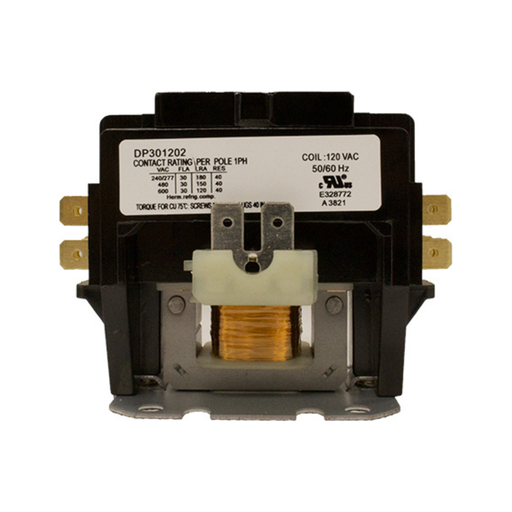

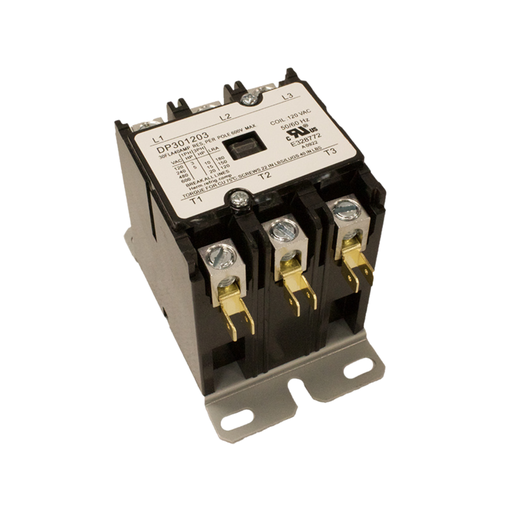

CONTACTOR, 120V, 30A, 2, 40A, #10-32 SCREWS

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Application Low drop out voltage making them ideal for any air conditioning heating and refrigeration application

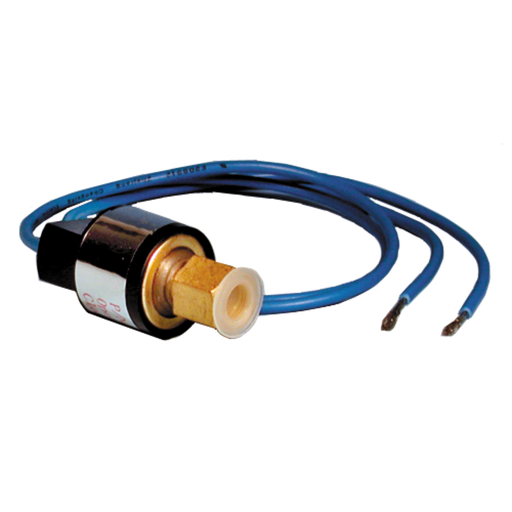

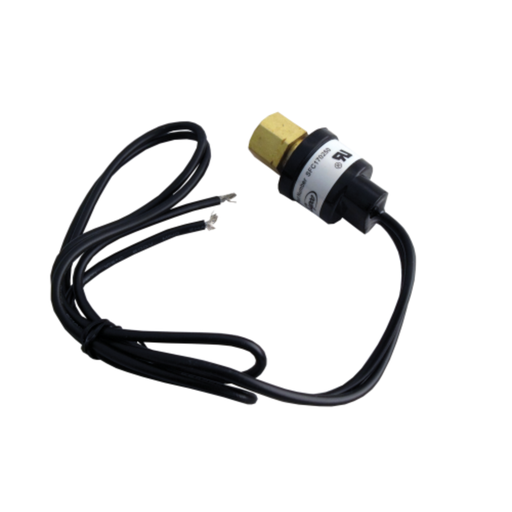

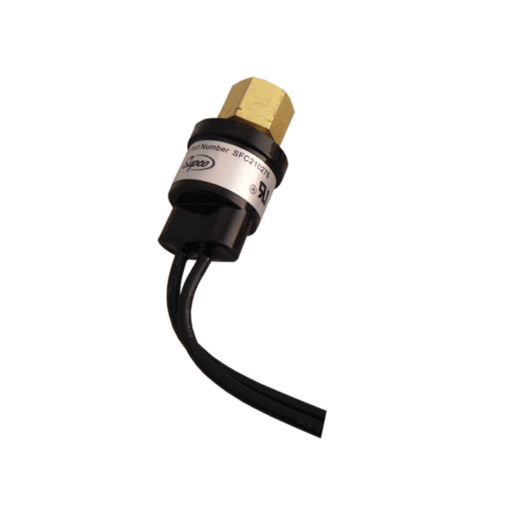

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

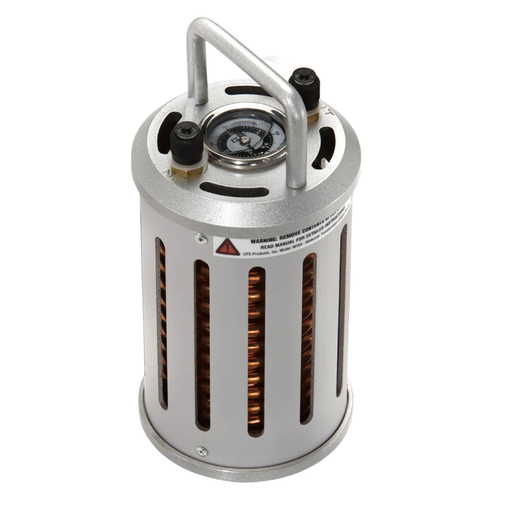

This molecular transformator sub-cooler provides valuable assistance in the transformation of high-temperature, pressure vapor refrigerant into low-temperature, pressure liquid refrigerant, dramatically improving recovery speed and efficiency.

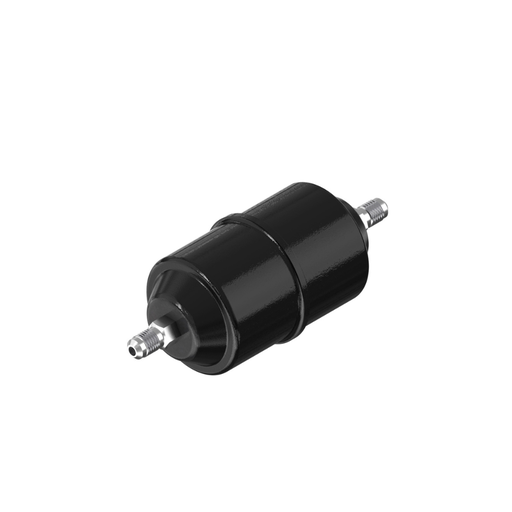

DCL/DCB/DAS/DCR - Filter Driers
Danfoss filter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss filter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic filter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

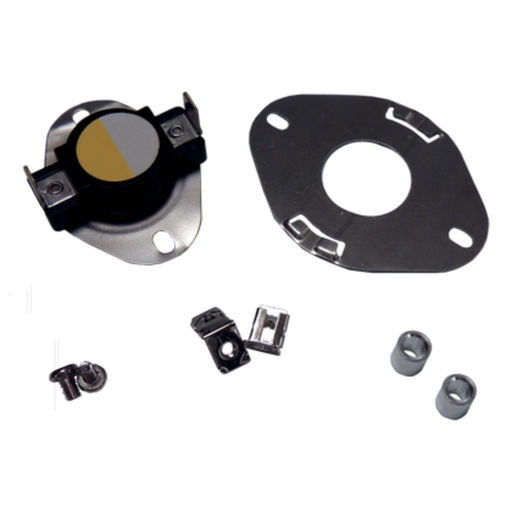

The SHL Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC.

Features/Benefits

Available with automatic and manual reset SPST or automatic reset SPDT switch configurations.
CSA approved
Limit - open on rise
UL® recognized
Welded construction for integrity of current-carrying components.

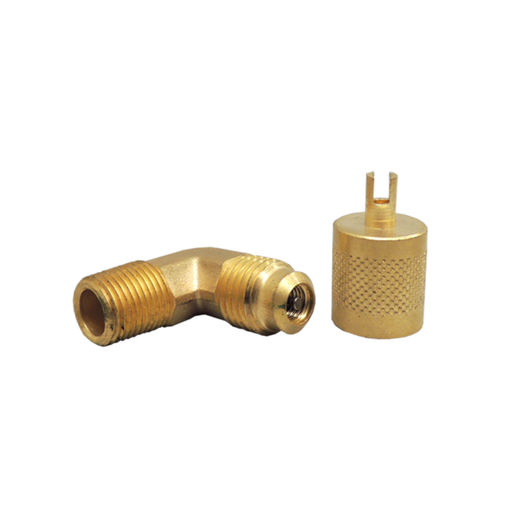

¼" Male Flare X ⅛" MPT Elbow w/ Wrench Cap & Core

Features/Benefits

¼" SAE Male Flare
⅛" MPT
Brass cap with Neoprene O-ring
Stainless steel valve core, suitable for all refrigerants

The SHL Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC.

Features/Benefits

Available with automatic and manual reset SPST or automatic reset SPDT switch configurations.
CSA approved
Limit - open on rise
UL® recognized
Welded construction for integrity of current-carrying components.

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment. Package includes a bracket.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

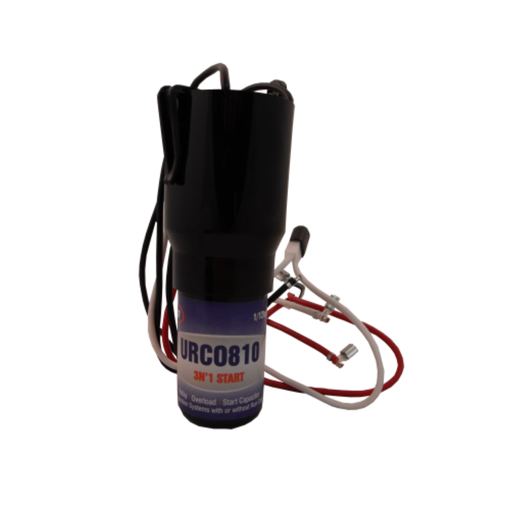

CAPACITOR, OVLD, RLY, 110 TO 125VAC, 115V

Designed for modern high efficiency compressors, easy mount clip for quick installation
For systems with or without run capacitors
Helps older compressors start and run cooler
Prevents low voltage starting problems
Wire designations - white/start, black/common, red/run

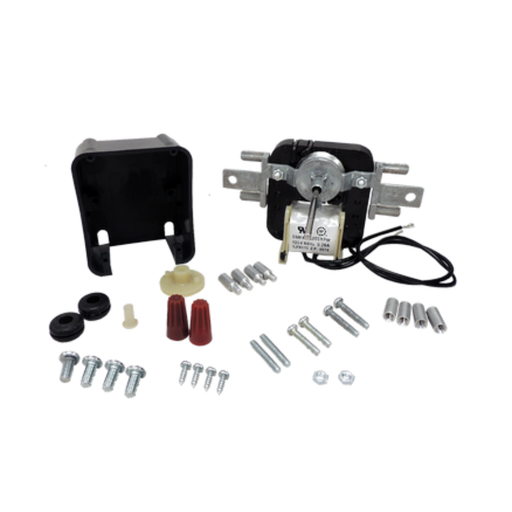

Evaporator Fan Universal Motor Kit 120 Volt 3000 RPM, Single Speed CW -clockwise rotation OR CCW-counter clockwise rotation. Replaces over 450 different evaporator motor types, Break off 2" Motor Shaft with Breakaways at 1/2" and 1-1/2".

Features/Benefits

Break off 2" motor shaft with breakaways at ½" and 1 ½"
CSA® Approved
Impedance protected
Includes all mounting accessories and hardware
Prefastened multi fit, break off mounting bracket
Replaces over 450 different evaporator type motors
Reversible rotation
Shaft diameter ⅛"
Single speed
UL® Recognized

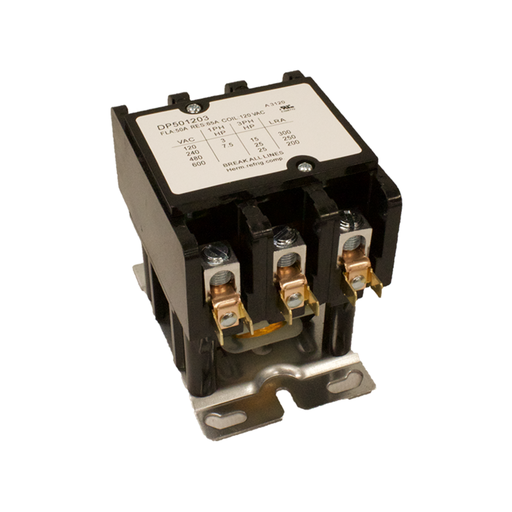

CONTACTOR, 3 PL, BX LUG, 50A, 120V, 40A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Application Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

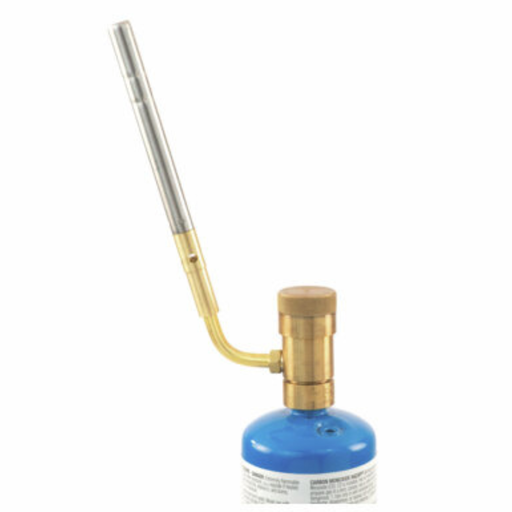

Model HSLT604HD air-fuel hand torch provides high performance and convenience to professional heating, ventilation, air conditioning, plumbing and refrigeration contractors. Built with heating performance, temperature consistency and flame control in mind, a Harris hand torch is the perfect partner for demanding brazing and soldering applications. This heavy-duty trigger torch is for use with MAP-Pro™ and Propane.

Features
Piezo igniter for instant flame
Red plastic ignition button lock for continuous use
Swirl combustion tip
Ergonomic handle design
Brass flame adjusting knob
Heavy-duty construction
For use with MAP-Pro™ and Propane 14.1 oz. non-refillable cylinders
Three year warranty
Conveniently packaged in clamshell for point-of-purchase display

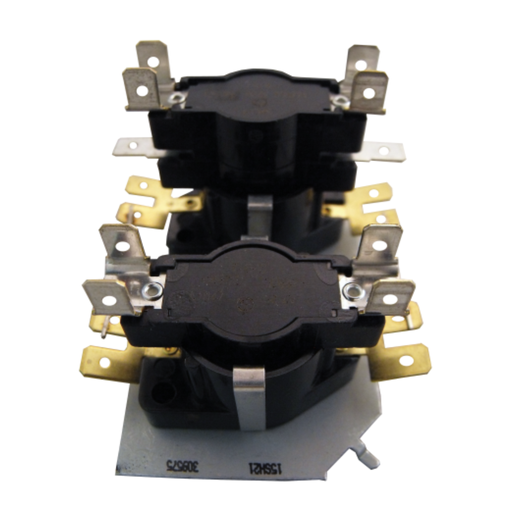

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has switches & turns on at 1-110 seconds, and off at 1-110 seconds.

Features/Benefits

24 volt control circuit
Five second delay between all subsequent stages, unless they function together
UL® and CSA® approved

Timing: Contacts M1-M2 will turn on 1st and turn off last
Off: 1 - 110 Seconds
On: 1 - 110 Seconds

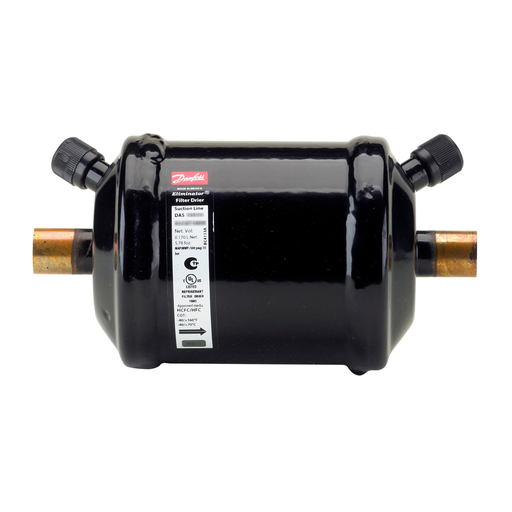

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

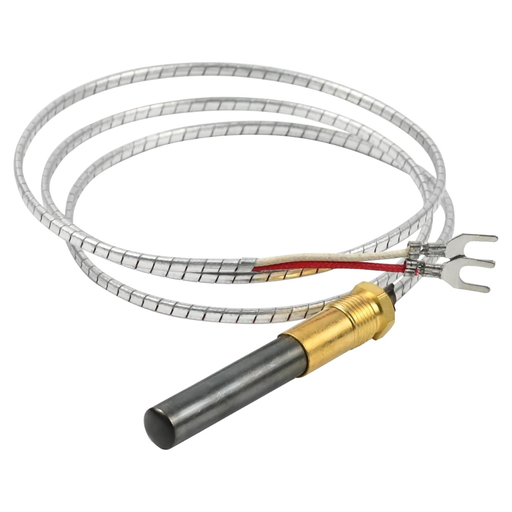

The Robertshaw® 1950 and 1951 Series Thermopiles lead the industry for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output.

Robertshaw thermopiles have two types of connections: coaxial and two-wire spade connectors. The 1950 Series Thermopiles, also known as TP-75, are two-wire spade connectors. The 1951 Series Thermopiles, also known as CP-2 (250 to 750 millivolts), are coaxial connectors. The 1950 and 1951 Series Thermopiles (pilot generators) are designed for use on self-powered gas control systems. They can be used to replace similar competitive devices. It includes PG9 Pilot Adaptor.

Features and Benefits

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

UC C LP AIR 2F 115 1PH M STD S 1
Evap. Temp : 25 °F Mid. Temp
Voltage : 115/1/60

UC C LP EL 3F 230 1PH M STD S 1
Evap. Temp : -20 °F Low Temp
Voltage . 208-230/1/60

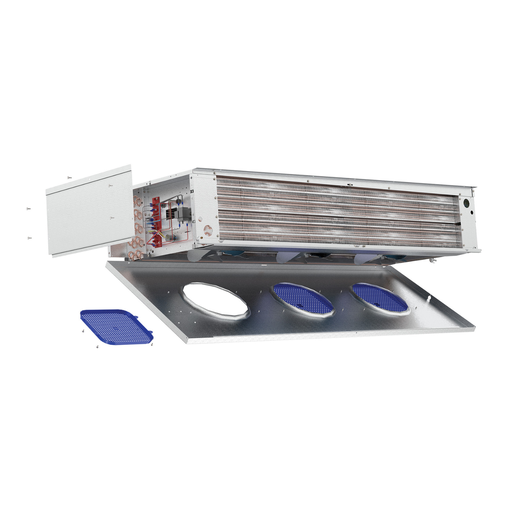

UC C LV AIR 2F 115 1PH M STD S 1
Evap. Temp : 25 °F
Voltage : 115/1/60
Room Temp :
Application Capacity* : 11,600 BTU/H
Refrigerant Type : R448A
Cooler AWEF > 32 : 9
Freezer AWEF <= 32 : N/A

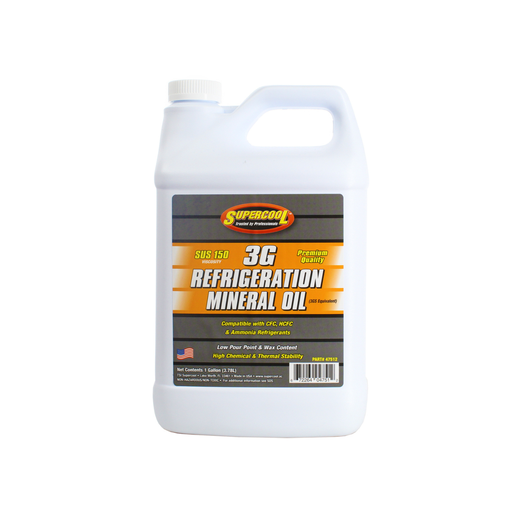

3G – SUS 150 VISCOSITY (3GS EQUIVALENT).
Premium Quality.
Compatible with CFC, HCFC and Ammonia Refrigerants.
Low pour point and wax content.
High chemical and thermal stability.
30 cSt viscosity.

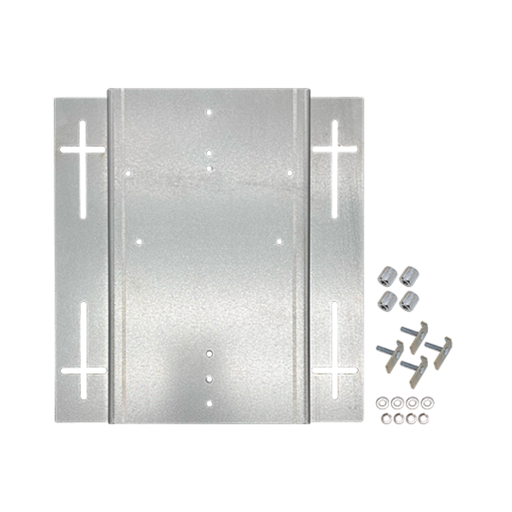

A universal way to secure the disconnect to the unit, without blocking access to the electrical panel.

Features/Benefits

Designed to fit various layouts of single phase disconnects
Cross pattern mounting allows for universal installations
Hex nuts for easy installation with 5/16" nut driver
Eliminates potential damage to the unit during installation
Made of weather-resistant galvanized metal
Part of our SUPCO® TradeFox™ Technician-Invented product line

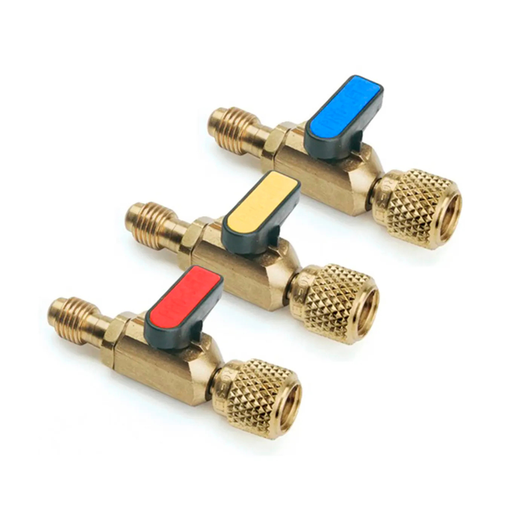

These straight ball valve hose adapters feature 1/4in SAE Male x 1/4in SAE Female connections and come in a pack of 3.

CU CC SCRL 3.0HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10 °F
Voltage : 208-230/3/60
Application Capacity* : 13,200 BTU/H
Refrigerant Type : R404A
AWEF Value : 3.15

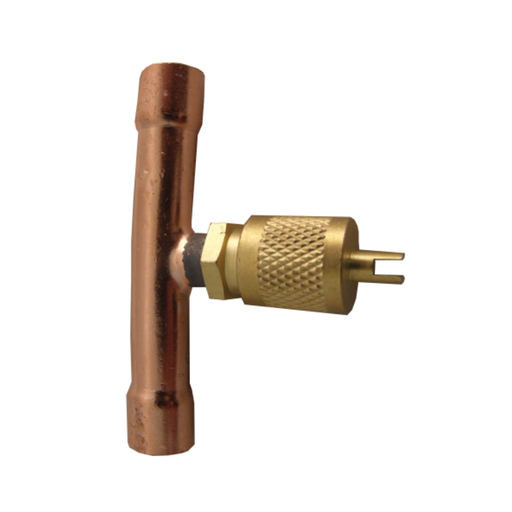

Universal line valves, two styles - a flared or straight end copper piece

Features/Benefits

Copper Tee with the body Brazed on.
Flared Ends
