Pro-Series WIFI Programmable Touchscreen Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable multi-stage temperature control in a simple, modern design with the RS10420T WIFI programmable Touchscreen wall thermostat.
Multi-Stage - 4 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• Factory pre-set energy efficiency program
• 24V AC Powered (C-wire required)
• 6Year Limited Warranty
• Large, easy-to-read 8.8-square-inch blue backlit touchscreen display
• Compatible with universal WiFi standards
• Compatible with Alexa and Robertshaw app (iOS or Android)
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Compressor delay protection for short-cycling prevention
• Filter change reminder
• Keypad lockout
• Dual fuel compatible
• Auto changeover

CAPACITOR, RUN, OVAL, 25 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CAPACITOR, RUN, OVAL DUAL, 15+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS9110 programmable wall thermostat.
Single Stage - 1 Heat / 1 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals
• Filter change reminder

CAPACITOR, START, 460 – 552 MFD, 110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

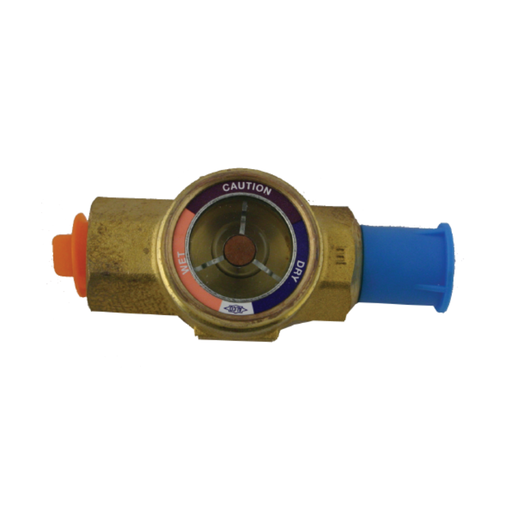

Hermetically designed moisture indicator with 3% relative humidity sensitivity, intended for use on refrigerant lines.

Features/Benefits

3% relative humidity indication compared to 10% paper indicators
3% relative humidity sensitivity
Accurate color calibration at low ppm levels and higher temperatures
All brass corrosion resistant body
Fully hermetic design
Maximum working pressure: 680 psig
Single indicator for all common refrigerants
Solid copper fittings
Tri color coded: Blue/Purple/Pink
Wide angle viewing/ high visibility window for ease of monitoring

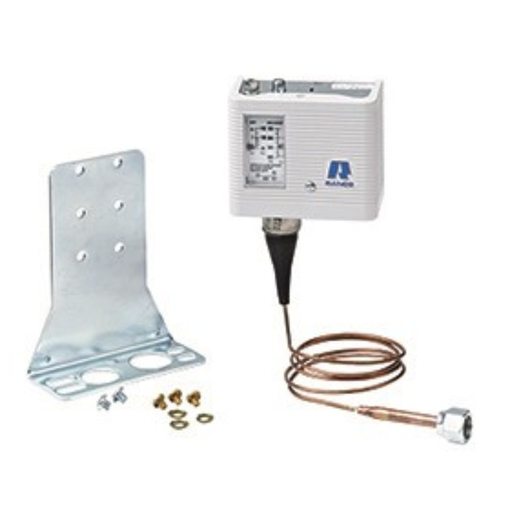

These controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
SUPER CAP® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Suitable for R12, R22, and R502 applications

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

Product Features
Synthetic ester lubricant provides excellent lubricity and compressor protection
Includes additive to prevent acid formation and corrosion
Includes O-ring conditioner, anti-wear & anti-oxidant additives
Compatible with PAG and mineral oils
Compatible with R134a and R12 refrigerant
100 cSt viscosity

3/8 x 20''

RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS9210 programmable wall thermostat.
Multi-Stage - 2 Heat / 1 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Dual fuel compatible
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Sil-Fos 5 is a silver-copper-phosphorus alloy for copper-copper brazing but can also be used to join brass with an appropriate flux (e.g. Handy Flux, Ultra Flux). It is a more cost effective Ag-Cu-P alloy, though it does not penetrate deep joints easily.
Joins CU to CU (phosphorus serves as flux)
Joins CU to Brass (flux is recommended)
Lower cost alternative to higher silver content Ag-Cu-P alloys
Medium flow
Made in USA
Industry Applications:
HVAC/R refrigerant systems, air conditioning coils, evaporator coils

The ETC-1122 Green Discharge Temperature Sensor is designed for accurate temperature measurement and control, offering high reliability and precision. Equivalent to Emerson / Copeland / CPC part numbers 501-1121 & 501-1122 and Parker, Micro Thermo Technologies™ part number 023-0073..

The Jumper King° allows you to quickly bypass any low voltage thermostat regardless of terminal style. This patent-pending all-in-one kit comes with everything you need to locate low-voltage shorts and eliminate compressor short cycling.

Features/Benefits

2-Spade Adapters, Jumper King° Thermostat Bypass Tool, Hard Carrying Case
6-Alligator Clips, 6-Magnetic Tips, 6-Jumper Leads, 6-Self Piercing Insulation Tips
For Use on low voltage circuits only (0-30VAC/VDC)
Four types of interchangeable tips: spade adapters, alligator clamps, magnetic tips and self-piercing insulation tips
Inovative selector switches to activate leads/circuits of your choosing at any time
No batteries required - powered by the low voltage in theA/C unit
Rugged unit has a rubberized boot, a magnet and fold-out hook for convenient mounting
Will never short out - contains a resettable popper fuse
Works on multiple stage units including heat pumps

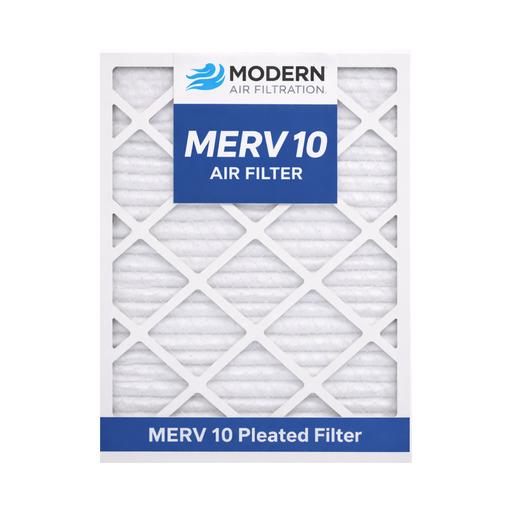

Size: 12 X 24 X 4

Size: 16 X 20 X 1

Size: 24 X 24 X 1

Size: 20 X 24 X 1

Size: 20 X 24 X 2

Size: 10 X 20 X 2
