SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

1/4 x 12''

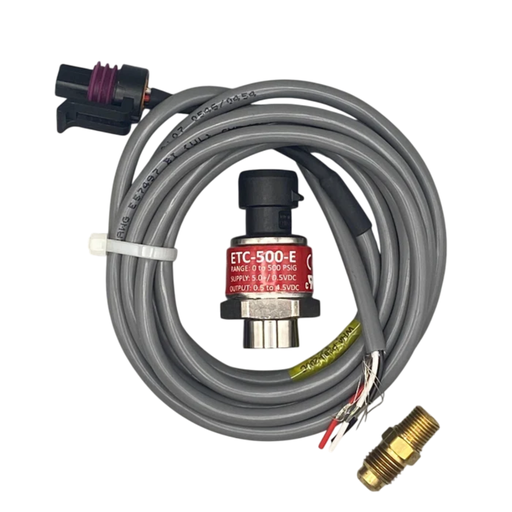

The ETC-500-E Pressure Transducer (800-2500) is a high-accuracy sensor designed for HVAC and refrigeration systems. Compatible with CPC, Emerson, Copeland, and Danfoss systems including RMCC, E2, E2e, E3, AK-SC255, AK-SC355, AK-SM800, and AK-SM800a. Equivalent to Danfoss part number 060G3991.

Note: supplied with 2M Cable

1/2 x 20''

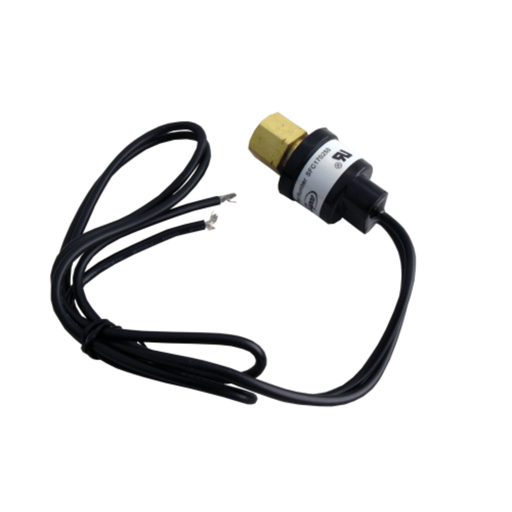

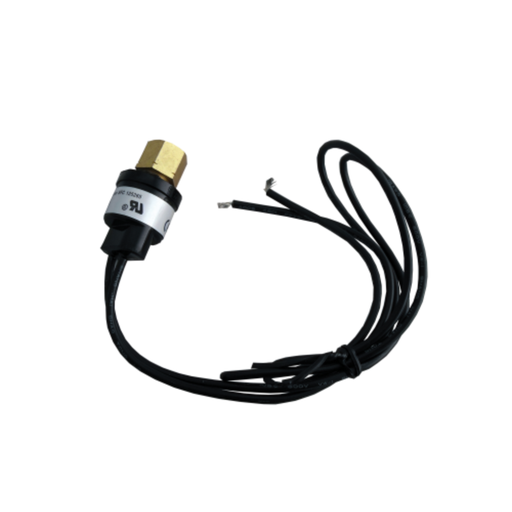

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

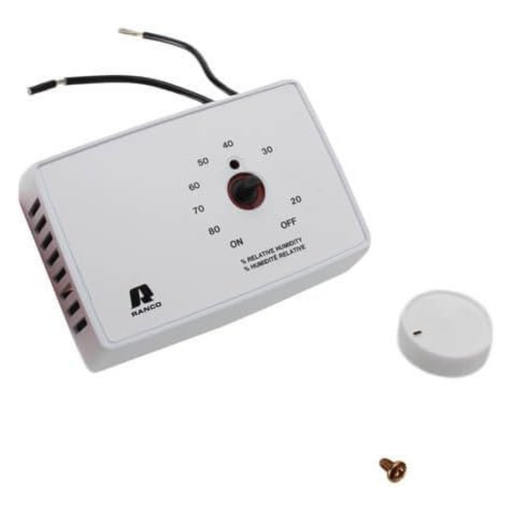

The J10 Series Humidistats and Dehumidistats are designed to regulate the relative humidity of confined spaces by cycling humidifying or dehumidifying equipment. Designed for central systems, the J10 controls are made from high impact plastic with a brushed finish dial plate. The J10's nylon sensing element provides long life and accurate humidity control. The J10-821 humidistat can be wall mounted or installed directly in a cold air return duct.

Features and Benefits

Strong plastic frame with integral switch eliminates the need to ground the control
Improved woven nylon sensing element provides a faster response time
Greater stability in set points over dramatic changes in relative humidity
Improved differential allowing 5% relative humidity

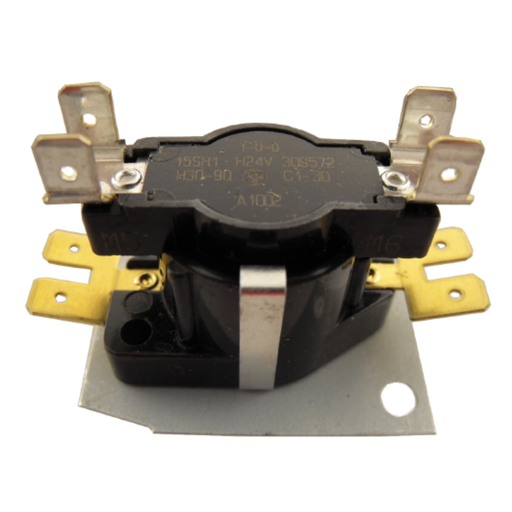

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 30-90 seconds, and off at 1-30 seconds.

Features/Benefits

24 volt control circuit
Five second delay between all subsequent stages, unless they function together
UL® and CSA® approved

Off: 1 - 30 Seconds
ON: 30 - 90 Seconds

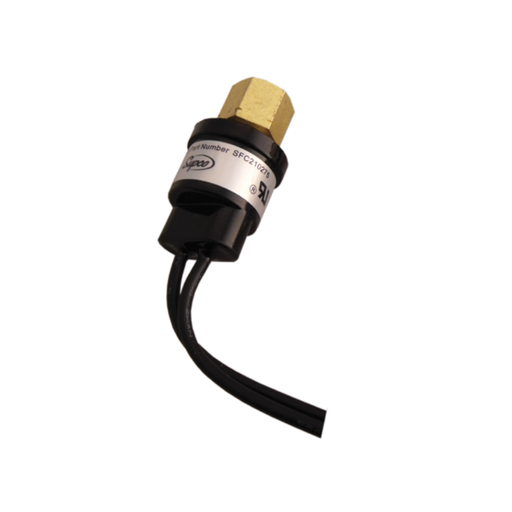

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

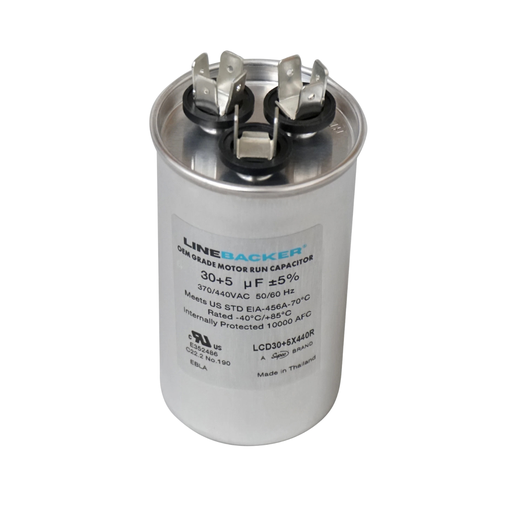

CAPACITOR, RUN, RND DUAL, 30+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

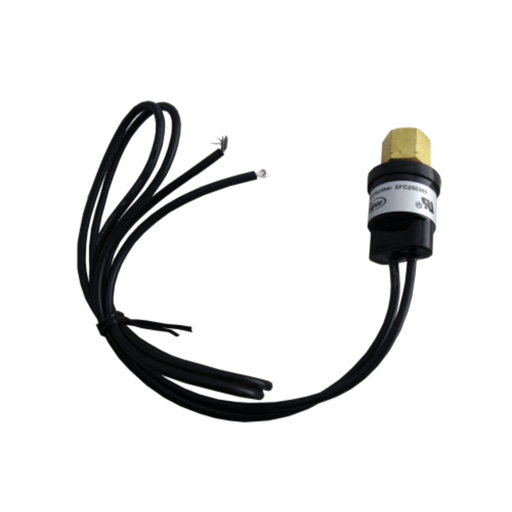

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

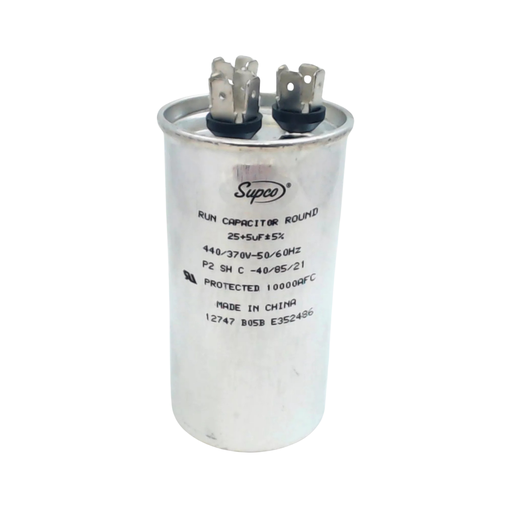

CAPACITOR, RUN, RND DUAL, 25+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

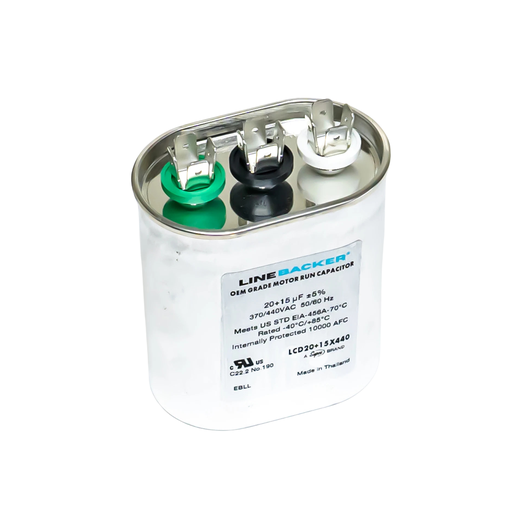

CAPACITOR, RUN, OVAL DUAL, 20+15 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

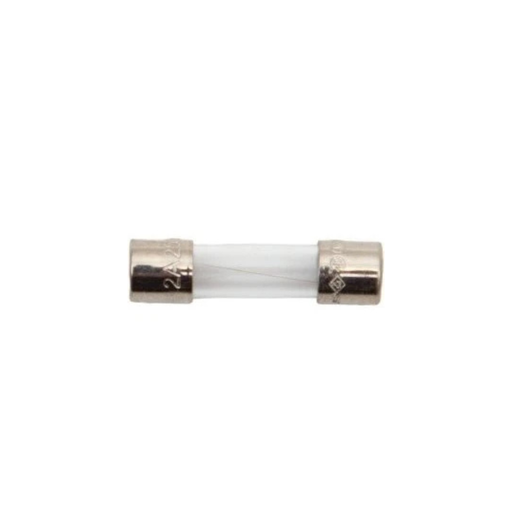

The ETC-FUSE-2A is a fast-acting 2 amp fuse rated 250V (5x20mm), designed for use in Emerson relay boards. It provides reliable circuit protection for HVAC and refrigeration control systems. Sold in packs of 100. Equivalent to Emerson/Copeland part number 117-2002.

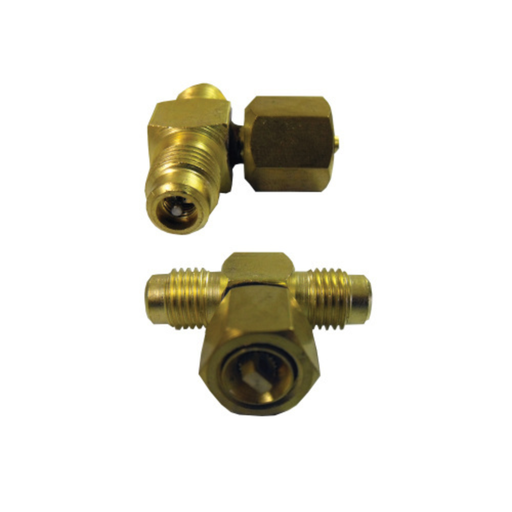

Tee connector with 1/4" male flare access and valve core X 1/4" male flare access X 1/4" female flare with depressor tip.

Features/Benefits

¼" male flare with valve core and cap x ¼" male flare x ¼" female flare nut with depressor tip on the branch
All brass connector tee

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in
