RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS9210 programmable wall thermostat.
Multi-Stage - 2 Heat / 1 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Dual fuel compatible
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

The SUPCO® Universal ECM Tester provides functional test for virtually all types of Electronically Commutated Motors on the market.

TESTER, UNIV, ECM, 24VAC, 24 IN

24 in leads and magnetic case for job-site convenience
24 VAC indicator light, short circuit protection
Easy to use - gives a in Go/No-Go in result
No batteries required
Part of our Supco TradeFox™ Technician-Invented product line

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

22-18 AWG ¼" (.250") Male/Female P.B. 10 Pieces

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

16-14 AWG ¼" (.250") Male Tab 20 Pieces

These controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
SUPER CAP® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Suitable for R12, R22, and R502 applications

CAPACITOR, RUN, OVAL, 4 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

Model Inferno® kit with HA-3i and HA-11i heating tips contains all the quality equipment needed for brazing, and soldering using acetylene gas. The kit can braze up to 5 in. (127.00mm) diameter copper tube and is supplied with a size tip for brazing copper up to 2 in. (50.80mm) tube. The kit can solder up to 6 in. (152.40mm) diameter copper tube and is supplied with a size tip for soldering copper up to 4 in. (101.60mm) tube.

Features
Kit for brazing and soldering using air acetylene gas with quick connect Inferno® tip interchangeability.
Acetylene regulator model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. The regulator delivers up 15 psi.
Handle HQB-4 is ergonomically designed with a super tough grip for balance and comfort. This handle features quick connectivity for ease of desired heat output
Consumables included: Heating tips HA-3i and HA-11i made of 304 stainless steel utilizing swirl combustion technology.
Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 3/16 in. x 12 ft. AxA single T-grade hose, and chrome acetylene cylinder wrench
Crossover PN : (T)0386-0335, (G)89600
The quality designed Inferno® tips deliver reliable heat, consistent temperature and a quality flame
Conveniently packaged in clamshell for point-of-purchase display

Hermetically designed moisture indicator with 3% relative humidity sensitivity, intended for use on refrigerant lines.

Features/Benefits

3% relative humidity indication compared to 10% paper indicators
3% relative humidity sensitivity
Accurate color calibration at low ppm levels and higher temperatures
All brass corrosion resistant body
Fully hermetic design
Maximum working pressure: 680 psig
Single indicator for all common refrigerants
Solid copper fittings
Tri color coded: Blue/Purple/Pink
Wide angle viewing/ high visibility window for ease of monitoring

CAPACITOR, START, 460 – 552 MFD, 110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

SWITCH, HIGH, PRES,1/4 IN, 6VDC, 12VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

CAPACITOR, RUN, OVAL DUAL, 30+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

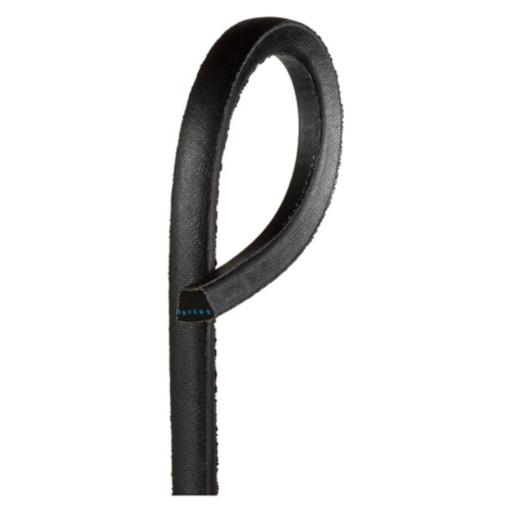

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.

Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.

Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments.

All sizes meet Gates V80™ system matching tolerances.

Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

¼" (.250") 2 Male x 1 Female 10 Pieces

The wrapped classical section Hi-Power™ V-belt has a long reputation for reliability on agricultural and industrial applications. The arched top of the Hi-Power belt provides superior strength to prevent "dishing" and distortion of the tensile section. The cords are properly aligned, each of them carrying its full share of the load.

Arched top, concave sidewalls and rounded corners provide uniform tensile loading and uniform pulley sidewall contact for excellent belt service life and reduced pulley wear.

Vulcanized Flex-bonded tensile cords provide superior resistance to tensile and flexing forces, fatigue and shock loads.

Flex-Weave™ oil and heat resistant cover protects the belt core from the toughest environments.

All sizes meet Gates V80™ system matching tolerances.

Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements. REACH and RoHS 2 compliant.

START, HARD, 170 TO 277V, 1/2 TO 3 HP

Backup electronic timing circuit to protect the compressor
Can be used on PSC and CSIR type compressors
Easy 2-wire installation
Electronic potential relay (EPR) technology, Instant re-start, voltage sensing
NATE recognized (course #1867-0002)

CONTACTOR, 3 PL, BX LUG, 65A, 24V, 50A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

SUPCO® Cooper Driers are high quality, high capacity original equipment components for use on domestic and commercial refrigerators, freezers, and air conditioners.

Features/Benefits

100% XH-9 Beaded Molecular Sieve
Compatible with all refrigerants (including R290 & R600A)
Copper shells and end tubes
Easy break off grooved ends
Hermetically sealed
High capacity

This 1/2in spring-type tube bender works for soft copper and aluminum. The end bell design aids in quick tubing removal.

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

22-18 AWG #8 stud 11/64" I.D. 20 Pieces

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG ¼" (.250") Female Tab 15 Pieces

This 1/4in spring-type tube bender works for soft copper and aluminum. The end bell design aids in quick tubing removal.

CAPACITOR, RUN, OVAL DUAL, 15+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CAPACITOR, RUN, OVAL, 25 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

This sight glass tool slides easily into the notches of a scroll compressor sight glass, and easily helps to extract the sight glass with a crescent or socket wrench. 1” diameter.

Features/Benefits

Extension slides into outer slots on 1 inch diameter sight glasses
Made of heavy-duty carbon steel
Once inserted use wrench or socket to remove the threaded sight glass

CAPACITOR, RUN, OVAL,30 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CONTACTOR, 120V, 30A, 3, 40A, #10-32 SCREWS

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Application Low drop out voltage making them ideal for any air conditioning heating and refrigeration application
