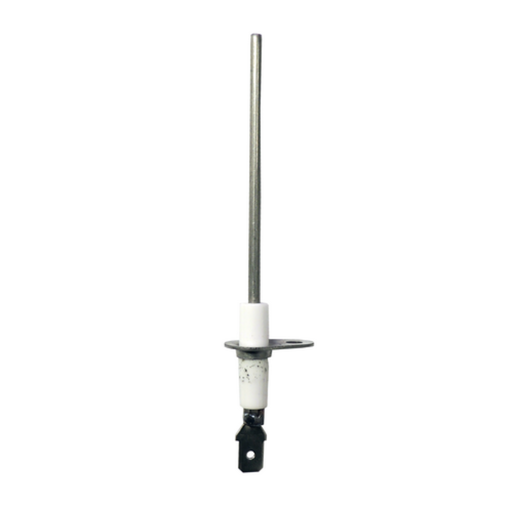

SUPCO® flame sensors can replace many of the popular sensors in today's furnaces that use hot surface or direct spark ignition systems.

Features/Benefits

Alumina ceramic insulator
For Hot Surface Ignition (HSI) systems
Kanthal flame rod material can withstand 1800°F
Mount on multiple burners, or adjacent to igniter
Use with spark ignition and flame sensing

Length (Flange to Tip): 4"
Termination: .25" Quick Disconnect

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG #8 stud 11/64" I.D. 15 Pieces

CU BN SCRL 7.5HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 208-230/3/60
Application Capacity* : 31,350 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15

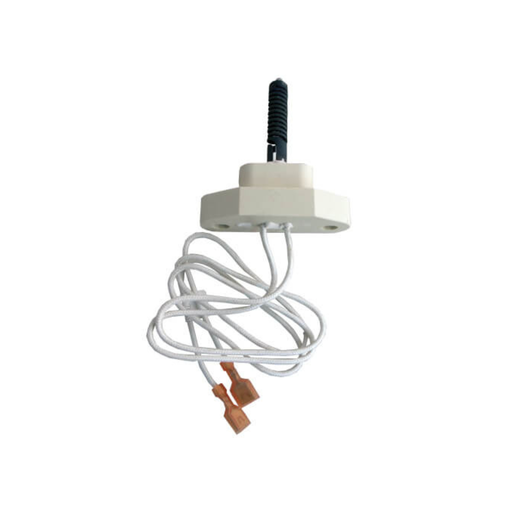

SIG106 - Furnace Ignitor

Exact replacement silicon carbide round ignitor

Features & Benefits:

Exact replacement hot surface ignitors
Superior gas lighting ability
Lower power consumption
18 gauge copper high temperature fiberglass insulated lead wires
Supco® round igniters offer an efficient , stronger, reliable hot surface Silicon Carbide design
Faster time to temperature response
Stronger more durable design
More robust in transit
Higher resistance to oxidation
Longer usable life

CAPACITOR, START, 124 – 156 MFD, 220V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

CONTACTOR, 3 PL, BX LUG, 65A, 120V, 50A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

START, HARD, 170 TO 277V, 1/3 TO 2 HP

Backup electronic timing circuit to protect the compressor
Can be used on PSC and CSIR type compressors
Easy 2-wire installation
Electronic potential relay (EPR) technology, Instant re-start, voltage sensing
NATE recognized (course #1867-0002)

Bold Fasteners 8 3/4

Use the TPI A776 Static Tip for Manometers to measure static pressure. A built-in magnet allows for placement inside of ductwork, so long as you have access through a 0.25" (6.35 mm) hole.

Features

Works with TPI manometers and combustion analyzers with built-in manometers (each sold separately)
Use to measure static pressure
Built-in magnet allows you to secure the static tip inside ductwork (requires a 0.25" hole)

CU CC SCRL 2.7HP 208-230/1/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 208-230/1/60
Application Capacity* : 27,360 BTU/H
Refrigerant Type : R404A
AWEF Value : 7.6

CU CC SCRL 2.5HP 208-230/3/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 208-230/3/60
Application Capacity* : 22,860 BTU/H
Refrigerant Type : R404A
AWEF Value : 7.6

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

22-18 AWG ¼" (.250") Female Tab 20 Pieces

CU CC SCRL 2.0HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10 °F
Voltage : 208-230/3/60
Application Capacity* : 9,310 BTU/H
Refrigerant Type : R404A
AWEF Value : 3.09

RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat.
Multi-Stage - 2 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Bold Fasteners 8 3/4

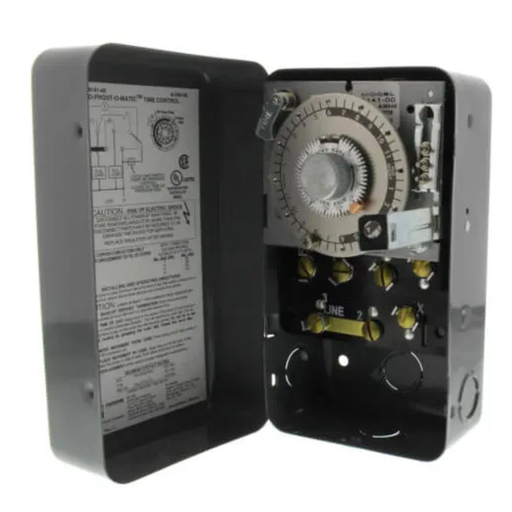

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

CAPACITOR, START, 161 – 193 MFD, 220V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

CAPACITOR, START, 270 – 324 MFD, 220V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-1/16 in

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

CU CC SCRL 3.0HP 208-230/1/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10 °F
Voltage : 208-230/1/60
Application Capacity* : 13,200 BTU/H
Refrigerant Type : R404A
AWEF Value : 3.15

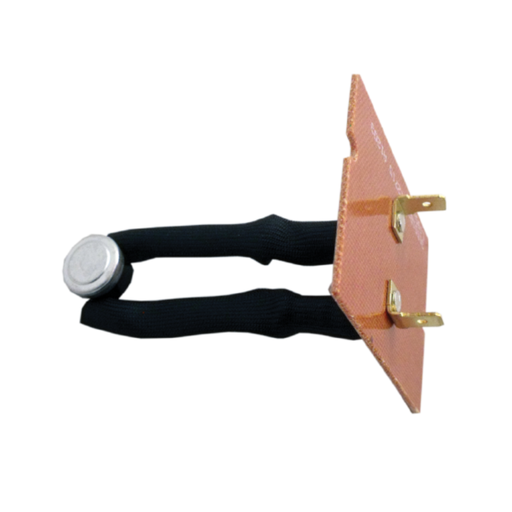

The SHL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

36T Electrical Ratings
CSA approved
Direct OEM replacements
Economical
L190-20 SPST
UL® recognized

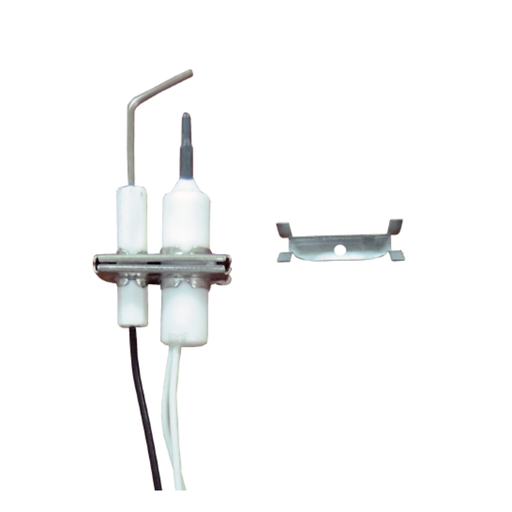

Direct replacement silicon nitride igniter kit

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniter
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride

CONTACTOR, 3 PL, BX LUG, 90A, 240V, 75A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG ¼" (.250") Female Tab 15 Pieces

CAPACITOR,START,88 – 108 MFD,110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-7/16 in

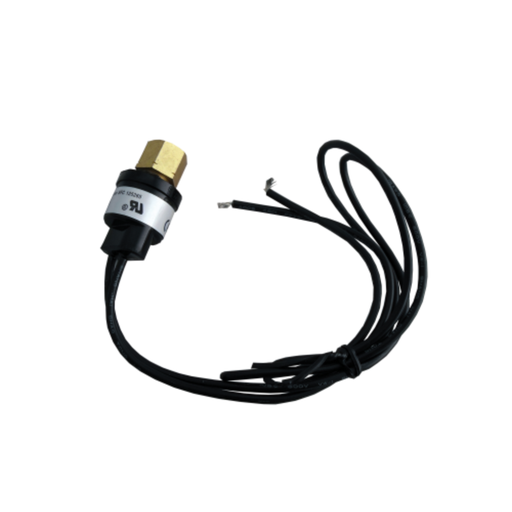

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

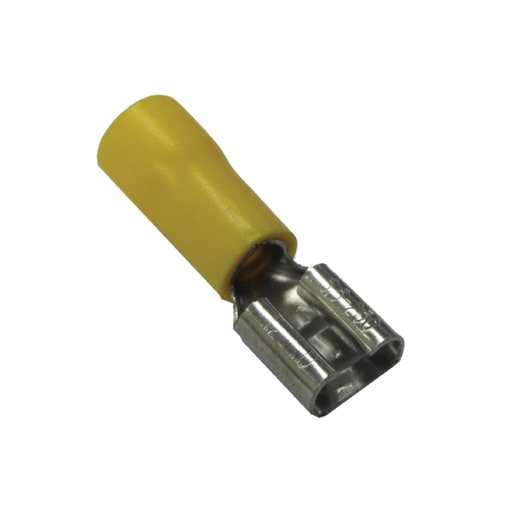

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

16-14 AWG 3/16" (.186") Female Tab 20 Pieces

The ETC-1125 Blue Temperature Sensor is designed for precise coil inlet temperature monitoring in evaporators. Compatible with Emerson / Copeland / CPC part number 501-1125 and Parker part number 023-0076. Identical to the Emerson / Copeland / CPC part number 501-1125 and Parker / Micro Thermo Technologies™ part number 023-0076.
