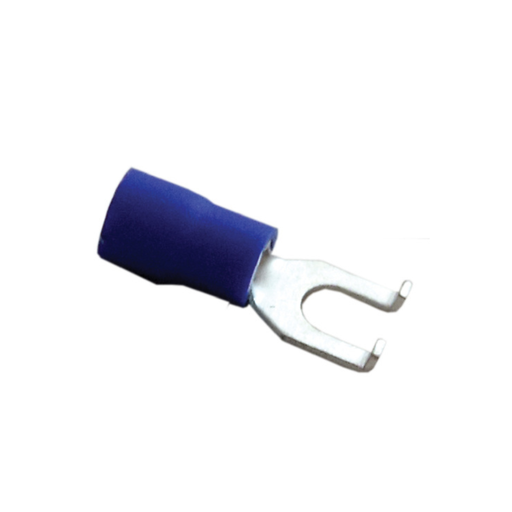

TERMINAL,SPADE,INSUL,16-14 AWG,100 PC

16-14 AWG #8 stud 11/64 in I.D. 100 pieces

UC C LP AIR 6F 115 1PH M STD S 1
Evap. Temp : 25 °F Mid. Temp
Voltage . 115/1/60

CU BN SCRL 7.5HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 208-230/3/60
Application Capacity* : 31,350 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15

CU CC SCRL 3.0HP 208-230/1/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10 °F
Voltage : 208-230/1/60
Application Capacity* : 13,200 BTU/H
Refrigerant Type : R404A
AWEF Value : 3.15

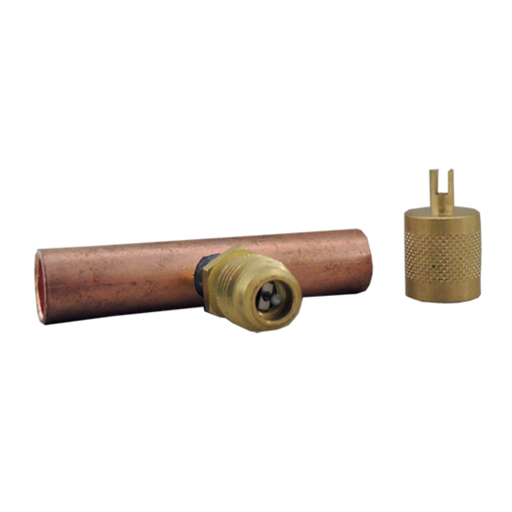

5/8" x 3" Tube, expanded to 5/8" ID on one side, 1/4" Male Flare w/ Cap Wrench & Core

Features/Benefits

¼" SAE Male Flare
Brass cap with Neoprene O-ring
Stainless steel valve core, suitable for all refrigerants

BC Series Bullet® Restricto Capillary Tubing. Can replace capillary tubes in domestic or commercial refrigerators or air conditioners.

TUBING, CAPILLARY, 0.085 IN, 0.145 IN, 9 FT
Outside Diameter 0.145 in
Inside Diameter 0.085 in

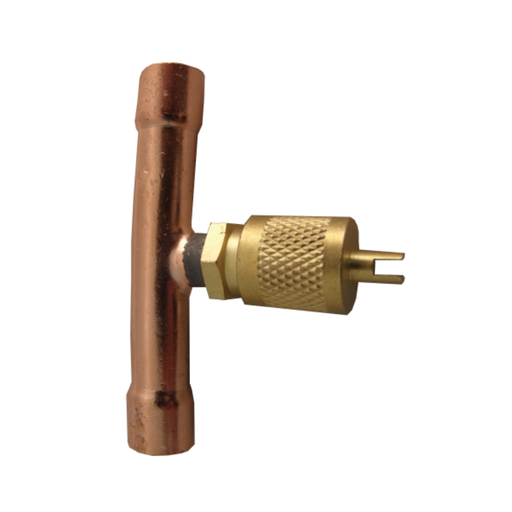

Universal line valves, two styles - a flared or straight end copper piece

Features/Benefits

Copper tee with the body brazed on
Flared Ends

CU CC SCRL 3.5HP 208-230/1/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 208-230/1/60
Application Capacity* : 14,040 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15

PULLER, FILTER, 18 IN L EXTENDED

18 in Extension
Ergonomic Handle
Magnetic Tip

CU CC SCRL 2.0HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10 °F
Voltage : 208-230/3/60
Application Capacity* : 9,310 BTU/H
Refrigerant Type : R404A
AWEF Value : 3.09

UC C LP AIR 6F 115 1PH M STD S 1
Evap. Temp : 25 °F Mid. Temp
Voltage : 115/1/60

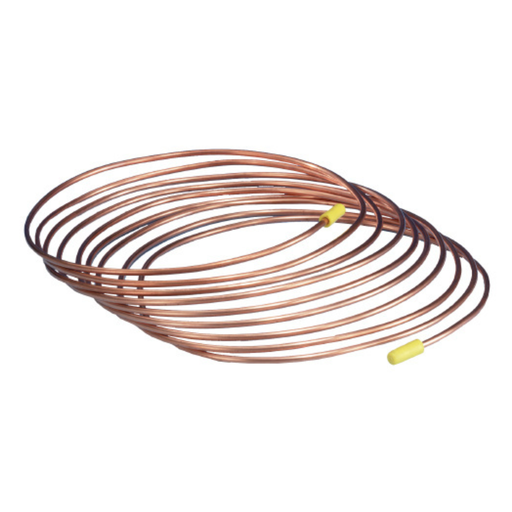

BC Series Bullet® Restricto Capillary Tubing. Can replace capillary tubes in domestic or commercial refrigerators or air conditioners.

TUBING, CAPILLARY, 0.046 IN, 0.093 IN, 12 FT
Outside Diameter 0.093 in
Inside Diameter 0.046 in

The SHL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

36T Electrical Ratings
CSA approved
Direct OEM replacements
Economical
L140-40 SPST

CU CC SCRL 2.0HP 208-230/1/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 208-230/1/60
Application Capacity* : 31,930 BTU/H
Refrigerant Type : R404A
AWEF Value : 7.6

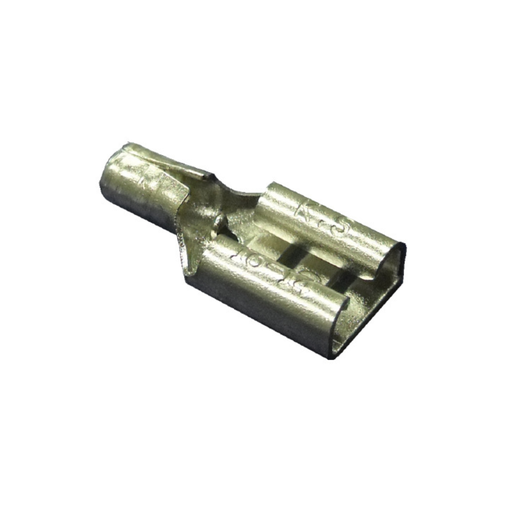

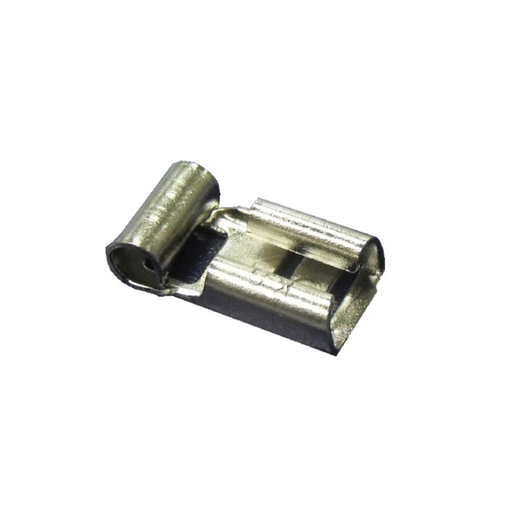

DISCONNECT,QUICK,HT,600V,16-14 AWG,100PC

16-14 AWG 1/4 in (0.250 in) female Tab 100 pieces
For higher temperatures - up to 900°F

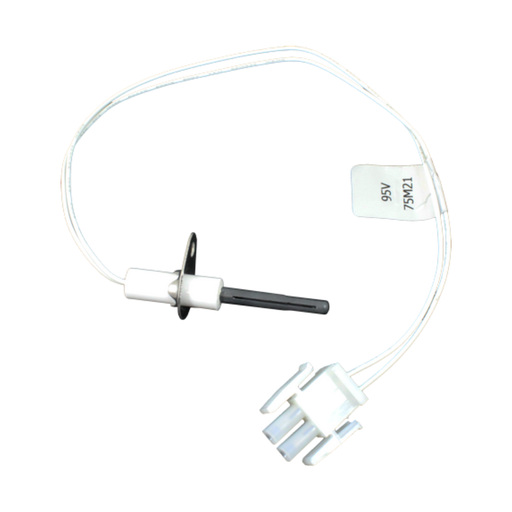

The 75M21 Igniter is used on Lennox® furnaces.


Igniter Material: Silicon Carbide
Steady State Current: 3.0 to 3.6 Amps Maximum @ 115 Volts
Resistance: 50 to 1100 Ohms
Time to temperature: <17 seconds @ 115 +/? 1.0 VAC
Minimum Temperature: 1800°F / 980°C @ 98 Volts
Maximum Temperature: 3100°F / 1705°C @ 132 Volts

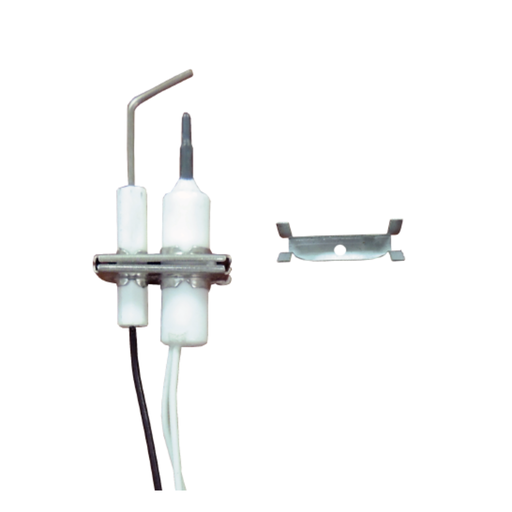

Direct replacement silicon nitride igniter kit

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniter
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride

The SHL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

36T Electrical Ratings
CSA approved
Direct OEM replacements
Economical
L140-30 SPST
UL® recognized

UC C CM AIR 2F 115 1PH M STD S 1
Evap. Temp : 25 °F
Voltage : 115/1/60
Room Temp :
Application Capacity* : 13,000 BTU/H
Refrigerant Type : R448A
Cooler AWEF > 32 : 9
Freezer AWEF <= 32 : N/A

UC C LP AIR 2F 115 1PH M STD S 1
Evap. Temp : 25 °F Mid. Temp
Voltage : 115/1/60

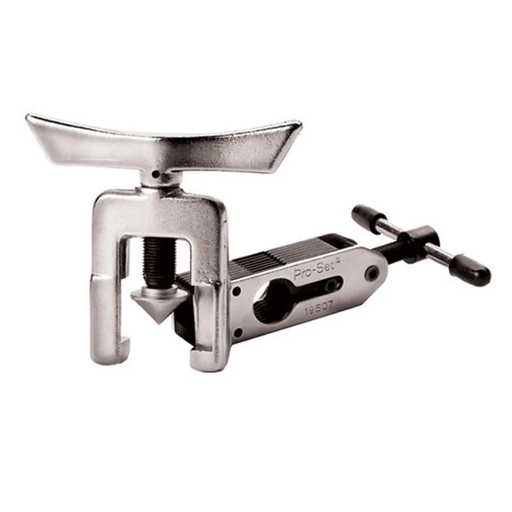

This tight-quarters universal flaring tool is adjustable to hold 3/16 to 5/8in (4.75 to 16mm) O.D. tubing. It automatically burnishes flare faces during operation with its unique faceted flaring cone.

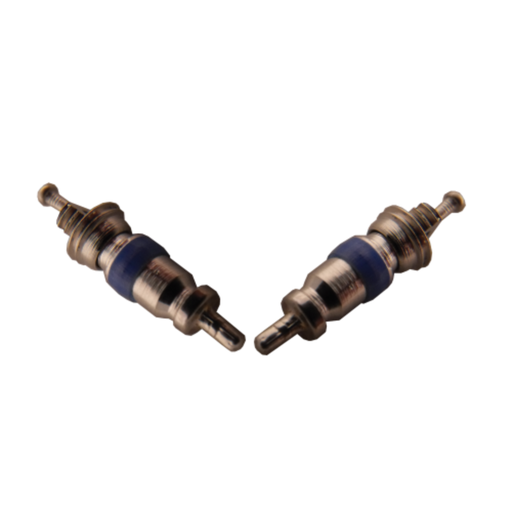

Valve core with teflon seal, compatible with most refrigerants.

Features/Benefits

Valve core with neoprene seal compatible with most refrigerants

Pilot Accessory Piezo Ignitor

UC C LV AIR 2F 115 1PH M STD S 1
Evap. Temp : 25 °F
Voltage : 115/1/60
Room Temp :
Application Capacity* : 11,600 BTU/H
Refrigerant Type : R448A
Cooler AWEF > 32 : 9
Freezer AWEF <= 32 : N/A

BC Series Bullet® Restricto Capillary Tubing. Can replace capillary tubes in domestic or commercial refrigerators or air conditioners.

TUBING, CAPILLARY, 0.055 IN, 0.112 IN, 11 FT
Outside Diameter 0.112 in
Inside Diameter 0.055 in

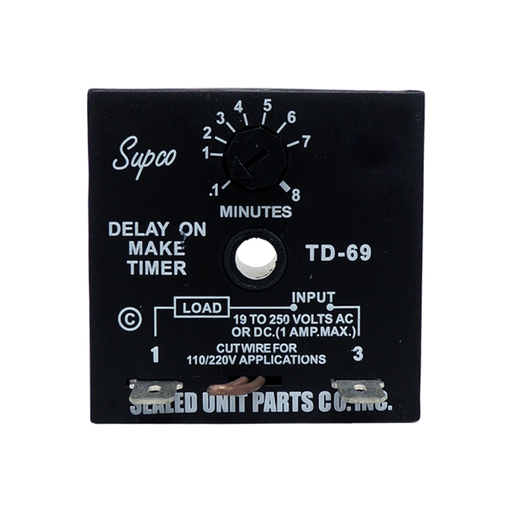

Time Delay on Make Timers (DOM)

Features/Benefits

1/4" male quick connect terminals
Adjustable time delay on make 6 seconds to 8 minutes
Cut the jumper wire to use in 110/250 volts
Delay on Make Timer (DOM)

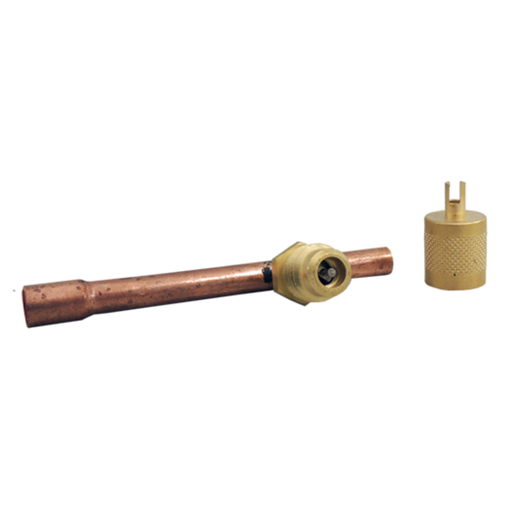

¼" x 3" Tube, expanded to ¼" ID on one side, ¼" Male Flare w/ Cap Wrench & Core

Features/Benefits

¼" SAE Male Flare
Brass cap with Neoprene O-ring
Stainless steel valve core, suitable for all refrigerants

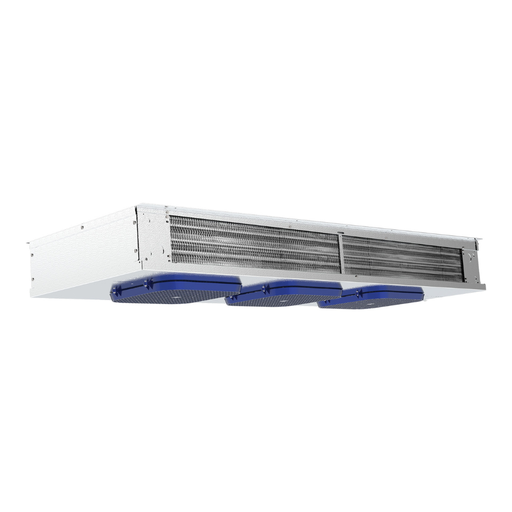

UC C CM AIR 2F 115 1PH M STD S 1
Evap. Temp : 25 °F
Voltage : 115/1/60
Room Temp :
Application Capacity* : 9,100 BTU/H
Refrigerant Type : R448A
Cooler AWEF > 32 : 9
Freezer AWEF <= 32 : N/A
