Copelaweld Hermetic Air-Cooled Condensing Units
Condensing Unit, 1hp 208/230-1 Herm 3/8“S / 1/2“S Air

Receiver
Fan guard
BX Conduit
All 3-phase models have single phase fan motors
R-22 Models have accumulator (2 hp up)
Electrical:
CAA, CFA, IAA, SAA: 115-1-60
CAV, CFV, IAV: 208/230-1-60
* F - Flare, S - Sweat, RF - Rotolock flare, RS - Rotolock sweat

M Series K Chassis Hermetic Reciprocating Air-Cooled Condensing Unit

Air Cooled steel - 24" x 16.1"

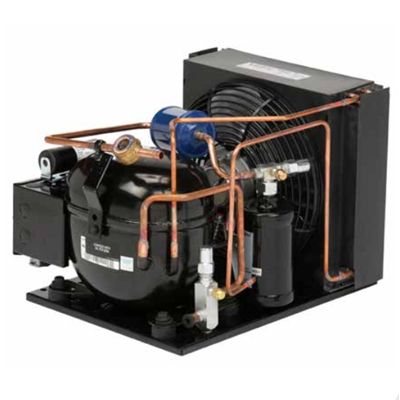

Copelaweld M6KP-0102 Hermetic Air-Cooled Condensing Unit

Medium Temperature Conditions @ 90° - Evap Temps 10 / 15 / 20 / 25
R-404A: 6,910 / 7,620 / 8,370 / 9,150 BTUH
R-448A: 6,330 / 7,120 / 8,000 / 8,960 BTUH
R-449A: 6,340 / 7,130 / 8,010 / 8,970 BTUH
Low Temperature Conditions @ 90° - Evap Temps -10 / -20 / -30
R-404A: 4,420 / 3,350 / -- BTUH
R-448A: 3,790 / -- / -- BTUH
R-448A: 3,800 / -- / -- BTUH

CPS HP5A Offers
This premium refrigerant charge hose is leak-proof 8-sided crimp superior hose construction with "double barrier protection".

Features

All-weather flexibility and strength
Adjustable valve core depressor opens all out of tolerance Schraeder® valves
Blow-off grooves channel refrigerant to prevent spray back
Available with MicroSeal™ or ball valve fittings
1/4in SAE fittings with 45° bend on one end

Features

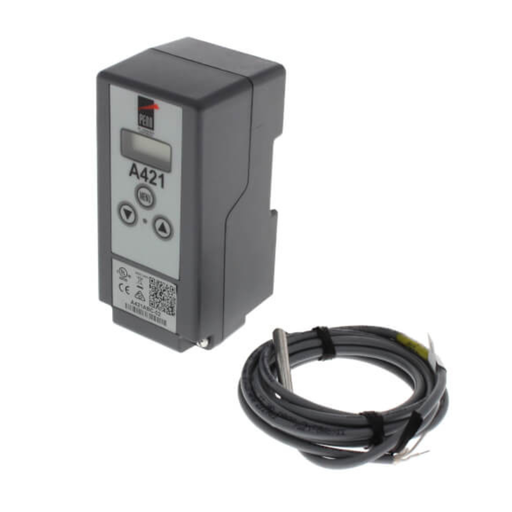

Features A421 Standard model
Control Front Panel LCD:
Displays the temperature, parameters, and status and allows you to adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status.
Basic and Advanced Programming Menu:
Provides two levels of parameter adjustment and control setup, allowing you to set up advanced features in one menu and easily adjust basic parameters in the other menu.
On/Off Temperature Adjustment:
Allows you to select the temperature values at which the relay turns On and Off, which automatically defines the Heating or Cooling mode of operation.
Switch-Activated Temperature Setback:
Allows you to shift the On/Off temperature by an adjustable setback value. When a user-supplied switch closes the binary input control circuit, the control operates at the defined setback temperatures.
Adjustable Anti-Short Cycle Delay:
Allows you to select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.
Adjustable Sensor Offset:
Allows you to adjust the displayed temperature to the actual sensed temperature.
Optional Restricted Adjustment Mode:
Allows you to restrict the On/Off adjustment to your defined temperature range.
Sensor Failure Mode:
Allows you to select the relay On/Off state in the event of a sensor or sensor wire failure.
Backlight Brightness Level:
Allows you to adjust the LCD backlight intensity.
Extra Features A421 Defrost model
Off-Cycle Defrost:
Allows you to shut off the refrigeration system for defined defrost time interval and frequency. You can also start or stop a manual only defrost offcycle.
Extra Features A421 Timer model
Free-Cooling and Ventilation:
Allows you to adjust for free-cooling and timed-ventilation, and provides over-cooling protection.
