Service kit (NC); diaphragm assembly, O-ring for armature tube, (4) screws T20, (4) screws T15, armature assembly, rubber
gasket, O-ring for steel cover, support ring, compression spring

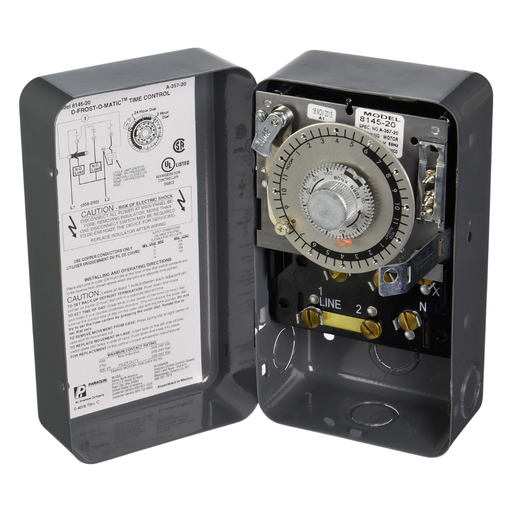

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

114N3584 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 3.5HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0350UWK000Q

R448A/R449A Capacity range: 28890 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3826W, AWEF 9.22

R404A/R507 Capacity range: 31910 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3829W, AWEF 10.33

114N3594 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) LOW 4HP 3PH
Compressor power supply [V]: 230/3/60
LNYM0400UWL000Q

R448A/R449A Capacity range: 15220 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 3563W, AWEF 3.41

R404A/R507 Capacity range: 18280 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 3672W, AWEF 3.81

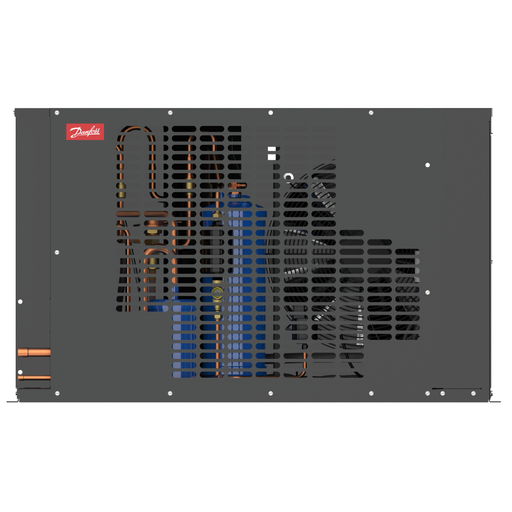

114N3597 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) LOW 8HP 3PH
Compressor power supply [V]: 230/3/60
LNYM0600UWL000Q

R448A/R449A Capacity range: 27310 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 6222W, AWEF 3.39

R404A/R507 Capacity range: 33350 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 6360W, AWEF 3.76

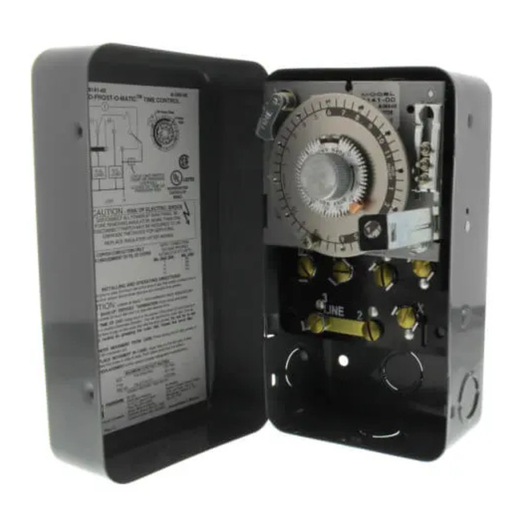

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

114N3581 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 2.5HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0250UWK000N

R448A/R449A Capacity range: 22000 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3013W, AWEF 8.79

R404A/R507 Capacity range: 24040 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2973W, AWEF 10.04

114N3591 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 7HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0700UWK000Q

R448A/R449A Capacity range: 55260 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6907W, AWEF 9.83

R404A/R507 Capacity range: 58470 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6912W, AWEF 10.45

A/C DRAIN LINE CLEANER.
HELPS PREVENT COSTLY WATER DAMAGE CAUSED BY CLOGGED A/C CONDENSATE DRAINS.
Prevents clogs and build-up by loosening and removing mold, mildew, scum and water deposits in A/C & refrigeration drain pans, lines & pumps.
Safe for drain pipes, pumps and pans, is non-corrosive.
Ready to use liquid allows application in difficult to access condensate pans and lines.
When used regularly helps prevent further build-up.
Treats up to a 4-Ton unit.

Piston service kit (NC); (2) O-ring, compression spring, piston assembly, insert block, rubber gasket, piston ring

114N3583 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 3.5HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0350UWK000N

R448A/R449A Capacity range: 28890 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3826W, AWEF 9.22

R404A/R507 Capacity range: 31910 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3829W, AWEF 10.33

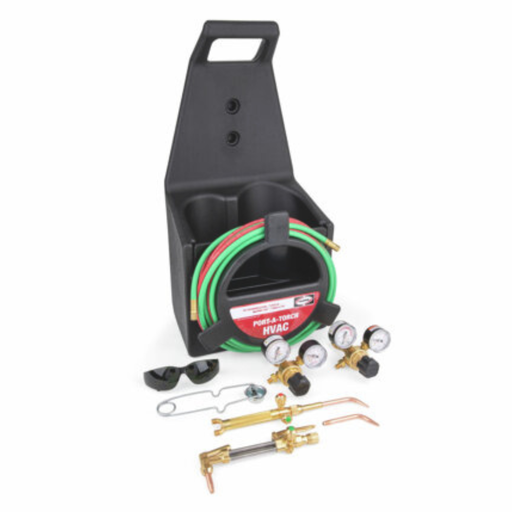

Model HVAC Port-A-Torch® kit without cylinders contains all the quality equipment needed for brazing, and welding using oxygen and acetylene gases all in a convenient portable carrying case. The kit can braze up to 1 in. (25.4mm) diameter copper tube and is supplied with a size tip for brazing copper up to ½ in. (12.7mm) tube. The kit is capable of welding up to 1/8 in. (3.18mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate.

Features
Light Duty Port-A-Torch® V-Series threaded kit with cylinders designed to be used with oxygen and acetylene gases.
Regulator oxygen and acetylene model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. Oxygen regulator that delivers up 80 psi and acetylene that regulator delivers up 15 psi.
Torch handle model 15-5HV solid brass torch handle is lightweight with front valves
Consumables included: mixer model 15HV and welding/brazing tip model 5090-1 & 3
Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 3/16 in. x 12 ft. AxA twin R-grade hose, No. 5 chrome acetylene cylinder wrench, and black plastic PAT hose reel case.

114N3578 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 2HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0200UWK000Q

R448A/R449A Capacity range: 17070 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2408W, AWEF 8.44

R404A/R507 Capacity range: 18870 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2359W, AWEF 10.06

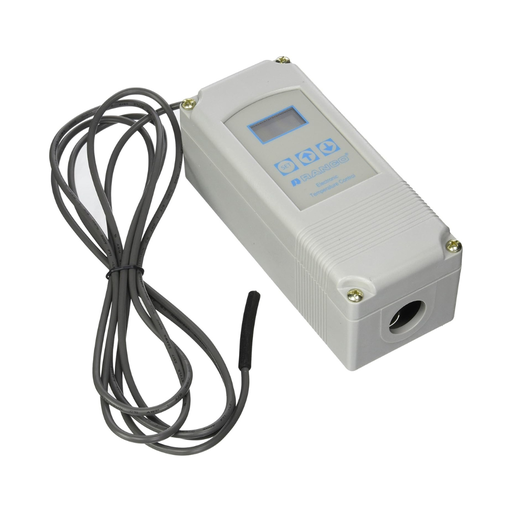

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.

Features and Benefits

Anti-short cycle compressor delay for cooling applications
Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
Wide differential adjustment (1°F to 30°F) (-17°C to -1°C)
LCD read-out for sensor temperature, control settings, and relay status
High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
EEPROM memory retains control settings during power outages
Keypad lockout to prevent end-user alteration of settings
8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
Easy 4-step set-up
Heavy-duty relay is 1 HP rated
Selectable °F or °C heating/cooling modes
Single and two stage models
NEMA 1 case and cover
NEMA 4X models available
White backlight on display
Sensor rated IP67 for dust and water (<1m) resistance

114N3580 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 3HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0300UWK000Q

R448A/R449A Capacity range: 23320 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3187W, AWEF 9.92

R404A/R507 Capacity range: 25290 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3187W, AWEF 9.92

114N3585 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 4HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0400UWK000N

R448A/R449A Capacity range: 34040 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4455W, AWEF 9.40

R404A/R507 Capacity range: 36450 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4596W, AWEF 9.62

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility.

Features and Benefits

Anti-short cycle compressor delay for cooling applications
Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
Wide differential adjustment (1°F to 30°F)
LCD read-out for sensor temperature, control settings, and relay status
High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
EEPROM memory retains control settings during power outages
Keypad lockout to prevent end-user alteration of settings
8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
Easy 4-step set-up
Heavy-duty relay is 1 HP rated
Selectable °F or °C heating/cooling modes
Single and two stage models
NEMA 1 case and cover
NEMA 4X models available
White backlight on display
Sensor rated IP67 for dust and water (<1m) resistance

114N3588 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 5HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0500UWK000Q

R448A/R449A Capacity range: 41710 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 5406W, AWEF 9.06

R404A/R507 Capacity range: 45690 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 5430W, AWEF 9.64

114N3593 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 10HP 3PH
Compressor power supply [V]: 230/3/60
HRXM1000UWK000Q

R448A/R449A Capacity range: 82280 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 9991W, AWEF 9.88

R404A/R507 Capacity range: 90760 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 10580W, AWEF 10.3

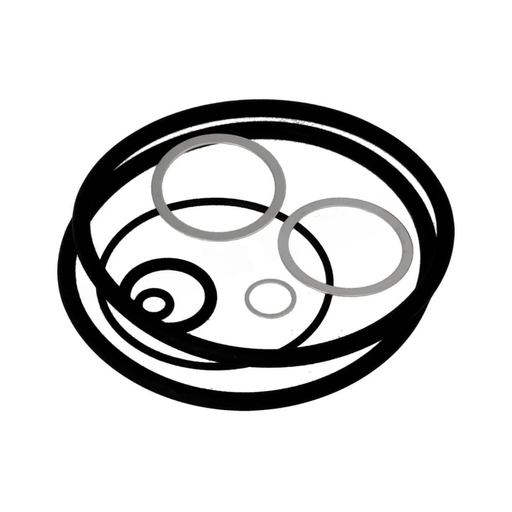

Seal kit (NC); (4) O-rings, (2) Al. gaskets

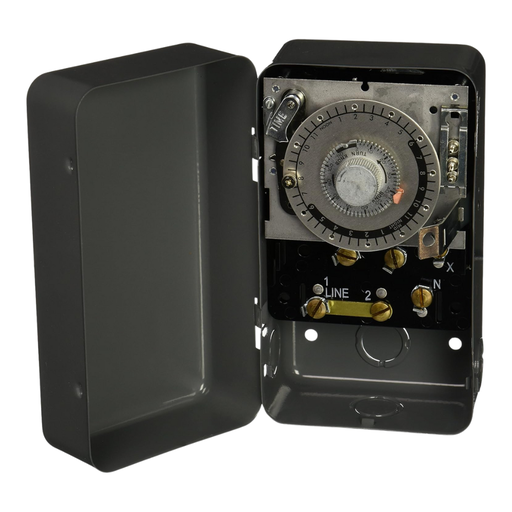

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

114N3582 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 2.5HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0250UWK000Q

R448A/R449A Capacity range: 22000 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3013W, AWEF 8.79

R404A/R507 Capacity range: 24040 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2973W, AWEF 10.04

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.

Features and Benefits

Anti-short cycle compressor delay for cooling applications
Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
Wide differential adjustment (1°F to 30°F) (-17°C to -1°C)
LCD read-out for sensor temperature, control settings, and relay status
High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
EEPROM memory retains control settings during power outages
Keypad lockout to prevent end-user alteration of settings
8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
Easy 4-step set-up
Heavy-duty relay is 1 HP rated
Selectable °F or °C heating/cooling modes
Single and two stage models
NEMA 1 case and cover
NEMA 4X models available
White backlight on display
Sensor rated IP67 for dust and water (<1m) resistance

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.

Features and Benefits

Anti-short cycle compressor delay for cooling applications
Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
Wide differential adjustment (1°F to 30°F) (-17°C to -1°C)
LCD read-out for sensor temperature, control settings, and relay status
High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
EEPROM memory retains control settings during power outages
Keypad lockout to prevent end-user alteration of settings
8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
Easy 4-step set-up
Heavy-duty relay is 1 HP rated
Selectable °F or °C heating/cooling modes
Single and two stage models
NEMA 1 case and cover
NEMA 4X models available
White backlight on display
Sensor rated IP67 for dust and water (<1m) resistance

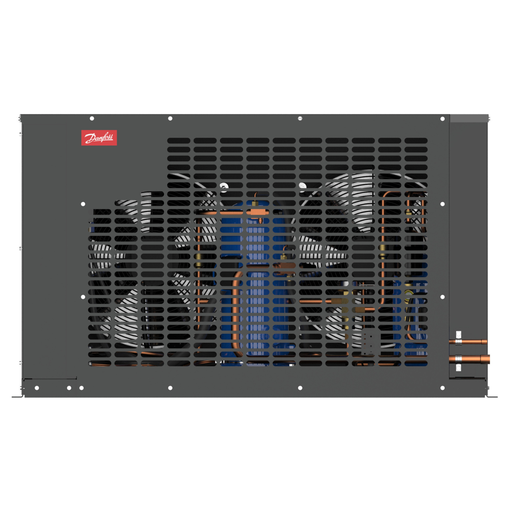

114N3589 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 6HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0600UWK000Q

R448A/R449A Capacity range: 50610 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6504W, AWEF 9.64

R404A/R507 Capacity range: 54180 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6264W, AWEF 10.57

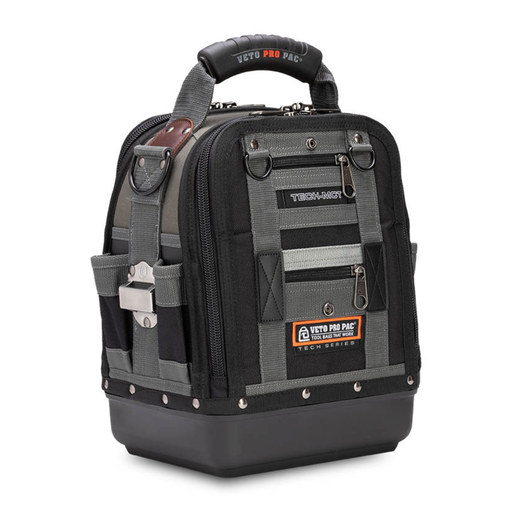

• 44 Interior & exterior
pockets of varying sizes
• Outside mounted stainless tape clip
• Electric tape strap
• YKK ® Locking Zippers
• Holds over 50 hand tools
• Waterproof base, 3mm polypropylene
• Extra wide padded
shoulder strap
• Over-molded ergonomic grip
• Light gray interior for
improved visibility

For commercial and domestic refrigeration equipment, room and hood ventilators, evaporative coolers and various other equipment.

Features/Benefits

50/60Hz
Cast aluminum housing up to 16 watts
Hardware included
Overload protected
Permanent lubrication
Rotation determined by viewing opposite shaft end
Single rotation
Single speed, 1550 RPM
Sleeve bearings
Threaded mounting holes
Totally enclosed
UL® Approved
Universal mounting
