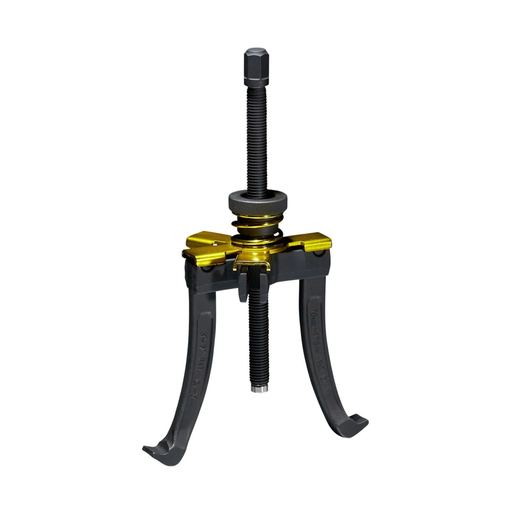

This jaw gear pulley features a patented design that enables fast configuration of 2 or 3 puller arms for inward or outward gripping positions.

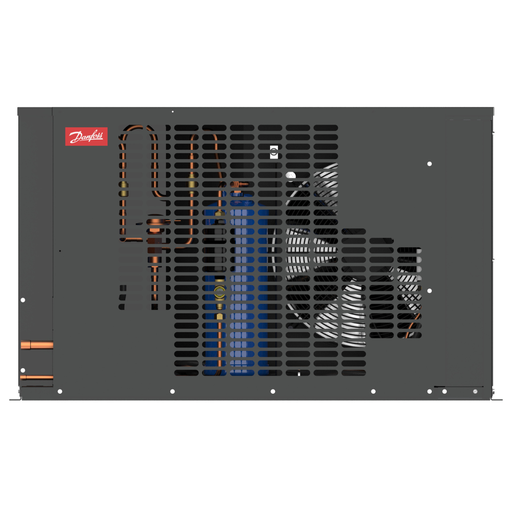

114N3583 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 3.5HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0350UWK000N

R448A/R449A Capacity range: 28890 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3826W, AWEF 9.22

R404A/R507 Capacity range: 31910 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3829W, AWEF 10.33

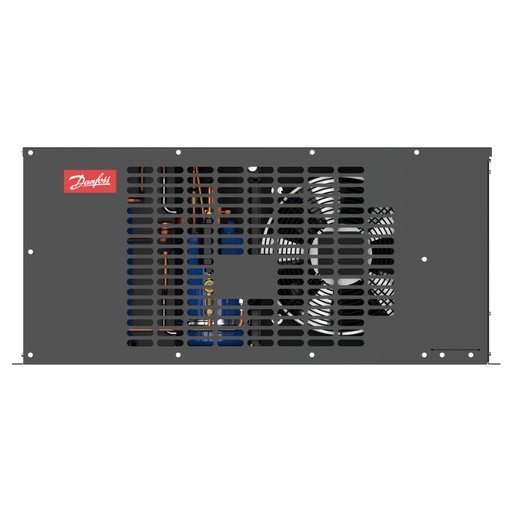

114N3576 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 1.5HP 3PH
Compressor power supply [V]: 230/3/60
OP-HJZM0150UWK000Q

R448A/R449A Capacity range: 10740 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 1705W, AWEF 8.19

R404A/R507 Capacity range: 12399 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2002W, AWEF 7.85

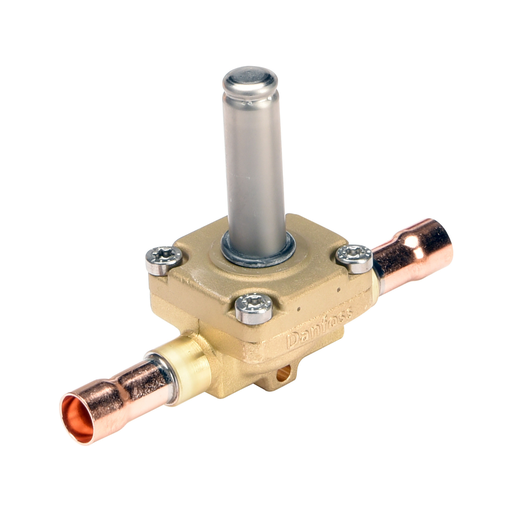

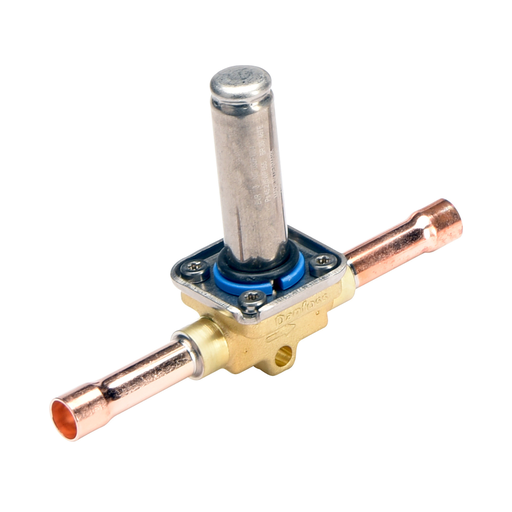

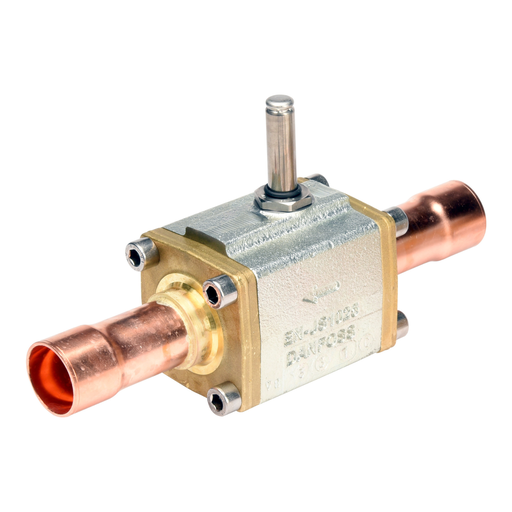

EVR Version 2 - Solenoid Valves
EVR Version 2 solenoid valves are direct or servo-operated solenoid valves for liquid, suction, and hot gas lines. They are suitable for all
refrigeration, freezing, and air conditioning applications and are compatible with fuorinated refrigerants. The valves can be delivered as
normally open or closed as well as with or without manual operation.

The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

Features and Benefits
Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Combination screw/spade terminal type
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
Multiple actuators available
RoHS compliant

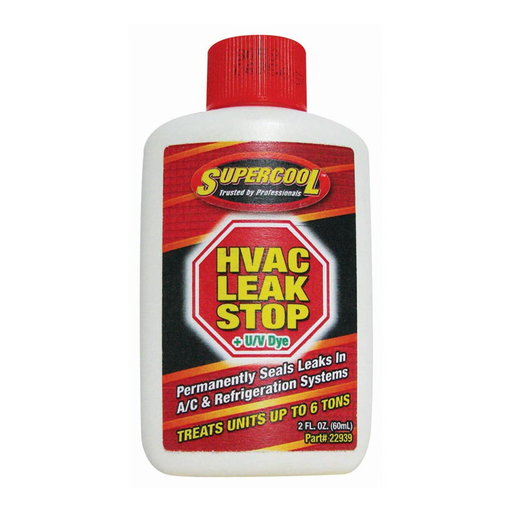

HVAC Leak Stop + U/V Dye 2 oz. liquid (60 ml).
2 ounces liquid leak stop treats up to 6 tons.
Does not contain polymers, will not harm A/C system or components.
Additive package protects against future corrosion.
Compatible with all lubricants & refrigerants.

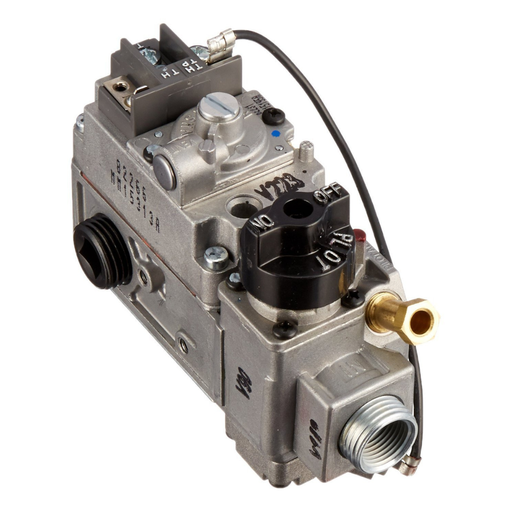

710 Series - Low Capacity
The Robertshaw® 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity and limited space applications. Features include three-position outlets, multi-positional capability and component replaceability.

Features and Benefits

Low capacity with 3-13/16”H x 4-21/32”L x 1-29/32” W dimensions
Gas cock dial marking Off - Pilot - On
Ambient temperature of -40°F to 175°F
Pilot outlet 1/4” tubing
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
Multiple actuators available
RoHS compliant

UC C LP AIR 4F 115 1PH M STD S 1
Evap. Temp : 25 °F Mid. Temp
Voltage : 115/1/60

Oatey® PVC Medium Bodied Fast Set Clear Cement is recommended for potable water, pressure pipe, conduit and DWV applications. It can be used on all schedules and classes of PVC pipe and fittings up to 6 in. diameter with interference fit. Oatey products have earned the trust of plumbing professionals for over 100 years.

114N3586 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 4HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0400UWK000Q

R448A/R449A Capacity range: 34040 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4455W, AWEF 9.40

R404A/R507 Capacity range: 36450 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4596W, AWEF 9.62

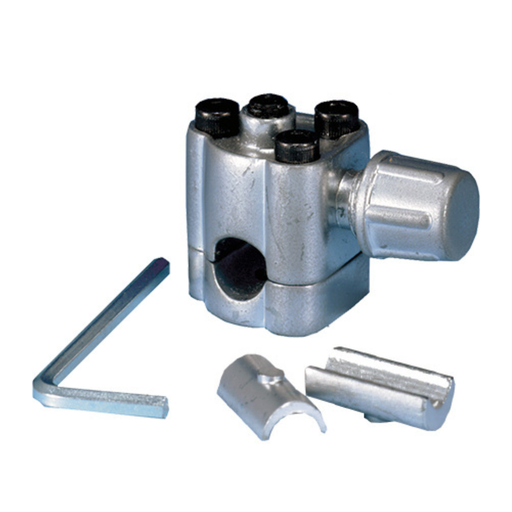

VALVE, BULLET, PIERCING, ZNC, 1/4 IN, 1,1

Corrosion resistant
Hex key wrench included
Non-positional mounting, no adapter valve required
Patented valve gasket provides 50 times more sealing area than competitive 'O' ring types
Piercing needle is engineered for concentricity and hardness to insure perfect seating every time, requires only 2 in clearance for installation and operation
Outside Diameter 7/8 in
Nominal Size 1/4 in
Connector Type Male Flare

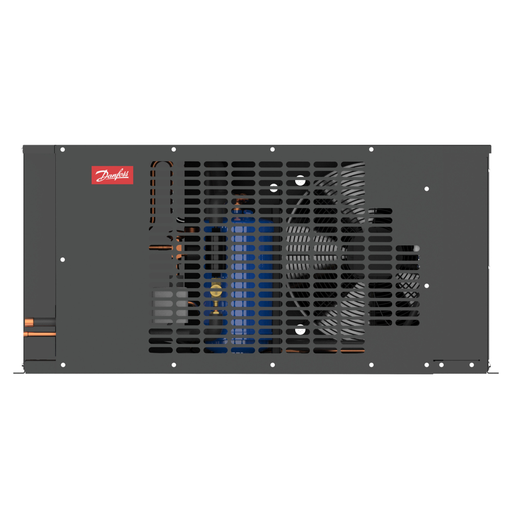

114N3579 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 3HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0300UWK000N

R448A/R449A Capacity range: 23320 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3174W, AWEF 8.92

R404A/R507 Capacity range: 25290 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3187W, AWEF 9.92

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

DCL with Schrader valve - Filter Driers
The Danfoss 1.5 hermetic lter driers include a Schrader valve, making servicing the system easy and convenient, and convertible outlet for
tting on capillary tube or ¼ inch system connection. Thanks to the solid core, Danfoss ELIMINATOR® lter driers oer exceptional drying
capacity to protect the system against harmful acids and moisture. The DCL 1.5 cubic inch lter drier with Shrader makes an excellent upgrade
in replacing loose bead driers due to superior drying and small internal volume.

CU CC SCRL 2.0HP 208-230/1/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 208-230/1/60
Application Capacity* : 16,410 BTU/H
Refrigerant Type : R448A
AWEF Value : 7.6"

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

KVP/KVL/KVR/NRD/KVC/CPCE - Pressure Regulators
Danfoss has a variety of pressure regulators to control the low and
high pressure sides and efficient function of a refrigeration system
under varying load conditions.
Pressure regulators include:
• Evaporator Pressure Regulator (KVP)
• Crankcase Pressure Regulator (KVL)
• Condensing Pressure Regulator (KVR)
• Differential Pressure Regulator (NRD)
• Hot Gas Bypass Valves (KVC/CPCE)

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

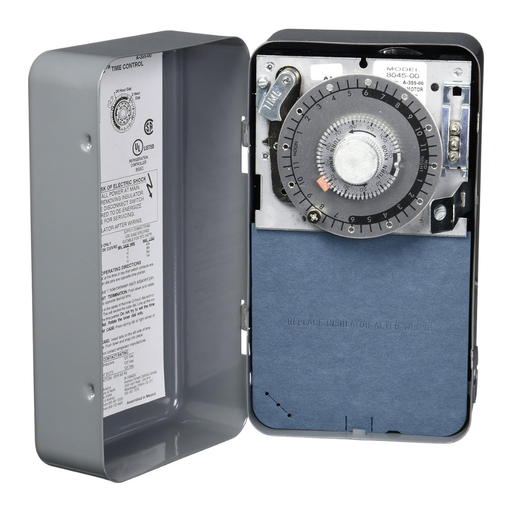

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

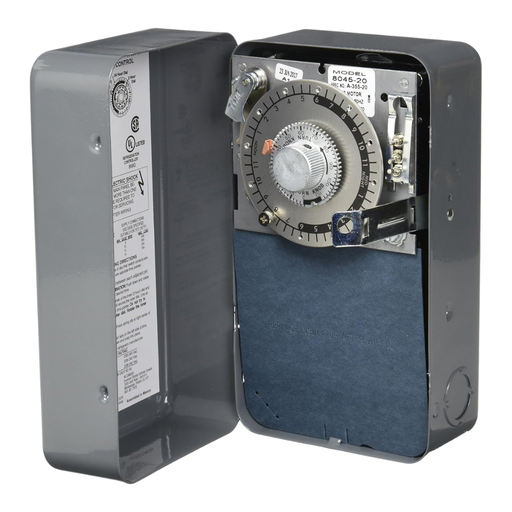

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

This 3-pack of premium hoses is compatible with CFC, HCFC and HFC refrigerants and blends, and each hose features a 6ft (180cm) length.
