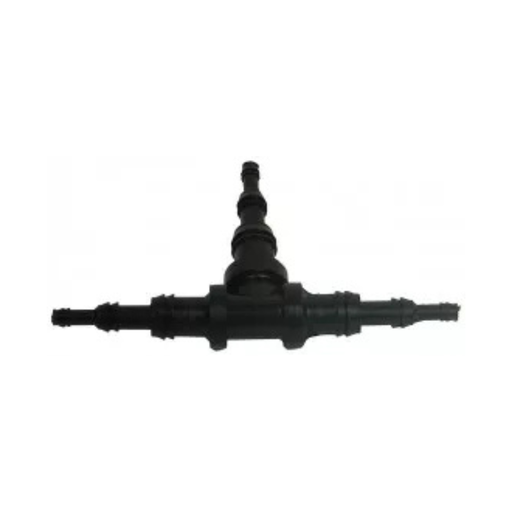

With the TPI A605 Tapered T Fitting for Manometers, you can measure pressure with your compatible TPI manometer or combustion analyzer. The T fitting is tapered and measures 0.25" (6.35 mm).

Features

Compatible with TPI 610, 615, 620 and 625 manometers (sold separately)
For use when performing pressure measurements or setting pressure switches

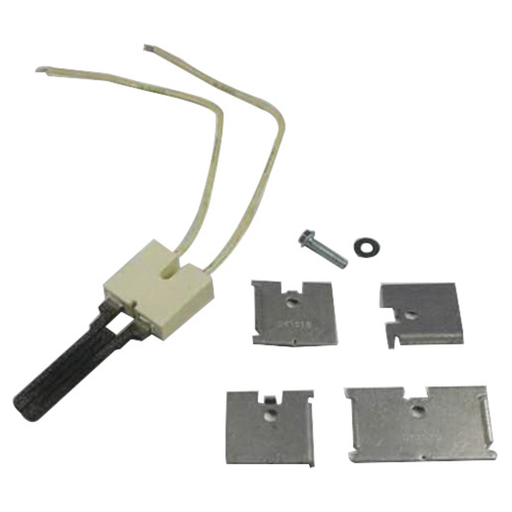

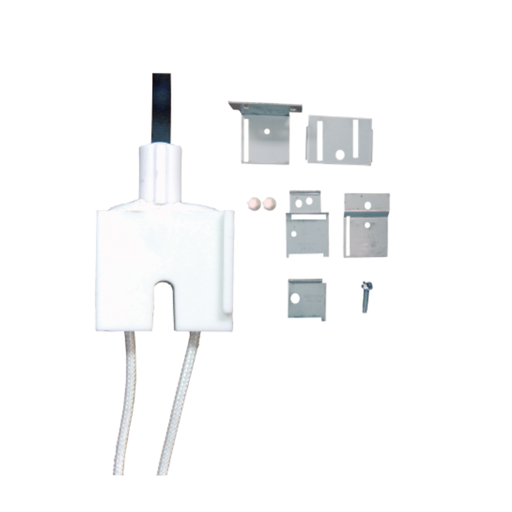

Universal flat silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride

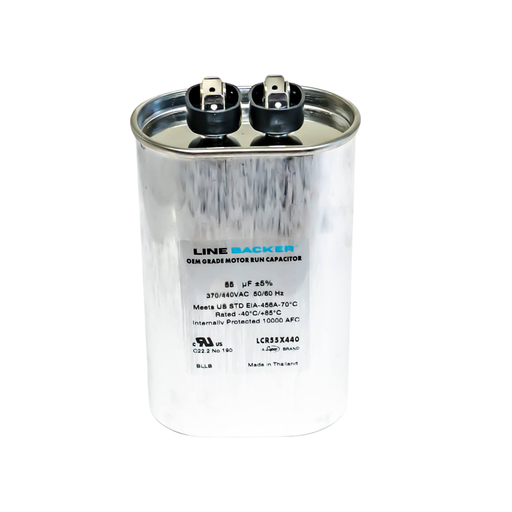

CAPACITOR, RUN, OVAL, 55 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

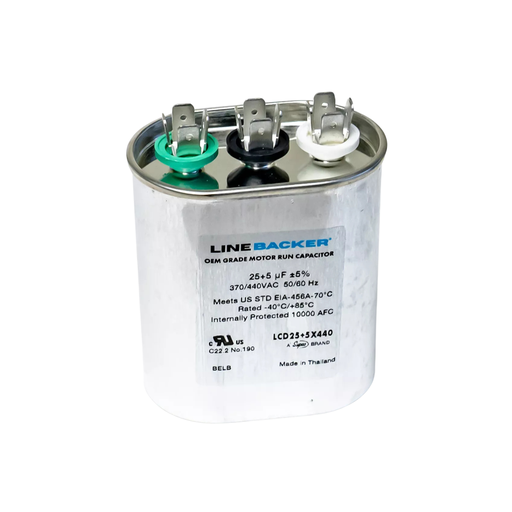

CAPACITOR, RUN, OVAL DUAL, 25+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

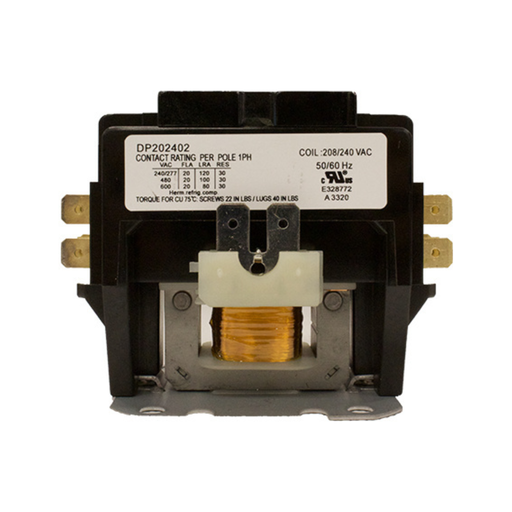

CONTACTOR, 2 PL, 10-32 SCREWS, 30A, 240V, 20A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room

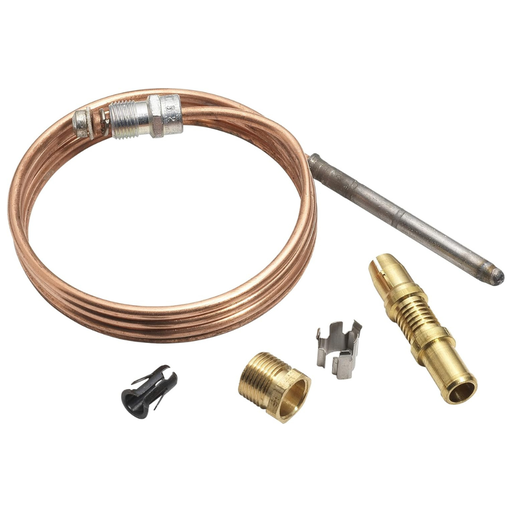

The Robertshaw® 1980 Series Snap-Fit® Thermocouples offer easy installation into the majority of pilot burners. They are manufactured without complicated adaptors, but with extra insulation that the brass sheath provides under high ambient temperatures.

Features and Benefits

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

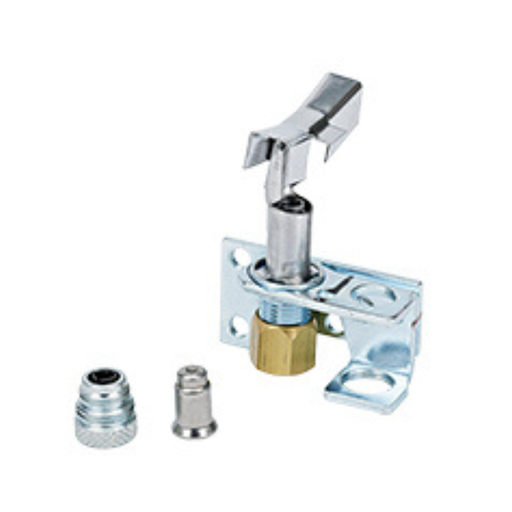

The 1830 Series Pilot Uni-Kit® models are designed to be used with all Robertshaw® and most competitive thermocouples. Uni-Kit models include an adaptor that converts a threaded thermocouple/thermopile model 2CH to a snap-in thermocouple type, model 2C.

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics

SWITCH, PRES, 1/4 IN, 6VDC, 36VDC, 18 AWG

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

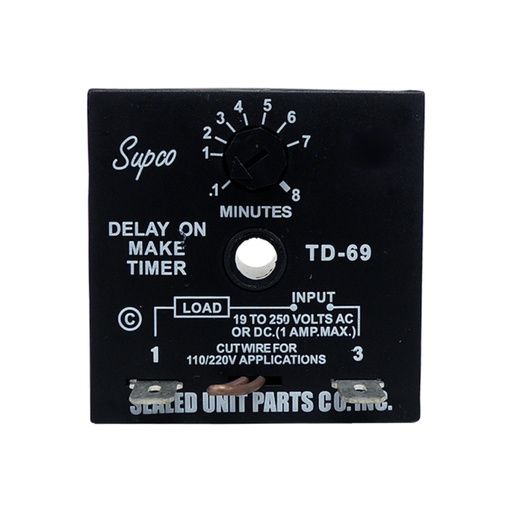

Time Delay on Make Timers (DOM)

Features/Benefits

1/4" male quick connect terminals
Adjustable time delay on make 6 seconds to 8 minutes
Cut the jumper wire to use in 110/250 volts
Delay on Make Timer (DOM)

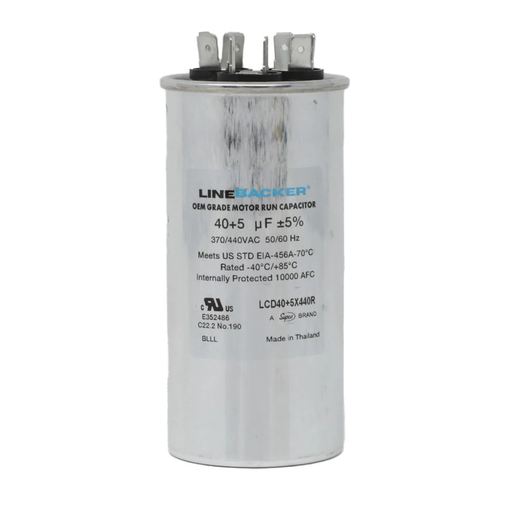

CAPACITOR, RUN, RND DUAL, 40+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
Ul Standard US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

Robertshaw® IgnitorPro™ Universal Ignitors are a durable and versatile product contractors can keep on
hand to ensure quick, reliable repairs. These ignitors include all mounting brackets and hardware.

Versatile:
- Replace more than 150 ignitors from leading OEMs
- The perfect truck stock items-minimal inventory
- Round and flat blade designs available
Easy to install: Include all mounting brackets and hardware
Reliable: Constructed with silicon nitride, the new industry standard for durability
- Fewer callbacks
- More repeat business for new installations and preventive maintenance
