SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 18 AWG

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

* 1 Bit – 2 Tip System, Square (Rob.) + Phillips
* Impact Rated, Color Coded Sizes
* Hardened Tips, Magnetic Ends

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

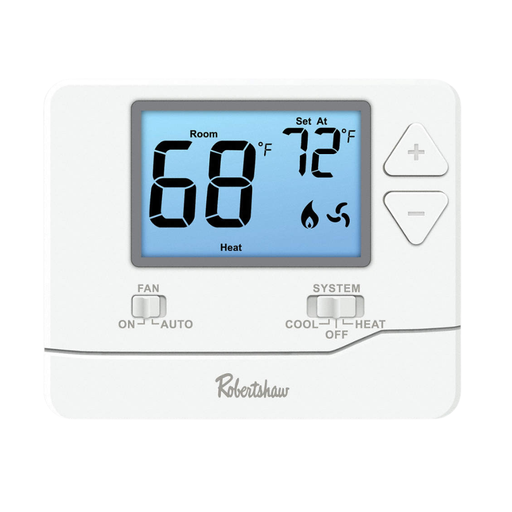

RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat.
Multi-Stage - 2 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

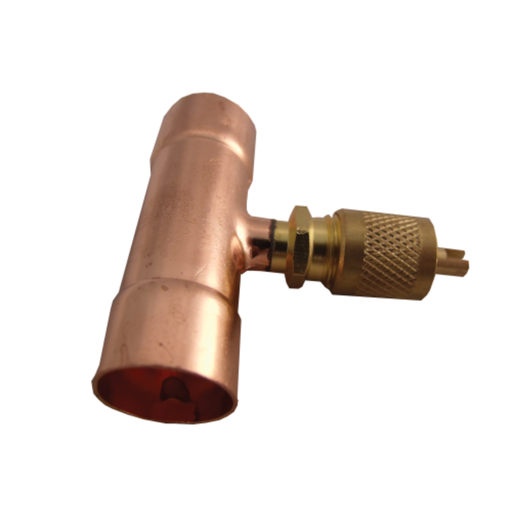

Universal line valves, two styles - a flared or straight end copper piece

Features/Benefits

Copper tee with the body brazed on
Flared Ends

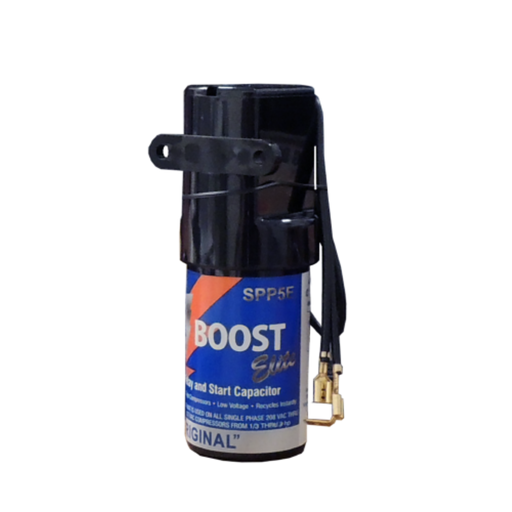

START, HARD, 170 TO 277V, 1/3 TO 2 HP

Backup electronic timing circuit to protect the compressor
Can be used on PSC and CSIR type compressors
Easy 2-wire installation
Electronic potential relay (EPR) technology, Instant re-start, voltage sensing
NATE recognized (course #1867-0002)

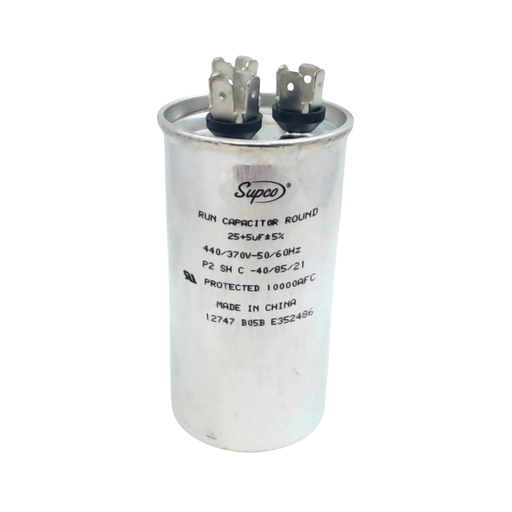

CAPACITOR, RUN, RND DUAL, 25+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types
High-amp rated switch (SPST) design (O10-1402/O10-1483)
Super Cap® capillary vibration protection system
Non-conductive front cover with captive screw
Adjustable differential and range
Easy-to-read scale plate
Vibration cone (absorbs and reduces vibration away from brazed joint)
Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A

Non-misting formulation.
Highly refined mineral oil base compatible with most vacuum pump brands.
Contains conditioners, inhibitors & anti wear agents for lubricity & wear protection.
46 cSt viscosity.

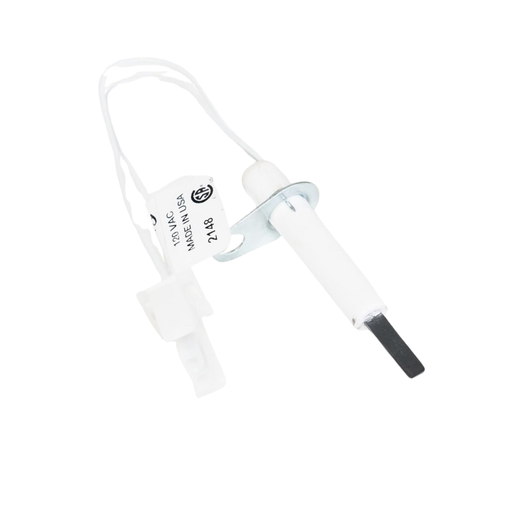

Robertshaw® offers direct replacements for several leading OEM brand ignitors. These ignitors are constructed with sturdy, long-lasting silicon nitride for maximum longevity. The Robertshaw 41-427N is a 120V Direct Replacement for Goodman 0130F00008 with a 6.19 inch wire and 2 inch insulator.

CAPACITOR, RUN, RND, 15 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.77 in

Telescoping tools match clip, magnet and inspection mirrors

Features/Benefits

1 ¼" round glass mirror
Carry pouch included
Double ball joint head adjustment
Extendable/retractable design
Glass mirrors
Magnified glass mirror available with IM5
Pocket clip

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
Super Cap® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for
easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Cap included on all Australia temperature controls. Optional for all other regions.

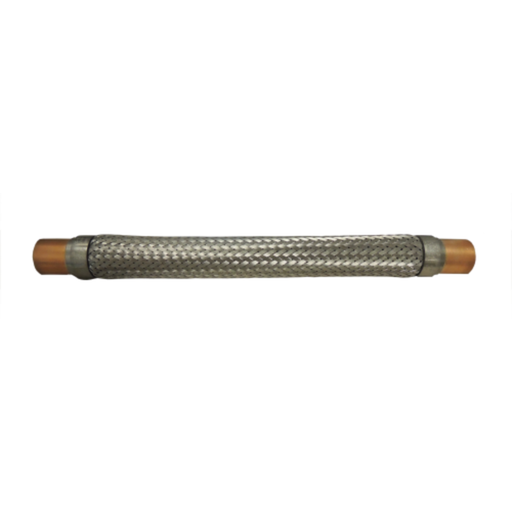

Vibration absorbers are designed for installation in the suction and discharge lines of air conditioning, heat pump and refrigeration systems to dampen the transmission of compressor induced vibration through the system piping.

Features/Benefits

100 % helium and hydrogen leak tested
Compatible with all refrigerants
Deep pitch stainless steel hose and high tensile wire braid
Unique proven design for high pressure applications rated for R410A

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

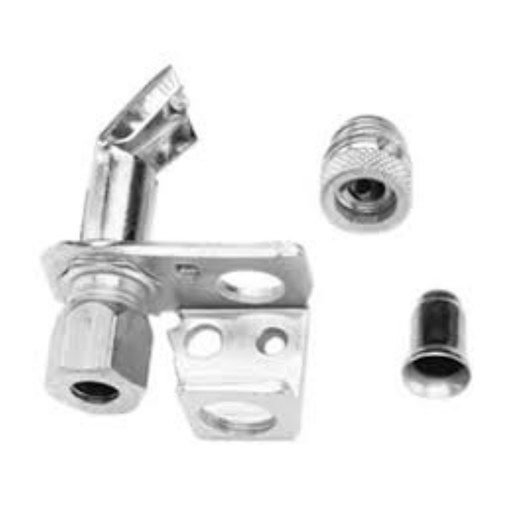

The 1830 Series Pilot Uni-Kit® models are designed to be used with all Robertshaw® and most competitive thermocouples. Uni-Kit models include an adaptor that converts a threaded thermocouple/thermopile model 2CH to a snap-in thermocouple type, model 2C.

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics
