The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types
High-amp rated switch (SPST) design (O10-1402/O10-1483)
Super Cap® capillary vibration protection system
Non-conductive front cover with captive screw
Adjustable differential and range
Easy-to-read scale plate
Vibration cone (absorbs and reduces vibration away from brazed joint)
Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
Cap included on all Australia temperature controls. Optional for all other regions

CU CC SCRL 3.5HP 208-230/3/60 MED
Ambient Temp : 95 °F
Suction Temp : 25.0 °F
Voltage : 208-230/3/60
Application Capacity* : 32,610 BTU/H
Refrigerant Type : R448A
AWEF Value : 7.6

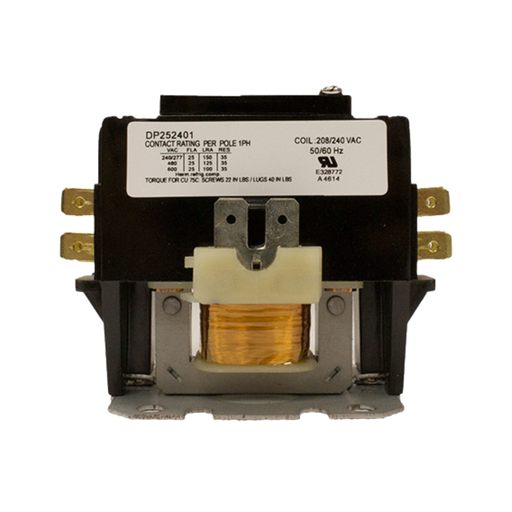

CONTACTOR, 240V, 25A, 1.5, 35A, #10-32 SCREWS

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Application Low drop out voltage making them ideal for any air conditioning heating and refrigeration application

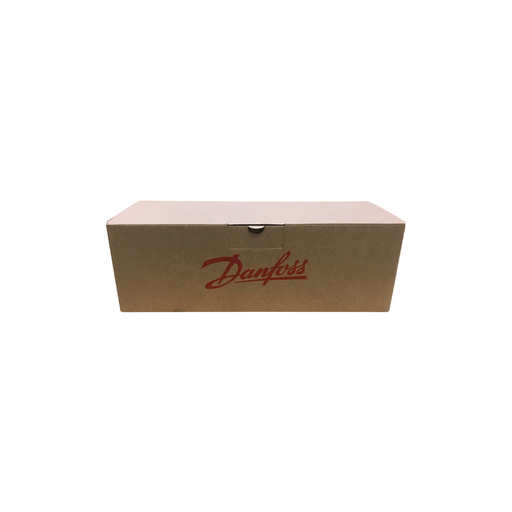

Pilot service kit (NC); (2) Al. gaskets, O-ring, orifice, armature tube, armature assembly, compression spring

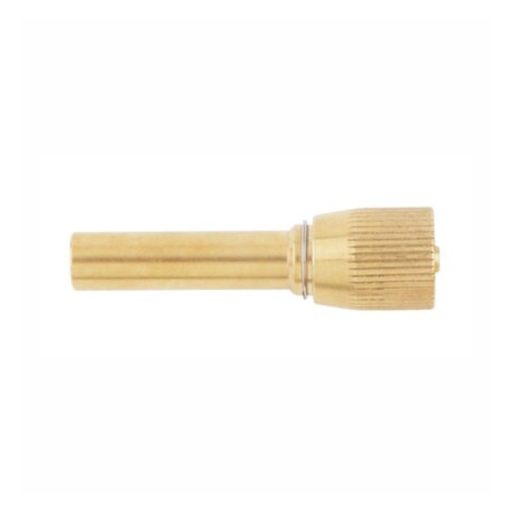

Model B15-3HV is an E-equal or positive pressure mixer for light-duty brazing and welding with all fuel gases. This model has a mixer-to-tip tube thread size of 5/16 in. - 27. Its welding capacity is 1/2 in. (12.7mm) plate and it heats up to 60,000 BTU. Typical applications include metal art, maintenance, production brazing, etc. Conveniently vacuum-packed for point-of-purchase display.

Features
Brass light-duty mixer
E-equal or positive pressure mixer
For use with all fuel gases
5/16 in. - 27 mixer-to-tip tube thread size
Thread sealants not required when used with genuine Harris mixers
Welds up to 1/2 in. (12.7mm) plate;Heats up to 60,000 BTU
Typical applications include metal art, maintenance, production brazing, etc.
Engraved with model number for easy identification

KPU 19 - Thermostats
The KPU 19 thermostats are designed for easy installation and service with bottom and rear knockouts, differential adjustment dial,
a tamper-resistant design, and a robust thermoplastic housing.

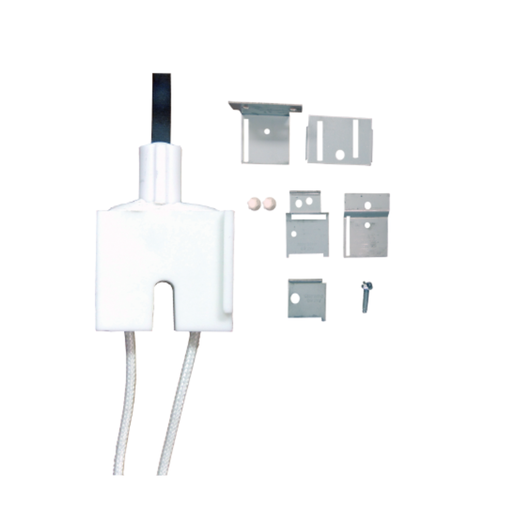

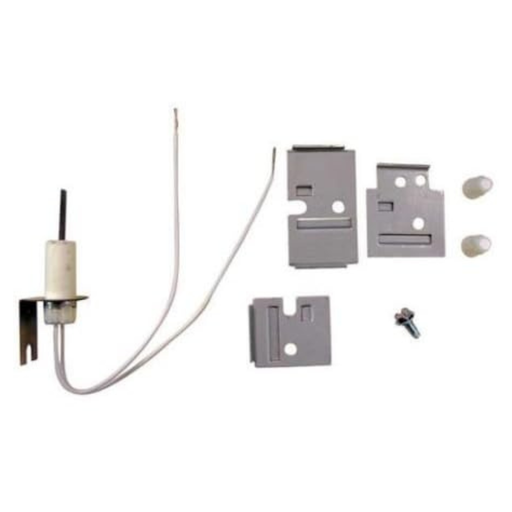

Robertshaw® IgnitorPro™ Universal Ignitors are a durable and versatile product contractors can keep on
hand to ensure quick, reliable repairs. These ignitors include all mounting brackets and hardware.

Versatile:
- Replace more than 150 ignitors from leading OEMs
- The perfect truck stock items-minimal inventory
- Round and flat blade designs available
Easy to install: Include all mounting brackets and hardware
Reliable: Constructed with silicon nitride, the new industry standard for durability
- Fewer callbacks
- More repeat business for new installations and preventive maintenance

Constructed with a thermoplastic polymer inner tube and cover to eliminate the vibration failures of copper capillary tube installations. Features a higher temperature rating thermoplastic (to 266°F) to eliminate failures caused by maximum load conditions.

UC C LV AIR 1F 115 1PH M STD S 1
Evap. Temp : 25 °F
Voltage : 115/1/60
Room Temp :
Application Capacity* : 5,500 BTU/H
Refrigerant Type : R448A
Cooler AWEF > 32 : 9
Freezer AWEF <= 32 : N/A

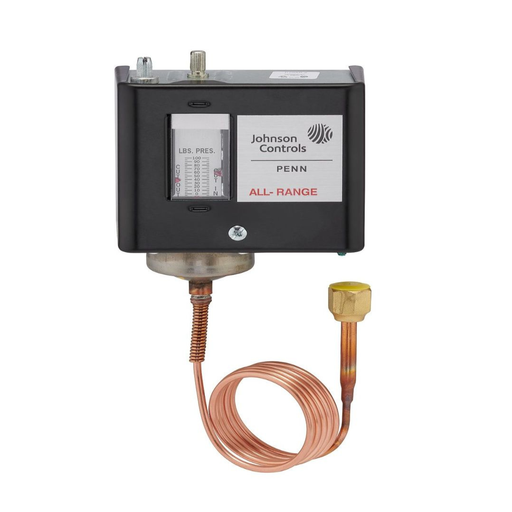

The P70 and P170 Controls for low pressure applications are designed primarily for low pressure cut-out control, pump-down control, and capacity control on commercial refrigeration and air conditioning applications.

The Ranco® A12 and 9531 Series Constant Cut-in Temperature Controls are designed to switch electrical components of refrigeration systems in response to sensed temperatures.

Features and Benefits

Laser-welded stainless steel bellows
Fixed or adjustable temperature settings
High-amperage contacts
Pneumatic action provided by vapor-filled capillary or capillary with bulb sensing elements
Constant On or Off positions available
Choice of mounting brackets, adjustment ranges and cams, and slotted or flatted shafts
Standard 1/4” quick-connect terminals with optional screw terminals

CU CC SCRL 4.5HP 208-230/1/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 208-230/1/60
Application Capacity* : 17,140 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15

CU CC SCRL 7.5HP 575/3/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 575/3/60
Application Capacity* : 78,590 BTU/H
Refrigerant Type : R448A
AWEF Value : 7.6

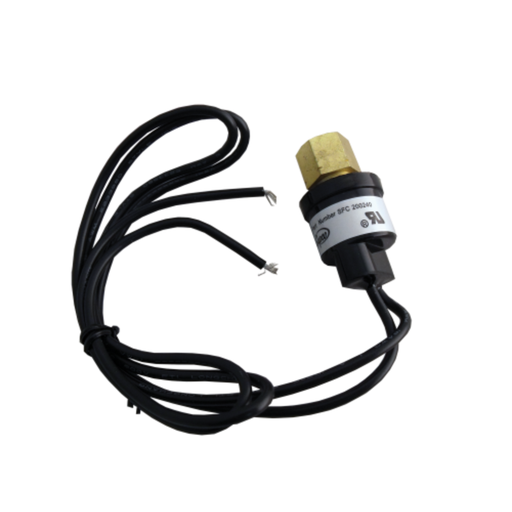

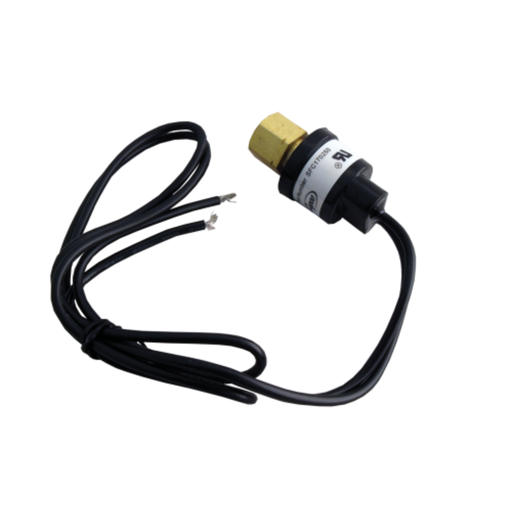

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

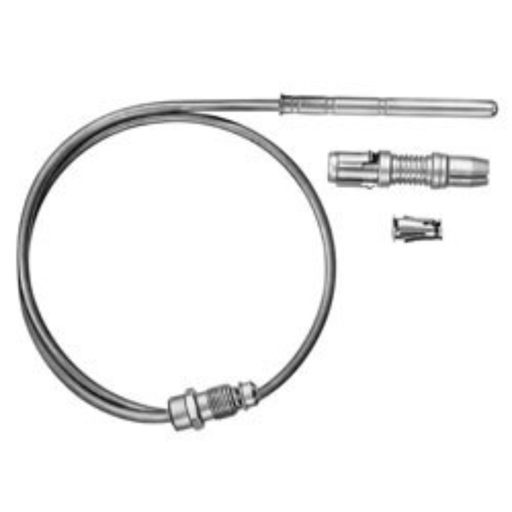

The Robertshaw® 1980 Series Snap-Fit® Thermocouples offer easy installation into the majority of pilot burners. They are manufactured without complicated adaptors, but with extra insulation that the brass sheath provides under high ambient temperatures.

Features and Benefits

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

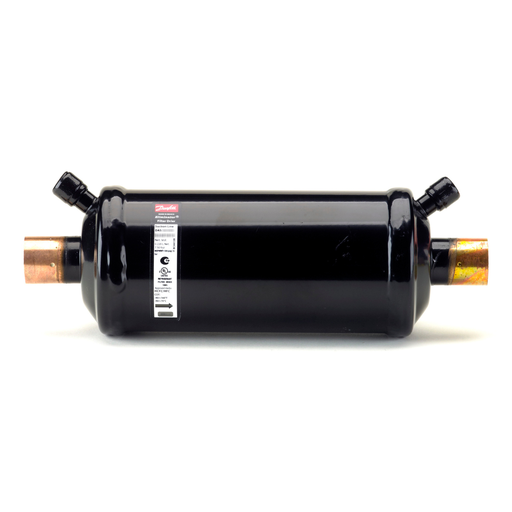

DCL/DCB/DAS/DCR - Filter Driers
Danfoss lter driers function as simple drop-in replacements for most driers sold in the aftermarket or installed on equipment by
manufacturers. All Danfoss lter driers are constructed with a solid core design to maximize moisture removal while minimizing pressure
drop. These driers use a mixture of molecular sieve and activated alumina to both adsorb system moisture and capture acid and prevent
solid contaminants from entering the system. The Danfoss 1.5 cubic inch hermetic lter drier can be used in hydrocarbon systems to provide
exceptional protection while minimizing charge requirements.

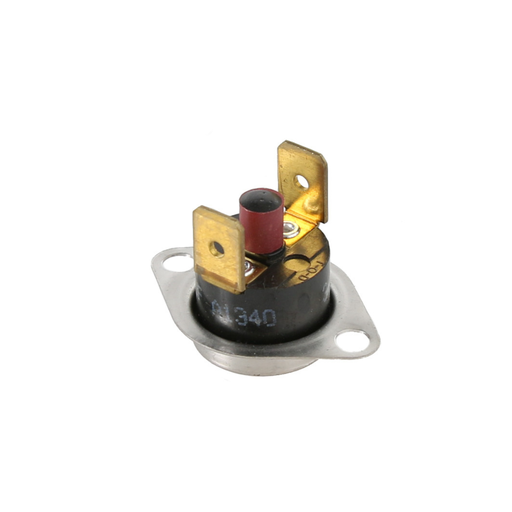

The SRL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

CSA approved
Manual Reset
UL® recognized

Terminals: Vertical ¼"
Cut out temp ( °F): 130 °F
Cut in temp ( °F): Manual

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

SWITCH, 1/4 IN, 6VDC, 12VDC, 36VDC, 18 AWG

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

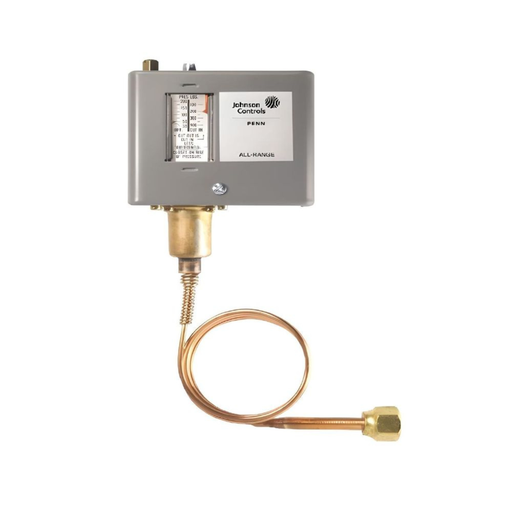

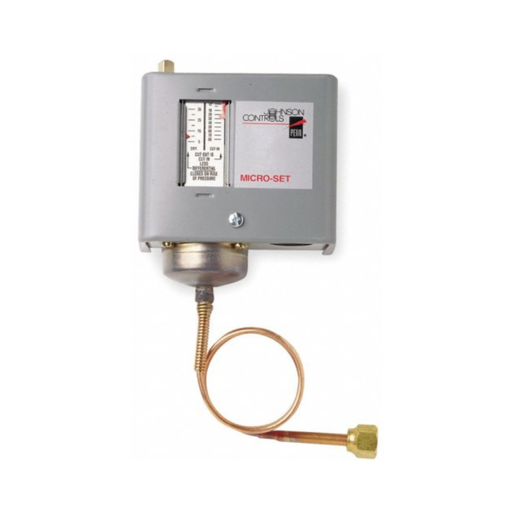

The P70 and P170 Controls for high pressure applications are designed primarily for high pressure cut-out control, head-pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications.

The Paragon® 9045-00 and 9145-00 Universal Defrost Timers (UDT) are the only multi-voltage defrost timers engineered to industry refrigeration standards. Designed to withstand the most rigorous refrigeration applications, this control offers a real-time clock and 100 hours of power loss protection for both time and defrost schedules. Mechanism-only models also are available to fit in standard defrost timer enclosures.

Features and Benefits

Certified to UL873 standard for temperature-indicating and regulating equipment
Wires directly to 120V AC, 208V AC or 240V AC power sources without jumpers or switches
Rated to 30,000 cycles for refrigeration controllers with switches
Easy programming, easy set-up, set time, set defrost start and defrost end
Initiate 15 minute manual defrost
100 hours of power loss protection for both time and defrost schedule
Real-time clock
Lighted display shows defrost start time and duration
System status indicators

The Robertshaw® 1980 Series Snap-Fit® Thermocouples offer easy installation into the majority of pilot burners. They are manufactured without complicated adaptors, but with extra insulation that the brass sheath provides under high ambient temperatures.

Features and Benefits

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

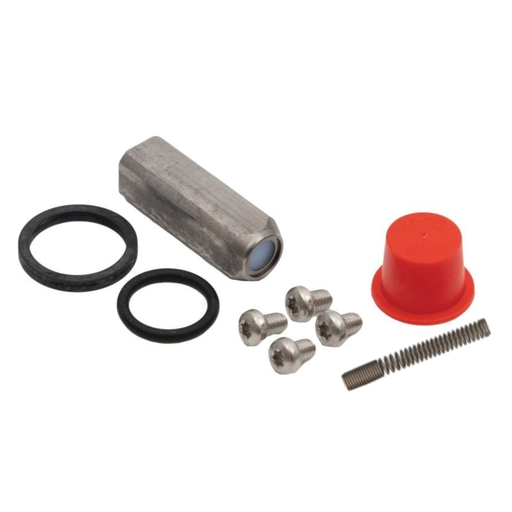

Service kit (NC); diaphragm assembly, O-ring, (4) screws, armature assembly, rubber gasket, refrigeration gasket, compression spring

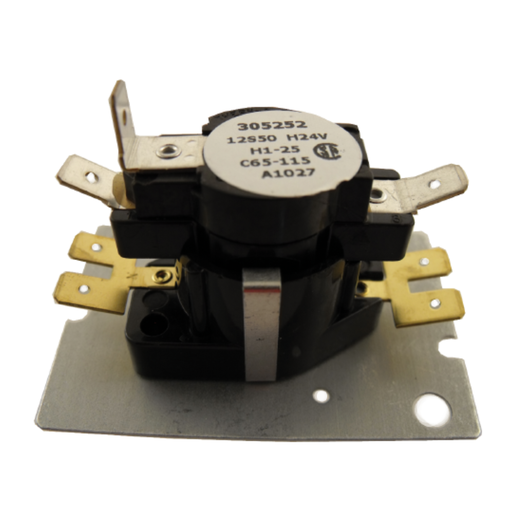

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 1-25 and off at 65-115 seconds.

Features/Benefits

24 volt control circuit
Five second delay between all subsequent stages, unless they function together
UL® and CSA® approved

Off: 65-115 Seconds
On: 1 - 25 Seconds

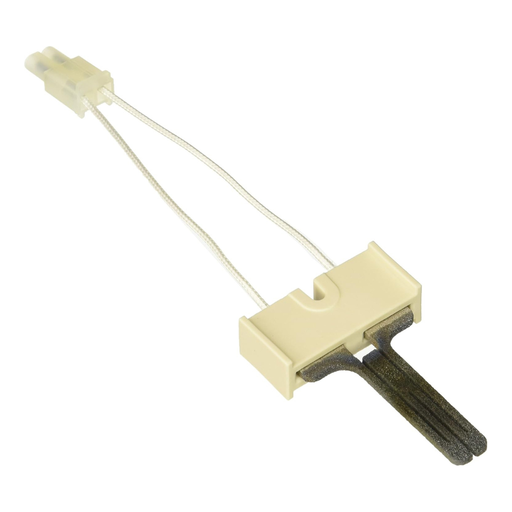

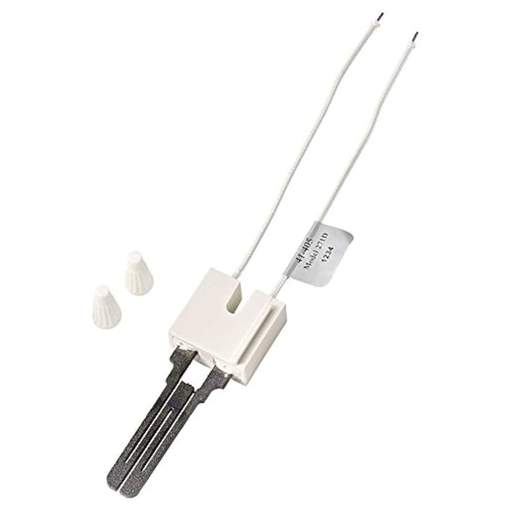

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

UC C CM AIR 2F 115 1PH M STD S 1
Evap. Temp : 25 °F
Voltage : 115/1/60
Room Temp :
Application Capacity* : 9,100 BTU/H
Refrigerant Type : R448A
Cooler AWEF > 32 : 9
Freezer AWEF <= 32 : N/A

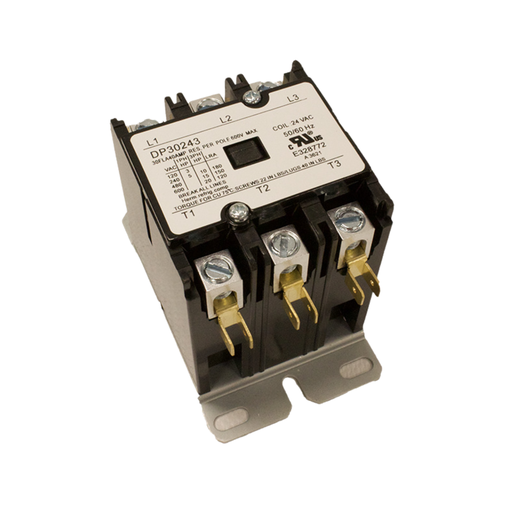

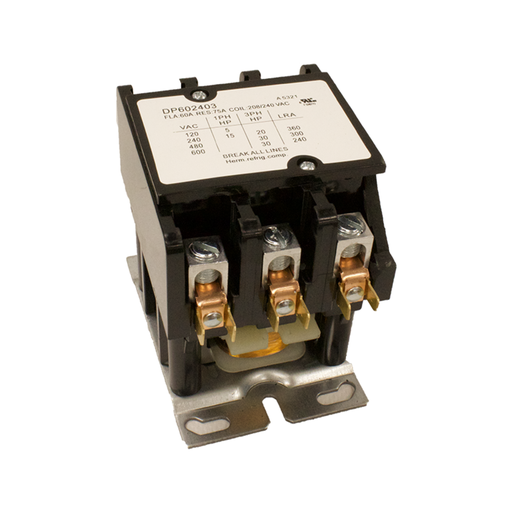

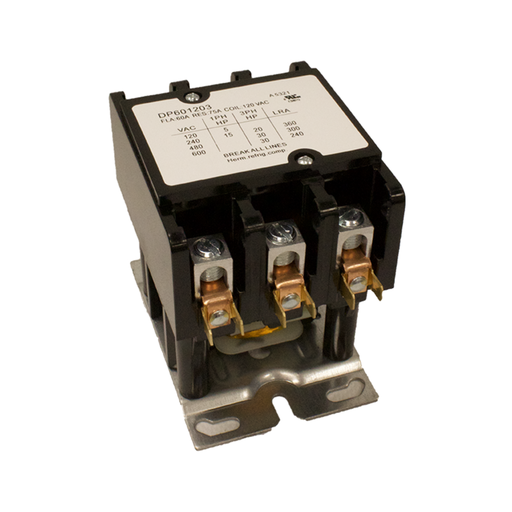

CONTACTOR, 3 PL, BX LUG, 75A, 120V, 60A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

UC C CM AIR 1F 115 1PH M STD S 1
Evap. Temp : 25 °F
Voltage : 115/1/60
Room Temp :
Application Capacity* : 6,400 BTU/H
Refrigerant Type : R448A
Cooler AWEF > 32 : 9
Freezer AWEF <= 32 : N/A
