The Robertshaw® 720 Series Lever Actuated Gas Valves are designed for intermittent pilot ignition applications. This series incorporates a manual valve, pilot valve, dual automatic valves (2), and a main gas pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The 720 Series is designed for many residential applications such as central heating units, space heaters, wall heaters, boilers, and mobile home furnaces. This valve has a compact swing radius of only 3-9/16” to enable it to fit a wide range of OEM replacement applications.

Features and Benefits
Pilot outlet 1/4” tubing
1/4” quick connect terminal type
Ambient temperature of -40°F to 175°F
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Rated as NEC Class 2
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
RoHS compliant

Vibration absorbers are designed for installation in the suction and discharge lines of air conditioning, heat pump and refrigeration systems to dampen the transmission of compressor induced vibration through the system piping.

Features/Benefits

100 % helium and hydrogen leak tested
Compatible with all refrigerants
Deep pitch stainless steel hose and high tensile wire braid
Unique proven design for high pressure applications rated for R410A

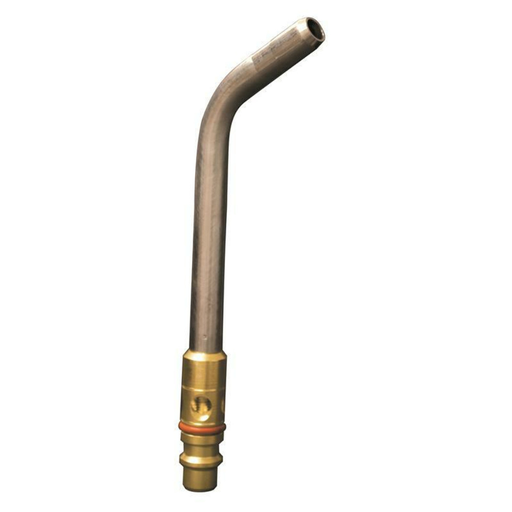

Model HA-11i Inferno® air-fuel quick connect swirl tip has a specially-designed insert that delivers reliable swirl combustion performance every time. It provides a consistently hotter flame that will engulf and wrap around the work-piece for maximum efficiency. It is constructed from thick and strong 304 stainless steel tube stock designed to be durable and long-lasting. The tip works and integrates with today's existing quick-connect air-fuel handles allowing contractors to simply and quickly connect to their existing torch handles using acetylene.

Features
Quick connect swirl tip with A-hose connections for brazing and soldering with air/acetylene
Constructed from thick and strong 304 stainless steel tube stock and brass for longer service life
The unique swirl combustion design provides a consistent, hotter flame that engulfs and wraps around the work-piece for maximum efficiency
Every tip is tested twice - once to ensure the perfect orifice and again to ensure the flame quality
The exacting manufacturing standards used to develop this tip ensures the optimal delivery of fuel gas resulting in the perfect flame
Designed to work and integrate with existing quick-connect air fuel handles for efficiency and increased productivity
Use with air fuel/acetylene
Marked with Harris logo and tip size for easy identification
One year warranty
Disclaimers
Warning - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

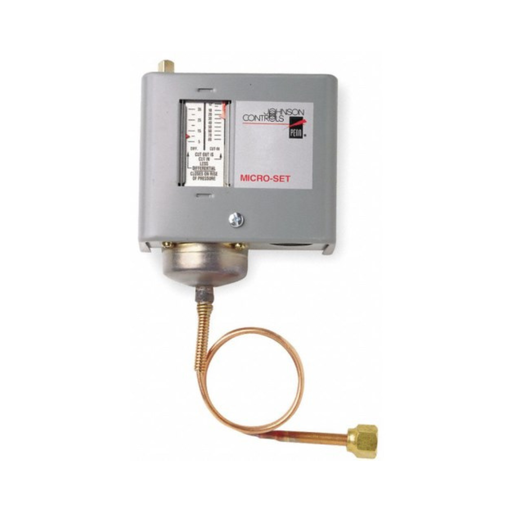

The P70 and P170 Controls for high pressure applications are designed primarily for high pressure cut-out control, head-pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications.

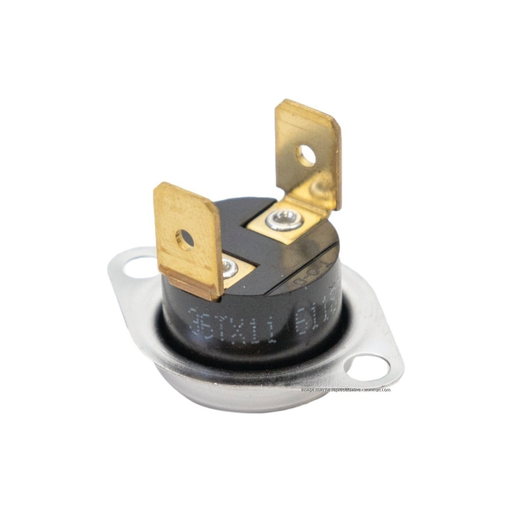

The SLS series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

Auto reset
CSA approved
Offered in a broad temperature range to cover most heating applications
UL® recognized

Terminals: 45° angle ¼"
Cut out temp ( °F): 170 °F
Cut in temp ( °F): 130 °F
Differential °: 40 °F

The 1830 Series Pilot Uni-Kit® models are designed to be used with all Robertshaw® and most competitive thermocouples. Uni-Kit models include an adaptor that converts a threaded thermocouple/thermopile model 2CH to a snap-in thermocouple type, model 2C.

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics

CAPACITOR, RUN, MINI-SPLIT, 8 MFD, 450V

Meets IEC 252 Standard
Plastic construction
Quad blade quick connect terminals

Model B15-3HV is an E-equal or positive pressure mixer for light-duty brazing and welding with all fuel gases. This model has a mixer-to-tip tube thread size of 5/16 in. - 27. Its welding capacity is 1/2 in. (12.7mm) plate and it heats up to 60,000 BTU. Typical applications include metal art, maintenance, production brazing, etc. Conveniently vacuum-packed for point-of-purchase display.

Features
Brass light-duty mixer
E-equal or positive pressure mixer
For use with all fuel gases
5/16 in. - 27 mixer-to-tip tube thread size
Thread sealants not required when used with genuine Harris mixers
Welds up to 1/2 in. (12.7mm) plate;Heats up to 60,000 BTU
Typical applications include metal art, maintenance, production brazing, etc.
Engraved with model number for easy identification

Service kit (NC); diaphragm assembly, O-ring, (4) screws, armature assembly, rubber gasket, refrigeration gasket, compression spring

The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types
High-amp rated switch (SPST) design (O10-1402/O10-1483)
Super Cap® capillary vibration protection system
Non-conductive front cover with captive screw
Adjustable differential and range
Easy-to-read scale plate
Vibration cone (absorbs and reduces vibration away from brazed joint)
Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A

Evaporator Fan Universal Motor Kit 220 Volt 3000 RPM, Single Speed CW -clockwise rotation OR CCW-counter clockwise rotation. Replaces over 450 different evaporator motor types, Break off 2" Motor Shaft with Breakaways at 1/2" and 1-1/2".

Features/Benefits

Break off 2" motor shaft with breakaways at ½" and 1 ½"
CSA® Approved
Impedance protected
Includes all mounting accessories and hardware
Prefastened multi fit, break off mounting bracket
Replaces over 450 different evaporator type motors
Reversible rotation
Shaft diameter ⅛"
Single speed
UL® Recognized

This portable multifunction meter has an LCD display and backlight and is versatile enough for testing AC/DC voltage, AC/DC current, resistance and frequency. It features an automatic measuring range and manual measuring range, non-contact voltage detection and True Inrush measurement.

Reusable – works with all Supercool syringes.
Allows adding products directly to charged A/C systems.

21 cSt Mineral oil based vacuum pump oil helps extend the life vacuum pumps.
Advance High performance formula proved low volatility and high resistance to oxidation.
Non-misting formulation.
Compatible with most vacuum pump brands.
Contains conditioner, inhibitors and anti-wear agents for excellent lubricity and pump protection.
Helps reduce vacuum pump wear.

One PHLiPBiT replaces 2 singles, reduces inventory, saves time & money. Drive more screws, faster & easier with less strip out.

The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types
High-amp rated switch (SPST) design (O10-1402/O10-1483)
Super Cap® capillary vibration protection system
Non-conductive front cover with captive screw
Adjustable differential and range
Easy-to-read scale plate
Vibration cone (absorbs and reduces vibration away from brazed joint)
Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A

Vibration absorbers are designed for installation in the suction and discharge lines of air conditioning, heat pump and refrigeration systems to dampen the transmission of compressor induced vibration through the system piping.

Features/Benefits

100 % helium and hydrogen leak tested
Compatible with all refrigerants
Deep pitch stainless steel hose and high tensile wire braid
Unique proven design for high pressure applications rated for R410A

The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

Features and Benefits
Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Combination screw/spade terminal type
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and
LP/air mixtures
Multiple actuators available
RoHS compliant

Pilot service kit (NC); (2) Al. gaskets, O-ring, orifice, armature tube, armature assembly, compression spring
