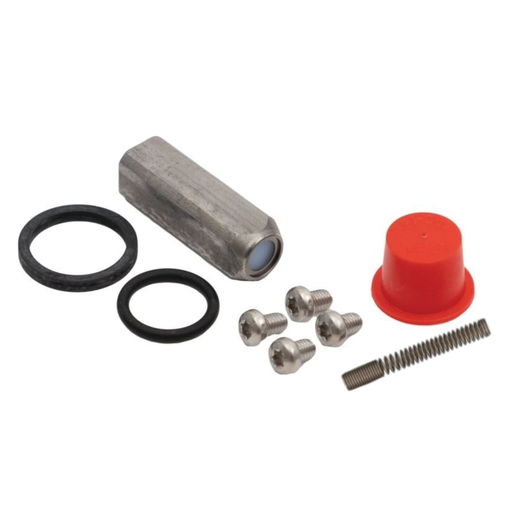

Service kit (NC); diaphragm assembly, O-ring, (4) screws, armature assembly, rubber gasket, compression spring

CAPACITOR, START, 72 – 88 MFD, 330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-1/16 in

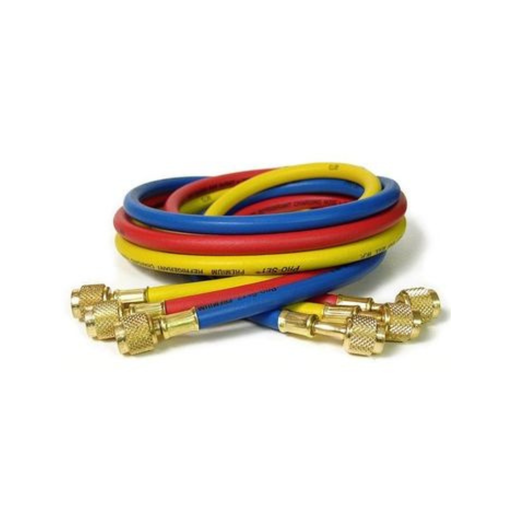

CPS HP5A Offers
This premium refrigerant charge hose is leak-proof 8-sided crimp superior hose construction with "double barrier protection".

Features

All-weather flexibility and strength
Adjustable valve core depressor opens all out of tolerance Schraeder® valves
Blow-off grooves channel refrigerant to prevent spray back
Available with MicroSeal™ or ball valve fittings
1/4in SAE fittings with 45° bend on one end

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
Super Cap® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for
easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Cap included on all Australia temperature controls. Optional for all other regions.

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG #10 stud 13/64" I.D. 15 Pieces

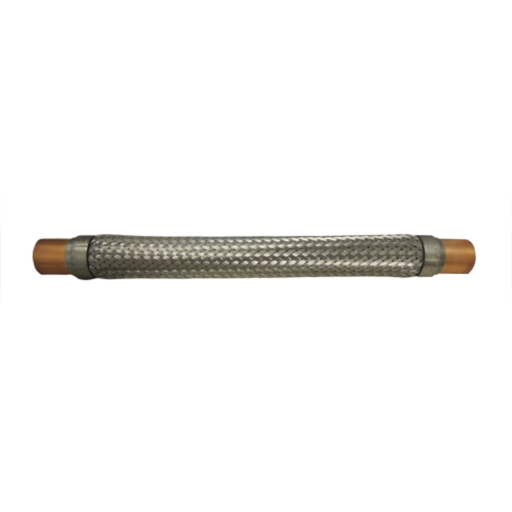

Vibration absorbers are designed for installation in the suction and discharge lines of air conditioning, heat pump and refrigeration systems to dampen the transmission of compressor induced vibration through the system piping.

Features/Benefits

100 % helium and hydrogen leak tested
Compatible with all refrigerants
Deep pitch stainless steel hose and high tensile wire braid
Unique proven design for high pressure applications rated for R410A

The Ranco® Dual Pressure Controls combine the functions of a single high-pressure limit control and a single low-pressure control in one unit with a single pole, single throw (SPST) switch.

Features and Benefits

Convertible feature allows selection of manual or reset function when operating at high pressure (O12‑4833/O12-4834)
A wide range of high-pressure manual or automatic reset controls can be replaced (O12-4833 or O12‑4834)
A high-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
High-limit adjustment screw
Low-pressure differential and range adjusting screws
Selector screw for manual or automatic
Reset button
Low-pressure scale plate
High-impact plastic cover with center mount screw
High-pressure scale plate
Super Cap® capillary protection system
Color-coded for easy identification of pressure line
High-side capillary flare nut (silver)
Low-side capillary flare nut (brass)

The Ranco® Varifix International Cold Controls are designed for fast and easy service replacements. They are available for both refrigerator and freezer applications.

Features and Benefits

Trusted brand
Capillary is crimped and sealed for maximum reliability
High level of performance
Complete kit includes all necessary hardware

The 1830 Series Pilot Uni-Kit® models are designed to be used with all Robertshaw® and most competitive thermocouples. Uni-Kit models include an adaptor that converts a threaded thermocouple/thermopile model 2CH to a snap-in thermocouple type, model 2C.

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics

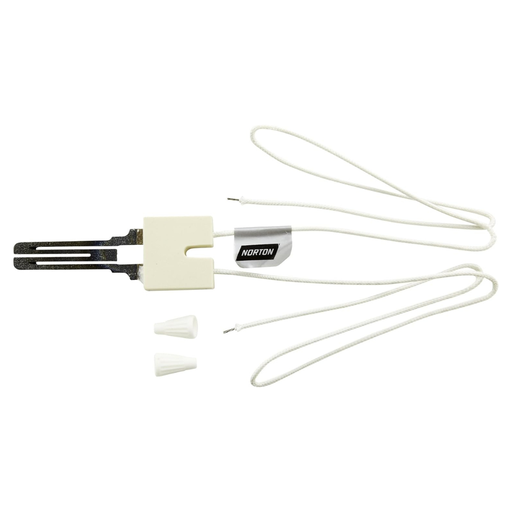

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

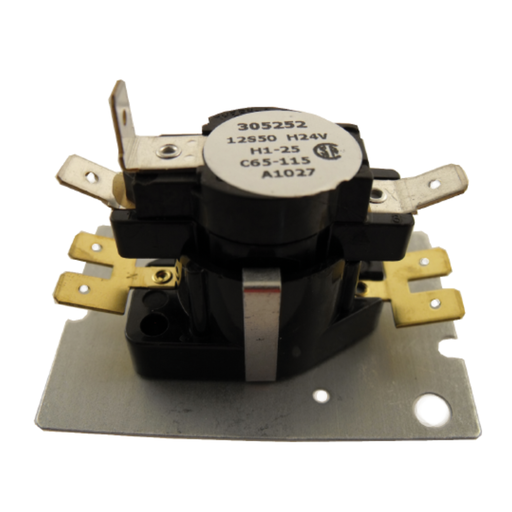

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 1-25 and off at 65-115 seconds.

Features/Benefits

24 volt control circuit
Five second delay between all subsequent stages, unless they function together
UL® and CSA® approved

Off: 65-115 Seconds
On: 1 - 25 Seconds

The SLS series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

Auto and manual reset
CSA approved
UL® recognized


Terminals: 45° angle ¼"
Cut out temp ( °F): 150 °F
Cut in temp ( °F): 110 °F
Differential °: 40 °F

Service kit (NC); diaphragm assembly, O-ring, (4) screws, armature assembly, rubber gasket, refrigeration gasket, compression spring

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.

Features and Benefits

Anti-short cycle compressor delay for cooling applications
Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
Wide differential adjustment (1°F to 30°F) (-17°C to -1°C)
LCD read-out for sensor temperature, control settings, and relay status
High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
EEPROM memory retains control settings during power outages
Keypad lockout to prevent end-user alteration of settings
8 foot lead with sensor is extendable up to 400 feet using 18- or 22-gauge thermostat wire
Easy 4-step set-up
Heavy-duty relay is 1HP rated
Selectable °F or °C heating/cooling modes
Single and two stage models
NEMA 1 case and cover
NEMA 4X models available
White backlight on display
Sensor rated IP67 for dust and water (<1m) resistance

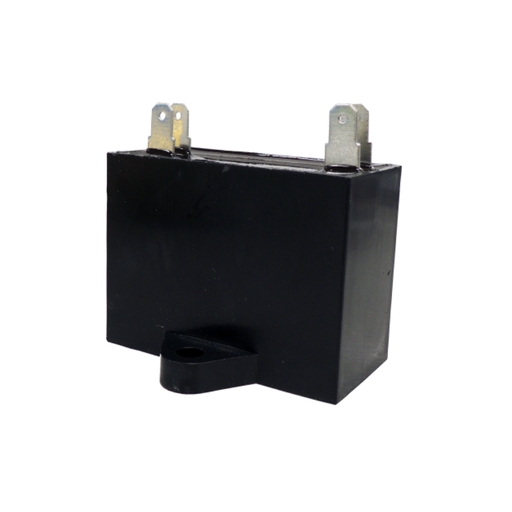

Run capacitors for use in Mini Split applications.

Features/Benefits

Meets IEC 252 Standard
Plastic construction
Quad blade quick connect terminals
UL recognized

3/8 x 12''

The Robertshaw® 800 Series Line Voltage Thermostats are universal replacements for many other brands and can be used to retrofit most existing electric heat thermostats. With models for heating that include single-line break and double-line break as well as a single-line break cooling model, there is one for every application.

Features and Benefits

Convenient temperature display - View comfort level at-a-glance
Bimetal temperature sensing - For improved thermal performance
Mercury-free - No leveling or special disposal required
J-Box compatible - Not only will it meet code, but it speeds up installation
Positive-off switch - Assured shutdown of HVAC system
Universal replacement - Can retrofit most existing electric heat thermostats

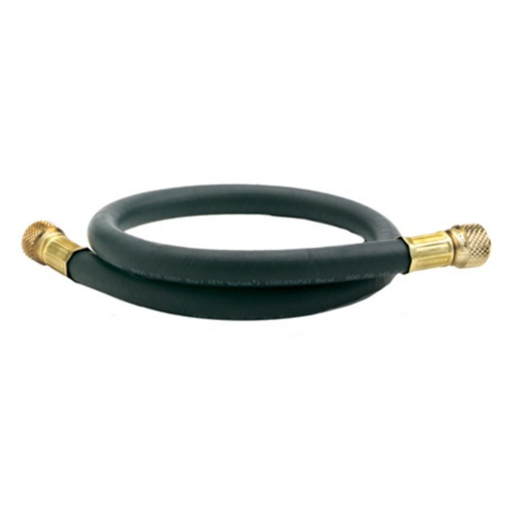

This heavy-duty vacuum and charging hose features a length of 5ft (150cm).

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

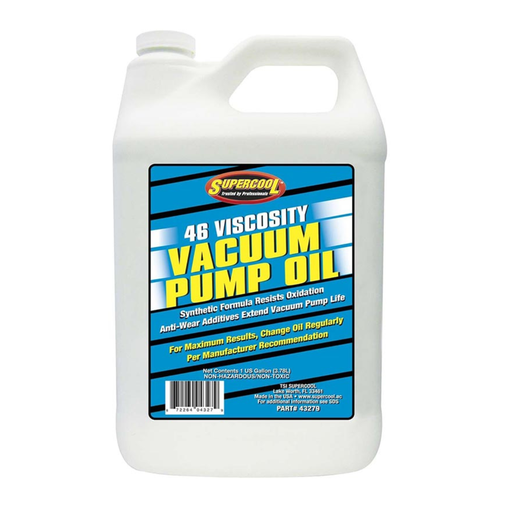

Non-misting formulation.
Universal Synthetic Formula, compatible with most vacuum pump brands.
Contains conditioners, inhibitors & anti wear agents for lubricity & wear protection.
46 cSt viscosity.

CAPACITOR, START, 233 – 280 MFD, 110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-7/16 in
