Model Inferno® kit with HA-3i and HA-11i heating tips contains all the quality equipment needed for brazing, and soldering using acetylene gas. The kit can braze up to 5 in. (127.00mm) diameter copper tube and is supplied with a size tip for brazing copper up to 2 in. (50.80mm) tube. The kit can solder up to 6 in. (152.40mm) diameter copper tube and is supplied with a size tip for soldering copper up to 4 in. (101.60mm) tube.

Features
Kit for brazing and soldering using air acetylene gas with quick connect Inferno® tip interchangeability.
Acetylene regulator model 601 with 50mm dual scale plastic gauges, notched adjusting knob and our distinguished internal encapsulated seat filter. The regulator delivers up 15 psi.
Handle HQB-4 is ergonomically designed with a super tough grip for balance and comfort. This handle features quick connectivity for ease of desired heat output
Consumables included: Heating tips HA-3i and HA-11i made of 304 stainless steel utilizing swirl combustion technology.
Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 3/16 in. x 12 ft. AxA single T-grade hose, and chrome acetylene cylinder wrench
Crossover PN : (T)0386-0335, (G)89600
The quality designed Inferno® tips deliver reliable heat, consistent temperature and a quality flame
Conveniently packaged in clamshell for point-of-purchase display

CONTACTOR, 3 PL, BX LUG, 65A, 24V, 50A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

Exact replacement silicon nitride flat igniter kit with bracket, connector and high temperature wire nuts.

Features:

Superior gas lighting ability
Lower power consumption
Faster time to temperature response
Higher resistance to oxidation


Specifications:

Maximum Temperature: 2732°F / 1500°C @ 132 VAC
Minimum Temperature: 2192°F / 1200°C @ 98 VAC
Time to Temperature (1800°F): < 17 seconds @ 120 +/- 1.0 VAC
Voltage: 120 VAC
Steady State Current: 0.8 - 2 amps @ 120 VAC
Cold Resistance: 34-64 Ohms @ 75°F, +/- 10°F

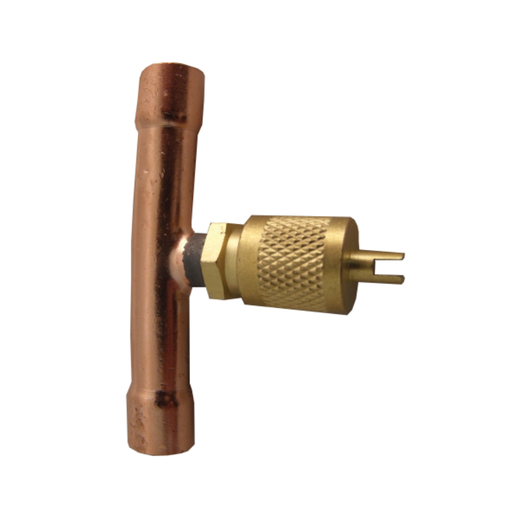

Universal line valves, two styles - a flared or straight end copper piece

Features/Benefits

Copper Tee with the body Brazed on.
Flared Ends

CAPACITOR, RUN, OVAL DUAL, 35+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

The 1830 Series Pilot Uni-Kit® models are designed to be used with all Robertshaw® and most competitive thermocouples. Uni-Kit models include an adaptor that converts a threaded thermocouple/thermopile model 2CH to a snap-in thermocouple type, model 2C.

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics

RS9000 Pro-Series Programmable Touchscreen Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS9110T programmable Touchscreen wall thermostat.
Single Stage - 1 Heat / 1 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program
Simple, yet powerful control.
• Large, easy-to-read 8.8-square-inch blue backlit touchscreen display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum
• Auto changeover
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Minimum compressor run time
• Filter change reminder
• Keypad lockout

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment. Packaging includes special mounting adaptors.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

RS8000 Pro-Series Non-Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS8110 non-programmable wall thermostat.
Single Stage - 1 Heat / 1 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Large, easy-to-read 4.6-square-inch blue backlit display
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

Non-misting formulation.
Highly refined mineral oil base compatible with most vacuum pump brands.
Contains conditioners, inhibitors & anti wear agents for lubricity & wear protection.
46 cSt viscosity.
