Direct replacement silicon nitride igniter kit

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Exact replacement hot surface igniter
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride

Bold Fasteners 8 3/4

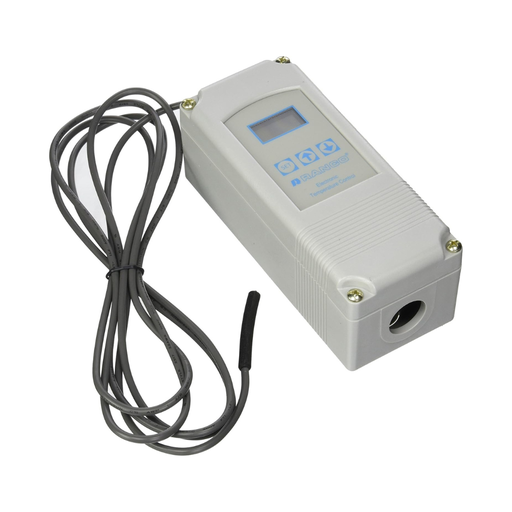

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.

Features and Benefits

Anti-short cycle compressor delay for cooling applications
Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
Wide differential adjustment (1°F to 30°F) (-17°C to -1°C)
LCD read-out for sensor temperature, control settings, and relay status
High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
EEPROM memory retains control settings during power outages
Keypad lockout to prevent end-user alteration of settings
8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
Easy 4-step set-up
Heavy-duty relay is 1 HP rated
Selectable °F or °C heating/cooling modes
Single and two stage models
NEMA 1 case and cover
NEMA 4X models available
White backlight on display
Sensor rated IP67 for dust and water (<1m) resistance

CAPACITOR, RUN, OVAL,30 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

Telescoping tools match clip, magnet and inspection mirrors

Features/Benefits

2 ¼" x 3 ¼" rectangular glass mirror
Carry pouch included
Double ball joint head adjustment
Extendable/retractable design
Glass mirrors
Magnified glass mirror available with IM9
Vinyl grip handle

* 1 Bit – 2 Tip System
* Impact Rated, Color Coded Sizes
* Hardened Tips, Magnetic Ends

CAPACITOR, RUN, OVAL, 15 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CAPACITOR, RUN, OVAL, 4 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

CAPACITOR, START, 56 – 72 MFD, 330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

Used to add additional load switching capability for other low load accessories that need to be controlled with the start/stop sequence of the equipment

Features/Benefits

For use with 3 Pole contactors ONLY
Provides easy connection points

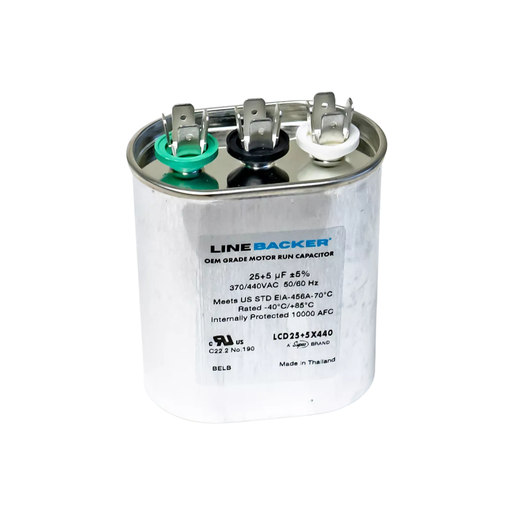

CAPACITOR, RUN, OVAL DUAL, 25+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

The Robertshaw® 1950 and 1951 Series Thermopiles lead the industry for gas appliance applications. Their primary function is to ensure a standing pilot light is operative so that on a call for heat, the main burner gas will be properly ignited. Thermopiles are placed in gas applications to detect the existence of a flame for safety purposes by shutting off the potential gas flow to a burner. A thermopile is the assembly of many thermocouples to increase the millivolt output.

Robertshaw thermopiles have two types of connections: coaxial and two-wire spade connectors. The 1950 Series Thermopiles, also known as TP-75, are two-wire spade connectors. The 1951 Series Thermopiles, also known as CP-2 (250 to 750 millivolts), are coaxial connectors. The 1950 and 1951 Series Thermopiles (pilot generators) are designed for use on self-powered gas control systems. They can be used to replace similar competitive devices. It includes PG9 Pilot Adaptor.

Features and Benefits

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

Universal flat silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Faster time to temperature response
Higher resistance to oxidation
Longer usable life
Lower power consumption
More robust in transit
Stronger more durable design

Time to Temperature: <17 seconds @ 120 +/- 1.0 VAC
Resistance: 34 - 64 Ohms
Minimum Temperature: 2192°F / 1200°C @ 98 Volts
Maximum Temperature: 2732°F / 1500°C @ 132 Volts
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon Nitride

CAPACITOR, RUN, RND DUAL, 45+7.5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

The Ranco® ETC Series Electronic Temperature Control offers a full-featured electronic replacement for electrical-mechanical temperature controls used in many commercial refrigeration applications. With its wide temperature range, one and two stage capability, selectable heating/cooling modes and multi-voltage input, the ETC is designed to provide application flexibility. Models available include 120/208/240V AC and 24V AC.

Features and Benefits

Anti-short cycle compressor delay for cooling applications
Wide temperature range (-30°F to 220°F) (-34.4°C to 104.4°C)
Wide differential adjustment (1°F to 30°F) (-17°C to -1°C)
LCD read-out for sensor temperature, control settings, and relay status
High Amp output relay (FLA 16 Amps @ 120V AC and 8 Amps @ 208/240V AC) single stage
EEPROM memory retains control settings during power outages
Keypad lockout to prevent end-user alteration of settings
8 foot lead with sensor is extendable up to 400 feet using 18 or 22-gauge thermostat wire
Easy 4-step set-up
Heavy-duty relay is 1 HP rated
Selectable °F or °C heating/cooling modes
Single and two stage models
NEMA 1 case and cover
NEMA 4X models available
White backlight on display
Sensor rated IP67 for dust and water (<1m) resistance

CAPACITOR, RUN, RND DUAL, 40+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
Ul Standard US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

ILVALOY 560 FLUX COATED (Orange)
Product Overview

Silvaloy 560 Flux Coated is a flux coated Silvaloy brazing rod. In addition to bare and cored high silver alloys, we also offer rods that are coated with our general purpose Handy Flux.
Improved joint strength due to less flux inclusions
Minimizes post-braze cleaning
Reduces brazing cycle times
Made in the USA
Industry Applications:
Ferrous and non-ferrous alloys, food handling equipment, refrigeration tubing
