CU CC SCRL 10.0HP 575/3/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 575/3/60
Application Capacity* : 104,740 BTU/H
Refrigerant Type : R448A
AWEF Value : 7.6

Copelaweld Hermetic Air-Cooled Condensing Units
Condensing Unit, 1hp 208/230-1 Herm 3/8“S / 1/2“S Air

Receiver
Fan guard
BX Conduit
All 3-phase models have single phase fan motors
R-22 Models have accumulator (2 hp up)
Electrical:
CAA, CFA, IAA, SAA: 115-1-60
CAV, CFV, IAV: 208/230-1-60
* F - Flare, S - Sweat, RF - Rotolock flare, RS - Rotolock sweat

M Series K Chassis Hermetic Reciprocating Air-Cooled Condensing Unit

Air Cooled steel - 24" x 16.1"

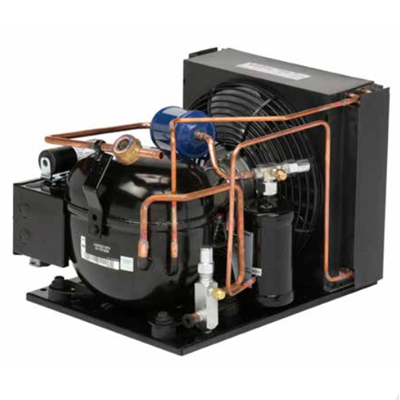

Copelaweld M6KP-0102 Hermetic Air-Cooled Condensing Unit

Medium Temperature Conditions @ 90° - Evap Temps 10 / 15 / 20 / 25
R-404A: 6,910 / 7,620 / 8,370 / 9,150 BTUH
R-448A: 6,330 / 7,120 / 8,000 / 8,960 BTUH
R-449A: 6,340 / 7,130 / 8,010 / 8,970 BTUH
Low Temperature Conditions @ 90° - Evap Temps -10 / -20 / -30
R-404A: 4,420 / 3,350 / -- BTUH
R-448A: 3,790 / -- / -- BTUH
R-448A: 3,800 / -- / -- BTUH

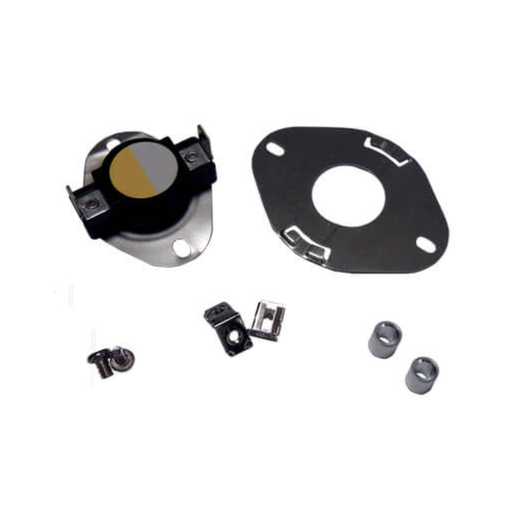

The SHL Series of 3/4" (19mm) bimetal disc temperature controls offers proven reliability in a versatile, cost-effective design. Can handle loads up to 25 amps at 240VAC.

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

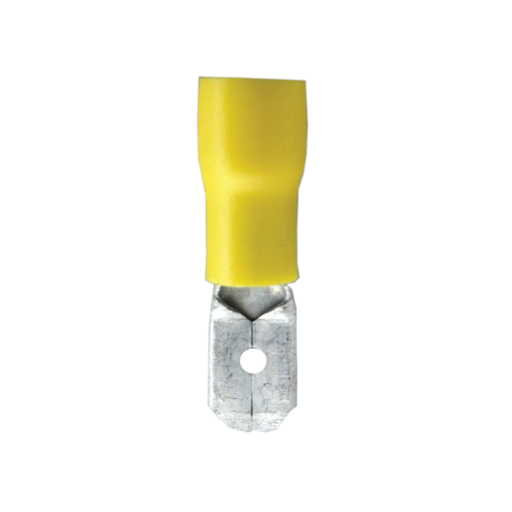

12-10 AWG ¼" (.250") Male Tab 100 Pieces

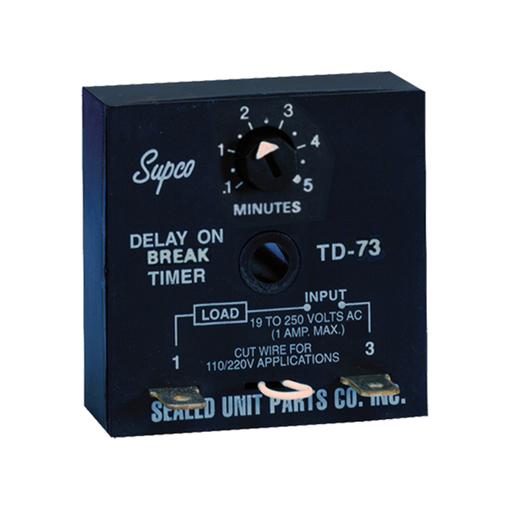

Time Delay on Break Timers (DOB)

Features/Benefits

1/4" male quick connect terminals
Adjustable time delay on break relay 6 seconds to 5 minutes
Cannot be used with a cooling anticipator
Delay on Break Timers (DOB)

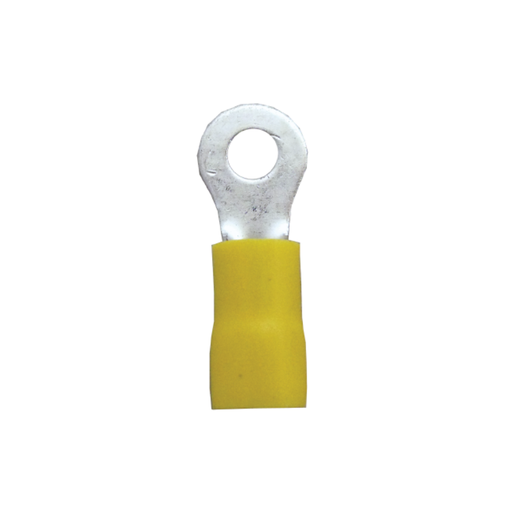

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG #8 stud 11/64" I.D. 15 Pieces

OV Series 3 / 4" Universal Replacement Motor Protectors

Features/Benefits

Built in temperature activated disc opens and closes the motor overload protector's contacts
Protects compressor or motor from excessive high heat situations
UL® & CSA Approved
Universal replacement overload
Locked rotor amps: 31.5-35.5
hp @ 120 VAC: 1/4 thru 1/3
hp @ 240 VAC: 1/2+ - thru 1

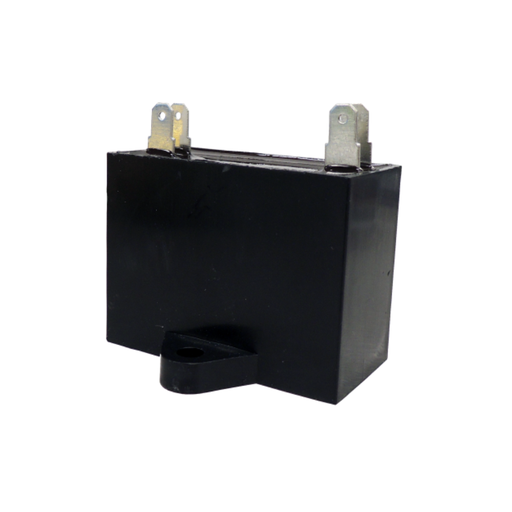

Run capacitors for use in Mini Split applications.

Features/Benefits

Meets IEC 252 Standard
Plastic construction
Quad blade quick connect terminals
UL recognized

OV Series 3 / 4" Universal Replacement Motor Protectors

Features/Benefits

Built in temperature activated disc opens and closes the motor overload protector's contacts
Protects compressor or motor from excessive high heat situations
UL® & CSA Approved
Universal replacement overload
Locked rotor amps: 18.5-22.0
hp @ 120 VAC: 1/10 thru 1/4
hp @ 240 VAC: 15 thru 1/2

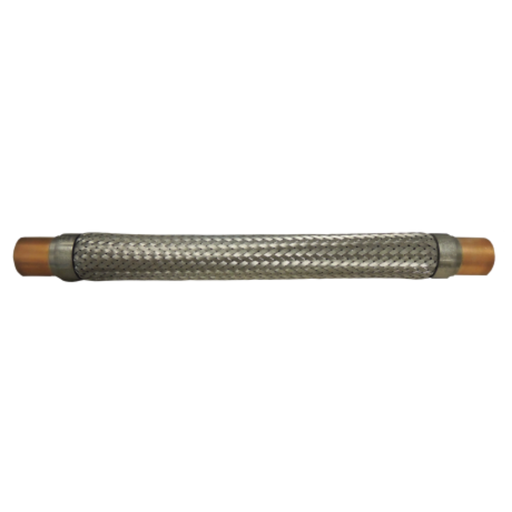

Vibration absorbers are designed for installation in the suction and discharge lines of air conditioning, heat pump and refrigeration systems to dampen the transmission of compressor induced vibration through the system piping.

Features/Benefits

100 % helium and hydrogen leak tested
Compatible with all refrigerants
Deep pitch stainless steel hose and high tensile wire braid
Unique proven design for high pressure applications rated for R410A

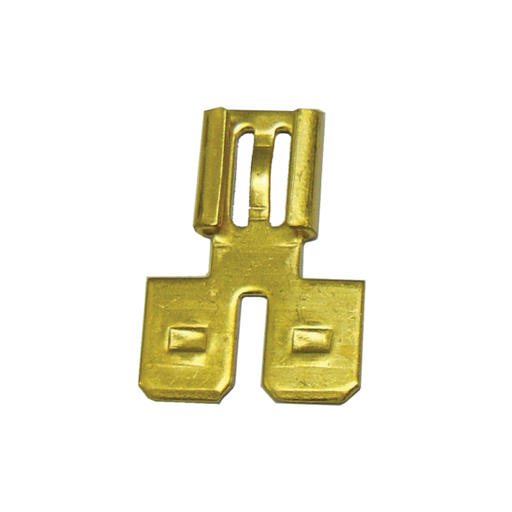

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

¼" (.250") 2 Male x 1 Female 10 Pieces

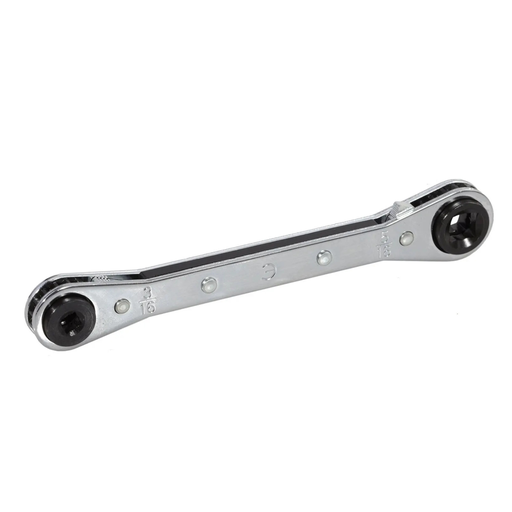

This service wrench features a chrome finish and 3/16in, 1/4in, 5/16in and 3/8in straight square drives, plus a hex adapter.

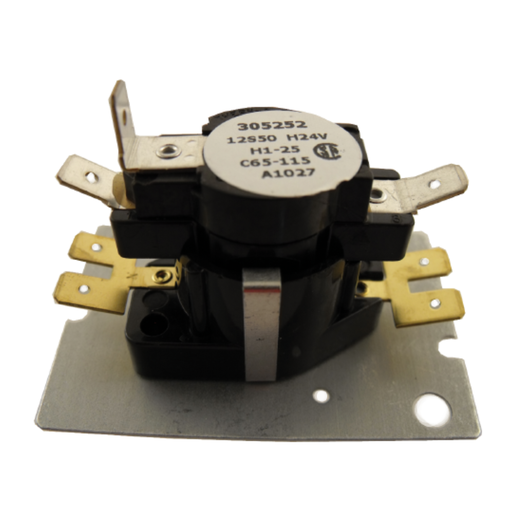

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 1-25 and off at 65-115 seconds.

Features/Benefits

24 volt control circuit
Five second delay between all subsequent stages, unless they function together
UL® and CSA® approved

Off: 65-115 Seconds
On: 1 - 25 Seconds

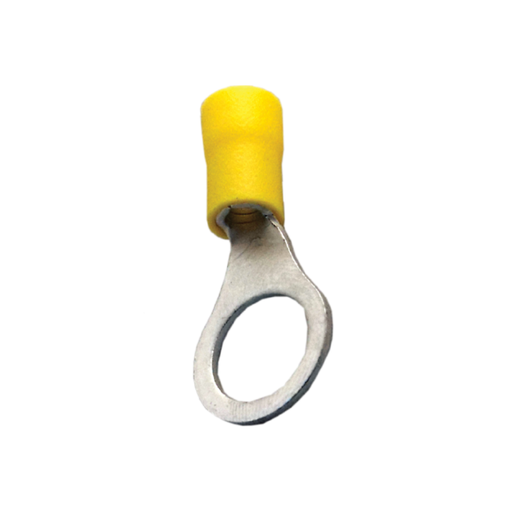

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG ⅜" stud 25/64" I.D. 15 Pieces

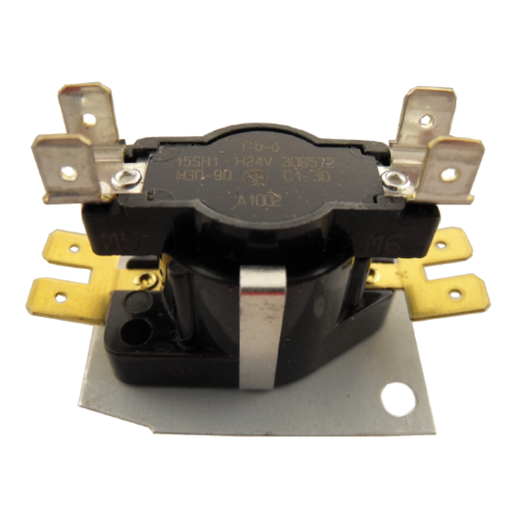

Q Series Sequencer, field proven for controlling the operation of heating elements and/or blower motors in electric, gas or oil heat systems. This sequencer has 1 switch & turns on at 30-90 seconds, and off at 1-30 seconds.

Features/Benefits

24 volt control circuit
Five second delay between all subsequent stages, unless they function together
UL® and CSA® approved

Off: 1 - 30 Seconds
ON: 30 - 90 Seconds

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

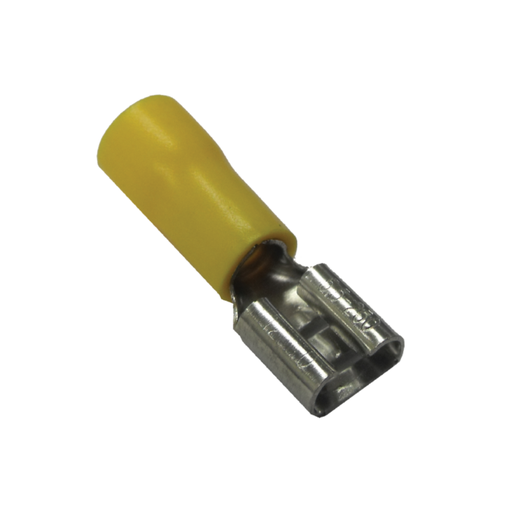

12-10 AWG ¼" (.250") Female Tab 15 Pieces

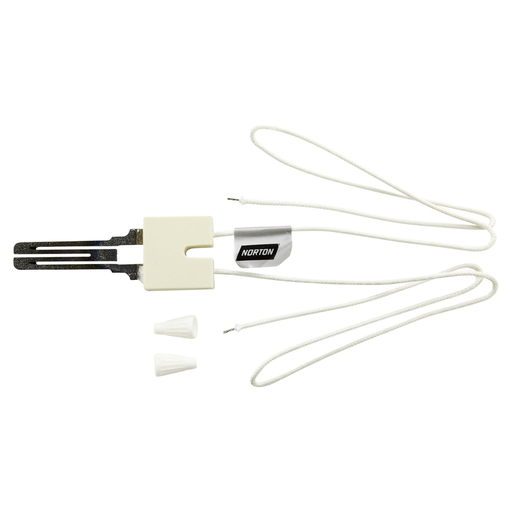

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

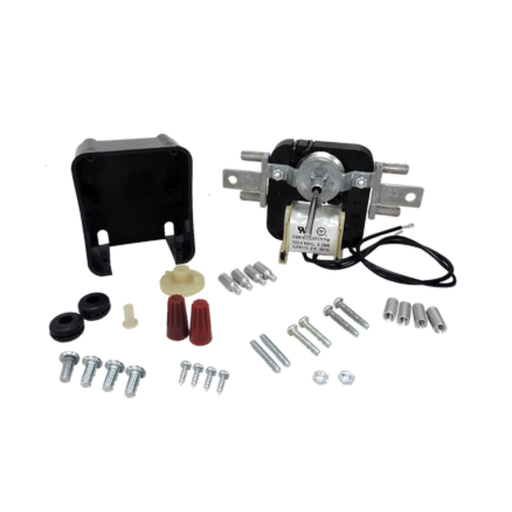

Evaporator Fan Universal Motor Kit 120 Volt 3000 RPM, Single Speed CW -clockwise rotation OR CCW-counter clockwise rotation. Replaces over 450 different evaporator motor types, Break off 2" Motor Shaft with Breakaways at 1/2" and 1-1/2".

Features/Benefits

Break off 2" motor shaft with breakaways at ½" and 1 ½"
CSA® Approved
Impedance protected
Includes all mounting accessories and hardware
Prefastened multi fit, break off mounting bracket
Replaces over 450 different evaporator type motors
Reversible rotation
Shaft diameter ⅛"
Single speed
UL® Recognized

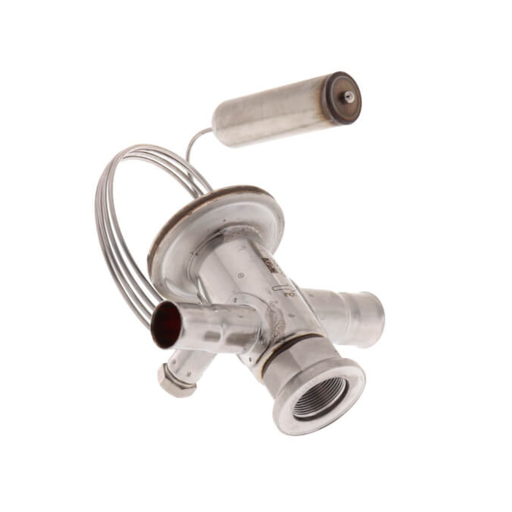

TUA - Thermostatic Expansion Valves for Ice Machines
These kits are designed with contractors in mind to help save time and money by providing a universal valve that can easily be adapted to
replace most OEM specic TXVs. Two kits are available, each with a valve body and a selection of three orice sizes, copper ttings (two elbows
and one reducer), a patented bulb strap, and insulation tape.

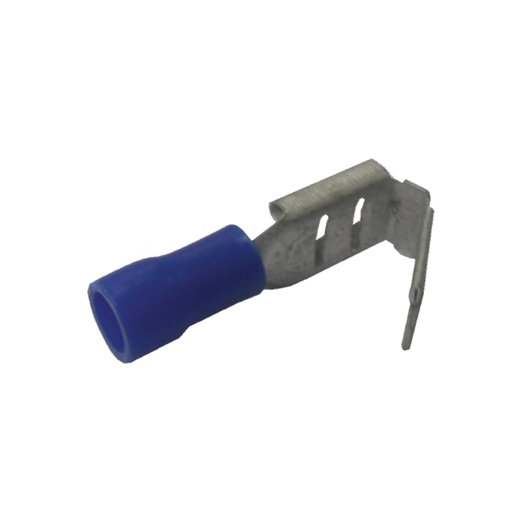

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

16-14 AWG ¼" (.250") Male/Female P.B. 10 Pieces

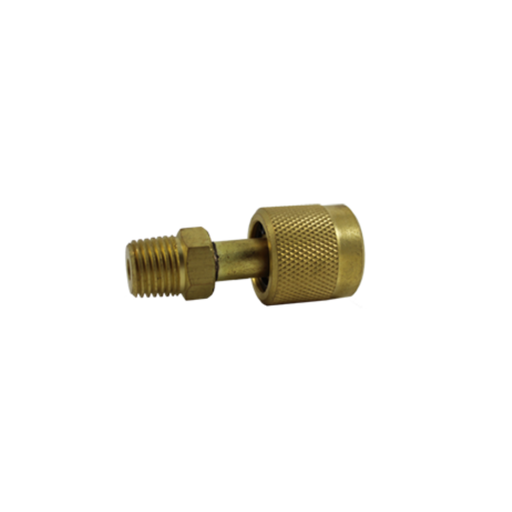

COUPLER GAS RETAINING, 1/4″ FF X 1/4″ MPT
Adapter Fittings


RETAINING, CPLR, GAS, BRS, HVAC/R
Nominal Size 1/4 in MPT x 1/4 in Female Knurled Swivel

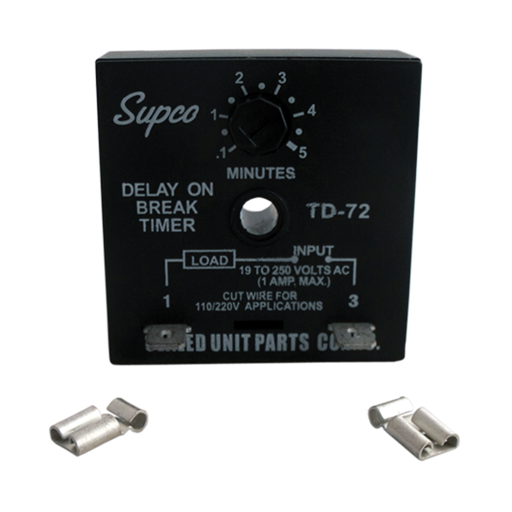

Time Delay on Break Timers (DOB)

Features/Benefits

1/4" male quick connect terminals
Adjustable time delay on break 6 seconds to 5 minutes
Cut the jumper wire to use in 110/250 volts
Delay on Break Timer (DOB)

CU CC SCRL 4.5HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 208-230/3/60
Application Capacity* : 17,140 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15

Run capacitors for use in Mini Split applications.

Features/Benefits

Meets IEC 252 Standard
Plastic construction
Quad blade quick connect terminals
UL recognized

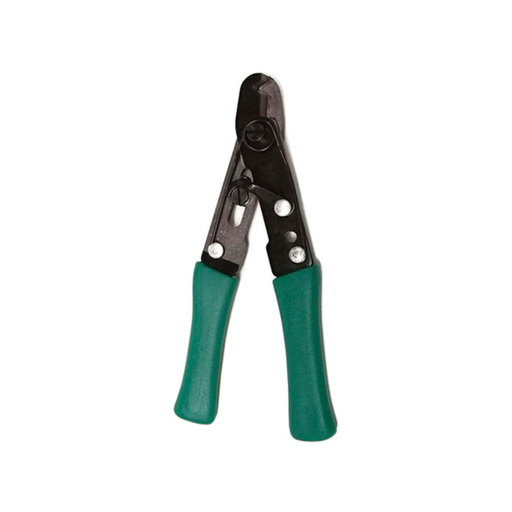

The TCAP Capillary Tube Cutter cleanly cuts all types of refrigerant capillary tubing without constricting, swaging, or flattening.

PRO-SET® TUBE CUTTERS

CU CC SCRL 2.0HP 208-230/3/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 208-230/3/60
Application Capacity* : 20,700 BTU/H
Refrigerant Type : R404A
AWEF Value : 7.6

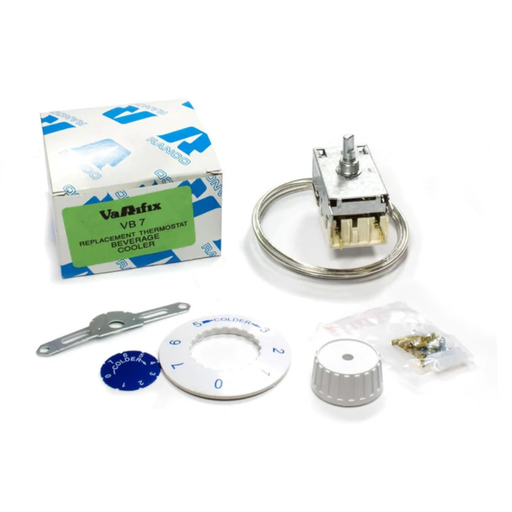

The Ranco® Varifix International Cold Controls are designed for fast and easy service replacements. They are available for both refrigerator and freezer applications.

Features and Benefits

Trusted brand
Capillary is crimped and sealed for maximum reliability
High level of performance
Complete kit includes all necessary hardware

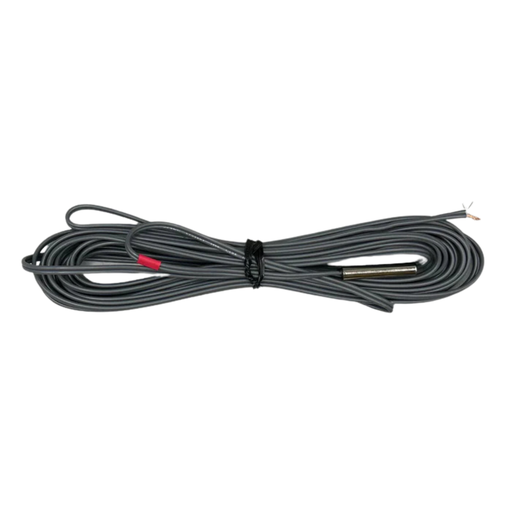

The ETC-1125 Blue Temperature Sensor is designed for precise coil inlet temperature monitoring in evaporators. Compatible with Emerson / Copeland / CPC part number 501-1125 and Parker part number 023-0076. Identical to the Emerson / Copeland / CPC part number 501-1125 and Parker / Micro Thermo Technologies™ part number 023-0076.
