114N3592 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 7.5HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0750UWK000Q

R448A/R449A Capacity range: 66910 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 7665W, AWEF 10.28

R404A/R507 Capacity range: 72410 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 8089W, AWEF 10.66

• 46 interior and exterior tool pockets of various sizes
• 2 Storage bays – 4 Storage platforms
• Manifold gauge and hose storage pocket
• Padded EVA thermoformed, ergonomic back padding
• Waterproof base
• Quick release metal hasp allows easy access to rear storage bay
• YKK® interlocking zippers
• Interior Magnetic Screw Catcher

114N3586 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 4HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0400UWK000Q

R448A/R449A Capacity range: 34040 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4455W, AWEF 9.40

R404A/R507 Capacity range: 36450 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4596W, AWEF 9.62

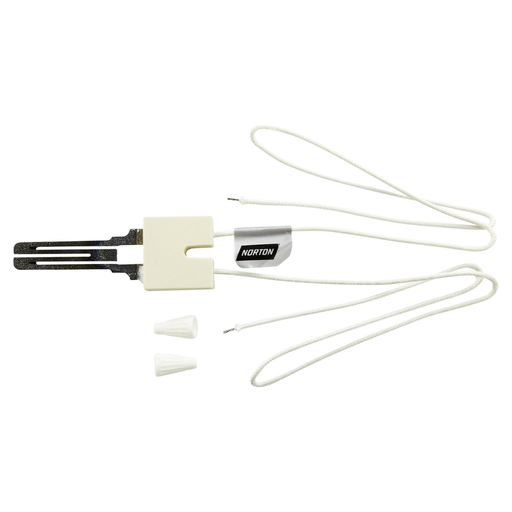

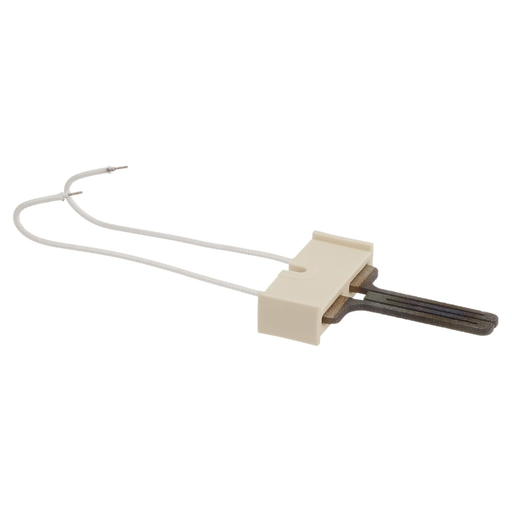

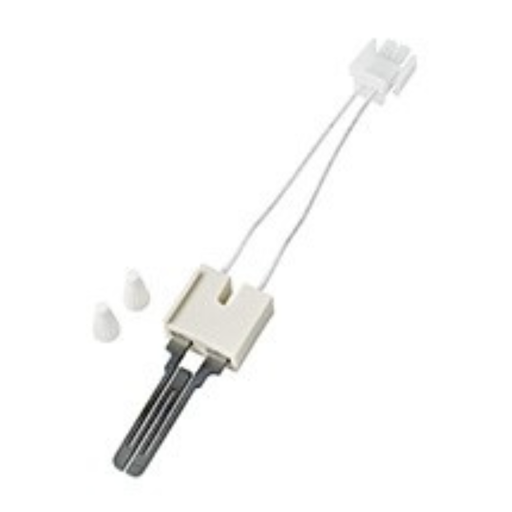

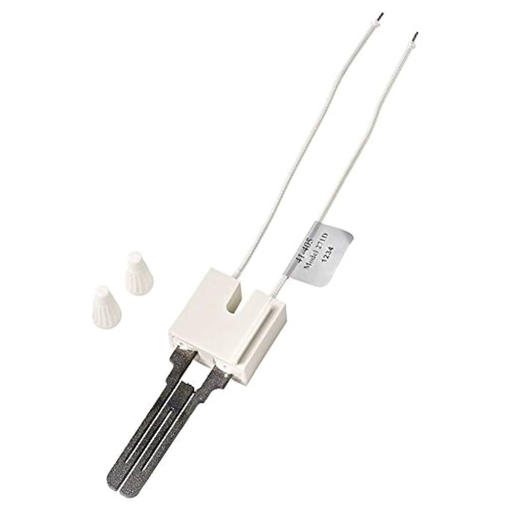

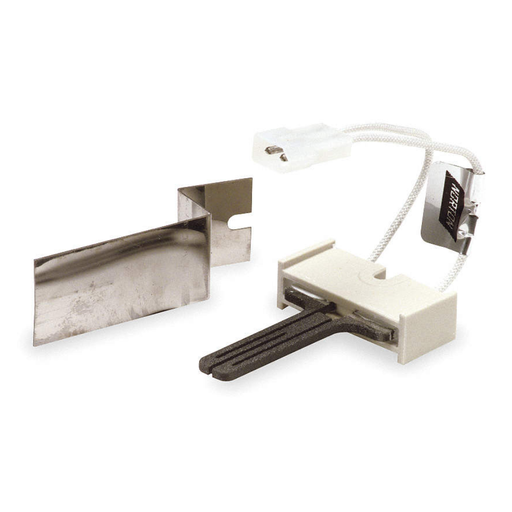

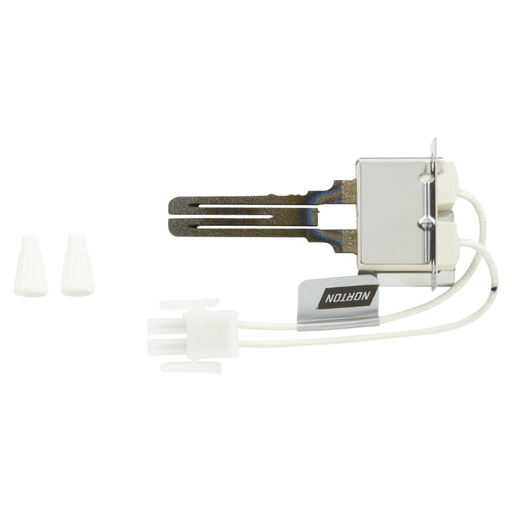

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

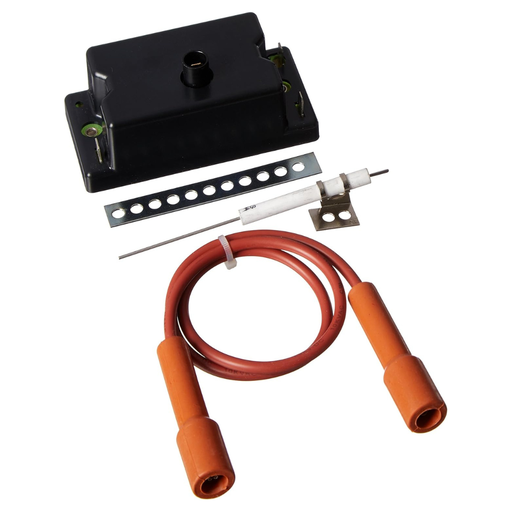

The Robertshaw® 785 Series Automatic Pilot Relight Kits are designed for use on rooftop heating equipment, water heaters, boilers, space heaters, unit heaters, dryers, and other commercial, industrial, and residential appliances where the problem of pilot outage may occur. It should only be applied to those systems which already incorporate the necessary pilot-safety control system.

Features and Benefits
Kit Includes: Ignitor Assembly & Mounting Bracket

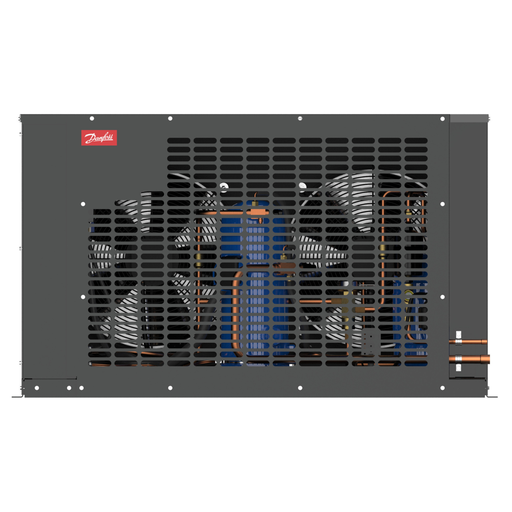

114N3587 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 5HP 1PH
Compressor power supply [V]: 230/1/60
OP-HRXM0500UWK000N

R448A/R449A Capacity range: 41710 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 5406W, AWEF 9.06

R404A/R507 Capacity range: 45690 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 5430W, AWEF 9.64

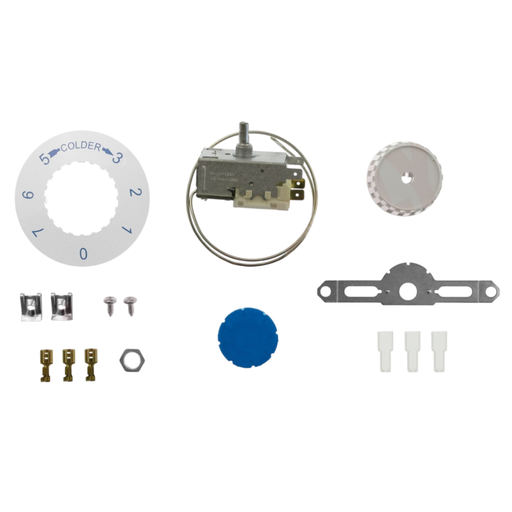

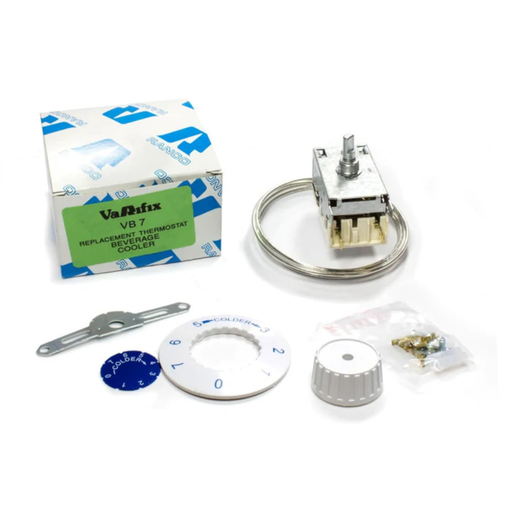

The Ranco® Varifix International Cold Controls are designed for fast and easy service replacements. They are available for both refrigerator and freezer applications.

Features and Benefits

Trusted brand
Capillary is crimped and sealed for maximum reliability
High level of performance
Complete kit includes all necessary hardware

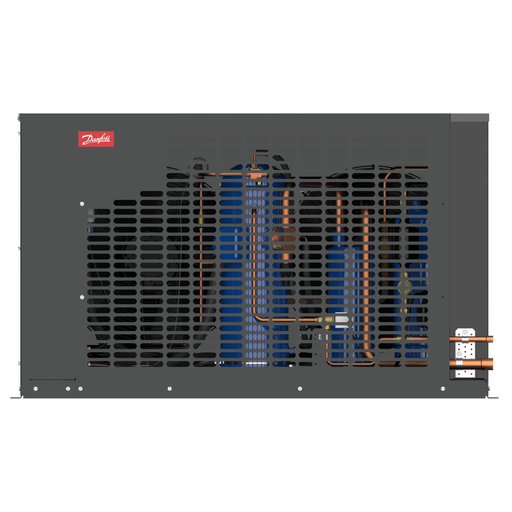

114N3597 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) LOW 8HP 3PH
Compressor power supply [V]: 230/3/60
LNYM0600UWL000Q

R448A/R449A Capacity range: 27310 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 6222W, AWEF 3.39

R404A/R507 Capacity range: 33350 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 6360W, AWEF 3.76

114N3593 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 10HP 3PH
Compressor power supply [V]: 230/3/60
HRXM1000UWK000Q

R448A/R449A Capacity range: 82280 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 9991W, AWEF 9.88

R404A/R507 Capacity range: 90760 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 10580W, AWEF 10.3

114N3591 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 7HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0700UWK000Q

R448A/R449A Capacity range: 55260 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6907W, AWEF 9.83

R404A/R507 Capacity range: 58470 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6912W, AWEF 10.45

114N3589 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 6HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0600UWK000Q

R448A/R449A Capacity range: 50610 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6504W, AWEF 9.64

R404A/R507 Capacity range: 54180 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 6264W, AWEF 10.57

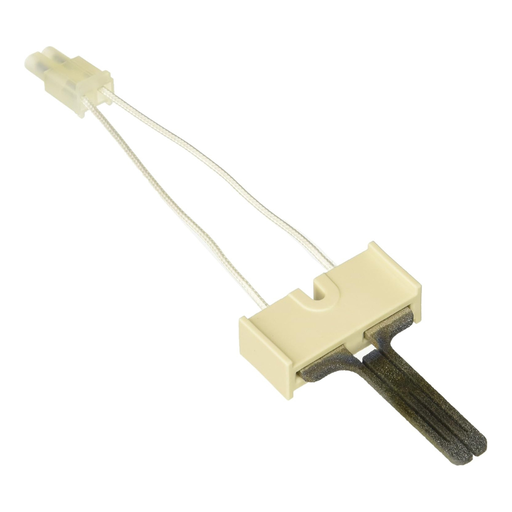

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

The Robertshaw® 2374 Series Adjustable Air Sensing Switches are designed to replace a wide variety of air sensing switches found in residential and light commercial applications including furnaces, electronic air cleaners and humidifiers. Two models are currently available with adjustable ranges. Both models are provided with an SPDT switch that can be actuated by positive or negative pressure or by pressure differential. Highly accurate, these switches are practically insensitive to temperature change with an operating temperature range of -40°F to 190°F (-40°C to 88°C). Each switch includes mounting hardware and an adjustment tool for easy installation and calibration.

Features and Benefits
Field adjustable control set point
Air sample line connectors will accept 1/8”, 1/4” or 3/8” tubing
Electrical connection is 1/4” spade
Vertical operating mounting position for diaphragm
UL File Number MH6213, CSA File Number LR18754

114N3595 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) LOW 5HP 3PH
Compressor power supply [V]: 230/3/60
LNYM0500UWL000Q

R448A/R449A Capacity range: 18620 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 4297W, AWEF 3.48

R404A/R507 Capacity range: 22070 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =-10°F), Power consumption 4462W, AWEF 3.77

114N3584 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 3.5HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0350UWK000Q

R448A/R449A Capacity range: 28890 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3826W, AWEF 9.22

R404A/R507 Capacity range: 31910 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3829W, AWEF 10.33

114N3577 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 2HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0200UWK000N

R448A/R449A Capacity range: 17070 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2408W, AWEF 8.44

R404A/R507 Capacity range: 18870 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2359W, AWEF 10.06

114N3582 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 2.5HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0250UWK000Q

R448A/R449A Capacity range: 22000 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3013W, AWEF 8.79

R404A/R507 Capacity range: 24040 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2973W, AWEF 10.04

The Robertshaw® 2374 Series Adjustable Air Sensing Switches are designed to replace a wide variety of air sensing switches found in residential and light commercial applications including furnaces, electronic air cleaners and humidifiers. Two models are currently available with adjustable ranges. Both models are provided with an SPDT switch that can be actuated by positive or negative pressure or by pressure differential. Highly accurate, these switches are practically insensitive to temperature change with an operating temperature range of -40°F to 190°F (-40°C to 88°C). Each switch includes mounting hardware and an adjustment tool for easy installation and calibration.

Features and Benefits
Field adjustable control set point
Air sample line connectors will accept 1/8”, 1/4” or 3/8” tubing
Electrical connection is 1/4” spade
Vertical operating mounting position for diaphragm
UL File Number MH6213, CSA File Number LR18754

114N3588 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 5HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0500UWK000Q

R448A/R449A Capacity range: 41710 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 5406W, AWEF 9.06

R404A/R507 Capacity range: 45690 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 5430W, AWEF 9.64

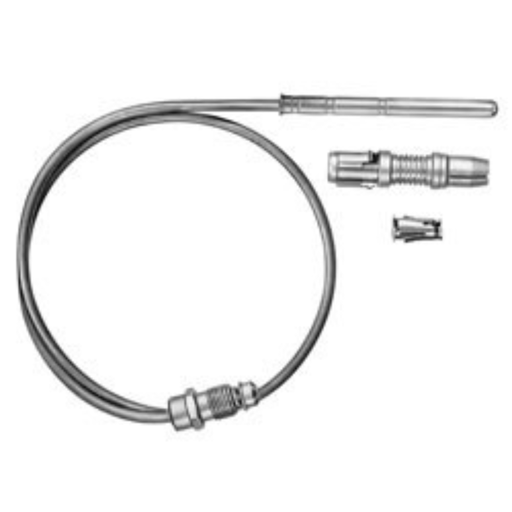

The Robertshaw® 1980 Series Snap-Fit® Thermocouples offer easy installation into the majority of pilot burners. They are manufactured without complicated adaptors, but with extra insulation that the brass sheath provides under high ambient temperatures.

Features and Benefits

Easy burner installation with attached threaded nut
Stainless steel outer jacket for long life and resistance to heat blistering
Combination of copper and nickel alloys for good electrical conductivity
Mica washer to insulate from shorting conditions
Tinnerman clip included
Various lengths available for multiple applications

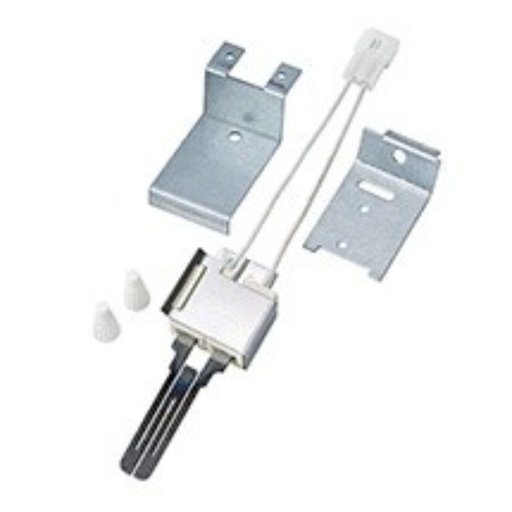

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment. Package includes a bracket.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

The Robertshaw® 2374 Series Adjustable Air Sensing Switches are designed to replace a wide variety of air sensing switches found in residential and light commercial applications including furnaces, electronic air cleaners and humidifiers. Two models are currently available with adjustable ranges. Both models are provided with an SPDT switch that can be actuated by positive or negative pressure or by pressure differential. Highly accurate, these switches are practically insensitive to temperature change with an operating temperature range of -40°F to 190°F (-40°C to 88°C). Each switch includes mounting hardware and an adjustment tool for easy installation and calibration.

Features and Benefits
Field adjustable control set point
Air sample line connectors will accept 1/8”, 1/4” or 3/8” tubing
Electrical connection is 1/4” spade
Vertical operating mounting position for diaphragm
UL File Number MH6213, CSA File Number LR18754

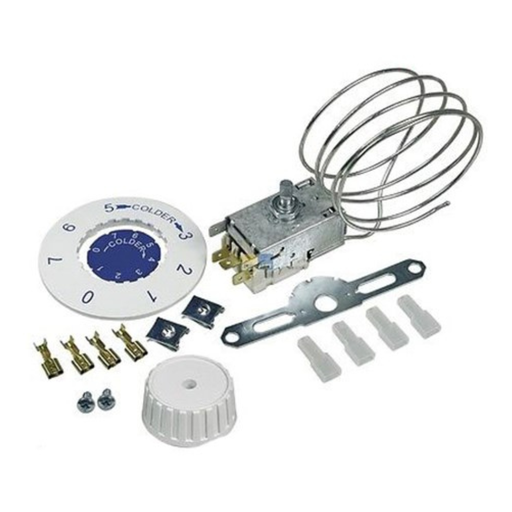

The Ranco® Varifix International Cold Controls are designed for fast and easy service replacements. They are available for both refrigerator and freezer applications.

Features and Benefits

Trusted brand
Capillary is crimped and sealed for maximum reliability
High level of performance
Complete kit includes all necessary hardware

114N3578 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 2HP 3PH
Compressor power supply [V]: 230/3/60
OP-HNXM0200UWK000Q

R448A/R449A Capacity range: 17070 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2408W, AWEF 8.44

R404A/R507 Capacity range: 18870 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 2359W, AWEF 10.06

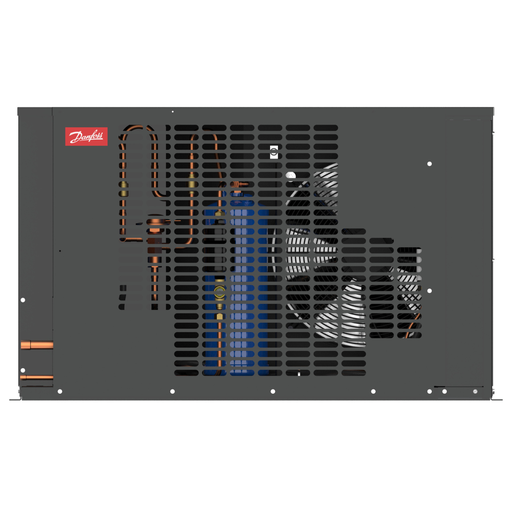

114N3585 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 4HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0400UWK000N

R448A/R449A Capacity range: 34040 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4455W, AWEF 9.40

R404A/R507 Capacity range: 36450 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 4596W, AWEF 9.62

Surge Protective Device, 240 VAC 1Ph w/Green Ground Lead, Type 1 or Type 2, Outdoor, Connected Equipment Warranty 3yr $7,500

CAPACITOR, OVLD, RLY, 110 TO 125VAC, 115V

Designed for modern high efficiency compressors, easy mount clip for quick installation
For systems with or without run capacitors
Helps older compressors start and run cooler
Prevents low voltage starting problems
Wire designations - white/start, black/common, red/run
