Copelaweld Hermetic Air-Cooled Condensing Units
Condensing Unit, 1hp 208/230-1 Herm 3/8“S / 1/2“S Air

Receiver
Fan guard
BX Conduit
All 3-phase models have single phase fan motors
R-22 Models have accumulator (2 hp up)
Electrical:
CAA, CFA, IAA, SAA: 115-1-60
CAV, CFV, IAV: 208/230-1-60
* F - Flare, S - Sweat, RF - Rotolock flare, RS - Rotolock sweat

M Series K Chassis Hermetic Reciprocating Air-Cooled Condensing Unit

Air Cooled steel - 24" x 16.1"

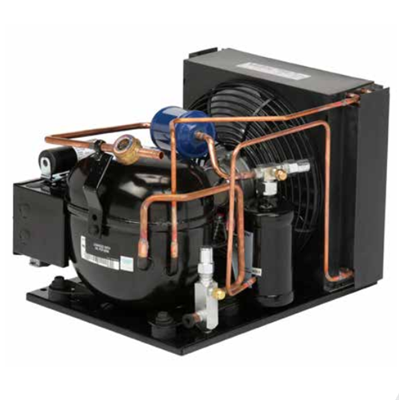

Copelaweld M6KP-0102 Hermetic Air-Cooled Condensing Unit

Medium Temperature Conditions @ 90° - Evap Temps 10 / 15 / 20 / 25
R-404A: 6,910 / 7,620 / 8,370 / 9,150 BTUH
R-448A: 6,330 / 7,120 / 8,000 / 8,960 BTUH
R-449A: 6,340 / 7,130 / 8,010 / 8,970 BTUH
Low Temperature Conditions @ 90° - Evap Temps -10 / -20 / -30
R-404A: 4,420 / 3,350 / -- BTUH
R-448A: 3,790 / -- / -- BTUH
R-448A: 3,800 / -- / -- BTUH

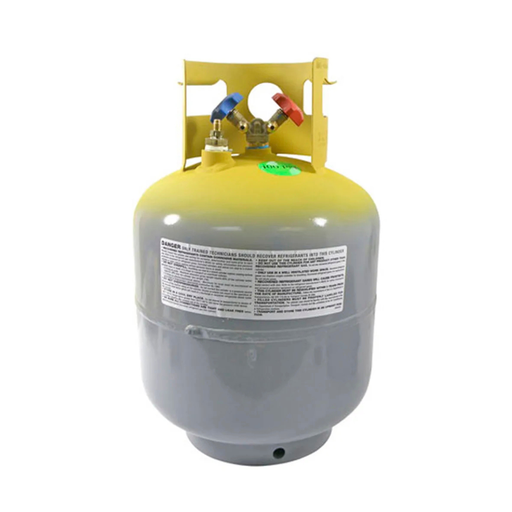

This DOT-approved 50lb (22.68kg) recovery tank features a 1/4in SAE male fitting, a maximum pressure rating of 400psig and a water capacity of 47.7lbs (21.7kg).

This DOT-approved 50lb (22.68kg) recovery tank features a 1/4in SAE male fitting, a maximum pressure rating of 400psig and a water capacity of 47.7lbs (21.7kg).

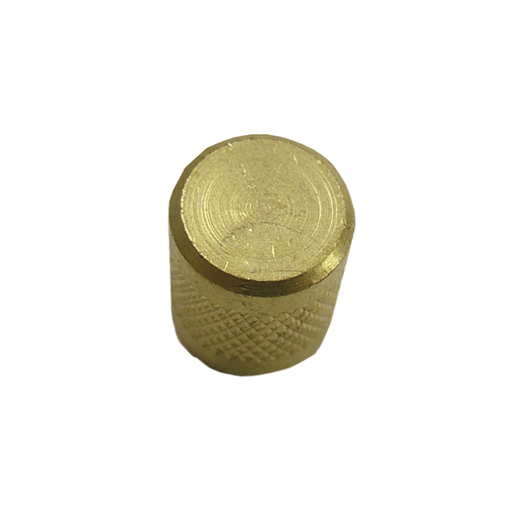

SEAL, CAP, W/NEO , SEAL, BRS
Nominal Size 1/4 in Flare Knurled

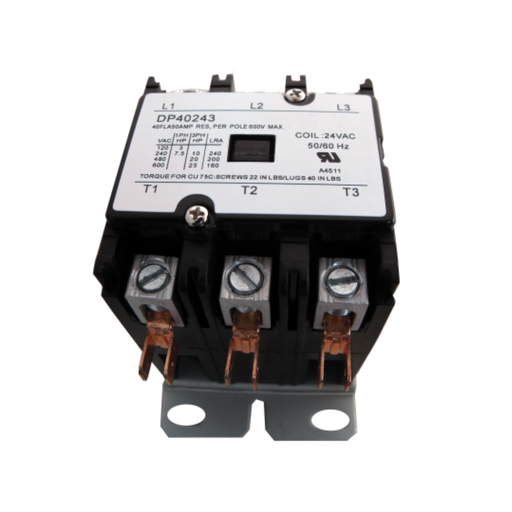

CONTACTOR, 3 PL, BX LUG, 50A, 24V, 40A

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Low Drop Out Voltage Making them Ideal for Any Air Conditioning Heating and Refrigeration

SWITCH, 1/4 IN, 6VDC, 12VDC, 36VDC, 18 AWG

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

TUA - Thermostatic Expansion Valves for Ice Machines
These kits are designed with contractors in mind to help save time and money by providing a universal valve that can easily be adapted to
replace most OEM specic TXVs. Two kits are available, each with a valve body and a selection of three orice sizes, copper ttings (two elbows
and one reducer), a patented bulb strap, and insulation tape.

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment. Packaged with special mounting adaptors.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

Universal round silicon nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

Rated Voltage: 120V +10% -15%, 50/60 Hz
Cold Resistance: 9 to 17 Ohms
Temperature @ 102V +/-5V: 1976°F / 1080°C
Temperature @ 120V +/- 5V: 2156°F / 1180°C
Steady State Current: 0.8 to 2.0 Amps Maximum @ 120 Volts
Igniter Material: Silicon_Nitride
Probe Length from Bracket: 2.25 Inches
Wire Length: 15.5 Inches

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG ¼" (.250") Male/Female 10 Pieces

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

12-10 AWG #10 stud 13/64" I.D. 15 Pieces

SUPCO® Cooper Driers are high quality, high capacity original equipment components for use on domestic and commercial refrigerators, freezers, and air conditioners.

Features/Benefits

100% XH-9 Beaded Molecular Sieve
Compatible with all refrigerants (including R290 & R600A)
Copper shells and end tubes
Easy break off grooved ends
Hermetically sealed
High capacity

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

¼" (.250") Female QC X #6 Screw 10 Pieces

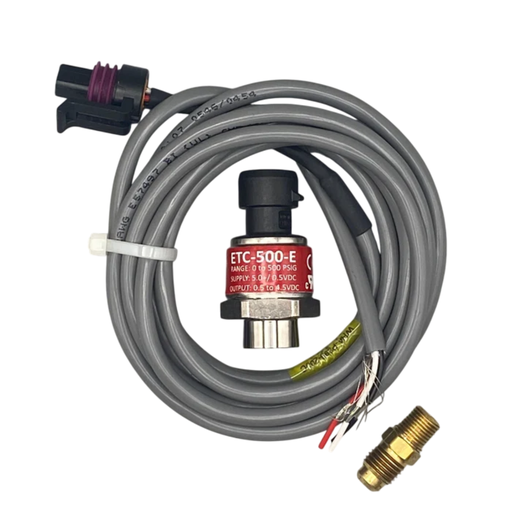

The ETC-500-E Pressure Transducer (800-2500) is a high-accuracy sensor designed for HVAC and refrigeration systems. Compatible with CPC, Emerson, Copeland, and Danfoss systems including RMCC, E2, E2e, E3, AK-SC255, AK-SC355, AK-SM800, and AK-SM800a. Equivalent to Danfoss part number 060G3991.

Note: supplied with 2M Cable

CAPACITOR,START,108 – 130 MFD,330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-1/16 in

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC.

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

CONTACTOR, 240V, 25A, 1.5, 35A, #10-32 SCREWS

Economically priced
Interchangeable mounting with many competitive contactors
Silver cadmium oxide contacts
Space saving dimensions allow for smaller panels and more wiring room
Application Low drop out voltage making them ideal for any air conditioning heating and refrigeration application

The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types
High-amp rated switch (SPST) design (O10-1402/O10-1483)
Super Cap® capillary vibration protection system
Non-conductive front cover with captive screw
Adjustable differential and range
Easy-to-read scale plate
Vibration cone (absorbs and reduces vibration away from brazed joint)
Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
Cap included on all Australia temperature controls. Optional for all other regions
