SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

CAPACITOR, RUN, RND DUAL, 30+3 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

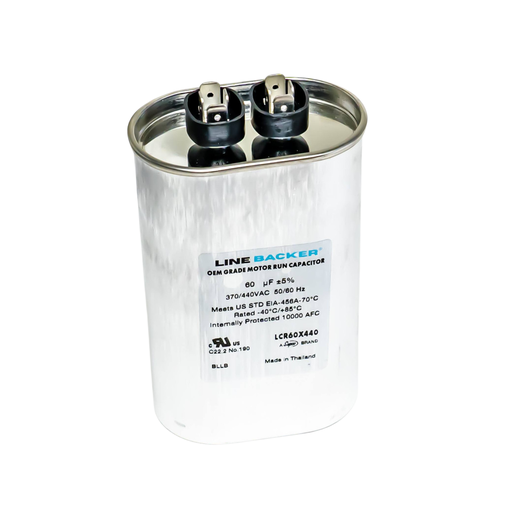

CAPACITOR, RUN, OVAL, 60 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

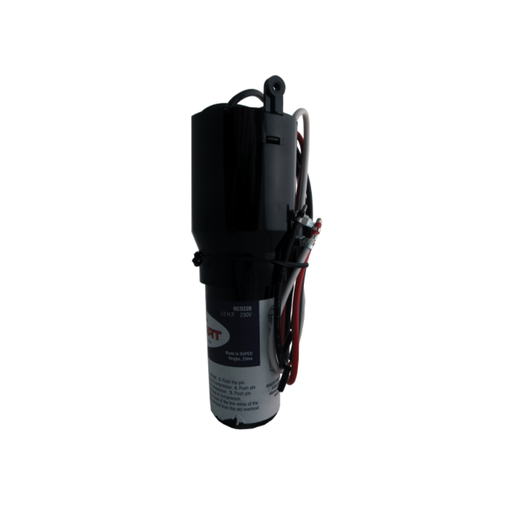

CAPACITOR, OVLD AND START, RLY, 115V, 40A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

Pilot Accessory Piezo Ignitor

Evaporator Fan Universal Motor Kit 120 Volt 3000 RPM, Single Speed CW -clockwise rotation OR CCW-counter clockwise rotation. Replaces over 450 different evaporator motor types, Break off 2" Motor Shaft with Breakaways at 1/2" and 1-1/2".

Features/Benefits

Break off 2" motor shaft with breakaways at ½" and 1 ½"
CSA® Approved
Impedance protected
Includes all mounting accessories and hardware
Prefastened multi fit, break off mounting bracket
Replaces over 450 different evaporator type motors
Reversible rotation
Shaft diameter ⅛"
Single speed
UL® Recognized

One PHLiPBiT replaces 2 singles, reduces inventory, saves time & money. Drive more screws, faster & easier with less strip out.

CAPACITOR,START,145 – 175 MFD,330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-9/16 in

Hermetically designed moisture indicator with 3% relative humidity sensitivity, intended for use on refrigerant lines.

Features/Benefits

3% relative humidity indication compared to 10% paper indicators
3% relative humidity sensitivity
Accurate color calibration at low ppm levels and higher temperatures
All brass corrosion resistant body
Fully hermetic design
Maximum working pressure: 680 psig
Single indicator for all common refrigerants
Solid copper fittings
Tri color coded: Blue/Purple/Pink
Wide angle viewing/ high visibility window for ease of monitoring

Sil-Fos 5 is a silver-copper-phosphorus alloy for copper-copper brazing but can also be used to join brass with an appropriate flux (e.g. Handy Flux, Ultra Flux). It is a more cost effective Ag-Cu-P alloy, though it does not penetrate deep joints easily.
Joins CU to CU (phosphorus serves as flux)
Joins CU to Brass (flux is recommended)
Lower cost alternative to higher silver content Ag-Cu-P alloys
Medium flow
Made in USA
Industry Applications:
HVAC/R refrigerant systems, air conditioning coils, evaporator coils

SA Item ID: 92030012
Mfg Part Number: 33136


LucasMilhaupt® Sil-Fos® 5 31894 Brazing Rod, 0.94 in Dia x 20 in L, 24 Rod Plastic Tube, 30000 to 40000 psi Tensile
LucasMilhaupt® Sil-Fos® 5 Brazing Rod, 0.94 in Dia, 20 in Length, Plastic Tube, 30000 to 40000 psi Tensile, Chemical Composition: Silver, Copper, Phosphorus, 1325 to 1500 deg F Brazing

A universal way to secure the disconnect to the unit, without blocking access to the electrical panel.

Features/Benefits

Designed to fit various layouts of single phase disconnects
Cross pattern mounting allows for universal installations
Hex nuts for easy installation with 5/16" nut driver
Eliminates potential damage to the unit during installation
Made of weather-resistant galvanized metal
Part of our SUPCO® TradeFox™ Technician-Invented product line

Hermetically designed moisture indicator with 3% relative humidity sensitivity, intended for use on refrigerant lines.

Features/Benefits

3% relative humidity indication compared to 10% paper indicators
3% relative humidity sensitivity
Accurate color calibration at low ppm levels and higher temperatures
All brass corrosion resistant body
Fully hermetic design
Maximum working pressure: 680 psig
Single indicator for all common refrigerants
Solid copper fittings
Tri color coded: Blue/Purple/Pink
Wide angle viewing/ high visibility window for ease of monitoring

CAPACITOR, RUN, RND DUAL, 45+7.5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

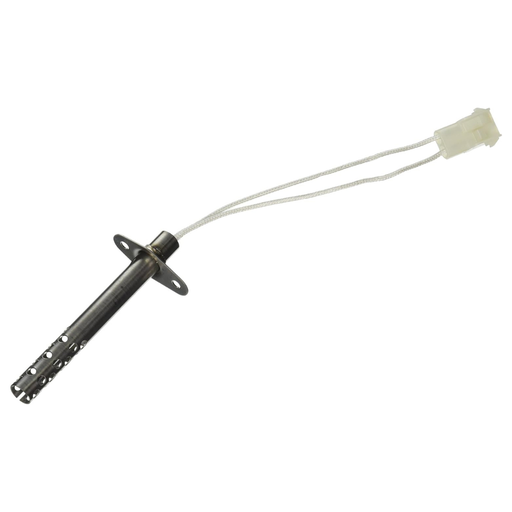

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment. Packaged with special mounting adaptors.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC

Synthetic Polyol Ester (POE) lubricant provides excellent lubricity and compressor protection.
Extends compressor life.
Miscible with all HFC, HCFC, CFC and blend refrigerants.
For reciprocating, rotary & scroll compressor applications in residential air conditioning units.
For centrifugal & reciprocating compressor applications in industrial and commercial refrigeration and air conditioning units.
Helps reduce compressor wear. Contains conditioners, inhibitors & anti-wear agents for excellent lubricity and compressor protection.
Includes additives to prevent acid formation and corrosion.
170 cSt viscosity.

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in
