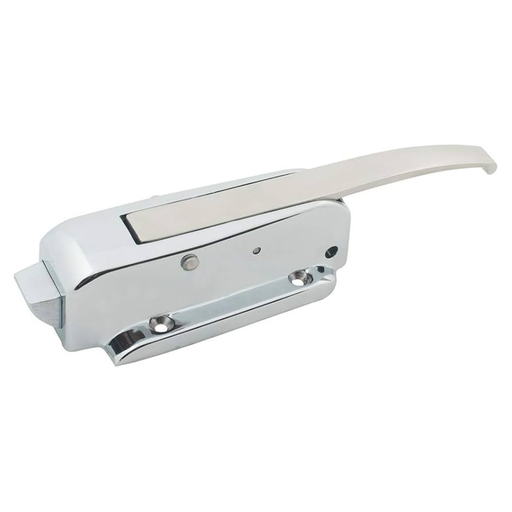

Bolt-type tongue provides positive locking action
Proven, heavy-duty construction outlasts similar latches in hard commercial use
Adjustable strike assures precise adjustment
Padlocking provision standard on all models
Accepts Kason inside release lever to prevent accidental entrapment in locked walk-ins
Inside lever releases cylinder-locked or padlocked door
Unsurpassed for long life and reliability
Inside release sold separately

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

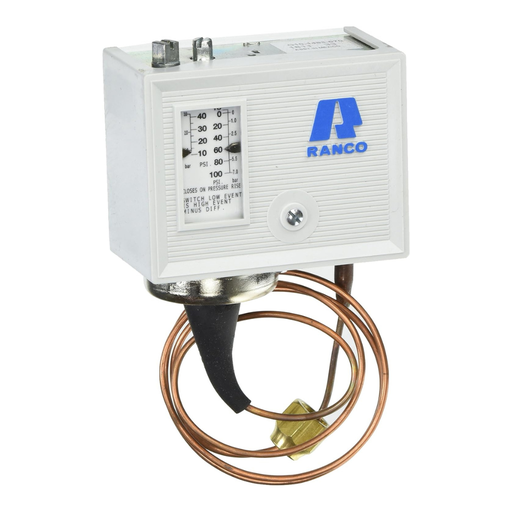

The Ranco® O Series Single Low Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

Controls available for most refrigerant types
High-amp rated switch (SPST) design (O10-1402/O10-1483)
Super Cap® capillary vibration protection system
Non-conductive front cover with captive screw
Adjustable differential and range
Easy-to-read scale plate
Vibration cone (absorbs and reduces vibration away from brazed joint)
Low mass copper alloy capillary tube (reduces capillary stress caused by equipment vibration)
The O16-624 control has additional features:

Compatible with refrigerants 134A, 401A, 401B, 402A, 402B, 403A, 403B and 404A
Cap included on all Australia temperature controls. Optional for all other regions

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

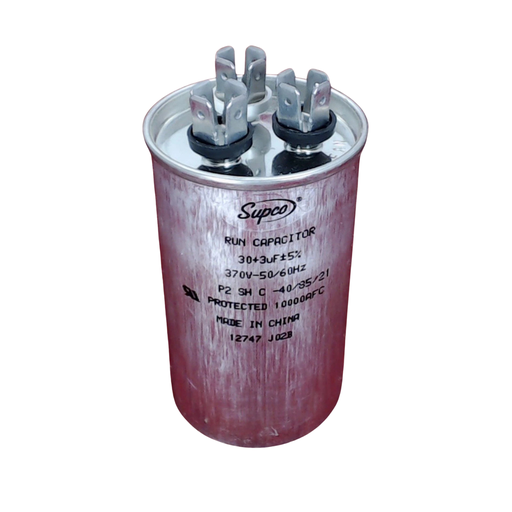

CAPACITOR, RUN, RND DUAL, 30+3 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

CAPACITOR,START,378 – 440 MFD,110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

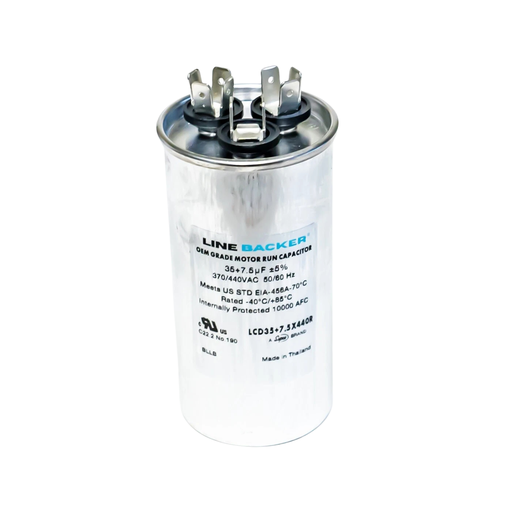

CAPACITOR, RUN, OVAL DUAL, 35+7.5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

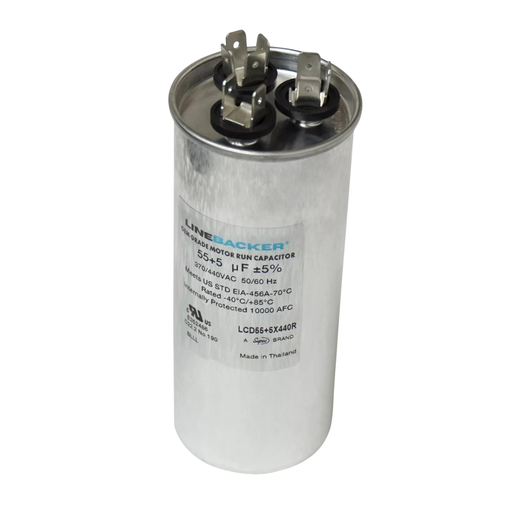

CAPACITOR, RUN, RND DUAL, 55+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

The Paragon® 9045-00 and 9145-00 Universal Defrost Timers (UDT) are the only multi-voltage defrost timers engineered to industry refrigeration standards. Designed to withstand the most rigorous refrigeration applications, this control offers a real-time clock and 100 hours of power loss protection for both time and defrost schedules. Mechanism-only models also are available to fit in standard defrost timer enclosures.

Features and Benefits

Certified to UL873 standard for temperature-indicating and regulating equipment
Wires directly to 120V AC, 208V AC or 240V AC power sources without jumpers or switches
Rated to 30,000 cycles for refrigeration controllers with switches
Easy programming, easy set-up, set time, set defrost start and defrost end
Initiate 15 minute manual defrost
100 hours of power loss protection for both time and defrost schedule
Real-time clock
Lighted display shows defrost start time and duration
System status indicators

2-1/8 x 12''

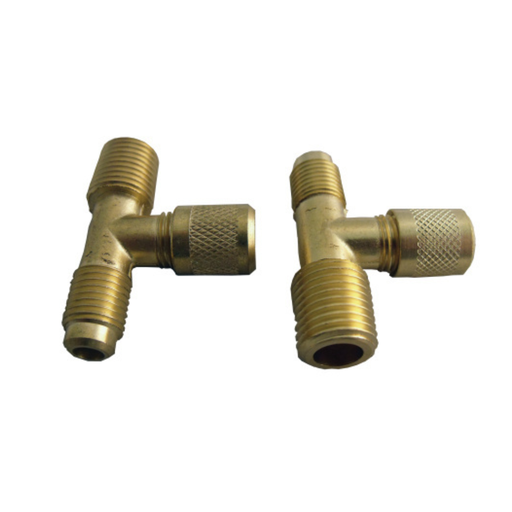

SF9600 Series ¼" flare forged access tees with forged brass tee and ¼" flares are threaded for valve cores

Features/Benefits

¼" male flare x ¼" MPT x ¼" male flare access on branch
One cap
One valve core

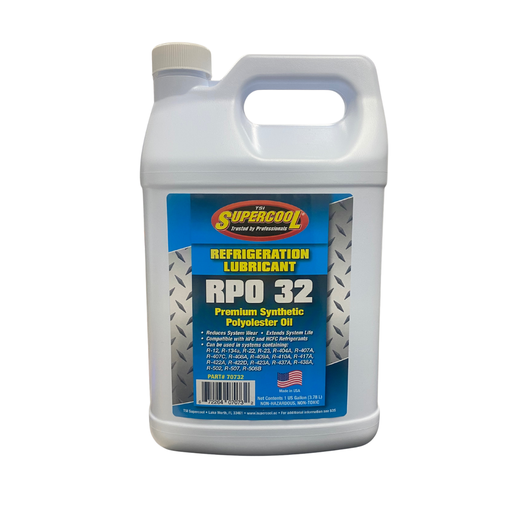

Synthetic Polyol Ester (POE) lubricant provides excellent lubricity and compressor protection.
Extends compressor life.
Miscible with all HFC, HCFC, CFC and blend refrigerants.
For reciprocating, rotary & scroll compressor applications in residential air conditioning units.
For centrifugal & reciprocating compressor applications in industrial and commercial refrigeration and air conditioning units.
Helps reduce compressor wear. Contains conditioners, inhibitors & anti-wear agents for excellent lubricity and compressor protection.
Includes additives to prevent acid formation and corrosion.
32 cSt viscosity.

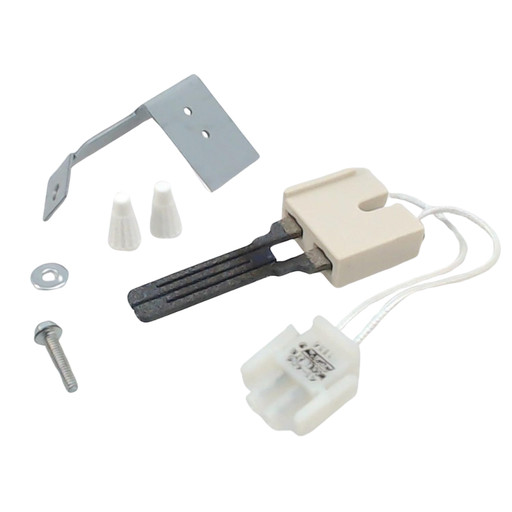

The Robertshaw® Carbide Series Hot Surface Ignitors deliver dependable ignition in heating systems of every description: furnaces, boilers, rooftop heaters, infrared burners, unit heaters, water heaters, and many other types of HVAC equipment.

Features and Benefits

Made from high-purity recrystallized silicon carbide. (Crystar™) which combines physical and thermal strength with stable electrical properties
Designed to reach ignition temperature(s) within 17 seconds
Have 18-gauge nickel chrome lead wires embedded and metalized in place for maximum holding strength and electrical conductivity
Manufactured with lead wires enclosed in a special high-temperature fiberglass insulation providing electrical protection
Operate at 120V AC. Some modules are rated for 208/240V input, however, the voltage to the ignitor is stepped down to 120V AC.

CAPACITOR, START, 88 – 108 MFD, 330V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 2-1/16 in

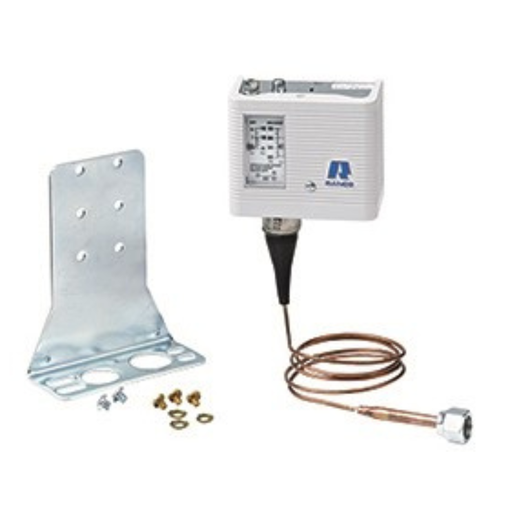

The Ranco® O Series Single High Pressure Controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
Super Cap® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for
easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Cap included on all Australia temperature controls. Optional for all other regions.

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

SWITCH, 1/4 IN, 6VDC, 12VDC, 36VDC, 18 AWG

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

CAPACITOR, START, 233 – 280 MFD, 110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-7/16 in

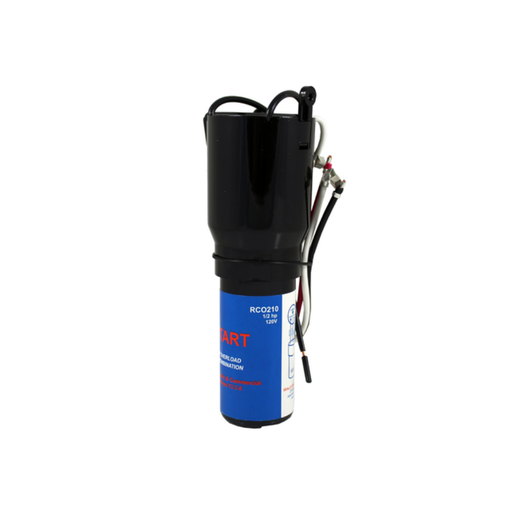

CAPACITOR, OVLD AND START, RLY, 115V, 40A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

3/8 x 12''
