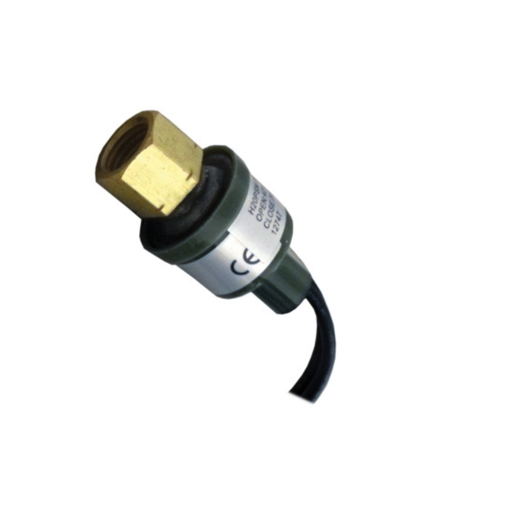

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

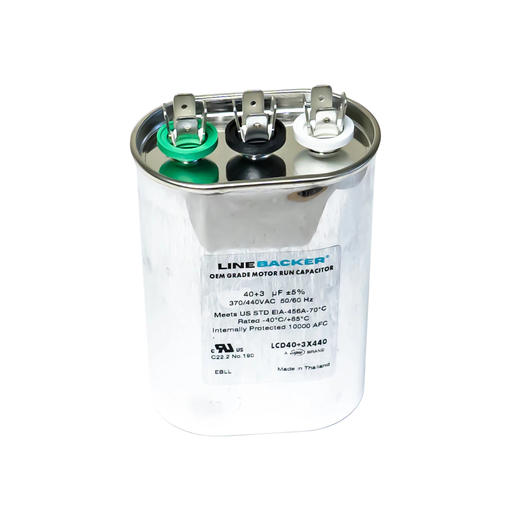

CAPACITOR, RUN, OVAL DUAL, 40+3 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)

Copelaweld Hermetic Air-Cooled Condensing Units
Condensing Unit, 1hp 208/230-1 Herm 3/8“S / 1/2“S Air

Receiver
Fan guard
BX Conduit
All 3-phase models have single phase fan motors
R-22 Models have accumulator (2 hp up)
Electrical:
CAA, CFA, IAA, SAA: 115-1-60
CAV, CFV, IAV: 208/230-1-60
* F - Flare, S - Sweat, RF - Rotolock flare, RS - Rotolock sweat

M Series K Chassis Hermetic Reciprocating Air-Cooled Condensing Unit

Air Cooled steel - 24" x 16.1"

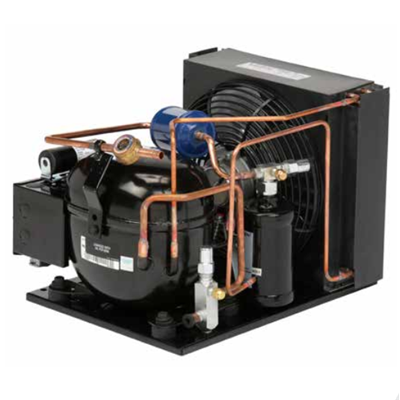

Copelaweld M6KP-0102 Hermetic Air-Cooled Condensing Unit

Medium Temperature Conditions @ 90° - Evap Temps 10 / 15 / 20 / 25
R-404A: 6,910 / 7,620 / 8,370 / 9,150 BTUH
R-448A: 6,330 / 7,120 / 8,000 / 8,960 BTUH
R-449A: 6,340 / 7,130 / 8,010 / 8,970 BTUH
Low Temperature Conditions @ 90° - Evap Temps -10 / -20 / -30
R-404A: 4,420 / 3,350 / -- BTUH
R-448A: 3,790 / -- / -- BTUH
R-448A: 3,800 / -- / -- BTUH

CAPACITOR, RUN, RND DUAL, 40+5 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
Ul Standard US and Canada UL Approved (C22.2NO.190)
Outside Diameter 1.97 in

SWITCH, 1/4 IN, 6VDC, 12VDC, 36VDC, 18 AWG

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

SWITCH, PRES, 1/4 IN, 6VDC, 12VDC, 36VDC

1/4 in SAE 45 deg female flare fitting with valve core depressor
Automatic reset, high pressure switch opens on pressure rise
Life at rated load 100000 cycles
Small size and light weight for direct mounting, snap acting stainless steel hermetically sealed sensor, wire is 18 AWG, 18 in long
Frequency Rating 50/60 Hz
Nominal Size 1/4 in

CAPACITOR, START, 324 – 388 MFD, 110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

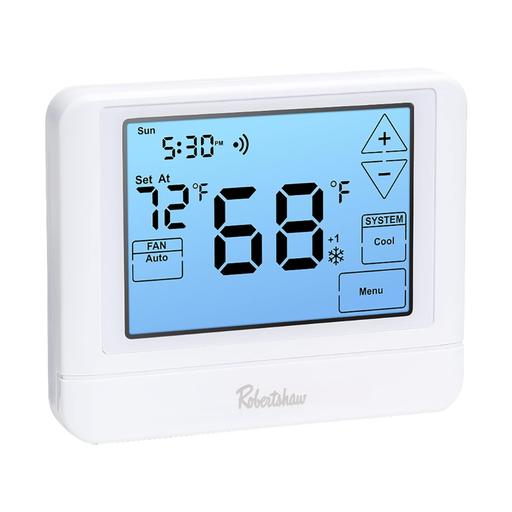

RS9000 Pro-Series Programmable Touchscreen Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable multi-stage temperature control in a simple, modern design with the RS9320T programmable Touchscreen wall thermostat.
Multi-Stage - 3 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 8.8-square-inch blue backlit touchscreen display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Filter change reminder (selectable on/off)
• Keypad lockout

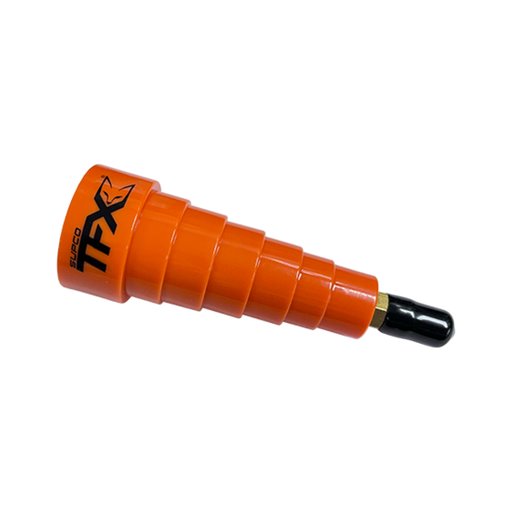

BOOT, NITROGEN, PURGE, 5 IN, HVAC/R

CAPACITOR, OVLD AND START, RLY, 115V, 6.8A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

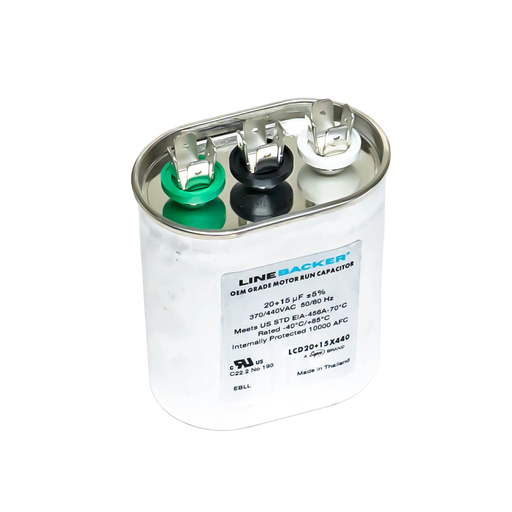

CAPACITOR, RUN, OVAL DUAL, 20+15 MFD, 440V

10,000 AFC pressure sensitive short circuit interrupting capability
Continuous life tested, oil leak tested and dielectric tested for insulation effectiveness
Life tested to 85°C operating temperature for 10,000 cycles
Manufactured with thick polypropylene foil to handle increased operating temperatures, PCB-free oil to prevent over-heating
Meets EIA-456A accelerated life test at 70°C for 60,000 hours
US and Canada UL Approved (C22.2NO.190)
