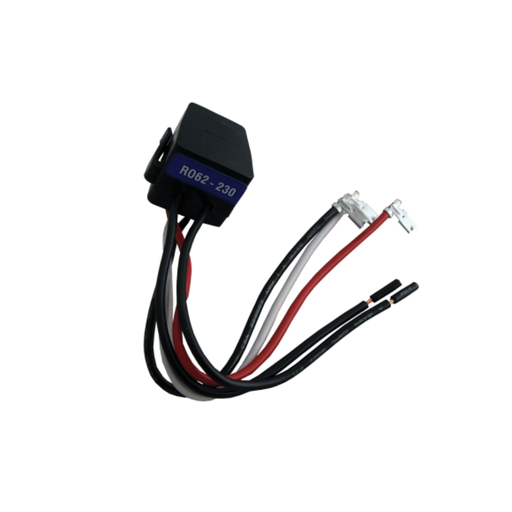

CAPACITOR, OVLD AND START, RLY, 1.66A

Prevents low voltage starting problems
Replaces relay, overload and provides a boost for hard start and unbalanced systems
Wire designations - white/start, black/common, red/run

114N3592 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 7.5HP 3PH
Compressor power supply [V]: 230/3/60
HRXM0750UWK000Q

R448A/R449A Capacity range: 66910 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 7665W, AWEF 10.28

R404A/R507 Capacity range: 72410 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 8089W, AWEF 10.66

Service kit (NC); diaphragm assembly, O-ring, (4) screws, armature assembly, rubber gasket, (2) refrigeration gasket (ange
connections), compression spring

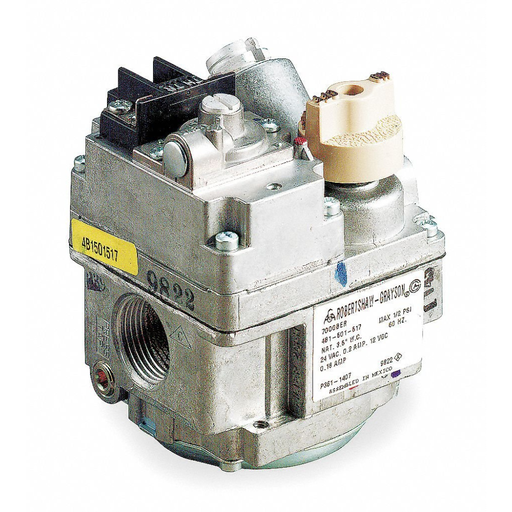

The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5” WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16” swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.

Features and Benefits
Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Combination screw/spade terminal type
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and
LP/air mixtures
Multiple actuators available
RoHS compliant

The Ranco® Dual Pressure Controls combine the functions of a single high-pressure limit control and a single low-pressure control in one unit with a single pole, single throw (SPST) switch.

Features and Benefits

Convertible feature allows selection of manual or reset function when operating at high pressure (O12‑4833/O12-4834)
A wide range of high-pressure manual or automatic reset controls can be replaced (O12-4833 or O12‑4834)
A high-pressure limit is combined with suction pressure sensing to provide temperature control and/or pump down
High-limit adjustment screw
Low-pressure differential and range adjusting screws
Selector screw for manual or automatic
Reset button
Low-pressure scale plate
High-impact plastic cover with center mount screw
High-pressure scale plate
Super Cap® capillary protection system
Color-coded for easy identification of pressure line
High-side capillary flare nut (silver)
Low-side capillary flare nut (brass)

T-3/8, Vinyl Tubing, 3/8" ID x 100FT

Ideal for split systems
Stops micro leaks in metal air conditioner parts
includes 410a adapter
Easy to install and safe to use
Treats systems up to 6 tons
Does not react to oxygen and moisture
Compatible with all HVAC-R lubricants and refrigerants
Helps lubricate system and prevent future leaks
Contains proprietary anti-wear and anti-oxidant additives
1/4 oz single application

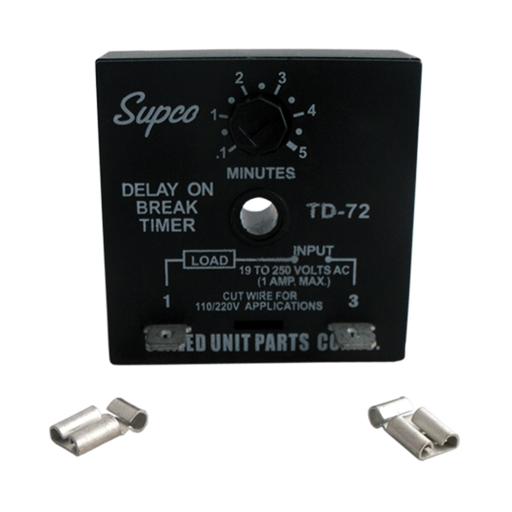

Time Delay on Break Timers (DOB)

Features/Benefits

1/4" male quick connect terminals
Adjustable time delay on break 6 seconds to 5 minutes
Cut the jumper wire to use in 110/250 volts
Delay on Break Timer (DOB)

This premium hose features all-weather flexibility and strength and comes in pack of 3 with a 5ft (150cm) measurement.

The J10 Series Humidistats and Dehumidistats are designed to regulate the relative humidity of confined spaces by cycling humidifying or dehumidifying equipment. Designed for central systems, the J10 controls are made from high impact plastic with a brushed finish dial plate. The J10's nylon sensing element provides long life and accurate humidity control.

Features and Benefits

Strong plastic frame with integral switch eliminates the need to ground the control
Improved woven nylon sensing element provides a faster response time
Greater stability in set points over dramatic changes in relative humidity
Improved differential allowing 5% relative humidity

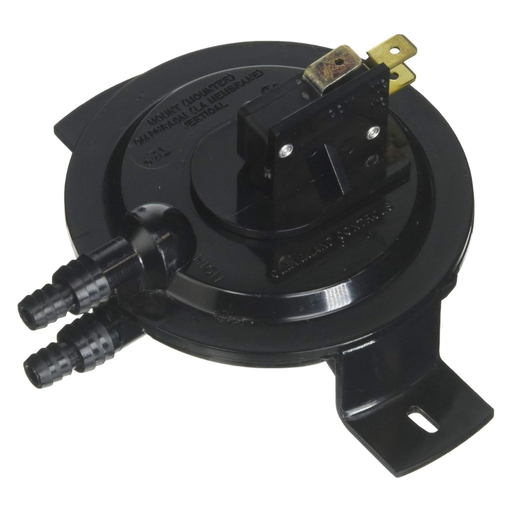

The Robertshaw® 2374 Series Adjustable Air Sensing Switches are designed to replace a wide variety of air sensing switches found in residential and light commercial applications including furnaces, electronic air cleaners and humidifiers. Two models are currently available with adjustable ranges. Both models are provided with an SPDT switch that can be actuated by positive or negative pressure or by pressure differential. Highly accurate, these switches are practically insensitive to temperature change with an operating temperature range of -40°F to 190°F (-40°C to 88°C). Each switch includes mounting hardware and an adjustment tool for easy installation and calibration.

Features and Benefits
Field adjustable control set point
Air sample line connectors will accept 1/8”, 1/4” or 3/8” tubing
Electrical connection is 1/4” spade
Vertical operating mounting position for diaphragm
UL File Number MH6213, CSA File Number LR18754

Universal round Silicon Nitride igniter kit. Includes brackets and hardware to replace hundreds of OEM furnace and boiler igniters

Features/Benefits

18 gauge copper high temperature fiberglass insulated lead wires
Faster time to temperature response
Higher resistance to oxidation
Lower power consumption
Measures Approximately 12 3/4 inches in diameter.
See Cross Reference tab for additional numbers
Stronger more durable design
Superior gas lighting ability

114N3579 OPTYMA™ OUTDOR SLIM (LOW AMBIENT KIT) MED 3HP 1PH
Compressor power supply [V]: 230/1/60
OP-HNXM0300UWK000N

R448A/R449A Capacity range: 23320 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3174W, AWEF 8.92

R404A/R507 Capacity range: 25290 BTU/hr (Ambient Temp. = 95°F , evaporating temperature =25°F), Power consumption 3187W, AWEF 9.92

Seal kit (NC/NO); O-ring for armature tube, rubber gasket, support ring

Pilot service kit (NC); (2) Al. gaskets, O-ring, orifice, armature tube, armature assembly, compression spring

Robertshaw® offers direct replacements for several leading OEM brand ignitors. These ignitors are constructed with sturdy, long-lasting silicon nitride for maximum longevity. The Robertshaw 41-428N is a 120V Direct Replacement for Trane IGN00152 with a 4.32 inch wire length and a 1.5 inch insulator, with a right angle mounting bracket.

The 1830 Series Pilot Uni-Kit® models are designed to be used with all Robertshaw® and most competitive thermocouples. Uni-Kit models include an adaptor that converts a threaded thermocouple/thermopile model 2CH to a snap-in thermocouple type, model 2C.

Features and Benefits

Many flame pattern types available
Thermocouple or thermopile options
Spark electrode available
Horizontal or vertical gas inlet
Several mounting bracket types available
Aerated pilots with non-linting characteristics

The Robertshaw® 1751 Series Add-on Pressure Regulator Kits are available for use on the following factory model types: 7000, 7010, 7100, 7200 and 7222. Each 1751 pressure
regulator kit provides straight-line regulation and includes all the necessary parts including instructions to convert a specific factory model gas valve.

Features and Benefits

Converts natural gas to LP
Not for use with hydraulic models which cannot be field converted
Includes all necessary parts for easy regulation conversion
