START, HARD, 170 TO 277V, 1/3 TO 2 HP

Backup electronic timing circuit to protect the compressor
Can be used on PSC and CSIR type compressors
Easy 2-wire installation
Electronic potential relay (EPR) technology, Instant re-start, voltage sensing
NATE recognized (course #1867-0002)

CU CC SCRL 6.0HP 575/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10 °F
Voltage : 575/3/60
Application Capacity* : 27,650 BTU/H
Refrigerant Type : R404A
AWEF Value : 3.15

CAPACITOR, START, 460 – 552 MFD, 110V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

These controls offer a variety of pressure ranges and switch action to provide maximum application flexibility.

Features and Benefits

NEMA 1 enclosure with non-conductive cover
Front-located captive cover screw
Large, easy-to-read scale plate
SUPER CAP® capillary protection system
Universal mounting and compact design
Screw terminals are raised and fully accessible for easy wiring
Laser-welded bellows for extended life
Heavy-duty plated steel frame
Suitable for R12, R22, and R502 applications

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

16-14 AWG ¼" (.250") Male Tab 20 Pieces

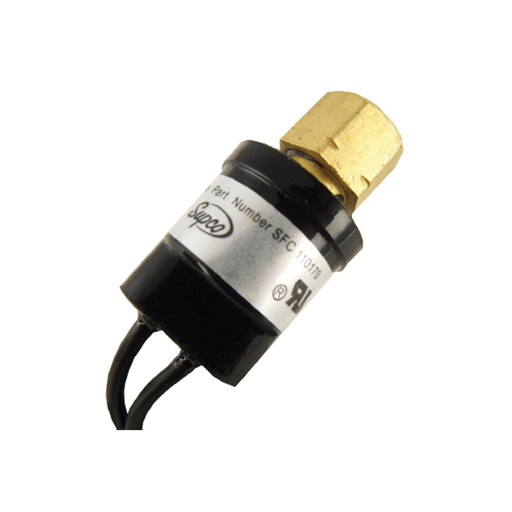

Fan cycling low pressure switches

Features/Benefits

¼" SAE 45° female flare fitting with valve core depressor
Condenser fan cycling switch closes on pressure rise
Automatic Reset
Life at rated load: 100,000 cycles
Rated Voltage 24/120/240 VAC @ 50/60 Hz
Small size and light weight for direct mounting
Snap acting stainless steel hermetically sealed sensor
Wire is 18 AWG, 18" long

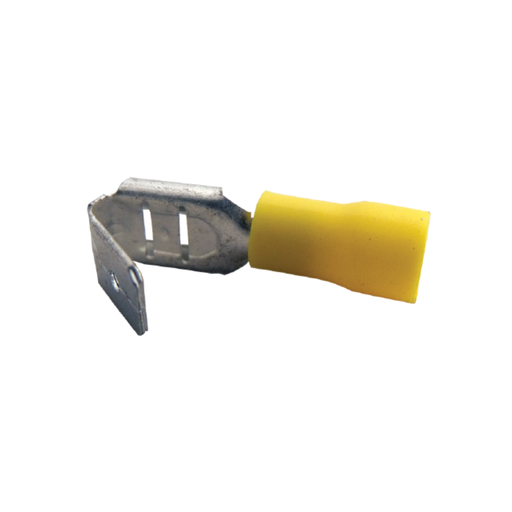

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

22-18 AWG ¼" (.250") Male/Female P.B. 10 Pieces

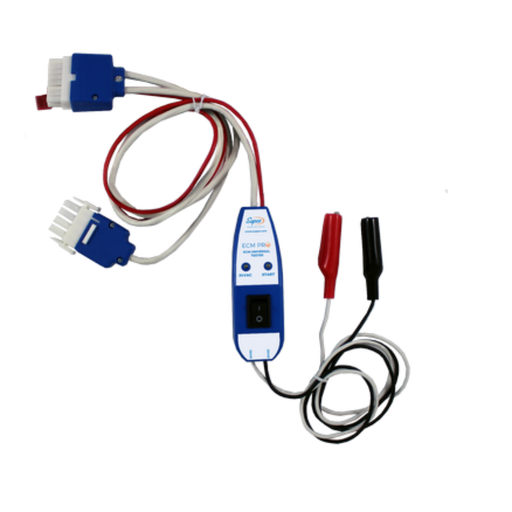

The SUPCO® Universal ECM Tester provides functional test for virtually all types of Electronically Commutated Motors on the market.

TESTER, UNIV, ECM, 24VAC, 24 IN

24 in leads and magnetic case for job-site convenience
24 VAC indicator light, short circuit protection
Easy to use - gives a in Go/No-Go in result
No batteries required
Part of our Supco TradeFox™ Technician-Invented product line

RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design with the RS9210 programmable wall thermostat.
Multi-Stage - 2 Heat / 1 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Dual fuel compatible
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Supco® terminal service packs are handy and low priced, ideal for small jobs.

Features/Benefits

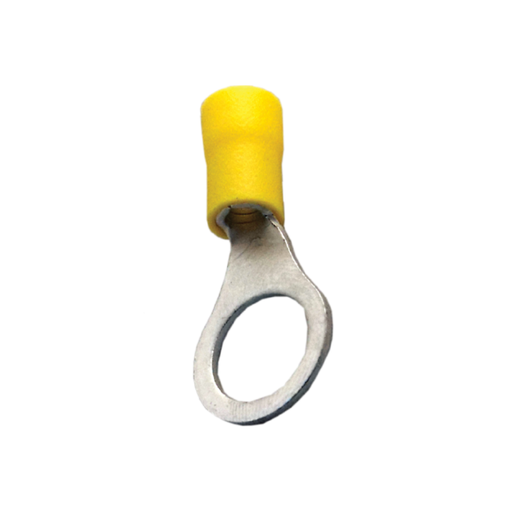

12-10 AWG ⅜" stud 25/64" I.D. 15 Pieces

The SRL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

CSA approved
Manual reset
UL® recognized
Uses 36T electrical ratings

Terminals: Vertical ¼"
Cut out temp ( °F): 300 °F
Cut in temp ( °F): Manual

CU CC SCRL 5.5HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 208-230/3/60
Application Capacity* : 20,680 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15

CU BN SCRL 10.0HP 575/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 575/3/60
Application Capacity* : 40,370 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15

CU CC SCRL 4.5HP 208-230/1/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 208-230/1/60
Application Capacity* : 33,920 BTU/H
Refrigerant Type : R448A
AWEF Value : 7.6

CU CC SCRL 10.0HP 575/3/60 MED
Ambient Temp : 95 °F
Suction Temp : 25 °F
Voltage : 575/3/60
Application Capacity* : 104,740 BTU/H
Refrigerant Type : R448A
AWEF Value : 7.6

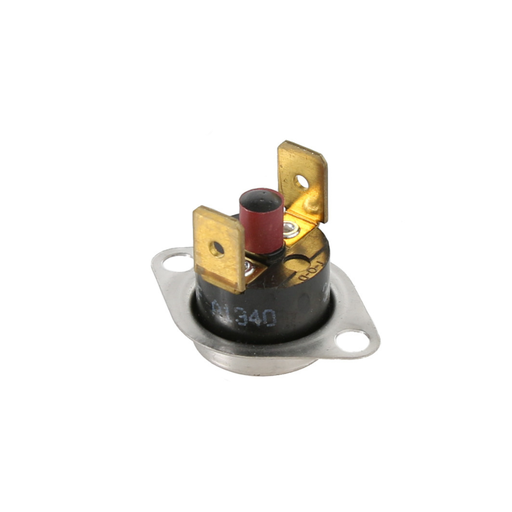

The SRL series of 1/2" bimetal temperature controls offers proven reliability in a compact, versatile, cost-effective design.

Features/Benefits

CSA approved
Manual Reset
UL® recognized

Terminals: Vertical ¼"
Cut out temp ( °F): 220 °F
Cut in temp ( °F): Manual

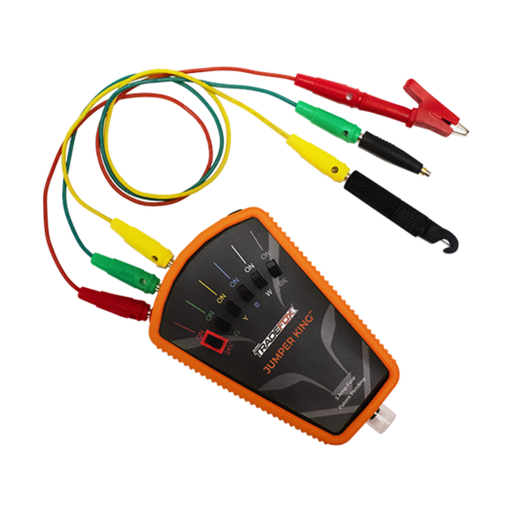

The Jumper King° allows you to quickly bypass any low voltage thermostat regardless of terminal style. This patent-pending all-in-one kit comes with everything you need to locate low-voltage shorts and eliminate compressor short cycling.

Features/Benefits

2-Spade Adapters, Jumper King° Thermostat Bypass Tool, Hard Carrying Case
6-Alligator Clips, 6-Magnetic Tips, 6-Jumper Leads, 6-Self Piercing Insulation Tips
For Use on low voltage circuits only (0-30VAC/VDC)
Four types of interchangeable tips: spade adapters, alligator clamps, magnetic tips and self-piercing insulation tips
Inovative selector switches to activate leads/circuits of your choosing at any time
No batteries required - powered by the low voltage in theA/C unit
Rugged unit has a rubberized boot, a magnet and fold-out hook for convenient mounting
Will never short out - contains a resettable popper fuse
Works on multiple stage units including heat pumps

CU CC SCRL 2.0HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10 °F
Voltage : 208-230/3/60
Application Capacity* : 9,310 BTU/H
Refrigerant Type : R404A
AWEF Value : 3.09

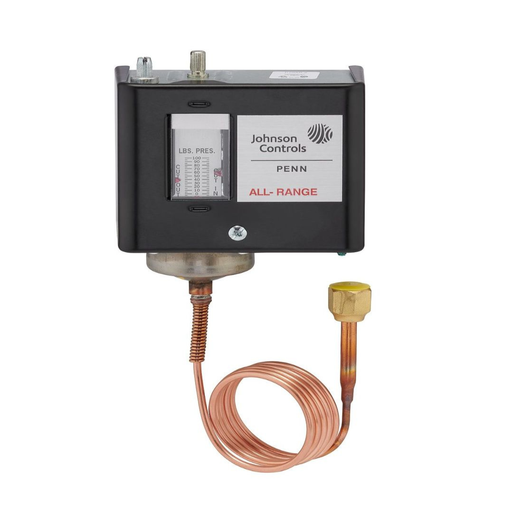

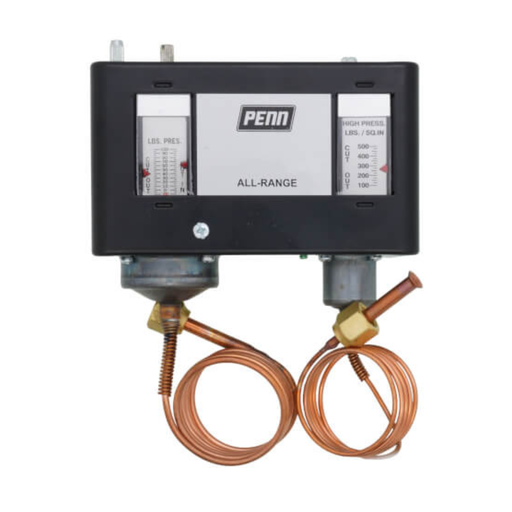

The P70 and P170 Controls for high pressure applications are designed primarily for high pressure cut-out control, head-pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications.

Oatey® PVC Medium Gray Fast Set Cement is recommended for potable water, pressure pipe, conduit and DWV applications. It can be used on all schedules and classes of PVC pipe and fittings up to 6 in. diameter with interference fit. Oatey products have earned the trust of plumbing professionals for over 100 years.

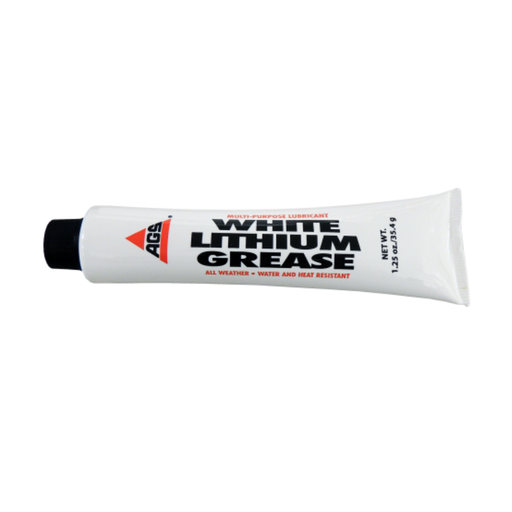

LITH-EASE is a high-quality, multi-purpose grease for automotive, marine, shop, farm and home use. Manufactured from the highest quality lithium soap, and produced with '12 Hydroxy' hydrogenated castor oil which contributes to the smooth consistency.

Features/Benefits

Excellent water resistance
Long Lasting
Minimal oil separation
Superior performance
Wide temperature range

CAPACITOR, START, 145 – 175 MFD, 220V

Type two, dry, electrolytic, non-polarized, types for intermittent duty in AC motors and compressors, standard dual blade terminals
Industry standard case sizes
Made at Supco in Nanchang. Jiangxi, China
Moisture and oil resistant molded phenolic resin or plastic material
Non-PCB biodegradable synthetic oil, used where starting torques must be higher in relation to running torques
Application Motors and Compressors
Outside Diameter 1-13/16 in

RS9000 Pro-Series Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable two-stage heating and cooling control in a simple, modern design with the RS9220 programmable wall thermostat.
Multi-Stage - 2 Heat / 2 Cool

• Large terminal blocks for easy installation
• Universal sub-base
• Quick-access menu button
• Contractor/technician setup menu
• Easy-to-understand programming menus
• Intuitive wake, leave, return, sleep programming icons
• 24V AC Powered OR Battery Operation (Included)
• 6Year Limited Warranty
• Factory pre-set energy efficiency program Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

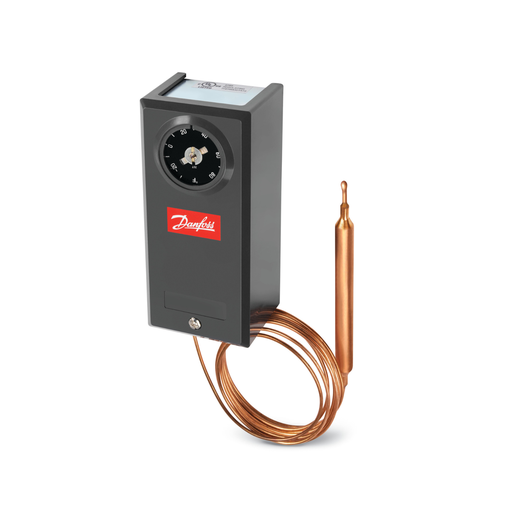

KPU 19 - Thermostats
The KPU 19 thermostats are designed for easy installation and service with bottom and rear knockouts, differential adjustment dial,
a tamper-resistant design, and a robust thermoplastic housing.

The P70 and P170 Controls for high pressure applications are designed primarily for high pressure cut-out control, head-pressure control, and condenser fan cycling control on commercial refrigeration and air conditioning applications.

The Paragon® 8000 Series Commercial Defrost Controls are designed for commercial freezers and refrigerators to provide automatic defrost capability. They accommodate various types of defrost systems including electric defrost heaters, hot gas, and compressor off cycle.

Features and Benefits

Time initiated; temperature, pressure or time terminated models available
High-amp switch contacts: 40 Amps, 2 HP
Positive slider bar switch design assures positive electrical contact and wipes the contact surface of contaminates
Temperature or pressure terminated models are designed for defrost termination using an external temperature or pressure device
Safety back-up - mechanical time-driven defrost termination
Heavy-duty synchronous design drive motor
Choice of three contact arrangements
Adjustable frequency of defrost initiation from 1 to 6 cycles per day with a minimum of 4 hours between successive operations
Adjustable back-up defrost termination from 4 to 110 minutes in 2 minute increments
Heavy-duty steel enclosure with knockouts (on the bottom, back and sides) and hasp and staple padlock
All 8240 models have an adjustable cut-in pressure dial calibrated from 36-110 pounds for R12, R22, R502

OV Series 3 / 4" Universal Replacement Motor Protectors

Features/Benefits

Built in temperature activated disc opens and closes the motor overload protector's contacts
Protects compressor or motor from excessive high heat situations
UL® & CSA Approved
Universal replacement overload
Locked rotor amps: 18.5-22.0
hp @ 120 VAC: 1/10 thru 1/4
hp @ 240 VAC: 15 thru 1/2

CU BN SCRL 7.5HP 208-230/3/60 LOW
Ambient Temp : 95 °F
Suction Temp : -10.0 °F
Voltage : 208-230/3/60
Application Capacity* : 31,350 BTU/H
Refrigerant Type : R448A
AWEF Value : 3.15
